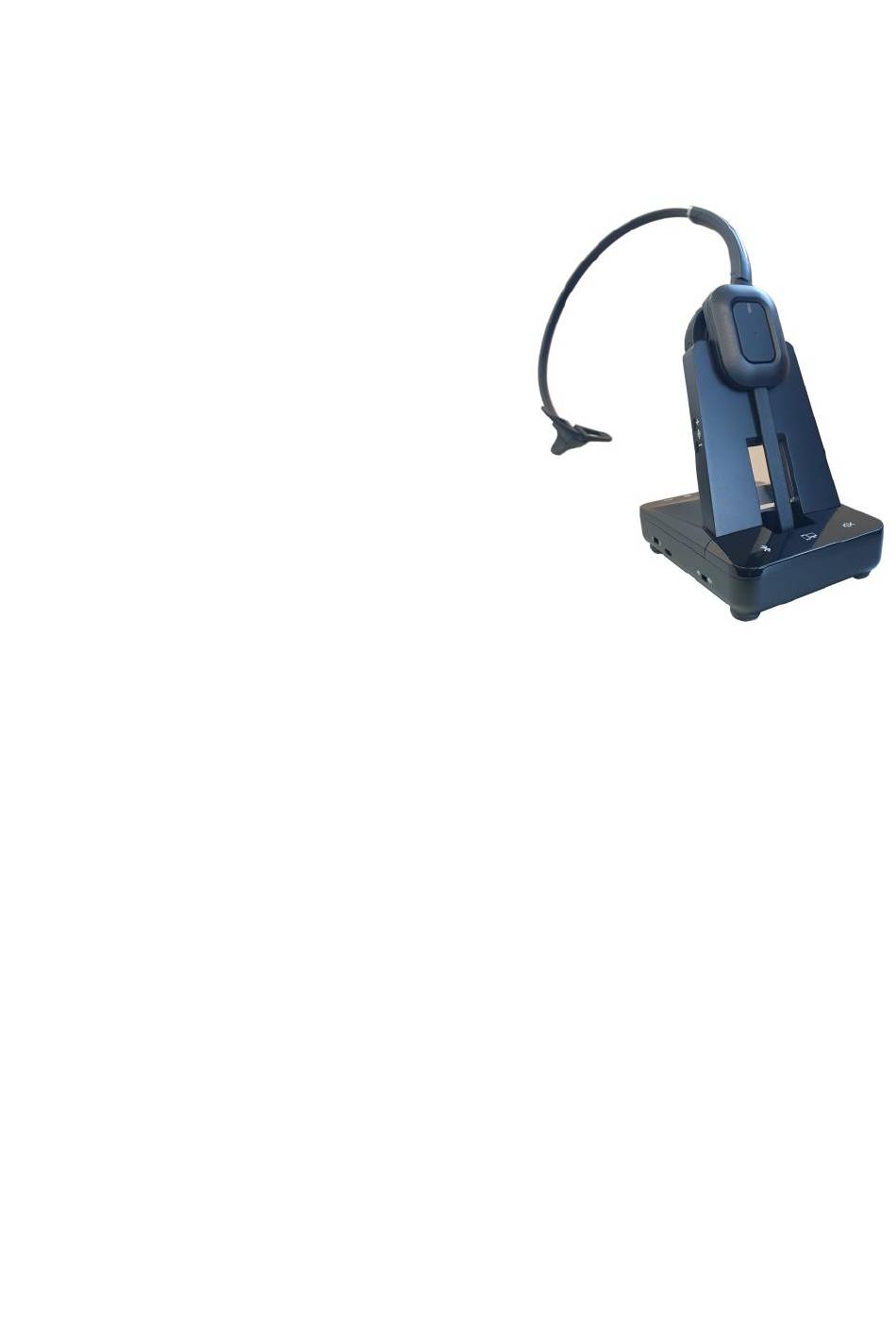

- Page 1 User’s Manual Wireless Headset DW-780 Wireless Headset Families DW-780 (Telephone connection only) DW-780U (Telephone & PC connection) DW-780B (Telephone & Bluetooth connection) DW0780UB (Telephone & PC & Bluetooth connection)
-
Page 2: Optional Accessories
INTRODUCTION What are included Base & Headset Telephone cord Power Adapter Optional Accessories Refer to the EHS Guide BusyLight DL-570 Lifter USB Cable Electronic Hook Switch (EHS) - Page 3 Assemble headband Clip the headband on the headset. And rotate the microphone boom arm to your required position. Positioning a Headset Microphone Holding the headset, rotate the headband to bring the boom close to your mouth. Place the microphone element to the side of your mouth to avoid noise from breathing.
- Page 4 Earpiece Speaker Volume adjustment To change the earpiece speaker volume: tilt the volume switch to the „+‟ sign to increase volume and tilt the switch to the „-‟ sign to decrease volume. And pressing the switch can mute and unmute microphone sound.
- Page 5 Base Station (Front & Left side) Bluetooth Button This function works for DW-780B and DW-780UB model. PC/TEL Selection This function works for DW-780U and DW-780UB model. Microphone Mute Button Press to mute microphone sound on headset Microphone Volume After connection, you can adjust the volume level for the best microphone volume.
- Page 6 Base Station (Back side) Handset port Telephone port DC Jack AUX port BusyLight Jack BusyLight Jack Connect BusyLight plug to the jack DC Jack Connect Power Adapter to DC Jack AUX port Connection for Handset Lifter or EHS Adapter(optional extra) Telephone Port Connect telephone cord to the headset port or handset port Handset Port...
-
Page 7: Visual Indicator
Visual Headset Window Bluetooth PC/TEL Microphone Button Button Mute button Visual Indicator Charging Status LED Indicator (Headset) Visual Window(Base) Red LED : „ON‟ Charging White Blue LED: „ON‟ Full Charged White Low Battery Blinking in White Incoming Call Blinking in Green Event LED Indicator (Base station) Mute: „ON‟... - Page 8 Audio Indicator Event Sound Effect Beep Sound „UP‟ - High tone, ‟DOWN‟ – Low Tone Speaker /Microphone volume Max/Min Speaker volume Double beep Max/Min microphone volume Double beep Microphone mute/unmute Mute : beep Unmute : Double beep Mute reminder Beep in every 5 sec Hook Off / On Hook Off : Double beep(High tone), Hook On : Double beep(Low tone)
-
Page 9: Additional Accessories
Additional Accessories DL-570 LIFTER The DL-570 LIFTER remotely lifts the desk phone handset To make or answer a call. Electronic Hook Switch (EHS) Adapter EHS Adapter enables an incoming call to be answered or ended by using the On/Off EHS is only compatible with designated telephone systems. To determine which telephones are compatible with the EHS, please refer to EHS guide or contact your local distributor. - Page 10 - If pairing is completed, beep sound can be heard and Tel icon light on base station and light on headset will be turned off. Connecting To a PC Plug the USB cable to the port on the left side of base unit. Connect the USB cable to any free USB port on the PC.
- Page 11 Bluetooth Usage (Only for Voice Connection) On the base top case, the Bluetooth button can be found. When this button is pressed, the blue LED is blinking, and the base station is on Bluetooth pairing mode. To make pairing with smartphone, PC, or any other Bluetooth host device, you should put other Bluetooth device is on pairing mode, too.
- Page 12 After finishing, the blue LED will be turned off and previous mode LED will be turned on. When user makes a Bluetooth call on smartphone, the blue LED on base station will be blinking with different period. PC/Tel LED on base station will be blinking. Call processing beep can be heard on headset‟s earpiece speaker.
-
Page 13: Troubleshooting
Trouble Shooting 1. Cannot hear a dial tone. ☞ Check the PC/TEL button. TEL Mode: PC/TEL indicator – „OFF‟ (DW-780U, DW-780UB only) ☞ Please check the cable connection between Base Unit and Phone. ☞ Check that the power adapter is plugged in and has power ☞...
