Electus Distribution POWERTECH Lithium SB2220 Instruction Manual

12.8v 100ah lithium slimline deep-cycle battery with metal case
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
12.8V 100Ah
Lithium Slimline Deep-Cycle Battery
with Metal Case
SB2220
Instruction Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the POWERTECH Lithium SB2220 and is the answer not in the manual?

Questions and answers

Summary of Contents for Electus Distribution POWERTECH Lithium SB2220

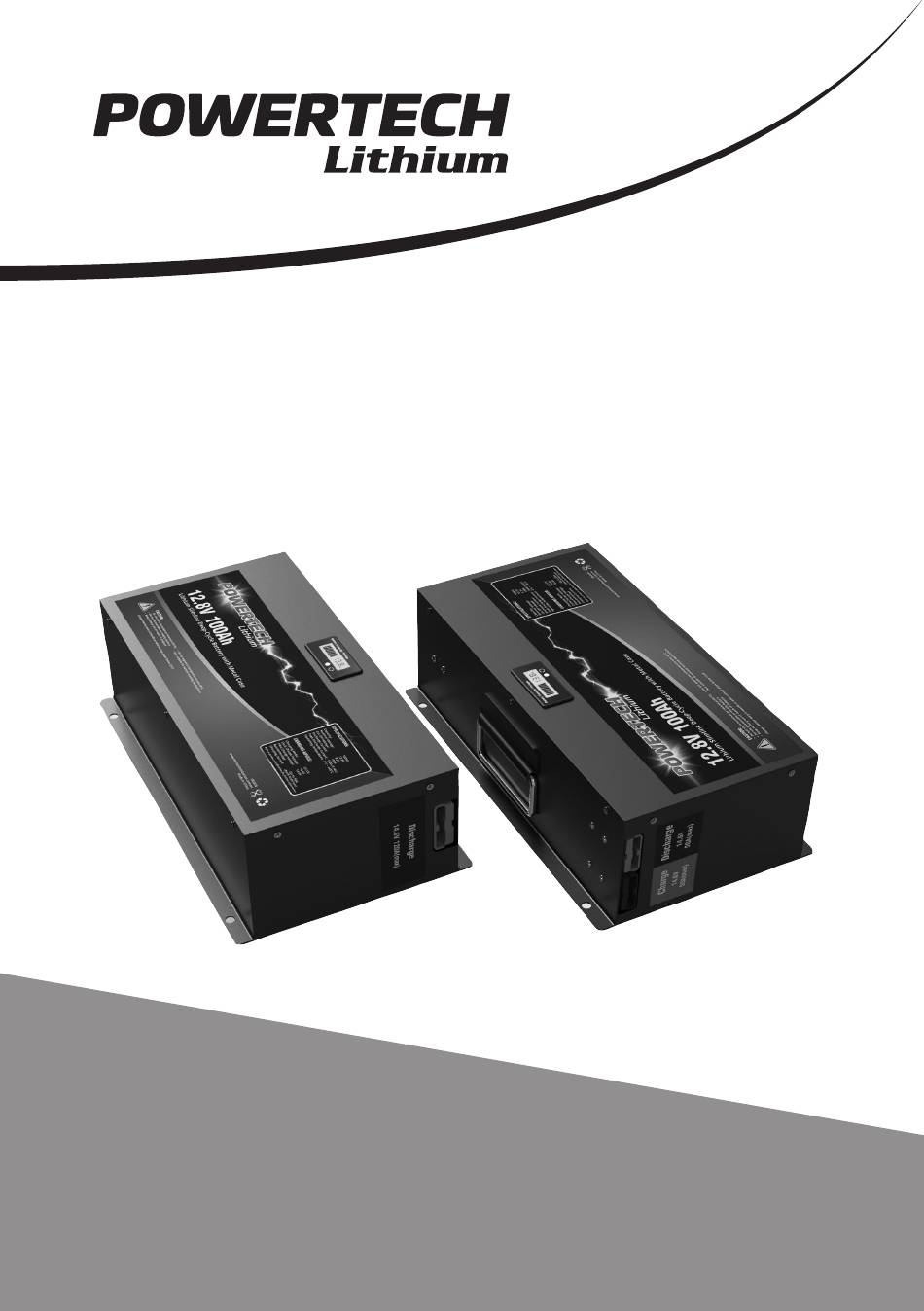

  • Page 1 12.8V 100Ah Lithium Slimline Deep-Cycle Battery with Metal Case SB2220 Instruction Manual...

  • Page 2: Table Of Contents

    Contents Warning 1. Product Index 1.1 Product Parameter 1.2 Product Parameter Graph 1.3 Battery Management System 1.4 Battery Part Identification 2. Battery Usages 2.1 Charge 2.2 Discharge 3. Battery Service Environment 4. Special Attention 5.Battery Use and Maintenance 5.1 Battery Storage 5.2 Battery Check Before Use 5.3 Battery Installation 5.4 Battery Operating Requirements...

  • Page 3: Warning

    WARNING: Quality Statement Proper use and maintenance will ensure that the battery (or battery system) will operate reliably and consistently for a long period of time. • After receiving the product, please check if the packaging is in good condition. If the packaging is broken, there may be damage to the product.

  • Page 4: Product Index

    1. PRODUCT INDEX: 1.1 Product Parameter Items Lithium Slimline Deep Cycle Battery with Metal Case Product Manual SB2220 Normal Voltage Nominal Capacity 100Ah Energy 1200Wh Internal Resistance ≤220mΩ Size 190mm x 140mm x 230mm Weight 11Kg End of Charge Voltage 14.6V End of Charge Current 100mA...

  • Page 5: Battery Management System

    1. PRODUCT INDEX: 1.3 Battery Management System Our lithium iron phosphate (LiFePO4) battery pack includes an onboard digital battery management system (BMS). The BMS monitors voltage, current and temperature on both an individual cell and battery pack level. If any of these measurements deviate outside of their safe operating ranges, the BMS will actively work to correct the deviation.

  • Page 6: Battery Part Identification

    1. PRODUCT INDEX: 1.4 Battery Part Identification Discharge - 14.6V (50A MAX) Display Carry Handle Charge - 14.6V (50A MAX) Discharge - 14.6V (120A MAX) Remaining Battery Battery Capacity / Voltage Switch (test battery status)

  • Page 7: Battery Usages

    2. BATTERY USAGE: 2.1 Charge Charging voltage is14.4 ± 0.15V. Do not reverse polarity. 2.2 Discharge Make sure loads are properly wired to the positive and negative connections as indicated on the battery case. 3. BATTERY SERVICE ENVIRONMENT: Battery discharge ambient temperature is -10°C~ + 55°C (When the ambient temperature >45°C, please pay attention to the ventilation and heat dissipation).

  • Page 8: Special Attention

    4. SPECIAL ATTENTION: In order to make full use of the energy efficiency of the battery and prevent accidents such as leakage or heat generation, please prohibit the following: • Do not immerse the battery in water. If the battery is immersed in water do not approach.
  • Page 9 4. SPECIAL ATTENTION: • If the battery gives off a strange odor, generates heat, becomes discolored or deformed, or any abnormality appears during use, storage, or charging, stop the battery from charging and stop use of the battery immediately. Remove and isolate the battery from loads and charging sources and contact your battery supplier or distributor.

  • Page 10: Battery Use And Maintenance

    5.BATTERY USE AND MAINTENANCE 5.1 Battery Storage Storage temperature 0°C~40°C (Optimum storage temperature 15°C~25°C, low humidity). Battery performance is affected by temperature. Especially the change in battery capacity. This is a normal phenomenon. Avoid condensation caused by temperature changes during storage. Failure to do so can lead to corrosion, rust and internal battery failure.

  • Page 11: Battery Operating Requirements

    5.BATTERY USE AND MAINTENANCE 5.4 Battery Operating Requirements • The charge and discharge current of the battery shall not exceed the specified maximum charge and discharge current. Current input or output beyond recommended levels may affect the lifespan of the battery, damage the internal circuitry, or even cause a dangerous situation.

  • Page 12: Battery Troubleshooting

    5.BATTERY USE AND MAINTENANCE 5.6 Battery Troubleshooting • Battery voltage is too low after being fully charged. Solution: Contact your installer or distributor. • Battery is in long-term storage with no use and is not being maintained properly. Solution: Please test the battery voltage. If the battery voltage is <8.0V, it can’t be charged and needs to be un-wired and isolated.

  • Page 13: Products Disclaimer

    6.PRODUCTS DISCLAIMER Before using the battery, please read the specifications, usage/ maintenance instructions and pay careful attention. Suppliers are not responsible for any incident caused by not installing and operating the battery according to this manual. Any problems from incorrect use, installation, connection, or input/output power, inconsistent with this manual, may cause damage to product.
  • Page 16 Distributed by: Electus Distribution Pty. Ltd. 320 Victoria Rd, Rydalmere NSW 2116 Australia www.electusdistribution.com.au Made in China...
