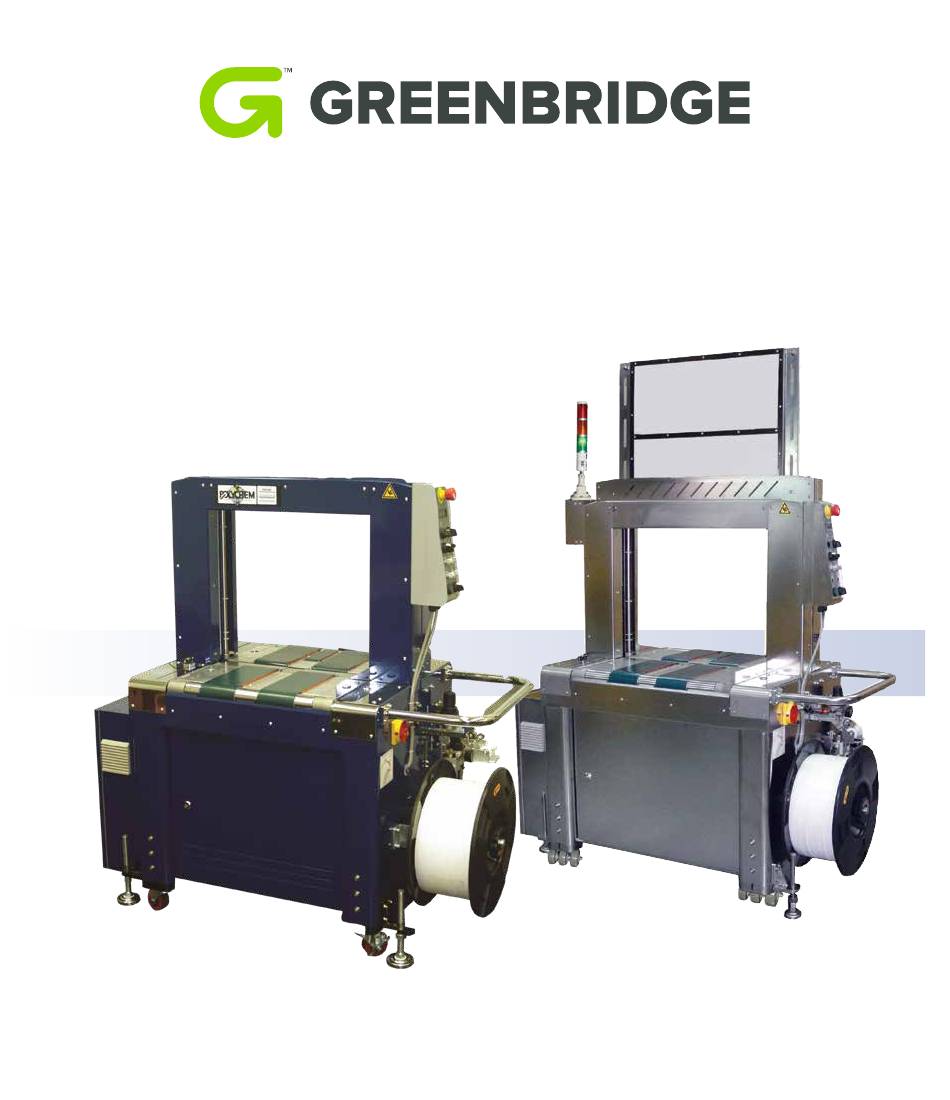

PC2000 PC2000CX
OPERATION MANUAL | SPARE PARTS LIST
GREENBRIDGE
6277 HEISLEY ROAD, MENTOR, OHIO 44060
PHONE: 440.357.1500, FAX: 440.352.9553
WWW.GREENBRIDGE.COM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PC2000 and is the answer not in the manual?

Questions and answers

Summary of Contents for Greenbridge PC2000

  • Page 1 PC2000 PC2000CX OPERATION MANUAL | SPARE PARTS LIST GREENBRIDGE 6277 HEISLEY ROAD, MENTOR, OHIO 44060 PHONE: 440.357.1500, FAX: 440.352.9553 WWW.GREENBRIDGE.COM...
  • Page 2 PC2000 PC2000CX OPERATION MANUAL | SPARE PARTS LIST GREENBRIDGE 6277 HEISLEY ROAD, MENTOR, OHIO 44060 PHONE: 440.357.1500, FAX: 440.352.9553 WWW.GREENBRIDGE.COM...

  • Page 4: Table Of Contents

    CONTENTS PART I 1 General Safety Instructions ..............A1 1.1 Basic Operation................. A1 1.2 Basic Safety Precautions ............A1 1.3 Safety Instructions Governing Specific Operational Phases ..A2 1.4 Warning of Electrical Dangers ..........A3 1.5 Grounding Instructions Shall Include the Following ....A3 1.6 Before Operating...............
  • Page 5 2.6 Technical Specification ............. A9 3 Preparation Before Operating the Machine........A12 3.1 Shipping ...................A12 3.2 Transportation & Centre of Gravity .........A12 3.3 Construction Layout..............A13 3.4 Installation................A14 3.5 Operation Space ...............A15 3.6 How to connect Upstream and Downstream Machine (B5 Connector)................A16 3.7 Operating Elements..............A17 3.8 Instructions for Loading PP Strap ..........A19 3.9 Auto Strap Feeding Procedure ..........A20...
  • Page 6 5.3 Adjustment for Heater Temperature.........A28 5.4 Some adjustments for straps ............A28 5.5! Adjustment for Feeding/Reversing Pressure......A30 5.6! Adjustment on Tensioning Rollers for High Tension....A32 5.7! Speed and Pressure Adjustment of Press Bar......A33 5.8 Change Bundle Flow Direction..........A34 5.9 Height Adjustment of Press............A34 6.
  • Page 7 PART III 1. Strapping Head Unit ………………………...………………………C1 2. Bandway Unit ……………………………………………..……….C45 3. Accumulator Unit ………………………………………………….C73 4. Reel Control Group ………………………………………………..C97 5. Body Frame Unit ……………………………………………..…..C111 6. Electric Control Unit ……………………………………………..C129 7. Transmission Unit ………………………………………………..C145 8. Pneumatic Unit …………………………………………………...C171...

  • Page 8: Part I

    PART I...

  • Page 9: General Safety Instructions

    1! General Safety Instructions 1.1! Basic Operation Read the operation and safety manual prior to using the strapping machine. The operation and safety manual should remain attached to the machine at all times. The machine may only be operated in accordance with its designated use. The strapping machine was built in accordance with state-of-the-art standards and recognized safety rules.

  • Page 10: Safety Instructions Governing Specific Operational Phases

    1.3! Safety Instructions Governing Specific Operational Phases Avoid unsafe operation of the equipment. The machine is only to be operated when it is in good running order. Only operate the equipment in a safe manner; all protective and safety devices must be in place and fully functional.

  • Page 11: Warning Of Electrical Dangers

    1.4! Warning of Electrical Dangers Immediately remove power to the machine in case of trouble in the electrical system. Replace a fuse with one with the same style and ratings; pay particular attention to matching the specified current. Any electrical work performed on the equipment must be conducted by a skilled electrician or under the supervision of a skilled electrician.

  • Page 12: Before Operating

    1.6! Before Operating Read the instruction manual before operating the machine for your safety. Wear eye protection and safety gloves before operating this machine. Eye protection must be worn Safety gloves must be worn Throw out the spacer from the Reel Please take out the spacer that between the Reel Outer Flange and Inner Flange when you install the machine to prevent the machine malfunctions.

  • Page 13: Signs And Symbols

    1.9! Signs and Symbols Meaning Symbol Warning for dangerous voltage! Contact with live electrical parts will result in severe injury or death. Warning for hot surface! Welding area is approximately 270 Allow sufficient time for the heater to cool down before any work in welding area. Warning for danger! Do not put your hands or body into arch working area when machine is...

  • Page 14: Machine Information

    2! Machine Information 2.1! Areas of Application The strapping machine is to be used for strapping packages, cartons, paper boxes, newspapers, magazines and those materials using a polypropylene (PP) strapping for stabilizing purposes when in transportation. Be careful for rigidity of working materials, and don’t try to pack agri-foodstuffs or other such material.

  • Page 15: Storage

    2.3! Storage The store room must be dry Do not expose the machine to extreme cold or heat environment Place the machine on an even floor in order to avoid any distortion 2.4! Machine Description Fully automatic strapping machine for polypropylene (PP) strapping material. Transit model with stepless speed belt-driven table Electronic heater temperature control.

  • Page 16: Safety Devices

    2.5! Safety Devices Danger! Operate the machine only when all safety devices are at their place and are functioning correctly. The machine has been constructed in accordance with the applicable legal regulations. The machine is reliable in operation. Nevertheless the machine may constitute a danger if it is operated in improper or undue condition.

  • Page 17: Technical Specification

    The table top can be opened, if it is necessary to make adjustments inside the machine during operation, after a strap jam for example. When the table top is opened, safety switch B6 is activated. This will remove power but the heating element will keeping heating.
  • Page 18 2.6.2! Technical Data (TP-702B) Strap width 5mm / 6mm / 9mm / 12mm Strap thickness 0.35mm up to 0.65mm (0.014” – 0.026”) Coil diameter 200mm (8” nominal) Strap coil diameter Outside diameter 420mm (16.5”) Width(Face) 190mm (7.5”) Standard Minimum – 800mm (31.5”) Maximum – 900mm (35.4”) Table height Optional Minimum –...
  • Page 19 2.6.3! Technical Data (TP-702BP) Strap width 5mm / 9mm / 12mm Strap thickness 0.35mm up to 0.65mm (0.014” – 0.026”) Coil diameter 200mm (8” nominal) Strap coil diameter Outside diameter 420mm (16.5”) Width(Face) 190mm (7.5”) Standard Minimum – 800mm (31.5”) Maximum – 900mm (35.4”) Table height Optional Minimum –...

  • Page 20: Preparation Before Operating The Machine

    3! Preparation Before Operating the Machine 3.1! Shipping The equipment is delivered in transport units. Each transport unit is loaded onto a wooden pallet, secured by polyester strapping. 3.2! Transportation & Centre of Gravity The machine must be secured on a pallet for transportation.

  • Page 21: Construction Layout

    3.3! Construction Layout 1.! Arch 2.! Upper Table Front 3.! Extension belt-driven table (Option) 4.! Reel 5.! Transit motor M6 6.! Caster (Brake) 7.! Reel Brake Release 8.! Upstream & downstream interlock (B5) 9.! Foot Pedal (Option) 10.!Control Panel 11.!Power Cord 12.!Strapping Head Unit 13.!Main Motor M1 14.!Feed Motor M2...

  • Page 22: Installation

    20.!Proximity Sensor SQ3 (For home position) 21.!Fan (M11) 22.!Heater 23.!Photo Eye 24.!Photo eye (PH3)(Strap amount detection sensor)(Option) 25.!Photo eye (PH4)(Energy saving transit with auto sleep mode sensor)(Option) 26.!Photo eye (PH5)(Strapping in the centre sensor)(Option) 27.!Control box 3.4! Installation 1.! Remove the packing material and check if the machine is complete without any shipping damage.

  • Page 23: Operation Space

    6.! Pneumatic connection (for TP-702BP) The strapping machines require 3/8” air hose connection (A) The operating pressure is 6 bar (87psi), its value is set by the pressure reducing valve (B) To alter operating pressure, the knob (B) has to be pulled upward. By turning the knob (B) the pressure can be adjusted.

  • Page 24: How To Connect Upstream And Downstream Machine

    3.6! How to connect Upstream and Downstream Machine (B5 Connector) Pin1 and Pin 2: It outputs machine signal by giving a "NO" contact. Machine would send signal to upstream device for entering the package (Refer to B27 Wiring Diagram of PART II). K3 Relay Caution: Mistake the connection (over voltage or current) may damage the K3 relay...

  • Page 25: Operating Elements

    3.7! Operating Elements 1.! Main Power Switch: Provides the machine with power. Switch to “1” position for turning the machine on. After finishing strapping work, switch it to “0” to turn off the machine. 2.! Emergency Stop switch The switch functions for urgently stop the machine.
  • Page 26 While the selector switch is at position (AUTO), the table belts will run and photo cells works so when package passes under the arch, the machine will automatically strap the package. When the selector switch is at position (TRANSIT), it is for transit (the table belts will run but the photo cells do not function.

  • Page 27: Instructions For Loading Pp Strap

    14.!Reel Release Switch: To release the dispenser for easily taking out the strapping from it. 15.!Foot Pedal Switch (Option): To initiate a strapping cycle. To clear up machine fault. (reset) 3.8! Instructions for Loading PP Strap 3.8.1! Specifications Polypropylene Strap Width: 5,6,9,12mm Thickness: 0.35 -0.65 mm (0.014”...

  • Page 28: Auto Strap Feeding Procedure

    3.8.2! Strap Reel Installation 1.! Release the Reel Nut Handle by pressing and turning it to the left. 2.! Take out the Outer Flange. 3.! Install a new strap coil onto the drum according to the instructions on the reel. 4.! Put the Outer Flange back and the Reel Nut Handle.
  • Page 29 Fig. a. 60cm Fig. b. Fig. c. Fig. e. Fig. d. -A21-...
  • Page 30 Caution: If strap is fed more than 6cm ahead the rollers, it could make Auto Strap Feeding failed. 7.! Press Start Switch. Machine will complete the Auto Strap Feeding in 5 sec. and have the strap feeding to the sealing point. Caution! In the process of Auto Strap Feeding, only the Start Switch is functional.

  • Page 31: Operating The Machine

    4.! Operating the Machine Switch Main Power Switch to After switching on the strapping machine, heater Position “1” starts to warm up and LCD display continues to be on until the heater reaches its operating temperature (about 2 minutes). Heater warms up and LCD Caution! display keeps on lightening Machine will not operate until heater reaches to...

  • Page 32: Transit Operation Mode

    4.2! Transit Operation mode 1.! Make selector switch to position 2.! Adjust Transit Speed Adjustment Knob properly. Note ! If there’s no signal from downstream equipment, table belts would not run. 4.3! Automatic Operation mode 1.! Make selector switch to position 2.! Adjust Transit Speed Adjustment Knob properly.

  • Page 33: Function Encoder

    4.4! Function Encoder Ready LCD display will show various timers such as cooling time, timer 1, timer 2…etc. After pressing the function encoder for over 2 Press encoder seconds, turn the knob to choose the timer over 2S needed to be changed. Press this knob to confirm the timer needed altered and turn it <- Timer...

  • Page 34: Adjustments

    5.!Adjustments 5.1! Strap Amount in the Accumulator Box The machine has been already well set for storing enough amount of strap in accumulator Box. However, some adjustments may be required, depending on the actual quality or thickness of the strap used. The strap supply in the accumulator box should be sufficient for about 2-5 strapping cycle.

  • Page 35: Adjustment For Feeding Pressure To The Accumulator Box

    5.2! Adjustment for Feeding Pressure to the Accumulator Box The machine has been already well set for enough feeding pressure offering enough strength for pulling strap from strap coil to accumulator box. It might be necessary for some adjustments to increase feeding pressure if you are using smooth strap. When it’s necessary for increasing the feeding pressure, please loosen the Nut A and turn Nut C upwards to increase the strength of Spring B.

  • Page 36: Adjustment For Heater Temperature

    5.3! Adjustment for Heater Temperature The machine has been already well set for proper heater temperature. It might be necessary to do some adjustments according to temperature in working environment, and the quality of PP strap to ensure better sealing efficiency. Turn ‘’A’’...
  • Page 37 2.! Adjusting “Right Strap Guide” Loosen the screws on the “Right Strap Guide” and take it out. Then loosen the 2 screws B (HBS0408N) and adjust A according to the strap. Be sure D is about 0.1mm wider than the strap. After adjustment, tighten screws B and put the “Right Strap Guide”...

  • Page 38: Adjustment For Feeding/Reversing Pressure

    4.! Adjusting Strap Amount in the Accumulator Box Different strap widths might have effects on the strap amount in the accumulator box. Please do the adjustment according to 5.1 if necessary. 5.5! Adjustment for Feeding/Reversing Pressure The front and rear table top is fixed and you would need to open it by Key for doing adjustments.
  • Page 39 1.! Adjusting the Pressure for Feeding The machine is already well set for proper feeding pressure. However, according to different strap characteristics (such as smoother surface or different thickness), some adjustments for feeding pressure are still necessary. If short feed problem happens a lot, and it is a result of improper feeding pressure, please do the following adjustments: Loosen Nut B and turn Nut A clockwise to increase the feeding pressure.

  • Page 40: Adjustment On Tensioning Rollers For High Tension

    5.6! Adjustment on Tensioning Rollers for High Tension The machine is already well set for proper pressure for high tension. However, according to different strap characteristics (such as smoother surface or different thickness), some adjustments on pressure for high tension might be necessary. When insufficient strapping tension occurs even the Soft-High tension switch is on “high”...

  • Page 41: Speed And Pressure Adjustment Of Press Bar

    5.7! Speed and Pressure Adjustment of Press Bar 1.! Speed a.! Flow Control (A) ascending speed adjustment of Press Bar. Turn knob counterclockwise to increase the ascending speed of Press Bar. Turn knob clockwise to decrease the ascending speed of Press Bar. b.! Flow Control (B) descending speed adjustment of Press Bar.

  • Page 42: Change Bundle Flow Direction

    For doing these adjustments, be sure to lift the Regulator first and then turn it clockwise to increase the pressure or turn it counterclockwise to decrease the pressure. Caution: Regulator D shows the descending pressure only when Press Bar is descending. If the air pressure is exceed 2 bar, the descending pressure of Press Bar would be over 250N.

  • Page 43: Troubleshooting

    6.!Troubleshooting The LCD display would flash and show failure message when machine is not working due to malfunction. Message shown on the LCD could be follows: 1.! Reminder message: a.! Push Start: Please press the Start Switch to make machine function. This is especially necessary after the Safety Switch is released or after you just turn on the machine.
  • Page 44 steps: b-1. Open Upper Table, Front Group M7-7-100230. b-2. Lift up the Lever (M7-2-101400/M7-2-101410) with left hand and take out the Cover (M7-1-311201) for the Upper Guide with right hand at the same time. b-3. Take out the jammed strap and cut it. b-4.
  • Page 45 c.! Other malfunctions: Fault Cause Remedy Too much debris on both sides Clean both sides of the heater plate by of heater plate fine sandpaper Sealing Increase the heater temperature failure Insufficient heater temperature according to 5.3 Insufficient cooling time Increase cooling time according to 4.3 Soft-High tension switch is at “soft”...

  • Page 46: Maintenance

    7.!Maintenance Warning: Before any maintenance or repairs on the machine, set the Main Power Switch to "O" (OFF). Wait about 5 minutes for cooling down the heater to avoid burns with this area. 1.! Cleaning and Lubrication The high reliability and long service life of the strapping machine will depend on regular cleaning and maintenance.
  • Page 47 Weekly: Lubricate front bar, press bar, rear bar and shafts in arch weekly. Please refer to the following mesh areas for instruction. Before lubricating, be sure to clean the parts first to avoid mixing oil and debris which might have a bad effect on machine’s function. Check the machine by strapping several bundles for any failures.
  • Page 48 6 Months: or 500,000 strapping cycles Check heating element, replace and re-adjust it if necessary. Check strap cutter in sealing head, replace it if necessary. Check if the connector at wiring housing to P.C. Board is firmly fixed. Check if the safety switch of front table or Rear table functions well. Make machine ready for operation.
  • Page 49 insulation fall and get broken, please replace with new one to avoid welding problem. 5.! Install the new Heater Ass’y in reverse sequence. 6.! Rotate the M1 Handle (T7-1-11240) forward till the Heater Ass’y goes to welding position. 7.! Make sure the clearance between Heater Ass’y and Slide Table (M7-1-131600) is about 1.8 - 2.2mm.
  • Page 50 PART II...
  • Page 51 1! Pneumatic System Diagram REF. DESCRIPTION Q’TY Manual Spool Valve Filter / Regulator Combination Filter Regulator (Hi-Pressure) Pressure Gauge Lubricator Solenoid Valve (5/3) Cylinder Control Valve Air Regulator Regulator (Low-Pressure) Brass Silencer -B1-...

  • Page 52: Wiring Diagram

    2! Wiring Diagram a.! (For P.C.B. Control) -B2-...
  • Page 53 -B3-...
  • Page 54 -B4-...
  • Page 55 -B5-...
  • Page 56 -B6-...
  • Page 57 -B7-...
  • Page 58 -B8-...
  • Page 59 -B9-...
  • Page 60 -B10-...
  • Page 61 -B11-...
  • Page 62 -B12-...
  • Page 63 -B13-...
  • Page 64 -B14-...
  • Page 65 -B15-...
  • Page 66 b.! [For PLC (Option)] -B16-...
  • Page 67 -B17-...
  • Page 68 -B18-...
  • Page 69 -B19-...
  • Page 70 -B20-...
  • Page 71 -B21-...
  • Page 72 -B22-...
  • Page 73 -B23-...
  • Page 74 -B24-...
  • Page 75 -B25-...
  • Page 76 -B26-...
  • Page 77 -B27-...
  • Page 78 -B28-...
  • Page 79 -B29-...
  • Page 80 -B30-...
  • Page 81 -B31-...
  • Page 82 -B32-...

  • Page 83: Inverter Parameters Setup

    3. Inverter Parameters Setup Parameter factory setting Parameter factory setting 00-03 04-12 18.2 00-12 06-00 405.0 00-13 06-07 01-00 07-00 01-07 07-01 01-08 18.2 07-02 10.0 01-09 08-00 01-10 08-02 01-19 08-04 02-00 08-15 02-01 08-18 02-02 -B33-...
  • Page 84 shape classification classification shape ©! L[J! @" @" <o" rz.i" 16x0.8-1.2t <p <p <p 14x0.8-1.2t <p <p <p 14-, l 6xl.2-l.5t <p <p <p 16xl.2-1.5t <p <p <p 23x2.0t <p <p <p 19x2.0t <p <p <p ©...
  • Page 86 PART III...
  • Page 87 STRAPPING HEAD UNIT M7-1-900301 M7-1-900311 -Cl-...

  • Page 88: Strapping Head Unit

    STRAPPING HEAD UNIT M7-1-900301 M7-1-900311 REF. Q'TY GREENBRIDGE PART # POLY. PART NO. DESCRIPTION M7-1-900301 Strapping Head Unit (For 5-6mm) M7-1-900311 Strapping Head Unit (For 9mm) M7-1-900321 Strapping Head Unit (For 12mm) SEE PAGE C3 Cam Group (For 5-6mm) M7-1-100301...
  • Page 89 CAM GROUP M7-1-100301 M7-1-100310...
  • Page 90 CAM GROUP M7-1-100301 M7-1-100310 REF. PART NO. DESCRIPTION Q'TY GREENBRIDGE PART # M7-1-100301 Cam Group (For 5-6mm) M7-1-100310 Cam Group (For 9mm/12mm) M7-1-101110 Strapping Head Frame M7-1-102510 Bumper Bracket M7-1-101320 Ejector Plate (L) 203643 M7-1-101420 Ejector Plate (R) 203644 M7-1-101500...
  • Page 91 CAM GROUP M7-1-100301 M7-1-100310 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-1-100301 Cam Group (For 5-6mm) M7-1-100310 Cam Group (For 9mm/12mm) M7-1-101110 Strapping Head Frame M7-1-102510 Bumper Bracket M7-1-101320 Ejector Plate (L) M7-1-101420 Ejector Plate (R) M7-1-101500 Shaft M7-1-101600...
  • Page 92 -C6 -...
  • Page 93 M7-1-110002 1-1-1 GEAR BOX AND CAM ASS'Y ,C7,!
  • Page 94 1-1-1! GEAR BOX AND CAM ASS'Y M7-1-110002 M7-1-110020 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-1-110002 Gear Box and Cam Ass'y (For 5-6mm) M7-1-110020 Gear Box and Cam Ass'y (For 9mm/12mm) M7-1-111100 Retracting Cam M7-1-111200 Tension Cam M7-1-111300 Heater Cam...
  • Page 95 1-1-2! Ml MOTOR ASS'Y M7-1-120010 ,C9,!
  • Page 96 1-1-2 M1 MOTOR ASS'Y M7-1-120010 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-1-121100 Gear Box Support 205946 M7-1-221110 M1 Motor 203642 HBS0520N HBS, M5×20 (N) 191665 SW05 SW, M5 191577 KYC0210 Key, 2×10 -C10-...
  • Page 97 1-1-3! SLIDE TABLE FRAME ASS'Y M7-1-130002 M7-1-130030 ,C11,!
  • Page 98 1-1-3! SLIDE TABLE FRAME ASS'Y M7-1-130002 M7-1-130030 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-1-130002 Slide Table Frame Ass'y (For 5-6mm) 191595 M7-1-130030 Slide Table Frame Ass'y (For 9mm/12mm) 191637 M7-1-131102 Slide Table Frame 191543 M7-1-131200 Shaft M7-1-131301 Switch Lever...
  • Page 99 1-1-4! HEATER ARM ASS'Y M7-1-140000 -C13-...
  • Page 100 1-1-4! HEATER ARM ASS'Y M7-1-140000 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-1-141100 Heater Crank M7-1-141200 Heater Shaft 198854 M7-1-141200S Heater Shaft (Stainless Steel Model)(Option) Heater Bracket M7-1-141300 202387 M7-1-141300S Heater Bracket (Stainless Steel Model)(Option) M7-1-141400 Terminal Bracket 191731...
  • Page 101 1-1-5! EXHAUST FAN ASS'Y M7-1-150000 -C15-...
  • Page 102 1-1-5! EXHAUST FAN ASS'Y M7-1-150000 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-1-151100 Fan Bracket T5-1-12370 191765 T7-6-10930 Fan Cover 204021 TMS0412N TMS, M4×12 (N) 205989 HBS0410N HBS, M4×10 (N) SW04 SW, M4 PW04 PW, M4 187428 HN04 HN, M4...
  • Page 103 1-1-6! STRAP EVULSION ARM ASS'Y M7-1-160000 C17,!
  • Page 104 1-1-6 STRAP EVULSION ARM ASS'Y M7-1-160000 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-1-161100 Support M7-1-161200 Strap Evulsion Arm Shaft T7-1-10521 MB1010 Metal Bushing, 1010 191568 HBS0616N HBS, M6×16 (N) 191544 SW06 SW, M6 191562 PW06C PW, M6 (C)
  • Page 105 BAR GUIDE GROUP M7-1-200020 -C19-...
  • Page 106 BAR GUIDE GROUP M7-1-200020 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-1-201100 Bar Guide 191527 191724 M7-1-201200 Bar Guide Lid 191550 M7-1-201200S Bar Guide Lid (Stainless Steel Model)(Option) 191626 Cutter Holder M7-1-201300 M7-1-201300EN Cutter Holder (Stainless Steel Model)(Option) 191549...
  • Page 107 1-2-1 FRONT BAR ASS'Y M7-1-210001 -C21-...
  • Page 108 1-2-1! FRONT BAR ASS'Y M7-1-210001 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-1-210001 Front Bar Ass'y 191477 M7-1-210001S Front Bar Ass'y (Stainless Steel Model)(Option) 191614 M7-1-211101 Front Bar 191602 M7-1-211101S Front Bar (Stainless Steel Model)(Option) 191747 TA-073 Spring Hook...
  • Page 109 1-2-2! PRESS BAR ASS'Y M7-1-22000O -C23-...
  • Page 110 1-2-2! PRESS BAR ASS'Y M7-1-220000 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-1-220000 Press Bar Ass'y 191478 M7-1-220000S Press Bar Ass'y (Stainless Steel Model)(Option) 191615 M7-1-221200 Press Bar 191633 M7-1-221200S Press Bar (Stainless Steel Model)(Option) 191747 TA-073 Spring Hook...
  • Page 111 REAR BAR ASS'Y M7-1-230000 1-2-3! -C25-...
  • Page 112 1-2-3 REAR BAR ASS'Y M7-1-230000 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-1-230000 Rear Bar Ass'y 191525 M7-1-230000S Rear Bar Ass'y (Stainless Steel Model)(Option) 191616 M7-1-231100 Rear Bar 191685 M7-1-231100S Rear Bar (Stainless Steel Model)(Option) 191747 TA-073 Spring Hook...
  • Page 113 FEEDGROUP M7-1-300002 -C27-...
  • Page 114 FEED GROUP M7-1-300002 M7-1-300012 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-1-300002 Feed Group (For 5-6mm) M7-1-300012 Feed Group (For 9mm) M7-1-300022 Feed Group (For 12mm) M7-1-301300 Bearing Housing 191824 M7-1-301400 Guide Wheel (For 5-6mm) 191628 M7-1-301410 Guide Wheel (For 9mm)
  • Page 115 1-3-1 UPPER GUIDE ASS'Y M7-1-310001 M7-1-310011 ,C29,!
  • Page 116 1-3-1! UPPER GUIDE ASS'Y M7-1-310001 M7-1-310011 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-1-310001 Upper Guide Ass'y (For 5-6mm) M7-1-310001S Upper Guide Ass'y (Stainless Steel Model) (For 5-6mm)(Option) M7-1-310011 Upper Guide Ass'y (For 9mm) 203652 M7-1-310011S Upper Guide Ass'y (Stainless Steel Model)
  • Page 117 1-3-2! ASSISTANT ROLLER ASS'Y M7-1-320001 M7-1-320011 -C31-...
  • Page 118 1-3-2! ASSISTANT ROLLER ASS'Y M7-1-320001 M7-1-320011 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-1-320001 Assistant Roller Ass'y (For 5-6mm) M7-1-320011 Assistant Roller Ass'y (For 9mm) 205297 M7-1-320021 Assistant Roller Ass'y (For 12mm) 191820 M7-1-321100 Assistant Roller Bracket (For 5-6mm)
  • Page 119 1-3-3! FEEDING ARM ASS'Y M7-1-330000 -C33-...
  • Page 120 1-3-3! FEEDING ARM ASS'Y M7-1-330000 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-1-331100 Feeding Arm M7-1-331200 Linkage M7-1-331300 Shaft M7-1-331400 Collar M7-1-331500 Spring Hook T7-1-64130 Return Spring 191488 BR6901ZZ Bearing, 6901ZZ 198856 HBS0616N HBS, M6×16 (N) 191544 HBS0640N HBS, M6×40 (N)
  • Page 121 1-3-4! M7-l-340000 RETRACTING ARM ASS'Y -C35-...
  • Page 122 1-3-4 RETRACTING ARM ASS'Y M7-1-340000 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-1-341100 Retracting Arm M7-1-341200 Shaft 191747 TA-073 Spring Hook BR635ZZ Bearing, 635ZZ 187778 MB1015 Metal Bushing, 1015 191700 HBS0516N HBS, M5×16 (N) 205333 HB0612 HB, M6×12 SW05...
  • Page 123 TENSION GROUP M7-1-400002 M7-1-400012 -C37-...
  • Page 124 TENSION GROUP M7-1-400002 M7-1-400012 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-1-400002 Tension Group (For 5-6mm) M7-1-400012 Tension Group (For 9mm) 204296 M7-1-400022 Tension Group (For 12mm) 205489 M7-1-401100 Tension Guide Wheel (For 5-6mm) M7-1-401100S Tension Guide Wheel (Stainless Steel Model)
  • Page 125 TENSION GROUP M7-1-400002 M7-1-400012 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION HBS0412N HBS, M4×12 (N) 191682 HBS0516N HBS, M5×16 (N) 191700 HBS0640HN HBS, M6×40 (H)(N) HBS0655HN HBS, M6×55 (H)(N) HB0612 HB, M6×12 205333 191584 HSS0506GN HSS, M5×6 (G)(N) SW04...
  • Page 126 -C40-...
  • Page 127 1-4-1 TENSION CRANK ASS'Y M7-1-410001 M7-1-410011 ,C41,!
  • Page 128 1-4-1! TENSION CRANK ASS'Y M7-1-410001 M7-1-410011 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-1-410001 Tension Crank Ass'y (For 5-6mm) M7-1-410011 Tension Crank Ass'y (For 9mm) 191831 M7-1-410021 Tension Crank Ass'y (For 12mm) 191826 M7-1-411100 Assistant Roller (For 5-6mm) M7-1-411100S...
  • Page 129 1-4-2! TENSION ARM ASS'Y M7-1-420001 M7-1-420011 -C43-...
  • Page 130 1-4-2 TENSION ARM ASS'Y M7-1-420001 M7-1-420011 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-1-420001 Tension Arm Ass'y (For 5-6mm/9mm) 205251 M7-1-420011 Tension Arm Ass'y (For 12mm) Tension Arm Ass'y (For 9mm, Tension 45kg) (Option) M7-1-421101 Tension Arm M7-1-421200 Shaft...
  • Page 131 BANDWAYUNIT M7-2-900301 M7-2-900311 -C45-...

  • Page 132: Bandway Unit

    BANDWAY UNIT M7-2-900301 M7-2-900311 REF. GREENBRIDGE PART # PART NO. DESCRIPTION M7-2-900301 Bandway Unit (For TP-702B, 5-6mm) M7-2-900301S Bandway Unit (Stainless Steel Model) (For TP-702B, 5-6mm) M7-2-900311 Bandway Unit (For TP-702B, 9mm) M7-2-900311S Bandway Unit (Stainless Steel Model) (For TP-702B, 9mm)
  • Page 133 BANDWAY UNIT M7-2-900301 M7-2-900311 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-2-500110S Safety Guards Group (Stainless Steel Model) (For TP-702B, 600H/800H)(Option) M7-2-500120 Safety Guards Group (For TP-702BP, 500H) (Option) M7-2-500120S Safety Guards Group (Stainless Steel Model) (For TP-702BP, 500H)(Option)
  • Page 134 -C48-...
  • Page 135 ARCH GROUP M7-2-100001 -C49-...
  • Page 136 ARCH GROUP M7-2-100001 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-2-100001 Arch Group M7-2-100001S Arch Group (Stainless Steel Model) M7-2-101300 Rod (For 550W) M7-2-101310 Rod (For 650W) M7-2-101320 Rod (For 850W) M7-2-101330 Rod (For 1050W) Lever (For 550W/650W) M7-2-101400...
  • Page 137 2-1! ARCH GROUP M7-2-100001 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION HBS0616N HBS, M6×16 (N) 191544 HBS0620N 191726 HBS, M6×20 (N) HBS0630N 191779 HBS, M6×30 (N) HBS0830N HBS, M8×30 (N) THS0625N THS, M6×25 (N)(For 850W/1050W) THS0630N THS, M6×30 (N)(For 500H) THS, M6×30 (N)(For 600H)
  • Page 138 -C52-...
  • Page 139 2-2! BANDWAY GROUP M7-2-200002 M7-2-200012 -C53-...
  • Page 140 BANDWAY GROUP M7-2-200002 M7-2-200012 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-2-200002 Bandway Group (For 5-6mm) M7-2-200002S Bandway Group (Stainless Steel Model) (For 5-6mm) M7-2-200012 Bandway Group (For 9mm) M7-2-200012S Bandway Group (Stainless Steel Model) (For 9mm) M7-2-200081 Bandway Group (For 12mm)
  • Page 141 BANDWAY GROUP M7-2-200002 M7-2-200012 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION HBS0616N HBS, M6×16 (N) 191544 205691 THS0616N THS, M6×16 (N) THS, M6×16 (Stainless Steel Model) 205392 THS0616S NTE03 NTE, M3 191734 SW04 SW, M4 SW, M4 (Stainless Steel Model)
  • Page 142 -C56-...
  • Page 144 2-2-1 STRAP TRACK FRAME ASS'Y M7-2-210002 M7-2-210012 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-2-210002 Strap Track Frame Ass'y (For 5-6mm) M7-2-210002S Strap Track Frame Ass'y (Stainless Steel Model)(For 5-6mm) M7-2-210012 Strap Track Frame Ass'y (For 9mm) M7-2-210012S Strap Track Frame Ass'y (Stainless Steel...
  • Page 145 2-2-1 STRAP TRACK FRAME ASS'Y M7-2-210002 M7-2-210012 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-2-201620S Track Frame Connector (Stainless Steel Model) (For 12mm) T7-2-20160 Shaft T7-2-20160S Shaft (Stainless Steel Model)(Option) T7-2-20172 Spring T7-2-20172S Spring (Stainless Steel Model)(Option) T7-2-20180 Bracket T7-2-20380 Washer (cp5×ӽ14)
  • Page 146 -C60-...
  • Page 147 ARCH COVER GROUP M7-2-300200 M7-2-300210 "C61"!
  • Page 148 ARCH COVER GROUP M7-2-300200 M7-2-300210 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-2-300200 Arch Cover Group (For TP-702B) M7-2-300200S Arch Cover Group (Stainless Steel Model) (For TP-702B) Arch Cover Group (For TP-702BP) M7-2-300210 M7-2-300210S Arch Cover Group (Stainless Steel Model)
  • Page 149 2-3! ARCH COVER GROUP M7-2-300200 M7-2-300210 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-2-301500 Arch Cover (Upper)(For 550W) M7-2-301500S Arch Cover (Upper)(Stainless Steel Model) (For 550W) M7-2-301510 Arch Cover (Upper)(For 650W) M7-2-301510S Arch Cover (Upper)(Stainless Steel Model) (For 650W)
  • Page 150 -C64-...
  • Page 151 BLOCKASS'Y 2-3-1 M7-2-310000 -C65-...
  • Page 152 2-3-1 BLOCK ASS'Y M7-2-310000 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-2-301200 Block BR635ZZ Bearing, 635ZZ 187778 HBS0516N HBS, M5×16 (N) 191700 PW05 PW, M5 191578 191577 SW05 SW, M5 -C66-...
  • Page 153 M7-2-400010 2-4! CONNECTING ROD GROUP (For 850W/1050W) -C67-...
  • Page 154 2-4! CONNECTING ROD GROUP M7-2-400010 (For 850W/1050W) REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-2-401210 Connecting Rod M7-2-401300 Connector M7-2-401400 Slant Block M7-2-401500 Bracket (Left) M7-2-401600 Bracket (Right) 203833 M7-2-401700 Collar T7-2-20560 Swivel Head, NHS06 MB1715 Metal Bushing, 1715...
  • Page 155 2-5! SAFETY GUARDS GROUP M7-2-500100 (OPTION) M7-2-500110 "C69"!
  • Page 156 SAFETY GUARDS GROUP M7-2-500100 (OPTION) M7-2-500110 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-2-500100 Safety Guards Group (For TP-702B, 500H) (Option) M7-2-500100S Safety Guards Group (Stainless Steel Model) (For TP-702B, 500H)(Option) M7-2-500110 Safety Guards Group (For TP-702B, 600H/800H) M7-2-500110S...
  • Page 157 SAFETY GUARDS GROUP M7-2-500100 (OPTION) M7-2-500110 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION CAP05 CAP, M5 CAP05S CAP, M5 (Stainless Steel Model) FLG05 FLG, M5 FLG05S FLG, M5 (Stainless Steel Model) FMS0508 FMS, M5×8 FMS0508S FMS, M5×8 (Stainless Steel Model)
  • Page 158 -C72-...
  • Page 159 ACCUMULATOR UNIT M7-3-900300 M7-3-900310 C73-...

  • Page 160: Accumulator Unit

    ACCUMULATOR UNIT M7-3-900300 M7-3-900310 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-3-900300 Accumulator Unit (For 5-6mm, 550W) M7-3-900300S Accumulator Unit (Stainless Steel Model) (For 5-6mm, 550W) Accumulator Unit (For 9mm, 550W) M7-3-900310 M7-3-900310S Accumulator Unit (Stainless Steel Model) (For 9mm, 550W)
  • Page 161 ACCUMULATOR UNIT M7-3-900300 M7-3-900310 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-3-200220 Auto Strap Feeding Group (For 12mm, 550W) M7-3-200220S Auto Strap Feeding Group (Stainless Steel Model)(For 12mm, 550W) M7-3-200230 Auto Strap Feeding Group (For 5-6mm, 650W~1050W) Auto Strap Feeding Group (Stainless Steel...
  • Page 162 ACCUMULATOR UNIT M7-3-900300 M7-3-900310 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-3-300280 Accumulator Box Group (For 12mm, 850W/1050W) M7-3-300280S Accumulator Box Group (Stainless Steel Model)(For 12mm, 850W/1050W) -C76-...
  • Page 163 STRAP AMOUNT CONTROL GROUP M7-3-100100 M7-3-100110 -C77-...
  • Page 164 3-1! STRAP AMOUNT CONTROL GROUP M7-3-100100 M7-3-100110 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-3-100100 Strap Amount Control Group (For 5-6mm, 550W/650W) M7-3-100110 Strap Amount Control Group (For 9mm, 550W/650W) Strap Amount Control Group (For 5-6mm, M7-3-100120 850W/1050W) Strap Amount Control Group (For 9mm,...
  • Page 165 M7-3-200200 3-2! AUTO STRAP FEEDING GROUP M7-3-200210 -C79-...
  • Page 166 AUTO STRAP FEEDING GROUP M7-3-200200 M7-3-200210 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-3-200200 Auto Strap Feeding Group (For 5-6mm, 550W) M7-3-200200S Auto Strap Feeding Group (Stainless Steel Model)(For 5-6mm, 550W) M7-3-200210 Auto Strap Feeding Group (For 9mm, 550W)
  • Page 167 AUTO STRAP FEEDING GROUP M7-3-200200 M7-3-200210 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-3-201800 Fixing Plate M7-3-201800S Fixing Plate (Stainless Steel Model) M7-3-210011 X SEE PAGE C83 Roller Ass'y M7-3-210011S Roller Ass'y (Stainless Steel Model) (SEE PG.C85) 198849 M7-3-230000...
  • Page 168 AUTO STRAP FEEDING GROUP M7-3-200200 M7-3-200210 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION HBS0512S HBS, M5×12 (Stainless Steel Model) HBS, M5×12 (Stainless Steel Model) HBS0520N HBS, M5×20 (N) 191665 HBS0512N HBS, M5×12 (N)(For 5-6mm) 190848 HBS0516N HBS, M5×16 (N)(For 9mm)
  • Page 169 3-2-1 ROLLER ASS'Y M7-3-210011 -C83-...
  • Page 170 3-2-1 ROLLER ASS'Y M7-3-210011 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-3-210011 Roller Ass'y M7-3-210011S Roller Ass'y (Stainless Steel Model) 191858 T7-3-10220 Shaft T7-3-10230 Roller MCO-A-0850300 Spacer Spacer (Stainless Steel Model) MCO-A-0850300S M7-3-211400 Roller Support M7-3-211400S Roller Support (Stainless Steel Model)
  • Page 171 3-2-2 M4 MOTOR ASS'Y M7-3-230000 M7-3-230010 -C85-...
  • Page 172 3-2-2 M4 MOTOR ASS'Y M7-3-230000 M7-3-230010 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-3-230000 M4 Motor Ass'y (For 5-6mm) 198849 M7-3-230010 M4 Motor Ass'y (For 9mm) 198850 M7-3-230020 M4 Motor Ass'y (For 12mm) 191753 M7-3-231100 Accumulator Main Roller (For 5-6mm)
  • Page 174 3-2-3 INLET STRAP GUIDE ASS'Y M7-3-240022 M7-3-240012 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-3-240022 Inlet Strap Guide Ass'y (For 5-6mm) M7-3-240022S Inlet Strap Guide Ass'y (Stainless Steel Model)(For 5-6mm) M7-3-240012 Inlet Strap Guide Ass'y (For 9mm) M7-3-240012S Inlet Strap Guide Ass'y (Stainless Steel...
  • Page 175 3-2-3! INLET STRAP GUIDE ASS'Y M7-3-240022 M7-3-240012 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION HBS0308N HBS, M3×8 (N) 191497 HBS0308S HBS, M3×8 (Stainless Steel Model) 191161 HBS0412N HBS, M4×12 (N) HBS0412S HBS, M4×12 (Stainless Steel Model) 205541 HBS0512N HBS, M5×12 (N)
  • Page 176 -C90-...
  • Page 177 3-2-4! ASSISTANT ROLLER SHAFT ASS'Y T7-3-20080 T7-3-20081 C91%!
  • Page 178 3-2-4 ASSISTANT ROLLER SHAFT ASS'Y T7-3-20080 T7-3-20081 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION T7-3-20080 Assistant Roller Shaft Ass'y (For 5-6mm) T7-3-20081 Assistant Roller Shaft Ass'y (For 9mm) 203070 T7-3-20082 Assistant Roller Shaft Ass'y (For 12mm) 191566 T7-3-20150 Shaft...
  • Page 179 ACCUMULATOR BOX GROUP M7-3-300200 M7-3-300210 -C93-...
  • Page 180 ACCUMULATOR BOX GROUP M7-3-300200 M7-3-300210 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-3-300200 Accumulator Box Group (For 5-6mm, 550W) M7-3-300200S Accumulator Box Group (Stainless Steel Model)(For 5-6mm, 550W) M7-3-300210 Accumulator Box Group (For 9mm, 550W) M7-3-300210S Accumulator Box Group (Stainless Steel...
  • Page 181 ACCUMULATOR BOX GROUP M7-3-300200 M7-3-300210 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-3-301220 Enclosed Plate (For 5-6mm, 650W) 191791 M7-3-301230 Enclosed Plate (For 9mm, 650W) M7-3-301370 Enclosed Plate (For 12mm, 650W) M7-3-301300 Enclosed Plate (For 5-6mm, 850W/1050W) M7-3-301310 Enclosed Plate (For 9mm, 850W/1050W)
  • Page 182 ACCUMULATOR BOX GROUP M7-3-300200 M7-3-300210 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION HBS0640N HBS, M6×40 (N)(For 5-6mm/9mm) 188671 191757 HBS0645N HBS, M6×45 (N)(For 12mm) THS, M6×8 (N)(For 550W) THS0608N THS, M6×8 (N)(For 650W) THS, M6×8 (N)(For 850W/1050W) SW06 SW, M6 (For 550W)
  • Page 183 REEL CONTROL GROUP M7-4-100021 M7-4-100031 %C97%!
  • Page 184 REEL CONTROL GROUP M7-4-100021 M7-4-100031 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-4-100021 Reel Control Group (For 200mm, 650W~1050W) Reel Control Group (Stainless Steel Model) M7-4-100021S (For 200mm, 650W~1050W) M7-4-100031 Reel Control Group (For 150mm, 650W~1050W)(Option) Reel Control Group (Stainless Steel Model)
  • Page 185 REEL CONTROL GROUP M7-4-100021 M7-4-100031 %C99%!

  • Page 186: Reel Control Group

    REEL CONTROL GROUP M7-4-100021 M7-4-100031 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-4-100021 Reel Control Group (For 200mm, 650W~1050W) Reel Control Group (Stainless Steel Model) M7-4-100021S (For 200mm, 650W~1050W) Reel Control Group (For 150mm, M7-4-100031 650W~1050W)(Option) Reel Control Group (Stainless Steel Model)
  • Page 187 REEL CONTROL GROUP M7-4-100021 M7-4-100031 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION HBS0825N HBS, M8×25 (N) HBS, M8×25 (Stainless Steel Model) HBS0825S SW06 191562 SW, M6 SW06S SW, M6 (Stainless Steel Model) 205539 SW08 SW, M8 191759 SW08S SW, M8 (Stainless Steel Model)
  • Page 188 -C102-...
  • Page 189 4-1-1 OUTER FLANGE ASS'Y M7-4-110021 M7-4-110030 -C103-...
  • Page 190 4-1-1 OUTER FLANGE ASS'Y M7-4-110021 M7-4-110030 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-4-110021 Outer Flange Ass'y (For 200mm) 203460 M7-4-110021S Outer Flange Ass'y (Stainless Steel Model) (For 200mm) M7-4-110030 Outer Flange Ass'y (For 150mm)(Option) M7-4-110030S Outer Flange Ass'y (Stainless Steel Model)
  • Page 191 4-1-1! OUTER FLANGE ASS'Y M7-4-110021 M7-4-110030 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION T7-2-20380 Washer (cp5×cp14)(For 200mm) 191745 Washer (cp5×cp14)(Stainless Steel Model) T7-2-20380S (For 200mm) PW06A PW, M6 (A)(For 150mm)(Option) 191612 PW, M6 (A)(Stainless Steel Model) PW06AS (For 150mm)(Option)
  • Page 192 -C106-...
  • Page 193 M7-4-120021 4-1-2 REEL CRANK ASS'Y M7-4-120031 -C107-...
  • Page 194 4-1-2! REEL CRANK ASS'Y M7-4-120021 M7-4-120031 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-4-120021 Reel Crank Ass'y (For 200mm, 650W~1050W) M7-4-120021S Reel Crank Ass'y (Stainless Steel Model) (For 200mm, 650W~1050W) M7-4-120031 Reel Crank Ass'y (For 150mm, 650W~1050W) (Option) M7-4-120031S...
  • Page 195 4-1-2 REEL CRANK ASS'Y M7-4-120021 M7-4-120031 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION BR6002ZZ Bearing, 6002ZZ 187782 KYA050515 Key, 5×5×15 HBS0516N HBS, M5×16 (N) 191700 HBS0516S HBS, M5×16 (Stainless Steel Model) 205331 HBS, M6×20 (N) 191726 HBS0620N HBS, M6×20 (Stainless Steel Model)
  • Page 196 -C110-...
  • Page 197 M7-5-902000 BODY FRAME UNIT M7-5-902010 -C111-...

  • Page 198: Body Frame Unit

    BODY FRAME UNIT M7-5-902000 M7-5-902010 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-5-902000 Body Frame Unit (For TP-702B, 550W, 1PH) M7-5-902000S Body Frame Unit (Stainless Steel Model) (For TP-702B, 550W, 1PH) M7-5-902010 Body Frame Unit (For TP-702B, 550W, 3PH)
  • Page 199 BODY FRAME UNIT M7-5-902000 M7-5-902010 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-5-902140 Body Frame Unit (For TP-702BP, 1050W, 1PH) M7-5-902140S Body Frame Unit (Stainless Steel Model) (For TP-702BP, 1050W, 1PH) M7-5-902150 Body Frame Unit (For TP-702BP, 1050W, 3PH)
  • Page 200 BODY FRAME UNIT M7-5-902000 M7-5-902010 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-5-200530 Cover Group (For TP-702BP, 550W) M7-5-200530S Cover Group (Stainless Steel Model) (For TP-702BP, 550W) Cover Group (For TP-702BP, 650W) M7-5-200540 M7-5-200540S Cover Group (Stainless Steel Model)
  • Page 201 BODY FRAME GROUP M7-5-100600 -C115-...
  • Page 202 BODY FRAME GROUP M7-5-100600 M7-5-100610 (1 OF 2) REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-5-100600 Body Frame Group (For 550W, 1PH) M7-5-100600S Body Frame Group (Stainless Steel Model) (For 550W, 1PH) M7-5-100610 Body Frame Group (For 550W, 3PH)
  • Page 203 BODY FRAME GROUP M7-5-100600 M7-5-100610 (1 OF 2) REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-5-108500 Machine Pad Socket (For 650W~1050W) Machine Pad Socket (For 550W) Machine Pad Socket (Option) M7-5-108500S Machine Pad Socket (Stainless Steel Model) (For 650W~1050W)
  • Page 204 BODY FRAME GROUP M7-5-100600 M7-5-100610 (1 OF 2) REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION HBS0516N HBS, M5×16 (N) 191700 HBS0516S HBS, M5×16 (Stainless Steel Model) 205331 HBS0616N HBS, M6×16 (N)(For 550W) 191544 HBS, M6×16 (N)(For 650W~1050W) 204086 HBS0616S HBS, M6×16 (Stainless Steel Model)
  • Page 205 -C118-2-...
  • Page 206 5-1! BODY FRAME GROUP M7-5-100600 M7-5-100610 -C119-...
  • Page 207 BODY FRAME GROUP M7-5-100600 M7-5-100610 (2 OF 2) REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-5-108800 Strap Detect Base (Option) M7-5-108800S Strap Detect Base (Stainless Steel Model) 205784 (Option) M7-5-108900 Power Cord (Europe Plug) T6-6-10162 Power Cord (America Plug)
  • Page 208 5-1! BODY FRAME GROUP M7-5-100600 M7-5-100610 (2 OF 2) REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION HBS0540N HBS, M5×40 (N) PMS0312 PMS, M3×12 (Only 3PH) PMS0320 PMS, M3×20 (Option) 191663 PMS0320S PMS, M3×20 (Stainless Steel Model)(Option) TMS0412N TMS, M4×12 (N)(For 110V/1PH or 400V/3PH)
  • Page 209 -C122-...
  • Page 210 COVER GROUP M7-5-200500 M7-5-200510 -C123-...
  • Page 211 5-2! COVER GROUP M7-5-200500 M7-5-200510 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-5-200500 Cover Group (For TP-702B, 550W) M7-5-200500S Cover Group (Stainless Steel Model) (For TP-702B, 550W) M7-5-200510 Cover Group (For TP-702B, 650W) M7-5-200510S Cover Group (Stainless Steel Model)
  • Page 212 COVER GROUP M7-5-200500 M7-5-200510 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-5-206520S Cover (Front)(Stainless Steel Model) (For 850W/1050W) M7-5-206600 Cover (Rear)(For 550W) M7-5-206600S Cover (Rear)(Stainless Steel Model) (For 550W) M7-5-206610 Cover (Rear)(For 650W) M7-5-206610S Cover (Rear)(Stainless Steel Model) (For 650W)
  • Page 213 5-2! COVER GROUP M7-5-200500 M7-5-200510 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION T7-2-10280 Block T7-5-20210 Rubber Plug 205387 LA-50519 Sensor Label (Option) 205388 LA-50528 Sensor Label (Option) LA-50513 Sensor Label 205389 LA-50514 Sensor Label (For TP-702B) 205390 LA-50515 Sensor Label (For TP-702BP) HBS0330N HBS, M3×30 (N)(Option)
  • Page 214 5-3! PEDAL CONTROL SET T7-6-40001 (OPTION) SEE PAGE C136 #1 J" " " " " " " " " " " " " " " " " " " " " " " " " " " " " " "...
  • Page 215 PEDAL CONTROL SET T7-6-40001 (OPTION) REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION T6-6-10350 Connector (Foot Switch) 191530 T7-5-20130 Micro Switch TMS0308N TMS, M3×8 (N) 191719 TMS0308S TMS, M3×8 (Stainless Steel Model) -C128-...
  • Page 216 ELECTRICCONTROL UNIT M7-6-900700 M7-6-900710 -C129-...
  • Page 217 ELECTRIC CONTROL UNIT M7-6-900700 M7-6-900710 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-6-900700 Electric Control Unit (For TP-702B, 220V~240V, 3PH, 550W/650W) M7-6-900700S Electric Control Unit (Stainless Steel Model) (For TP-702B, 220V~240V, 3PH, 550W/650W) M7-6-900710 Electric Control Unit (For TP-702B,...

  • Page 218: Electric Control Unit

    ELECTRIC CONTROL UNIT M7-6-900700 M7-6-900710 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-6-900830 Electric Control Unit (For TP-702BP, 220V~240V, 1PH, 550W/650W) M7-6-900830S Electric Control Unit (Stainless Steel Model) (For TP-702BP, 220V~240V, 1PH, 550W/650W) M7-6-900840 Electric Control Unit (For TP-702BP, 110V,...
  • Page 219 ELECTRIC CONTROL UNIT M7-6-900700 M7-6-900710 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-6-200211 Electric Control Group (For 220V~240V, 1PH) M7-6-200211S Electric Control Group (Stainless Steel Model) (For 220V~240V, 1PH) Electric Control Group (For 110V, 1PH) M7-6-200221 M7-6-200221S Electric Control Group (Stainless Steel Model)
  • Page 220 CONTROL PANEL GROUP M7-6-100300 M7-6-100310 I" -C133-...
  • Page 221 6-1! CONTROL PANEL GROUP M7-6-100300 M7-6-100310 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-6-100300 Control Panel Group (For TP-702B) M7-6-100300S Control Panel Group (Stainless Steel Model) (For TP-702B) Control Panel Group (For TP-702BP) M7-6-100310 M7-6-100310S Control Panel Group (Stainless Steel Model)
  • Page 223 6-2! ELECTRIC CONTROL GROUP M7-6-200201 M7-6-200211 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-6-200201 Electric Control Group (For 220V~240V, 3PH) M7-6-200201S Electric Control Group (Stainless Steel Model) (For 220V~240V, 3PH) M7-6-200211 Electric Control Group (For 220V~240V, 1PH) M7-6-200211S Electric Control Group (Stainless Steel Model)
  • Page 224 ELECTRIC CONTROL GROUP M7-6-200201 M7-6-200211 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION T6-6-60130 191733 T6-6-60130S Pin (Stainless Steel Model) T6-6-80180 Relay T6-6-80190 Diode T6-6-80200 Relay Socket M7-6-207700 VR/PLC Power P.C.B (Only PLC)(Option) T7-6-10600 PCB Support T7-6-10630 End Plate T7-6-10702...
  • Page 225 6-2! ELECTRIC CONTROL GROUP M7-6-200201 M7-6-200211 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION PW04 PW, M4 187428 PW06A PW, M6 (A) 191612 PW06D PW, M6 (D) SW04 SW, M4 SW06 SW, M6 191562 -C138-...
  • Page 226 WIRES GROUP M7-6-300400 M7-6-300410 (1 OF 2) -Cl39-...
  • Page 227 6-3! WIRES GROUP M7-6-300400 M7-6-300410 (1 OF 2) REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-6-300400 Wires Group (For TP-702B, 550W/650W) M7-6-300410 Wires Group (For TP-702B, 850W/1050W) M7-6-300420 Wires Group (For TP-702BP, 550W/650W) M7-6-300430 Wires Group (For TP-702BP, 850W/1050W)
  • Page 228 WIRES GROUP M7-6-300400 M7-6-300410 (2 OF 2) -Cl41-...
  • Page 229 6-3! WIRES GROUP M7-6-300400 M7-6-300410 (2 OF 2) REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION EW72B005BM04 Wire Ass'y X4 (Power for M4/M5 PCB) EW72B005BM01 Wire Ass'y X1 (Power for M4/M5) (For 550W/650W) EW72B008DM01 Wire Ass'y X1 (Power for M4/M5)
  • Page 230 LIGHT TREE GROUP M7-6-400300 (OPTION) -C143-...
  • Page 231 6-4! LIGHT TREE GROUP M7-6-400300 (OPTION) REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-6-403000 Warning Lamp Box Warning Lamp Box (Stainless Steel Model) M7-6-403000S M7-6-403100 Warning Lamp Box Cover Warning Lamp Box Cover (Stainless Steel M7-6-403100S Model) M7-6-402011 Light Tree Ass'y (Red/Yellow/Green)
  • Page 232 TRANSMISSION UNIT M7-7-900101 M7-7-900111 ~Cl45~...

  • Page 233: Transmission Unit

    TRANSMISSION UNIT M7-7-900101 M7-7-900111 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-7-900101 Transmission Unit (For 5-6mm, 550W) M7-7-900101S Transmission Unit (Stainless Steel Model) (For 5-6mm, 550W) M7-7-900111 Transmission Unit (For 9mm, 550W) M7-7-900111S Transmission Unit (Stainless Steel Model) (For 9mm, 550W)
  • Page 234 TRANSMISSION UNIT M7-7-900101 M7-7-900111 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-7-100220 Upper Table, Front Group (For 12mm, 550W) M7-7-100220S Upper Table, Front Group (Stainless Steel Model)(For 12mm, 550W) M7-7-100230 Upper Table, Front Group (For 5-6mm, 650W) M7-7-100230S Upper Table, Front Group (Stainless Steel...
  • Page 235 TRANSMISSION UNIT M7-7-900101 M7-7-900111 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-7-400000 Extension Table Group (For 550W)(Option) X SEE PAGE C167 M7-7-400000S Extension Table Group (Stainless Steel Model) (For 550W)(Option) M7-7-400010 Extension Table Group (For 650W)(Option) 205139 M7-7-400010S Extension Table Group (Stainless Steel Model)
  • Page 236 UPPER TABLE, FRONT GROUP M7-7-100200 M7-7-100210 %C149%#...
  • Page 237 UPPER TABLE, FRONT GROUP M7-7-100200 M7-7-100210 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-7-100200 Upper Table, Front Group (For 5-6mm, 550W) M7-7-100200S Upper Table, Front Group (Stainless Steel Model)(For 5-6mm, 550W) M7-7-100210 Upper Table, Front Group (For 9mm, 550W)
  • Page 238 UPPER TABLE, FRONT GROUP M7-7-100200 M7-7-100210 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-7-101130 Upper Table Front (For 850W/1050W) M7-7-101130HA Upper Table Front (Stainless Steel Model) (For 850W/1050W) M7-7-101200 Guide Plate (For 5-6mm, 550W) M7-7-101200S Guide Plate (Stainless Steel Model)
  • Page 239 UPPER TABLE, FRONT GROUP M7-7-100200 M7-7-100210 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-7-101320 Shaft (For 850W/1050W) M7-7-101320S Shaft (Stainless Steel Model) (For 850W/1050W) M7-7-104200 191770 Conveyor Belt (For 550W/650W) Conveyor Belt (For 850W/1050W) M7-7-104300 Lock Slot Upper Left Table, Front Ass'y (For 5-6mm,...
  • Page 240 UPPER TABLE, FRONT GROUP M7-7-100200 M7-7-100210 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION T6-7-50451 Bracket (For 550W/650W) Bracket (For 850W/1050W) T6-7-50462 Bracket T6-7-50530 Pulley 205667 T6-7-50541 Spacer T6-7-50541S Spacer (Stainless Steel Model) 205617 T6-7-50552 Bracket T6-7-50560 Roller (For 550W/650W)
  • Page 241 UPPER TABLE, FRONT GROUP M7-7-100200 M7-7-100210 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION SR08 Stop Ring, S-8 (For 550W/650W) Stop Ring, S-8 (For 850W/1050W) SR08S Stop Ring, S-8 (Stainless Steel Model) 205185 (For 550W/650W) Stop Ring, S-8 (Stainless Steel Model)
  • Page 242 7-1-1 UPPER LEFT TABLE, F RONT ASS'Y M7-7-120000 (For1050W) M7-7-120010 -C155-...
  • Page 243 7-1-1 UPPER LEFT TABLE, FRONT ASS'Y M7-7-120000 (For 1050W) M7-7-120010 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-7-120000 Upper Left Table, Front Ass'y (For 5-6mm, 1050W) M7-7-120000S Upper Left Table, Front Ass'y (Stainless Steel Model)(For 5-6mm, 1050W) M7-7-120010 Upper Left Table, Front Ass'y (For 9mm,...
  • Page 244 UPPER TABLE, REAR GROUP M7-7-200100 M7-7-200110 C157-...
  • Page 245 UPPER TABLE, REAR GROUP M7-7-200100 M7-7-200110 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-7-201700 Idler Pulley Base (For 550W/650W) Idler Pulley Base (For 850W/1050W) M7-7-201800 Shaft M7-7-201800S 205394 Shaft (Stainless Steel Model) M7-7-201900 Roller M7-7-201900S Roller (Stainless Steel Model)
  • Page 246 UPPER TABLE, REAR GROUP M7-7-200100 M7-7-200110 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION BR2204-2RS Bearing, 2204 2RS 205497 BR698-2RS Bearing, 698 2RS (For 550W/650W) 187030 Bearing, 698 2RS (For 850W/1050W) KYA060625 Key, 6×6×25 191076 NTE05 NTE, M5 (For 550W/650W)
  • Page 247 UPPER TABLE, REAR GROUP M7-7-200100 M7-7-200110 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION BR2204-2RS Bearing, 2204 2RS 205497 BR698ZZ Bearing, 698ZZ (For 550W/650W) Bearing, 698ZZ (For 850W/1050W) KYA060625 Key, 6×6×25 NTE05 NTE, M5 (For 550W/650W) 191076 NTE, M5 (For 850W/1050W) HBS0616N HBS, M6×16 (N)
  • Page 248 7-2-1 UPPER LEFT TABLE, REAR ASS'Y M7-7-210000 (Only 1050W) %C161%#...
  • Page 249 7-2-1 UPPER LEFT TABLE, REAR ASS'Y M7-7-210000 (Only 1050W) REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-7-210000 Upper Left Table, Rear Ass'y (Only 1050W) M7-7-210000S Upper Left Table, Rear Ass'y (Stainless Steel Model)(Only 1050W) M7-7-211100 Upper Rear Table, Rear...
  • Page 250 TRANSMISSION GROUP M7-7-300102 -C163-...
  • Page 251 7-3! TRANSMISSION GROUP M7-7-300102 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-7-302200 Shaft M7-7-302300 Belt 191772 M7-7-302400 Tension Pulley M7-7-302500 M6 Motor Bracket T6-6-10340 Cable Gland (PG13.5) T6-7-60212 Tension Pulley Pulley T7-7-30120 Motor (M6) T7-7-30180 T7-7-30290 Link Adjust Bolt...
  • Page 252 M7-7-400000 EXTENSION TABLE GROUP M7-7-400010 (OPTION) -C165-...
  • Page 253 7-4! EXTENSION TABLE GROUP M7-7-400000 (OPTION) M7-7-400010 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-7-400000 Extension Table Group (For 550W)(Option) M7-7-400000S Extension Table Group (Stainless Steel Model) (For 550W)(Option) M7-7-400010 Extension Table Group (For 650W)(Option) 205139 M7-7-400010S Extension Table Group (Stainless Steel Model)
  • Page 254 EXTENSION TABLE GROUP M7-7-400000 (OPTION) M7-7-400010 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-7-401500 Shaft (For 550W) M7-7-401500S Shaft (Stainless Steel Model)(For 550W) M7-7-401510 Shaft (For 650W) M7-7-401510S Shaft (Stainless Steel Model)(For 650W) M7-7-401520 Shaft (For 850W) M7-7-401520S Shaft (Stainless Steel Model)(For 850W)
  • Page 255 EXTENSION TABLE GROUP M7-7-400000 (OPTION) M7-7-400010 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION SW04 SW, M4 191759 SW08 SW, M8 SW, M8 (For 850W) SW, M8 (For 1050W) PW08A PW, M8 (A) PW08C PW, M8 (C) 191760 PW05 PW, M5 (Option)
  • Page 256 PNEUMATIC UNIT M7-8-900200 M7-8-900210 -C169-...

  • Page 257: Pneumatic Unit

    PNEUMATIC UNIT M7-8-900200 (For TP-702BP) M7-8-900210 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-8-900200 Pneumatic Unit (For 550W×500H) Pneumatic Unit (Stainless Steel Model) M7-8-900200S (For 550W×500H) M7-8-900210 Pneumatic Unit (For 650W×500H) Pneumatic Unit (Stainless Steel Model) M7-8-900210S (For 650W×500H) Pneumatic Unit (For 850W×600H)
  • Page 258 PRESS BAR GROUP M7-8-100200 -Cl 71-...
  • Page 259 PRESS BAR GROUP M7-8-100200 (For TP-702BP) M7-8-100210 (1 OF 2) REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-8-100200 Press Bar Group (For 550W×500H) M7-8-100200S Press Bar Group (Stainless Steel Model) (For 550W×500H) M7-8-100210 Press Bar Group (For 650W×500H) M7-8-100210S Press Bar Group (Stainless Steel Model) (For 650W×500H)
  • Page 260 PRESS BAR GROUP M7-8-100200 (For TP-702BP) M7-8-100210 (1 OF 2) REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-8-103920 Cylinder Protective Cover(For 800H) M7-8-103920S Cylinder Protective Cover (Stainless Steel Model)(For 800H) M7-8-104000 Plate (For 550W) M7-8-104000S Plate (Stainless Steel Model)(For 550W)
  • Page 261 -C174-...
  • Page 262 M7-8-100200 PRESS BAR GROUP M7-8-100210 (2 OF 2) -Cl 75-...
  • Page 263 PRESS BAR GROUP M7-8-100200 (For TP-702BP) M7-8-100210 (2 OF 2) REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-8-104300 Cylinder Bracket M7-8-104400 Press Bar Connecting Plate (For 500H) M7-8-104400S Press Bar Connecting Plate (Stainless Steel Model)(For 500H) M7-8-104410 Press Bar Connecting Plate (For 600H)
  • Page 264 PRESS BAR GROUP M7-8-100200 (For TP-702BP) M7-8-100210 (2 OF 2) REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-8-121412 Press Bar Absorber (600L)(For 650W) 203639 M7-8-121402 Press Bar Absorber (400L)(For 850W) 203638 T7-8-10111 Cylinder (For 500H) T7-8-10112 Cylinder (For 600H)
  • Page 265 PRESS BAR GROUP M7-8-100200 (For TP-702BP) M7-8-100210 (2 OF 2) REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION SW06 191562 SW, M6 (For 550W~850W) SW, M6 (For 1050W) 205539 SW06S SW, M6 (Stainless Steel Model) (For 550W~850W) SW, M6 (Stainless Steel Model)(For 1050W)
  • Page 266 8-1-1 SLIDING BLOCK ASS'Y (RIGHT) M7-8-130000 -Cl 79-...
  • Page 267 8-1-1! SLIDING BLOCK ASS'Y (RIGHT) M7-8-130000 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-8-131100 Sliding Block (Right) M7-8-131200 Shaft BR608ZZ Bearing, 608ZZ 187783 HBS0512N HBS, M5×12 (N) 190848 HBS0612N HBS, M6×12 (N) 191563 SW05 SW, M5 191577 SW06 SW, M6...
  • Page 268 8-1-2 SLIDING BLOCK ASS'Y (LEFT) M7-8-130010 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-8-131110 Sliding Block (Left) M7-8-131200 Shaft BR608ZZ Bearing, 608ZZ 187783 HBS0512N HBS, M5×12 (N) 190848 HBS0612N HBS, M6×12 (N) 191563 SW05 SW, M5 191577 SW06 SW, M6...
  • Page 270 PNEUMATIC PARTS GROUP M7-8-200060 (For TP-702BP) M7-8-200070 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-8-200060 Pneumatic Parts Group (For 550W×500H) M7-8-200070 Pneumatic Parts Group (For 650W×500H) M7-8-200080 Pneumatic Parts Group (For 850W×600H) M7-8-200090 Pneumatic Parts Group (For 1050W×800H) M7-8-200130 Pneumatic Parts Group (For 850W×800H)

This manual is also suitable for:

Pc2000cx

Table of Contents

Save PDF
