Pure Acoustics SBW-1022 User Manual

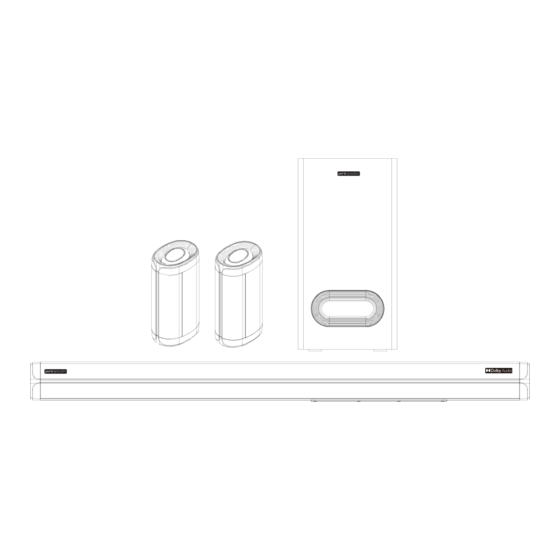

5.1ch home theater system wireless soundbar with dolby audio technology
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SBW-1022 and is the answer not in the manual?

Questions and answers

Related Manuals for Pure Acoustics SBW-1022

Summary of Contents for Pure Acoustics SBW-1022

  • Page 2 5.1CH Home theater system wireless Soundbar with Dolby Audio technology SBW-1022 User Manual...

  • Page 3: Important Safety Instruction

    Important Safety Instruction Thank you for purchasing the SBW-1022 Soundbar. Please read this user manual carefully and keep for future reference. arning Caution: To reduce the risk of electric shock, do not dismantle the product and do not expose the apparatus to rain or moisture.

  • Page 4: Important Safety Instructions

    6. The unit should not be impeded by covering the ventilation opening with items such as newspaper, table-cloths, curtains etc. Make sure that there are at least 20 cm of space above and at least 5 cm of space on each side of the unit. 7.

  • Page 5: Preparation For Use

    9. Refer all servicing to qualified service personal. Servicing is required when the apparatus has been damage in any way, for example, when the power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

  • Page 6: Important Notes

    Important Notes • Safety and operating instruction manual should be retained for future reference. • The apparatus should not be exposed to dripping, splashing or placed in a humid atmosphere such as a bathroom. • Do not install the product in the following areas: •...

  • Page 7: Product Diagram

    Product Diagram 8888 OPTICAL LED DISPLAY LINE IN(AUX) FOR UPDATE Power/Standby HDMI(ARC) VOL- AC IN INPUT SUB OUT VOL+ 10 11 Wireless Surround SL or SR out (wireless surround Channel is fixed, when end user's power socket position isn't matched, please press switch button from bottom of surround speaker to exchange channel position.) Wireless surround SL channel LED light LED indicator: Indicates the pairing between soundbar...

  • Page 8: Remote Control

    Remote Control Positioning the Sound Bar Place on a flat Surface Place the sound bar horizontally on a flat surface such as a TV unit or shelves and align it centrally with the TV screen. Allow some space between the speaker and the wall. Don’t place inside a cabinet or an a walled shelf.
  • Page 9 Mount on the wall WARNING: If you don’t feel confident to correctly and securely wall-mount the sound bar, Seek the assistance of an experienced person of professional. Install the speaker on a vertical, fast, reinforced area of wall. For plaster walls, it is recommended to screw into wall studs for greater security.
  • Page 10 Follow below steps to mount the surround speaker on the wall 1. Open 4 holes on the wall. For the distance between the 2 holes, pls refer to the soundbar bracket wall mounting. 2. Fasten the plastic anchors in the 4 holes of the wall mount bracket. 3.

  • Page 11: Powering On/Off

    OPERATE INSTRUCTIONS Setting the Soundbar 1. Plug in the power cord and the display will light up (Standby mode) 2. Switch on the sound bar by pressing “STANDBY” button on sound bar or on remote controller. After switching on, the default input mode will appear on display. 3.
  • Page 12 Playing Audio via BT Connection 1 Turn on the sound bar and then short-press the “INPUT” button on sound bar or remote controller to switch it to BT mode and LED display on the sound bar will flicker in the Bluetooth pairing mode. 2.
  • Page 13 Using the Soundbar wireless signal...

  • Page 14: Optical Mode

    Audio input(Aux)Connection 1. Firstly connect the soundbar to your PC, laptop, smart-phone, TV, or other audio devices by using an AUX cable provided. Make sure that these devices have both AUX IN and AUX OUT terminals. 2. Then press the INPUT button on remote control or soundbar to switch the soundbar to Aux mode, once the soundbar is connected in Aux mode, the screen will display "...
  • Page 15 POSSIBLE CAUSE SOLUTION PROBLEM/TROUBLE Another input source is selected. Select an appropriate input source. Cancel the mute function. The mute function is activated. The volume of sound bar or TV/other device Increase the volume level on sound bar or is adjusted too low. by remote control or on TV.
  • Page 16 PROBLEM/TROUBLE POSSIBLE CAUSE SOLUTION Sound quality of audio Move the device closer to the sound bar, play from a connected or remove any obstacle between the device and The Bluetooth reception is poor. Bluetooth device is the sound bar. poor and connection is not stable.

  • Page 17: Specifications

    Features: Wireless BT/USB/OPT/ LINE IN(AUX)/HDMI ( ARC) Remote control Wall Mountable LED Display Volume/Media Control 16.51cm Subwoofer 5.1 Channel Soundbar Dolby Audio Dual Wireless Rear Satellites Specifications Output Power Subwoofer - 150 watts Soundbar - 225 watts Satellites - 75 watts x 2 Total - 525 watts Driver Size Subwoofer - 16.51 cm x 1...
