RB48100
Rechargeable LiFePO4 battery User manual
This manual describes the RB48100 series. Please read this manual
before installing the battery and follow the instructions carefully during
the installation process. If you have any questions, contact the
manufacturer immediately for help.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Sterling Power Stackable Series

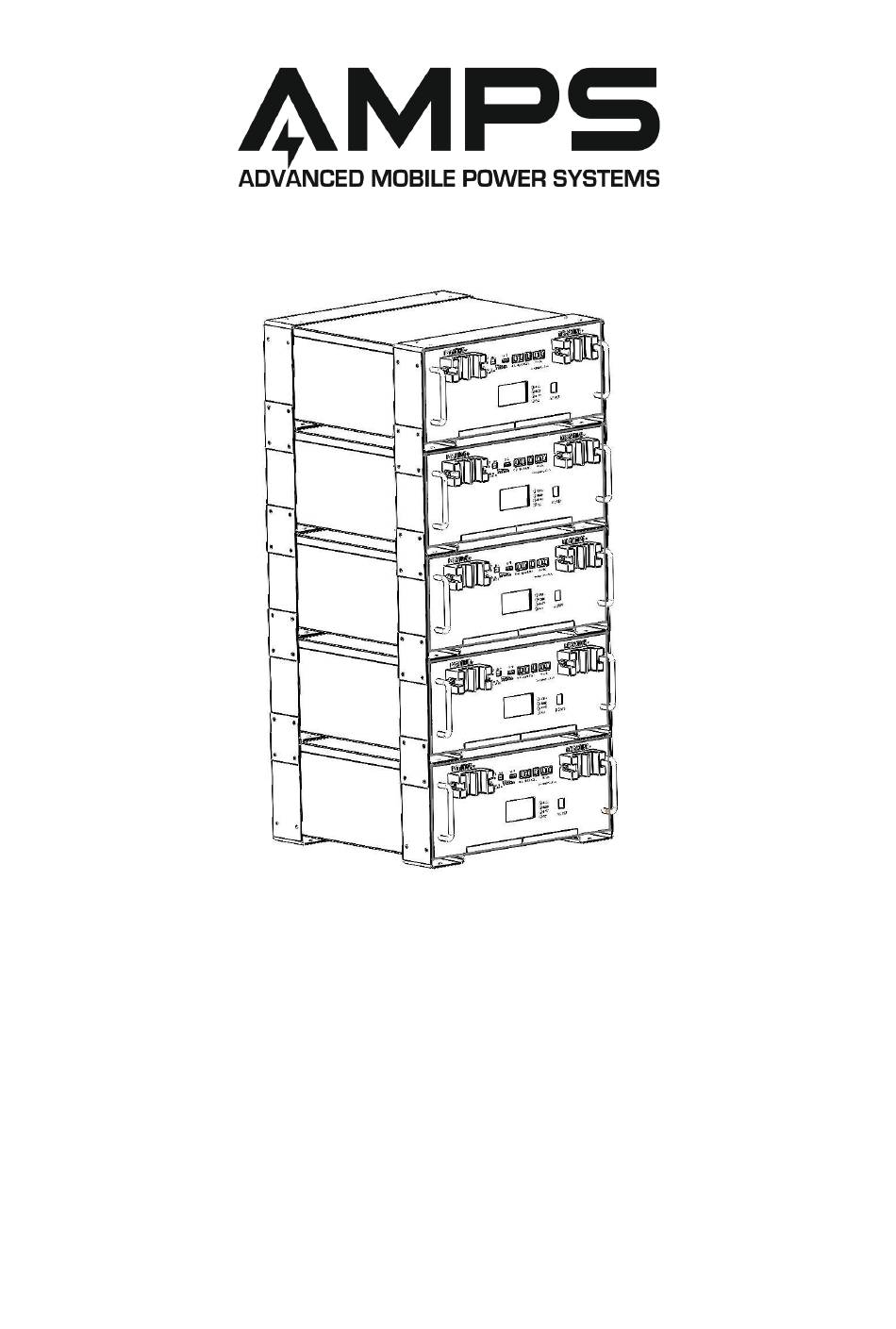

- Page 1 Stackable Series Home energy storage battery RB48100 Rechargeable LiFePO4 battery User manual This manual describes the RB48100 series. Please read this manual before installing the battery and follow the instructions carefully during the installation process. If you have any questions, contact the...
-
Page 3: Table Of Contents
1.Safety Instructions ....................1 1.1Before Connection .....................2 1.2In use ........................3 2.Introduction ......................3 2.1Product Features ....................3 2.2Product Specifications ..................4 2.3BMS basic function ....................4 2.4Product Port Description ..................5 3.Lithium battery installation guidelines ............... 9 3.1Connection Scheme ...................9 3.2Precautions for Selecting an Installation Location ........ -
Page 5: Safety Instructions
1.Safety instructions WARNING 1) Before installing or using the battery, you must read the user manual (attached) carefully. Failure to do so or to comply with any instructions or warnings in this document may result in electric shock, serious injury or death, or may damage the battery and potentially render it inoperable. -
Page 6: Before Connection
WARNING 1.1 Before Connection 1) After unpacking, please check the product and packing list first, if the product is damaged or missing parts, please contact the local dealer. 2) Before installation, be sure to cut off the power grid and ensure that the battery is in off mode. -
Page 7: Introduction
6) Do not open, repair or remove the battery except by the manufacturer's staff or authorized by the manufacturer. We do not accept any consequences or liability arising from violations of safe operation, design, production and equipment safety standards. 2 Introduce The LFP RB series lithium iron phosphate battery is a new energy storage product developed and produced by the AMPS team to provide reliable power support for a variety of devices and systems. -
Page 8: Product Specifications
Product specification Product appearance and dimensions TYPE: RB48100 SIZE: L500 W460 H210mm Weight: <51Kg 2.3 BMS Basic Function Protection and alarm management and monitoring Over discharge protect Cell Balance Charging overvoltage protection intelligent charging model Low voltage protection charge/discharge current limit Overcurrent protection capacity retention calculation High/low temperature protection... -
Page 9: Product Port Description
Battery Technical Specifications Type RB48100 Nominal voltage 51.2V Nominal capacity 100Ah Power (Wh) 5.12Kwh Discharge cut-off voltage Charge cut-off voltage 58.4V <100A Recommended charging Maximum charging Current 100A Recommended discharge <100A Maximum discharge current 100A Maximum load power Number of cells in series 16 pcs Communication RS485/CAN... - Page 10 Device interface description POSITIVE DC power positive pole NEGATIVE DC power Negative pole 1）Switch: ON/OFF ON：Start-Up OFF：Power off during storage or transportation 2）LCD screen: Battery information display (1) MENU (2) ENTTER (3) D0WN (4) ESC 3) Indicator light information ON/OFF:: The system is powered on RUN: Green LED indicator shows the battery running status...
- Page 11 The ADS dial code location corresponding address table is attached 5) Dry contact output description A) Dry contact 1-PIN1 to PIN2: normally open, Low battery B) Dry contact 2-PIN3 to PIN4: normally open, Shutdown during fault protection 6）RS485/CAN RS485--8P8C vertical RJ45 socket CAN--8P8C vertical RJ45 socket RJ45 pin Define the...
- Page 12 7）RS232 RS232 Communication port difference RS232 - with 6P6C vertical RJ11 socket RJ11 pin Define the description TX（ Veneer） RX（Veneer） RS232 connects the upper computer to the manufacturer or professional engineer. 8）Parallel communication port RS485 battery pack parallel function a). In parallel mode, communication address 0001 is the primary battery string, and other communication locations are secondary batteries.
-
Page 13: Lithium Battery Installation Guidelines
3.Lithium battery installation guide 3.1 Connection Scheme Diagram 3.2 Before choosing an installation location, consider the following: a). Keep away from fire sources or inflammable and explosive materials. b).The ambient temperature should be somewhere in between 0°C and 45°C to ensure optimal operation. C). -
Page 14: Packaging Item
Battery connection diagram... -
Page 15: Battery Connection Figure
4.3Connect the inverter inverter Connect the positive and negative cables of the battery to the positive and negative ports of the DC input of the inverter, and connect the communication line to the BMS/RS485 port on the inverter to complete the connection between the battery and the inverter. -
Page 16: Failure Recovery
6. Troubleshooting Problem-based determination 1. Whether the battery can be turned on. 2. If the battery is on, please check if the red light is off, flashing or on. 3. If the red light is off, check whether the battery can be charged and discharged. Possible conditions: 1. -
Page 17: Emergency
3. Buzzer 3.1. Cable Reverse Connection Solution: Power off all batteries and inverters. Turn off the circuit breaker. Check the cable connections and disconnect all power cables. Check the power port for damage. Then try opening a single module without any cables connected. If there is no alarm, it is the reverse connection of the cable. - Page 18 8. Remark: Recycling and Disposal If batteries (normal condition or damaged) require disposal or require recycling, they should be handled in accordance with local recycling regulations and use the best technology to achieve the relevant recycling efficiencies. Maintenance Charge the battery at least once every 6 months, charge maintenance to ensure that the SOC charge is higher than 90%.
