FWG09 Assembly instructions

Connections with adapter board

Version 2023-06-28

Table of Contents

Need help?

Do you have a question about the FWG09 and is the answer not in the manual?

Questions and answers

Summary of Contents for base engineering FWG09

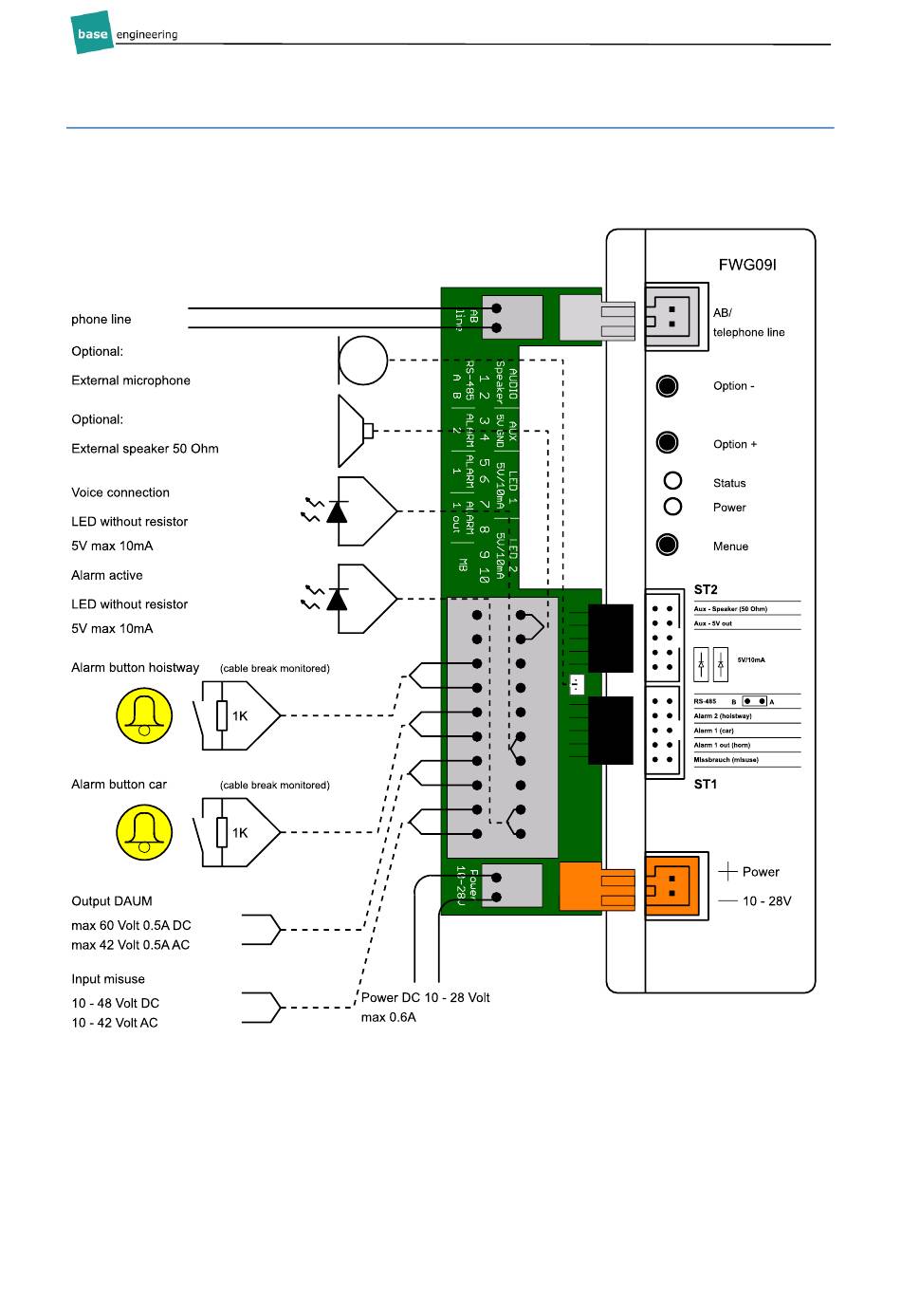

Page 1 Hotline phone 040 / 790 261 790 , 040 / 529 811 30 , 040 / 529 811 31 Website https://base-engineering.com FWG09 Assembly instructions Connections with adapter board Version 2023-06-28...
Page 2 FWG09I Assembly instructions Direct connections without adapter board...
Page 3: Installation
The housing then fulfills the requirements of IPX1. The FWG09 can also be mounting behind the control panel. It should be noted that it needs to be protected against vandalism.
Page 4: Battery Compartment
FWG09I Assembly instructions 5. Connect the alarm buttons, misuse input and signal lamps. Decommissioning 1) Disconnect the power supply. a) When using the adapter board disconnect the board or the power supply. When disconnecting the adapter board please wear protection gloves. b) Without the adapter board pull the orange plug.
Page 5 LED Pictograms Adapter board The FWG09 supplies an emergency power supply voltage of 5V (current is limited to 10mA) for the connection of LED pictograms for alarm and voice communication. To do this, the LEDs must be connected in position A-B.
Page 6: Direct Connection
FWG09I Assembly instructions Direct connection The FWG09 supplies an emergency power supply voltage of 5V (current is limited to 10mA) for the connection of LED pictograms for alarm and voice communication. To do this, the LEDs must be connected in position A-B.
Page 7: Fire Alarm
FWG09I Assembly instructions Connecting the alarm buttons The FWG09 offers the possibility to connect two alarm buttons, alarm button 1 and alarm button 2. Both buttons can be configured independently of each other as NO or NC contact. It is intended that the alarm button in the car is connected to alarm button 1 and one or more buttons on or under the car are connected to alarm button 2.
Page 8 The internal circuit of the FWG09 is used to switch the connected alarm button to the recognition circuit of the FWG09, and to mirror the function of the external push-button via a relay to the signaling unit potential-free.
Page 9: Menu Structure
Service menu Activation Briefly press the buttons “Menu” and ”Option+” simultaneously ⇒ FWG09 responds “Service on, object number <Object>, car <Car>” and refers to some technical information. You can exit the service menu again at any time in the same way.
Page 10 Poland – All dialed numbers are prefixed with 0048 for Poland. This setting allows the use of the FWG09 in a different country than the call center, i.e. a roaming SIM card. In the call center mode, the international prefix code is known to the FWG and is used with "On".
Page 11 Panel 4 with emergency light and pictograms for In-wall 200400001490 Listening is... When listening is activated, the FWG09’s dialing and communication with the call center can be listened to. This allows a simple diagnosis of problems with the telephone line or telephone system. Service off The service menu has been exited again.
Page 12 Calling the FWG09 via telephone You can also call the FWG09 with a normal telephone. A few seconds after the FWG has picked up it sends an answer tone. After this tone you can enter commands via DTMF. The commands needed for gate keeper mode are explained there on page 13.
Page 13: Technical Requirements
Operation as gatekeeper’s intercom PSS09 Introduction The FWG09 can send its messages not only to a call center but also to a normal telephone. This operating mode is called the gatekeeper’s intercom PSS09. The gatekeeper's intercom is a complete lift emergency call system and also behaves accordingly.
Page 14 FWG09I Assembly instructions Program 2 Only the messages Alarm, Emergency Over, Misuse, Battery broken, Battery missing and Final call are generated. Furthermore, alarms are cancelled when the voice communication is established. Program 2A In addition to the messages from program 2, the Periodic call is also reported. Program 3 Only the messages Alarm and Misuse are generated.
Page 15 The master PIN is located on the object number sticker of units which are delivered as PSS09. Units that were delivered as FWG09 must initially be changed to the desired program variant in the service menu under “Messages to ...”. After switching to PSS09, the master PIN is announced after the object and car number the next time the service menu is switched on.
Page 16 <Car> off. Emergency cleared”. For programs 2 and 2A it suffices to hang up, base engineering gmbh however also recommends “*0#” here, as otherwise the busy tone will be heard for some time in the car. Acceptance and receipt of messages in the programs 3, 3A, 3B In programs 3, 3A and 3B only emergency calls initiate dialing.
Page 17 FWG09I Assembly instructions required car with “*<Car>#”, the PSS09 gives the indication “Voice connection <Car> on. Please enter*0# to terminate the voice connection” and you can talk to the car. To end the call use ”*0#” as normal. If you want to talk to other cars during the call, you can still dial the next car via “*<Car>#”. Call back for program 3, 3A, 3B In program 3, the reference “Voice connection 1 on.
Page 18 FWG09I Assembly instructions Example periodic call, car 1, program 1, PIN *4711* A periodic call takes place every 3 days. In there is no periodic call, the lift system must be shut down, since the emergency call is presumably no longer working: 1.
Page 19 The unit has been restarted. Either the unit has restarted itself or has been restarted due to a software update or new parameterization by base engineering gmbh. Recommendations for action: Inform the maintenance company within a short period of time if it occurs frequently.
Page 20 FWG09I Assembly instructions Recommendations for action: The emergency call no longer works, shut down the lift system. Wire broken alarm button 2 car n (Program 1) With the “cable break monitored” setting, the unit no longer sees the resistor on the hoistway buttons.
Page 21: Tüv Certification
GSM10/GSM13 module. Please do not confuse with “Battery broken car n” Recommendation for action: Arrange for battery replacement for the GSM10/GSM13 Module within one week. TÜV Certification The conformity of FWG09 to EN81-28 has been certified by TÜV Austria. Technical specifications Dimensions without tabs (L×W×H) 15cm×8,2cm×4cm Dimensions with tabs (L×W×H)
Page 22: Eu Declaration Of Conformity
The manufacturer Base engineering GmbH Querstücken 5 22851 Norderstedt hereby declares that the following product: Product designation: Emergency call system for elevators FWG09 Revision: FWG09i 20.18 (200400000210) fulfills the provisions of the EMC-Directive 2014/30/EU Elevator- Directive 2014/33/EU including the changes which applied at the time of the declaration.
Page 23: Manufacturer's Declaration
Querstücken 5 22851 Norderstedt hereby declares that the following product: The emergency call system as a combination of an emergency call device (FWG05/FWG09/FWG12) connected to a mobile gateway unit (GSM10/GSM13) or landline connection/converted AB interface via the public telephone network,...
Page 24 FWG09I Assembly instructions This page is intentionally left blank...
Page 25 EN81-28 in its respective valid version or successor regulations. The operator cannot pass on these obligations and responsibilities to a third party. If an emergency call system FWG09 is correctly installed and connected to a call center which is provided for this purpose in the protocol version, these requirements shall be regarded as fulfilled.
Page 26: Exclusion Of Liability
This code of conduct is explicitly not a professional recommendation. It does not relieve the operator from his or her own responsibility, rather is to be understood as a more detailed explanation of how the emergency call system works. Please also refer to the FWG09 installation instructions.
