Retro-Bit PLATINUM ORIGIN8 Instruction Manual

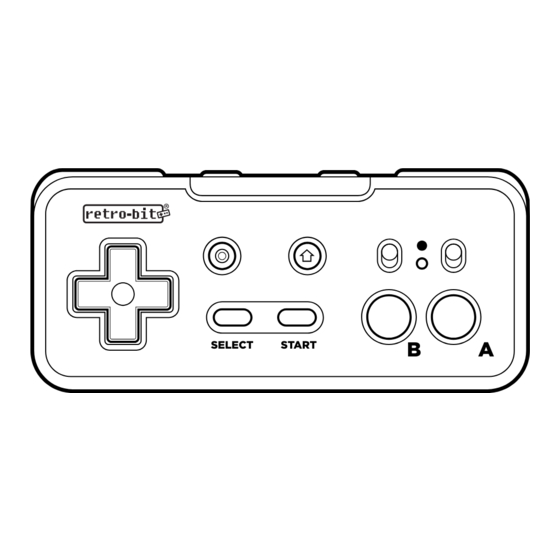

Controller Diagram
Capture
DPad Select
ZR
R
EN Button Mappings
Controller NES®
DPad
DPad
A
A
B
B
L
-
R
-
ZL
-
ZR
-
Capture
-
Home
-
Select
Select
Start
Start Button 10
NES®
Connection
Receiver
To enable Turbo Function
• Flip the switch above Button A and/or B into the "up" position.
• Press and hold the designated button to experience rapid fire inputs.
EN Macros & Compatibility
Press and hold the button combination for 5 seconds to enable.
Input Mode
Select + Start + R
Clear Pairings
Start + B
Input Switch
Start + Left
Left Analog
Start + Right
Right Analog
Start + Up
DPad
Compatibility
• The NES® receiver is compatible with original and most 3rd party
clone consoles that utilize the same controller port.
• The USB® receiver is compatible with Windows® PC, Mac®,
Android®, Raspberry Pi® devices, MiSTer, Polymega®, Nintendo
Switch®, and other USB®-enabled devices and consoles.
INSTRUCTION MANUAL
MANUAL DE INSTRUCCIONES
GUIDE D'UTILISATION
Home Turbo B Turbo A
B
SELECT START
Start Button B Button A
ZL
USB®-C
Charge Port
D-Input X-Input
DPad Left Analog
Button 2 Button 0 (B)
Button 3
Button 1 (A)
Button 7
Button 4 (LB)
Button 8
Button 5 (RB)
Button 6
Button 6 (LT)
Button 5
Button 7 (RT)
- -
- -
Button 9 Select
Start
USB® Receiver
Description
Removes all pairings from the
controller.
Change from D-Input to
X-Input, and vice versa.
Changes DPad to act as
Left Analog
Changes DPad to act as Right
Analog
Changes the DPad back
to default
SELECT START
Receiver Diagram
Includes
• Origin8 2.4 GHz Wireless Controller
• USB® and NES® receivers
• 3ft/1m USB® to USB®-C charge cable
• Instruction Manual
A
L
EN Pairing Instructions
Pairing to a Receiver
Switch
• Connect a receiver into the console's controller port and power it on.
DPad
• Once powered, the receiver will flash red slowly if unpaired.
A
• Press and hold the pairing button on the receiver for a few seconds
until it flashes rapidly.
B
• Press Start on the controller to power it on and once more to pair it.
L
• Once paired, both controller and receiver will have their lights
R
remain on.
• Upon your next play session, you only need to power on the
ZL
controller with Start to connect to the console receiver on a powered
ZR
console.
Capture
Troubleshooting
Home
• If you are experiencing connection issues, be sure that the controller
Minus (-)
is fully charged.
Plus (+) • To reset all connections, press and hold Start + Select + R for 5
seconds.
• To reset the controller, use a thin tool (unbent paperclip) and push a
tiny button within the tiny hole on the back of the controller once -
this will reset the controller to factory default settings.
EN Support
To stay up to date with the latest news,
manuals, and firmware updates, visit
Follow us online and stay in the conversation!
Retro-Bit is a registered trademark of Kool Brands, LLC.
registered trademark of Apple Inc. USB is a registered trademark of
Universal Serial Bus Implementers Forum, Inc. Nintendo Switch® is a
trademark registered trademark of Nintendo of America Inc. All other
mentioned trademarks are either trademarks or registered trademarks
of their respective owners. All rights reserved. This product is not
endorsed, manufactured, produced, sponsored or licensed by Apple Inc.
or Nintendo of America Inc.
© Kool Brands, LLC.
B A
USB®
Pairing
Button
(Firmware Updates Only - Micro USB® cable not included)
retro-bit.com/support.
If you require additional help, e-mail
info@retro-bit.com.
@retrobitgaming
www.retro-bit.com
NES®
Micro USB®
Mac is a
