Summary of Contents for PAE AM1

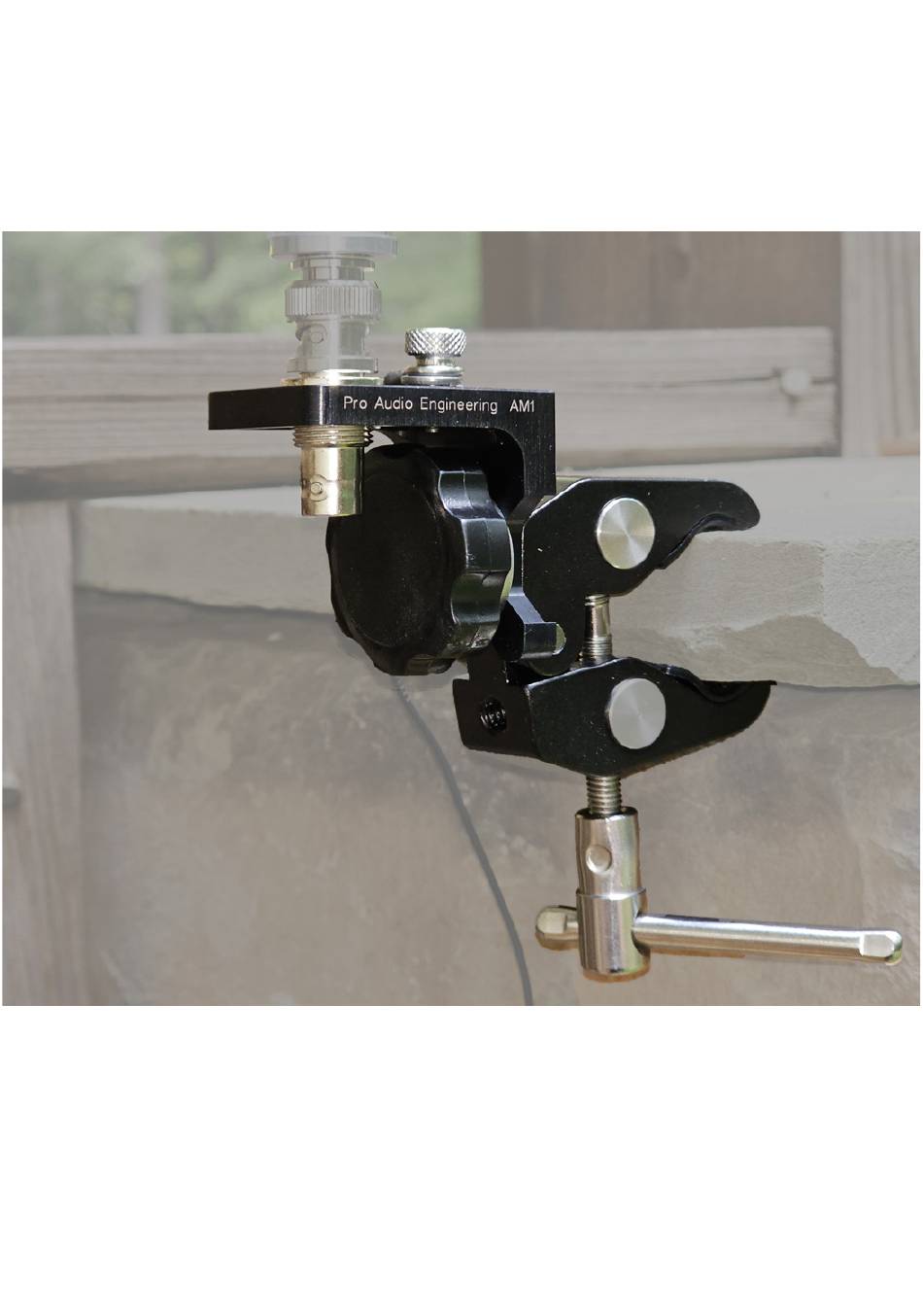

- Page 1 Pro Audio Engineering AM1 Portable Antenna Mount System Owner’s Manual Rev 2.0 October 2, 2023...
- Page 2 Thank you for purchasing the PAE-AM1 portable antenna mount. We designed the AM1 to quickly enable mounting portable whip antennas to various surfaces both horizontal and vertical. It is supplied with a BNC feedthrough connector for antennas such as the Elecraft AX1 or AX2 or others.
- Page 3 Changing the AM1 Orientation: To change orientation, loosen the large knurled knob counterclockwise, then rotate the AM1 bracket to vertical or 90° to the left or right as needed. Tighten the knurled 3/8” bolt to secure the bracket to the clamp. Check to ensure the clamp is still tightly secured to the mounting point.
- Page 4 Maintenance: The AM1 leadscrew comes pre-lubricated with a PTFE based dry-lubricant. Since this clamp will be used outside, we discourage the use of a grease or liquid oil, as dust and dirt will tend to stick to them.
- Page 5 US-made with the correct right-angle BNCs for the rig end to reduce the leverage on the rig’s BNC jack, coupled with low-loss PTFE RG-316 to a BNC for connecting to the AM1 with the BNC-BNC feedthrough . AT1 Tripod Adapter P/N: AM1-TA...
- Page 6 P/N: SO-239-BNC FM Kit This adapter allows the use of PL-259 terminated antennas with the AM1. To install, first remove the BNC to BNC adapter using a 14 mm or 9/16” deep socket or nutdriver. Mount the SO-239 to BNC adapter using a #1 Philips screwdriver and the four #4-40 x 1/4”...
- Page 7 Specifications: PAE-AM1 Bracket: Dimensions: 1-3/4” x 1-3/4” x 1-1/4” (45 x 45 x 32 mm) Weight: 2.4 oz. (9.2 g) SmallRig Clamp: Clamping Range: 0.4” (10 mm) to 2” (50 mm) diameter round members. 0.0” (0 mm) to 2” (50 mm) thick flat members.
- Page 8 Warranty: 1 year from date of purchase, limited to defects in manufacture. Pro Audio Engineering reserves the right to make changes to product specifications which preserve or improve performance and do not affect suitability for the intended use supporting lightweight whip antennas weighing less than 1 pound. ©2023 Pro Audio Engineering...
