Summary of Contents for KINGS AKEP-DCDC25A 01

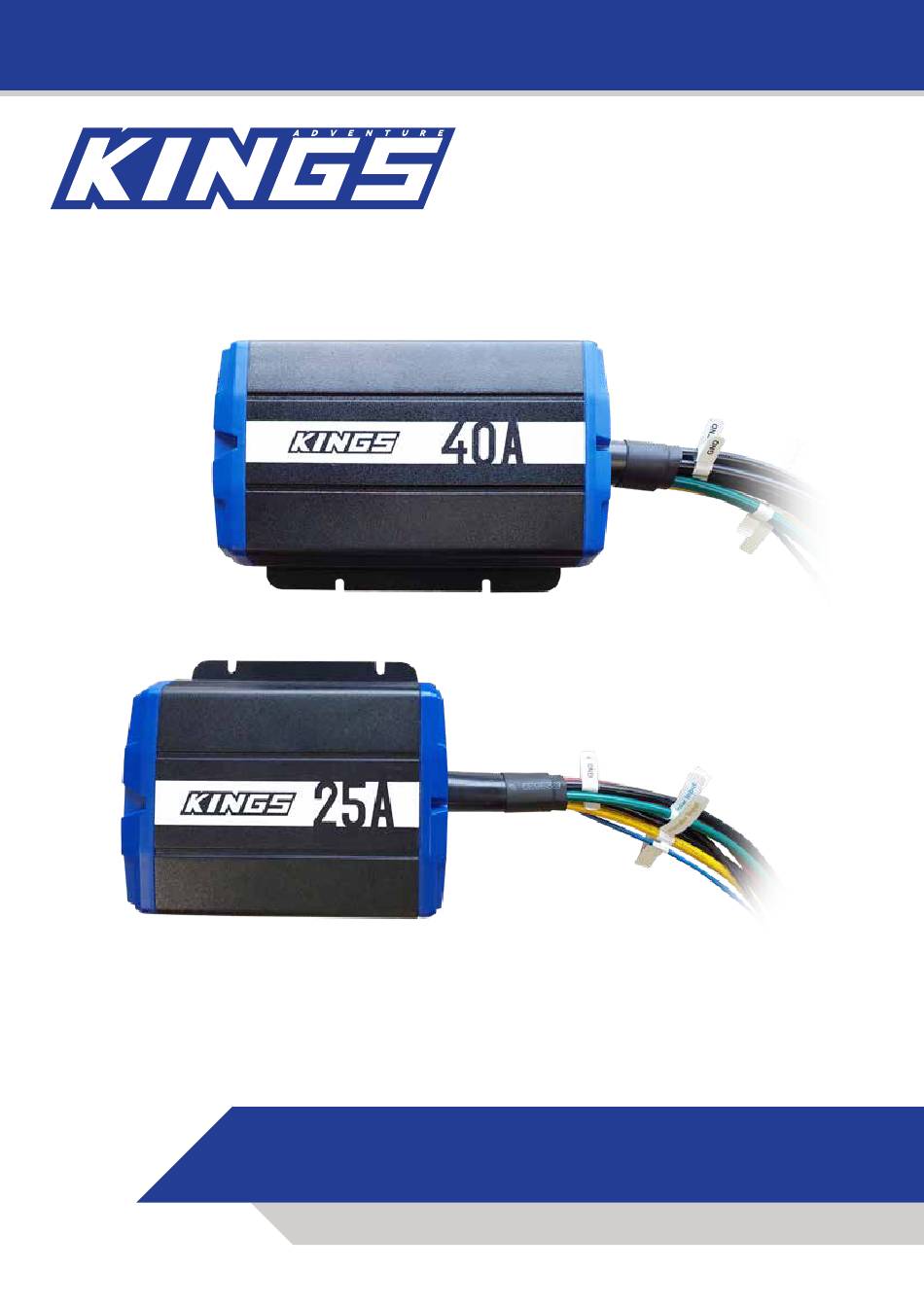

- Page 1 USER MANUAL PLEASE READ AND UNDERSTAND THIS MANUAL COMPLETELY BEFORE USING THIS PRODUCT. DCDC BATTERY CHARGER SKU: AKEP-DCDC25A_01 & AKEP-DCDC40A_01...
-
Page 2: Safety Information
1. SAFETY INFORMATION Please read the user manual and safety instructions carefully before using the appliance. • For 12V Lead Acid based and Lithium LiFePO4 Batteries recommended battery capacity (25A DCDC Model - 80 - 250 Ah) (40A DCDC Model - 120 - 400 Ah). For other Lithium-Ion batteries refer to section “Charging Voltage Limits”... -
Page 3: Operation Modes
OPERATION MODES 25A and 40A Models Vehicle Charging System Turn On Turn Off 12 Volt Standard Alternator Above 13.1 Volts Under 12.8 Volts 24 Volt Standard Alternator Above 26.2 Volts Under 25.6 Volts 12 Volt Smart Alternator Above 12.0 Volts Under 11.8 Volts 24 Volt Smart Alternator Above 24.0 Volts... -
Page 4: Led Status Indicators
3.2 LED STATUS INDICATORS Battery Alternator Solar Fault Type Trouble Solution (Green) (Green) (Red) (Green) Quick Quick Low voltage detected Vehicle is OFF, or if vehicle is ON - flash flash at alternator input check alternator input voltage Quick Quick Low voltage detected No sun on solar, or if sun is on solar flash... -
Page 5: Mounting Diagrams
4. CHARGING VOLTAGE LIMITS CHARGING VOLTAGE FLOAT VOLTAGE BATTERY TYPE AT 25°C AT 25°C STD (WET LEAD ACID) 14.4V 13.4V 14.1V 13.5V 14.7V 13.4V CALCIUM 15.3V 13.6V LITHIUM (LIFEPO4) 14.5V 13.6V 5. MOUNTING DIAGRAMS 153mm 25A Model 80mm 131mm 118mm 191mm 40A Model 80mm... -
Page 6: Wiring Guide
6. WIRING GUIDE In order to prevent accidental short circuit during installation, it is recommended to turn off the car during the installation and the negative pole of the starter battery should be disconnected. Please note that disconnecting the negative of the main battery may reset some memory functions in the vehicle and the vehicles head unit or other functions may need a reset code once power is restored, check your vehicles manual or manufacturer for further details. -
Page 7: Operation
9. Restore the negative connection of the battery. Confirm the charger begins to operate properly. If anomalies occur, disconnect the negative battery connection and check / confirm all other connections are correct before starting again. 7. OPERATION 1. To change battery type, press and hold the ‘MODE’ button for 2 seconds then release to cycle through and select different battery types. -
Page 8: Warranty
8. WARRANTY 12 MONTH LIMITED WARRANTY WARRANTY PERIOD: Full 12 month warranty from date of purchase against all manufacturing defects. WHAT DOES THE WARRANTY COVER? Under normal usage conditions, this warranty covers: a. Any defect in design or manufacture which results in the product failing to perform substantially as described in authorised advertising or literature.
Need help?
Do you have a question about the AKEP-DCDC25A 01 and is the answer not in the manual?
Questions and answers
sometimes the green light flashes on the lithium position on my 2525 dc charger sometimes it is steady green. I can't find any reason. please advise. thanks.
A flashing green light on the lithium position of the KINGS AKEP-DCDC25A 01 DC charger indicates the charging stage:
- Short green flash means the charger is in Bulk or Absorption stage.
- Long green flash means the charger is in Float stage.
This answer is automatically generated
I have a Kings 25A dc to dc charger (with mpp solart) fitted in my boat. My Yamaha H60 outboard produces 16A max and the Kings unit draws 25A. This is running my crank battery flat whenever I try and use it. I have a VictronConnect smart shunt, so I can see this is happening. Is there a way I can reduce the input current to the Kings charger to 10A? Or is there a way to increase the required voltage for the control circuit to allow charging?
The KINGS AKEP-DCDC25A 01 charger does not provide a method to manually reduce the input current to 10A or increase the required voltage for the control circuit. The charger automatically operates based on vehicle and solar input voltages, and there are no settings in the provided information to adjust input current or control voltage thresholds.
This answer is automatically generated
The alternator led and battery type led flash when the vehicle is off, there is no change when the vehicle is idling however. Is this correct? (The unit is in the back of my vehicle so I can’t see the led panel when revs are increased so possibly charging only occurs when revs are up?) Thanks for any clarification.
Yes, it is normal. When the DCDC charger is in standby mode (connected but not charging from the alternator or solar), the battery type LED, alternator LED, and solar LED will flash. This indicates the unit is connected but not actively charging, which is expected behavior.
This answer is automatically generated
Where do I place the black censer cable on my kings 25 amp dc to dc charger if my battery doesn’t have lugs (kings 100 amp lithium with only Anderson plugs) ?
