Summary of Contents for SHIVAUDYO Point Zero
- Page 1 User Manual Point Zero S.C. Shivaudyo S.R.L. Address: Calea Mosilor 199, Bucharest, Romania e-mail:office@shivaudyo.com Internet: www.shivaudyo.com...
- Page 2 Shivaudyo S.R.L. provides this document to its customers with a product purchase to use in the product operation. Content of this document is copyright protected and any reproduction of the whole or any part is strictly prohibited, except with the written authorization from Shivaudyo.
-
Page 3: Table Of Contents
Contents Chapter Page Introduction Safety information WEEE Compliance Intended use Loudspeaker layout Quick start Installation Software configuration Operation Measurements Technical Data Sheet Warranty Troubleshooting... -
Page 4: Introduction
Introduction Dear Valued Customer, Congratulations, you have purchased high quality active monitor loudspeaker, which can be used for mastering your songs, Atmos and home cinema implementation or high-end home use. Please read the safety instructions before installing or operating the loudspeaker. Included in the box (for a pair of loudspeakers): •... -
Page 5: Safety Information
Laite on liitettävä suojakoskettimilla varustettuun pistorasiaan. Apparatet må tilkoples jordet stikkontakt. Apparaten skall anslutas till jordat uttag. Service or modifications by any person or persons other than by Shivaudyo authorized personnel voids the warranty. Read these instructions. Keep these instructions. - Page 6 Unplug this apparatus during lightning storms or when unused for long periods of time. Refer all servicing to Shivaudyo support. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
-
Page 7: Weee Compliance
Intended use The Point Zero active loudspeaker is used in professional audio, home cinema and hi-fi applications. The amplifier within the loudspeaker enclosure is ideally matched to the individual drivers, eliminating the need for each amplifier channel to operate in the entire audio band pass. -
Page 8: Loudspeaker Layout

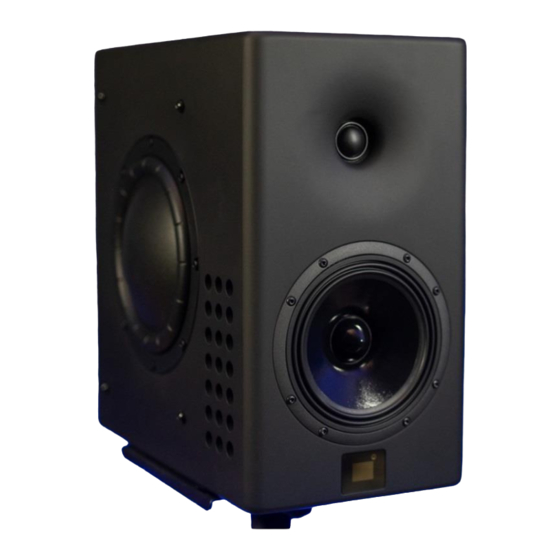

Loudspeaker Layout Before you start Special care has been taken in the packaging of your Shivaudyo Products. Back plate layout Balanced analogue input & output (XLR) Balanced Digital input & output (AES/EBU) Unbalanced analogue input & output (RCA) Mini USB... - Page 9 Front plate layout Tweeter mounted in waveguide Acoustic center of the speaker Mid-woofer Display + Remote sensor...
-
Page 10: Quick Start
Normal operating conditions will cause the red led to flash occasionally on peaks. We draw your attention to the fact that this loudspeaker can produce pressure levels which may be harmful. Shivaudyo declines all responsibility for eventual hearing loss caused by the use of our loudspeakers. -
Page 11: Software Configuration
If you want to use the optional remote control, you need to use the Master - Slave configuration. The Point Zero can be used in a multi-device setting, for example a stereo setup. If you connect the two devices (using SPDIF) and want to be able to adjust the master volume on both devices, you must set one speaker as a master and the other as a slave. - Page 12 Main screen When a speaker is connected to computer with software installed, the main screen looks like in picture 1, will show the connected device information and the user can change its volume, source and preset. Device info There are a few more parameters with which you can use to personalize your module. To do so, click the “Device settings”...
- Page 13 • AES • SPDIF • Optical • Analogue XLR • Analogue RCA On slave devices the input option “Auto detect” is removed. As slaves are set to follow the same input as the controlling master device, “Auto detect” is not really needed. Master devices still have the “Auto detect”...
- Page 14 selected and audio is provided to the DSP. This will also indicate if you have set up the DSP with the correct gain. If the DSP has input and no output, that the system has low gain or even is muted. Use the ”VU” checkbox to toggle between level indication view and no level indication.
- Page 15 Extra slave options When you have configured the speaker to act as a slave device (see 'Options' in 'Device settings'), two extra settings become available on the main screen: The lock functions are especially added for slaves that are connected to a master by means of an S/PDIF cable.
- Page 16 This is useful when your slave's source is connected to an output which has its own level control. Source lock A slave can lock its source, so it will not change when the master's source is changed. For example, when the slave is connected to the master with an SPDIF cable, the master source can be switched to Optical, SPDIF or AES, whereas the slave source should always remain SPDIF.
- Page 17 Activate signal detection The Point Zero has two power-down modes: “Standby” and “Low power” (See 'Shut down power-mode'). When the device is in any power-down mode, it can wake-up by an analogue signal on the XLR or RCA input. If the device is in “Low-power” power-down mode, it can also wake up by detecting audio on any digital input.
-
Page 18: Operation
Shivaudyo logo. At the same time, the brightness will be the one which is selected under 'dimmed' (default value 10). Some functions are locked by Shivaudyo to prevent the speaker from breaking if it is set incorrectly by the user! - Page 19 Digital signal carries both left and right signal. Therefore, the desired channel can be configured using Software. When a digital source is selected, the current channel setting can be displayed by holding the select button for 3 seconds until the selected channel mode starts blinking. Left: Left digital channel selected Right: Right digital channel selected L/R: Both digital channels mixed into mono...
- Page 20 Display notifications...
-
Page 21: Measurements
Measurements Frequency response on axis (Preset 1) Preset 2 and preset 3 are calibrated the same, but they have applied filters from EQ that you can edit. Frequency response 0 to 180 degrees (cardioid propagation above 100Hz) - Page 22 Total Harmonic Distortion at 90dB SPL...
-
Page 23: Technical Data Sheet
Technical Data Sheet Two 8” Subwoofers with long excursion (vibration cancelling design) Speaker drivers in close box (Q = 0.707) One 6.5’’ Mid-Woofer in Passive – Cardioid design One 1’’ Tweeter in Waveguide to control directivity Subwoofer – 300 W RMS Amplifiers: Mid-woofer –... -
Page 24: Warranty
If goods need to be returned to the manufacturer (Shivaudyo), the symptoms must be clearly mentioned. In case of warranty, the parts and labor costs are at the charge of the manufacturer. -
Page 25: Troubleshooting
Please check that the power switch is set on the ON position and that the mains cable is properly connected to the mains. If the problem persists, check the fuse and the AC power voltage. If this still not solve the problem, contact Shivaudyo. No Sound - A protection might be triggered.
