Catron AI
Wireless switch interface device

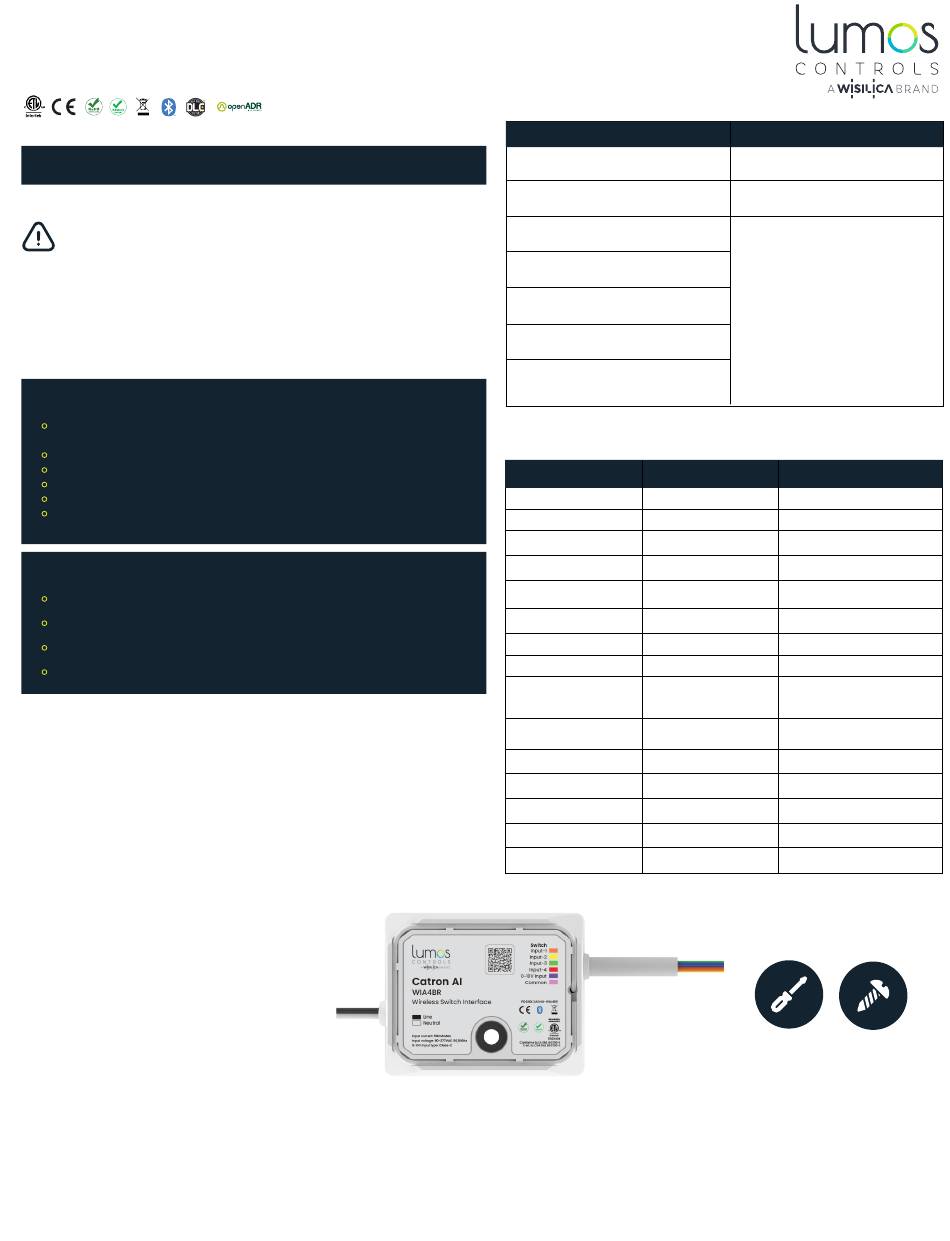

INSTALLATION AND QUICK START SHEET
WARNING AND GUIDELINES!!!
Read and follow all safety instructions!!
DO NOT INSTALL DAMAGED PRODUCT! This product has been properly packed so
that no parts should have been damaged during transit. Inspect to confirm. Any
part damaged or broken during or after assembly should be replaced.
WARNING : TURN THE POWER OFF AT THE CIRCUIT
BREAKER BEFORE WIRING
WARNING: Risk of Product Damage
Electrostatic Discharge (ESD): ESD can damage product(s). Personal grounding
equipment should be worn during all installation or servicing of the unit
Do not stretch or use cable sets that are too short or are of insufficient length
Do not modify the product
Do not mount near gas or electric heater
Do not change or alter internal wiring or installation circuitry
Do not use product for anything other than its intended use
WARNING - Risk of Electric Shock
Verify that supply voltage is correct by comparing it with the product
information
Make all electrical and grounded connections in accordance with the National
Electrical Code (NEC) and any applicable local code requirements
All wiring connections should be capped with UL approved recognized wire
connectors
All unused wiring must be capped
PRODUCT OVERVIEW

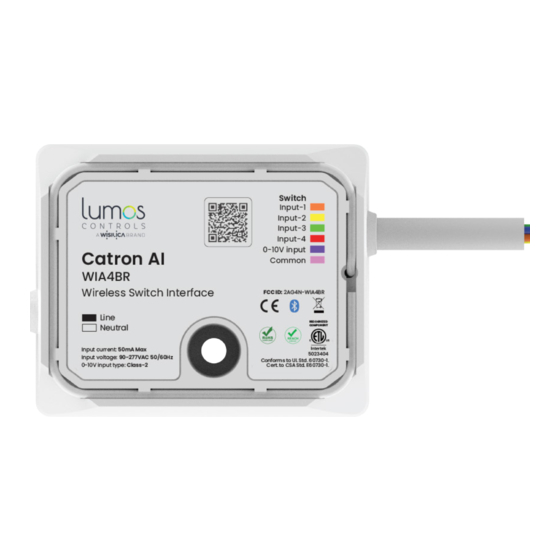

Catron AI is a switch interface which can be connected to
4-toggle switches or push-button switches and a dimmer
switch, to controlintensity and CCT of luminaires. This compact
device has a built-in Bluetooth Module which enables it to
communicate with the lighting network wirelessly. It is a part of
the Lumos Controls ecosystem, comprising controllers,
sensors, switches, modules, drivers, gateways and analytical
dashboards.
The device can be configured, commissioned, and controlled
from anymobile device super-quick and can connect to the
Lumos Controls cloud for data analytics.
The ecosystem is listed by the Design Lights Consortium (DLC),
qualifying it for energy conservation incentive programs and
rebates by utility companies.
INSTALLATION INSTRUCTIONS
1. Turn OFF the power before wiring and installing the device.
2. The Catron AI with a compact formfactor can be installed anywhere within the switch box or the junction box. The screw hole available on the Catron AI can be used to
fix it firmly.
3. To power theCatron AI, connect the AC line and neutral wires from the mains supply to the Line (black), and Neutral (white) of the device.
4.Connect the input lines fron the Catron AI to the respective switches.
Do's
Installation should be performed by a
qualified electrician
Installation shall be in accordance with
all applicable local and NEC codes
Turn the power OFF at circuit breakers
before wiring
Observe the correct polarity of output
terminal
Place devices as far away as possible
from metallic materials
Devices work best in when there is a
clear LOS between them
When placing devices inside metallic
boxes, please ensure the antenna
comes out of the boxes
Specifications Value
Input voltage
90-277VAC
Supply frequency
50-60Hz
Inrush current 4A
Surge transient protection
4kV
Standby current
9mA
Frequency range 2402-2483MHz
Tx power 8dBm
Rx sensitivity
-95dBm
Connection distance
45m(147.6ft)
(Device to device by mesh)
Operating temperature
-20 to 50°C(-4 to 122°F)
Relative humidity
85%
45.1 x 35.1x 20.2 (mm)
Dimensions
1.7x1.4x0.8 (in)
30.0g(1.06 oz)
Weight
Case material
Polycarbonate
UL 94 V-0
Flammability rating
Don'ts
Don't use outdoors
Avoid input voltage exceeding
maximum rating
Don't dissemble the products
Remarks
Rated Input voltage
_
_
@Line to Line: Bi-Wave
@Line to Line: Bi-Wave
_
With 150mm external wire antenna
_
In an open office
environment (Line of Sight)
_
_
L x W x H
White color
_
REQUIRED TOOLS &
SUPPLIES
Screwdriver Screws
