TPI 9050 UltraVision
Industrial Acoustic Imager
User Manual V2.6

Advertisement

loading
Need help?

Need help?

Do you have a question about the UltraVision 9050 and is the answer not in the manual?

Questions and answers

Summary of Contents for TPI UltraVision 9050

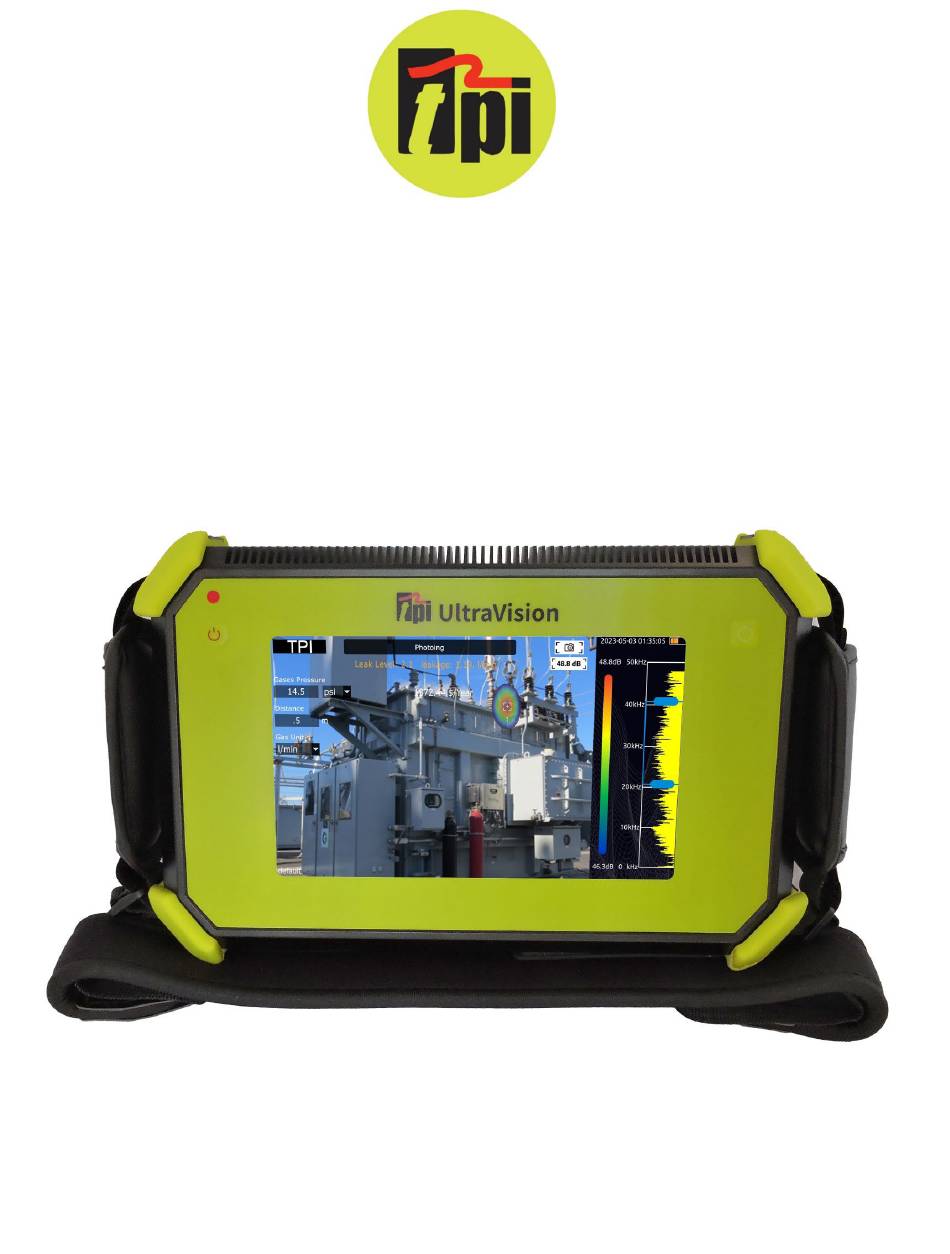

  • Page 1 TPI 9050 UltraVision Industrial Acoustic Imager User Manual V2.6...
  • Page 2 This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Calibration Calibration is recommended once per year. Please contact TPI for service and calibration.
  • Page 3 Overview The TPI 9050 UltraVision Industrial Acoustic Imager supports audible and ultrasonic frequencies. The 9050 uses microphone array beam forming technology to acquire sound source distribution data, and collect video images in real time with a high-definition camera. By integrating the sound source distribution data with the video image, the changing sound source is dynamically presented on the display screen.
  • Page 4 • Use the product only for the purpose it was designed. • Do not disassemble. There are no user serviceable parts. • In case of equipment malfunction, terminate use and contact TPI. • Please contact TPI for maintenance and calibration.
  • Page 5 Terminology USB Power Delivery (USB PD) A power delivery protocol based on USB3.1, which is often used to transmit more power in USB interface. Sound Pressure Level (SPL) A physical quantity used to express the magnitude of sound waves, the unit of measure is decibels (dB).
  • Page 6 Device and accessories Part Part Number Description UltraVision industrial acoustic imager 9050 Hand straps A9050 A9051 Shoulder strap Power adapter charging A9052 A9053 Charging cable Connect to 9050 to monitor A9054 ultrasonic wave, etc Carrying case for the 9050 and A9055 accessories...

  • Page 7: Battery And Charging

    Store the 9050 at temperatures of 4°F to 104°F (-20℃ to +40℃) Note: When the battery will no longer take a charge and requires replacement, please contact TPI for service. Do not disassemble the 9050 as the battery is not user replaceable.
  • Page 8 Function Function Button Power Button USB Type-C Monitor TF Card charging interface headphone socket Charging indicator USB Type-C Communication...
  • Page 9 Expandable TF card 三脚架 Notes for the use of TF Card • Do not remove or insert the TF card when video recording. • After taking photos and recording videos, please wait until the data is saved successfully before inserting and removing the TF card. •...
  • Page 10 Tripod Threaded mouth 三脚架 Hand straps and shoulder strap ① ① ② ② ③ ③...

  • Page 11: Software Interface

    Software interface Video area Work mode icon System Battery Spectrum and Dynamic range Palette Function menu select box of test quick setup frequency range...

  • Page 12: Function Menu

    Function menu Click in the video area of the screen to call out the menu bar Click again or do nothing for a few seconds, the menu will be hidden automatically The Function menu include steady-state Work mode Acoustic Playback switch button Display System...
  • Page 13 Palette and dynamic range Click the palette on the main interface to call out the dynamic range dialog Click the area outside the dynamic range dialog to hide Dynamic range parameter can be adjusted into this dialog Test frequency range Press on select box to move it Press on a single side of select box to adjust up limit or down limit...
  • Page 14 Transient and steady state modes Click the transient / steady state mode button to switch the working mode of the equipment. In the transient mode, the equipment has a very fast response speed to the transient signal and can quickly respond to the change of sound source. It is suitable for locating rapidly changing sound source models, such as partial discharge sound source.
  • Page 15 The icon in the upper right corner of the video area will remind you of the work mode which the device is currently in. a. In camera mode, press the function button to take a picture. b. In video mode, press the function button to start recording, press again to stop or it will automatically stop when video exceeds 5 minutes.

  • Page 16: Picture Playback

    Picture Playback Double click the picture to enlarge and play back the picture. After enlarging the picture, you can drag the picture with your finger, and double- click the picture again to restore the original size. Press the“ ”and“ ” or touch and sliding left and right to view the next or before.
  • Page 17 Picture, audio, text Tags In "Playback," click a video or an image and six white flag ICONS appear at the bottom of the screen. You can click the icon to mark a video or picture. The video or picture can be tagged with image, audio, and text. A total of six tag contents can be added for the three tag types.
  • Page 18 automatically. Identify to the two-dimensional code will display its contained text information, press the save button to save the text information, press "re- identify" to re-identify the code again. Acoustic Dynamic range Sliding the slide to adjust dynamic range. Or click the palette bar on the right of the software interface to call out the dynamic dialog and quickly adjust it.
  • Page 19 Ultrasonic monitoring The equipment can modulate the signal in the ultrasonic frequency band to the audible frequency band, and can monitor the signal with headphones. Ultrasonic modulation is realized by superheterodyne. The reference frequency of modulation can be set. It is recommended to use a frequency band of about 38.6 kHz for near modulation and monitoring.
  • Page 20 Display Brightness：the brightness is adjustable. When used outdoors, it is recommended to increase brightness for better visual clarity. When used indoors, it is recommended to reduce the brightness for a longer battery life. Rainbow: set palette to use rainbow Iron bow: set palette to use iron bow Grayscale: set palette to use grayscale...
  • Page 21 System Language Chinese, English, Korean, French is supported, after selecting the language, the software will switch the language. Time Adjust system time. When system time is changed, press”update time”to take effect. Lock The device can implement a low power strategy．You can turn on the auto sleep function of the device.
  • Page 22 sensitivity value. This function can be enabled when the button is turned on, and the sensitivity threshold can be set by sliding the slider. About Display device model，serial number, software version and manufacturer information. Press”check for update”to install a new version of software. Press “check for update”,it will check for available packages from external storage(TF card).
  • Page 23 Partial discharge spectrum Click "partial discharge spectrum" to open the partial discharge spectrum setting menu. Click "switch" to open and display the partial discharge spectrum. The AC frequency can be selected as 50Hz or 60Hz. The partial discharge spectrum is as follows. Observing the characteristics of the spectrum can help users identify the discharge type.
  • Page 24 Estimation of gas leakage Turn on the function of gas leakage level calculation in the equipment. After opening, the software will turn on the focusing function by default to avoid interference. At the same time, the test frequency band will be fixed in the frequency band of 25kHz-40kHz to ensure the accuracy of leakage calculation.
  • Page 26 Equipment use skills Capture sound source a) Observe whether there are prominent spectral signals or spectral spikes in the spectrum diagram. If there is, move the select box include the frequency range where the prominent spectral signal or frequency spike is, and then observe if any sound source appears.

  • Page 27: Equipment Maintenance

    Equipment maintenance a) Keep acoustic sensor holes clean, prevent of dust accumulation; when the hole has dust, please gently blow air to clean, do not use a wet cloth to clean. b) When not in use for a long time, put it into the attached package after charging, and store in a room temperature.
  • Page 28 Test Products International, Inc. 9615 SW Allen Blvd., Ste. 104 Beaverton, OR 97005 Tel: 503-520-9197 www.testproductsintl.com Test Products International, Ltd. 342 Bronte Road South, Unit #6 Milton Ontario Canada L9T 5B7 Tel: 905-693-8558 www.tpicanada.com Test Products International Europe Ltd. Rutherford Way Industrial Estate Rutherford Way Manor Royal Crawley...
