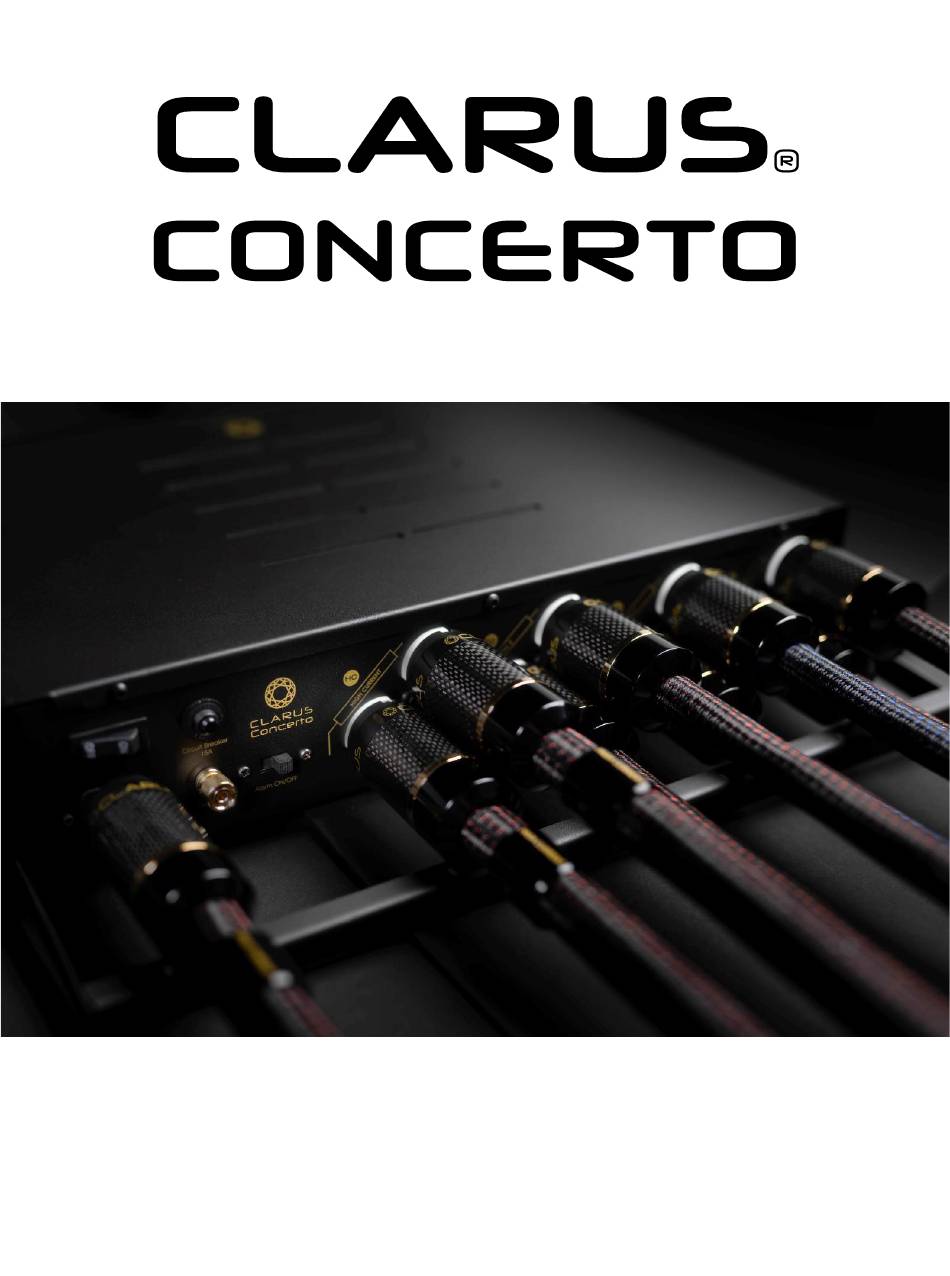

Page 1 Owner’s Manual Installation & Operation Guide...
Page 2: Table Of Contents
CONGRATULATIONS AND THANK YOU FOR PURCHASING CLARUS CONCERTO! TABLE OF CONTENTS Page Important safety instructions Front, rear and side views Introduction and product overview Features and technologies Package contents Installation overview Planning your system Trouble shooting Specifications Warranty Clarus Concerto Owner’s Manual 6448 Pinecastle Blvd.
Page 3: Important Safety Instructions
• Carts and stands: When the Clarus Concerto is placed or mounted on a stand or cart; the unit should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the unit and cart to overturn or fall.
Page 4 • Do not operate your Clarus Concerto if liquid of any kind is spilled onto or inside the unit. Do not operate your Clarus Concerto near rain or water that’s spilled or openly exposed (e.g., bathtub, kitchen or bathroom sink).

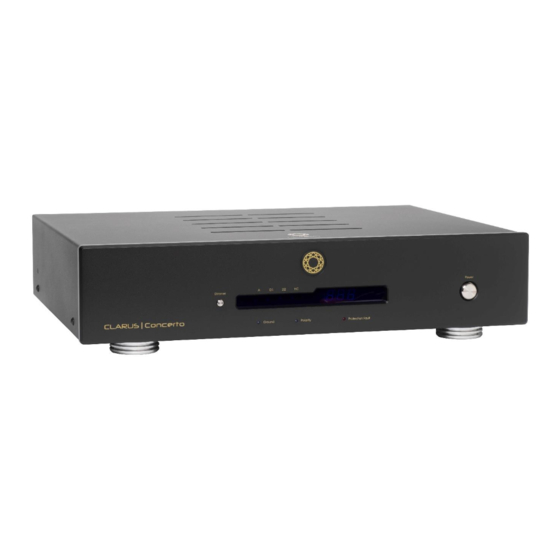

Page 5: Front, Rear And Side Views
CLARUS CONCERTO Front Panel Dimmer Control 6. AC Voltage Meter Analog Outlet Power-On LED 7. Grounded LED Digital 1 Outlet Power-On LED 8. Polarity LED Digital 2 Outlet Power-On LED 9. Protection Fault LED High Current Outlet Power-On LED 10. Outlet Power Switch...
Page 6: Introduction And Product Overview
The Clarus solution is the implementation of three separate and unique AC filter ensemble designs for its new line of Power Conditioners; one for Analog components, one for Digital components and one for High Current amplifiers.
Page 7: Features And Technologies
FEATURES AND TECHNOLOGIES 1800 WATT / 15 AMPERE RATING The Clarus Concerto is designed to provide a maximum of 1800 Watts / 120 volts @ 15 Amps. 8 OUTLETS The Concerto’s high performance hospital grade outlets are engineered with advanced materials to ensure electrical contact reliability over time.
Page 8 Protection Fault LED will illuminate and the unit will shut down for safety. Ground and Polarity LEDs when lit indicate that the power cord and outlet to which the Concerto Canto is connected is in phase and properly grounded.
Page 9: Package Contents
OUTLET LED STATUS Blue LEDs are provided on the front panel of the CLARUS CONCERTO to indicate status of the outlets. When the A (Analog), D1 (Digital 1), D2 (Digital 2), and HC (High Current) LEDs are illuminated it means power status of those outlets is ON.
Page 10: Installation Overview
There should be a clear line of sight between the operator and the unit to allow easy user feedback of system status. The Clarus Concerto should be placed on a flat, stable shelf or platform.
Page 11: Troubleshooting
The Polarity LED This indicates that the power cord or 1. Do not operate the Clarus Concerto with an is OFF the wall outlet the Clarus Concerto is inverted line; call an electrician to have the line plugged into has it’s polarity inverted...
Page 12: Specifications
Clarus’ expense. In the alternative, Clarus may at its sole option either replace the product without charge, or if its replacement is not...
Page 13 Clarus or an authorized Clarus service facility, or (III) for which a claim has not been filed with Clarus within the three (3) year warranty term and within thirty (30) days following the occurrence giving rise to the claim;...
Page 14 In order to learn the name and address of the nearest authorized Clarus service facility, obtain instructions for shipment of a covered product to Clarus, or obtain the answers to any other questions you may have concerning this Warranty, you may telephone Clarus between the hours of 9:00a.m. and 5:00p.m. Eastern Time, Monday through Friday, at 1.888.554.2514, or write to Service Department, Clarus, 6448 Pinecastle Blvd;...
Page 15 ©2022 Gordon J. Gow Technologies Inc. All rights reserved. Clarus is a registered trademark of Gordon J. Gow Technologies Inc. All other trademarks are the property of their respective owners. As we continually strive to improve our products, Clarus reserves the right to change product specifications without notice. The technical and other information contained herein is not intended to set forth all technical and other specifications of Clarus products.
