SPROUT Magnetic Wireless Powerbank Manual

WHAT'S IN THE BOX?

For optimum performance and safety, please read instructions carefully before usage.

Please keep this manual for future reference.

1x Magnetic Wireless Powerbank 6000mAh
1x USB-C to USB-C cable
1x Product manual

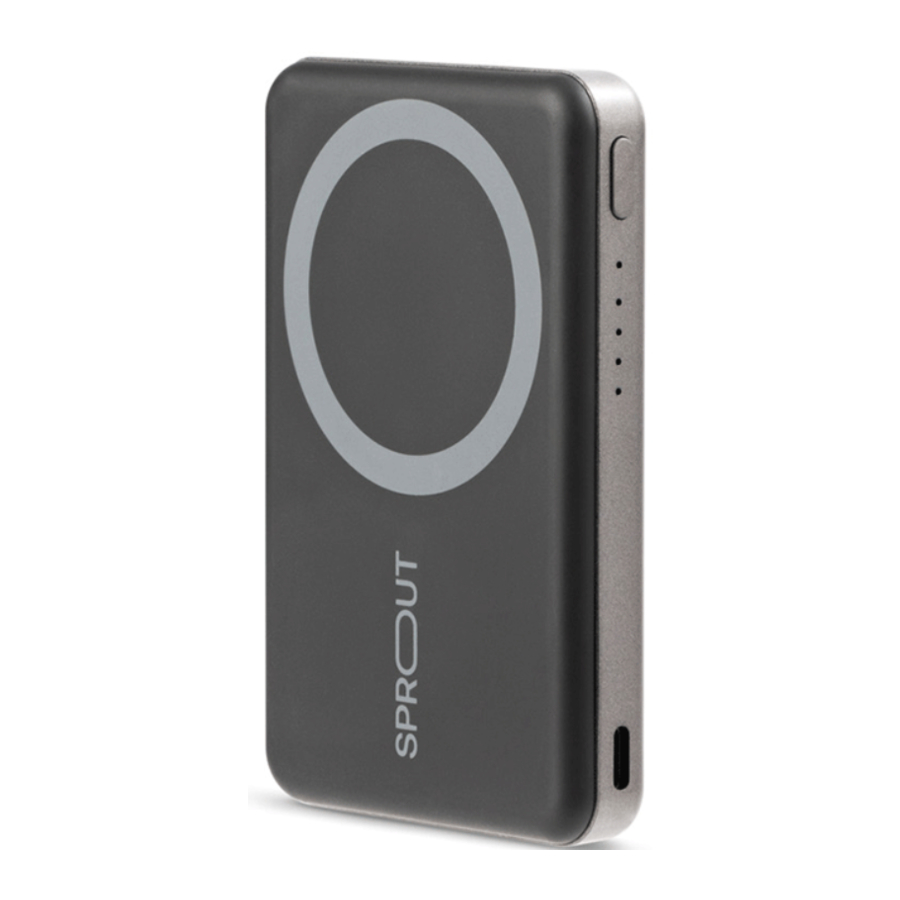

PRODUCT OVERVIEW

1. Magnetic wireless charging pad
2. Power button
3. LED wireless charging indicator
4. LED battery indicator
5. USB-C input/output port

QUICK START GUIDE

CHARGING THE POWERBANK

Connect the powerbank via the USB-C port to a power source, using the included USB-C cable.

The LED battery indicator will blink while charging is in progress. All 4 LED lights will remain on when charging is complete. A full charge will take approximately 2 hours.

POWER ON/OFF

The powerbank will turn on automatically when a compatible device is attached to the magnetic wireless charging pad or connected via USB-C cable. If the device is removed, the powerbank will remain in standby mode for 10 seconds before turning off to preserve battery life. Manually turn off the powerbank by holding the power button for 3 seconds.

LED BATTERY INDICATOR

Short press the power button and the LED battery indicator will display solid white light/s to indicate the current powerbank battery level.

CHARGING A DEVICE USING THE MAGNETIC WIRELESS CHARGING PAD

Place a compatible device on the wireless charging pad, ensuring the device is correctly aligned.

For iPhone 12 series devices and above, alignment is achieved via the internal magnetic charging coil. For other devices, alignment can be achieved using a MagSafe compatible case. The LED wireless charging indicator will display as solid blue when a device is charging.

CHARGING A DEVICE USING USB-C PORT

Connect the powerbank via the USB-C port to a device, using the included USB-C cable or a cable compatible with your device. The LED battery indicator will remain on for 5 seconds when a device begins to charge via the USB-C port. Both the wireless charging pad and USB-C port can be used concurrently to charge two devices.

Note: Due to technical differences with various devices, please refer to your device manufacturer specifications for compatibility.

SPECIFICATIONS

• Battery capacity: 6000mAh 22.2Wh
• USB-C input & output: 5V ⎓ 3A, 9V ⎓ 2A
• Wireless output: 5W/7.5W
• Total combined output: 15W
• Dimensions: 105 x 68 x 15mm
• Unit weight: 148g
• Operating temperature: 0-40°C
• USB-C to USB-C cable: 15cm

TROUBLESHOOTING

Q: My powerbank will not turn on

A: Ensure powerbank is charged. If device is aligned on wireless charging pad or connected via USB-C cable, try holding the power button for 3 seconds.

Q: My device will not charge or is slow to charge wirelessly

A: Ensure you have a wireless charging compatible phone.

A: Ensure your device is correctly placed on the magnetic wireless charging pad, by either aligning your device's internal charging coil or using a MagSafe compatible case.

A: Some cases may interfere with wireless charging performance and may even result in intermittent or discontinued charging. Cases containing metal or magnets not associated with MagSafe compatibility or with a thickness of more than 3mm should be removed prior to charging.

Note: The powerbank will stop charging and the LED charging indicator will flash blue if there is a foreign body or incompatible device placed on the charging pad.

IMPORTANT SAFETY INFO

Read all instructions and warnings prior to using this product. Improper use of this product may result in product damage, excess heat, toxic fumes, fire or explosion.

1. Do not use the Magnetic Wireless Powerbank near an open fire, heat source or excessive heat.
2. Do not attempt to power this device using any method, apparatus, or connection other than a USB-C cable.
3. With the exception of MagSafe compatible cases, do not put metal objects or magnets between the device and the wireless charging pad.
4. Protect your charging cable from being pinched particularly at the connectors.
5. Unplug your cable and charger from the wall outlet during lightning storms or when unused for long periods of time.
6. Do not disassemble this device or attempt to modify it in any manner.

All Sprout products go through thorough quality assurance inspections. If you find that your device is excessively hot, is emitting odour, is deformed, abraded, cut or is experiencing or demonstrating an abnormal phenomenon, immediately stop all product use and contact Sprout.

Sprout Accessories Pty Ltd
W: Sproutinc.com.au | E: enquiries@sproutinc.com.au
