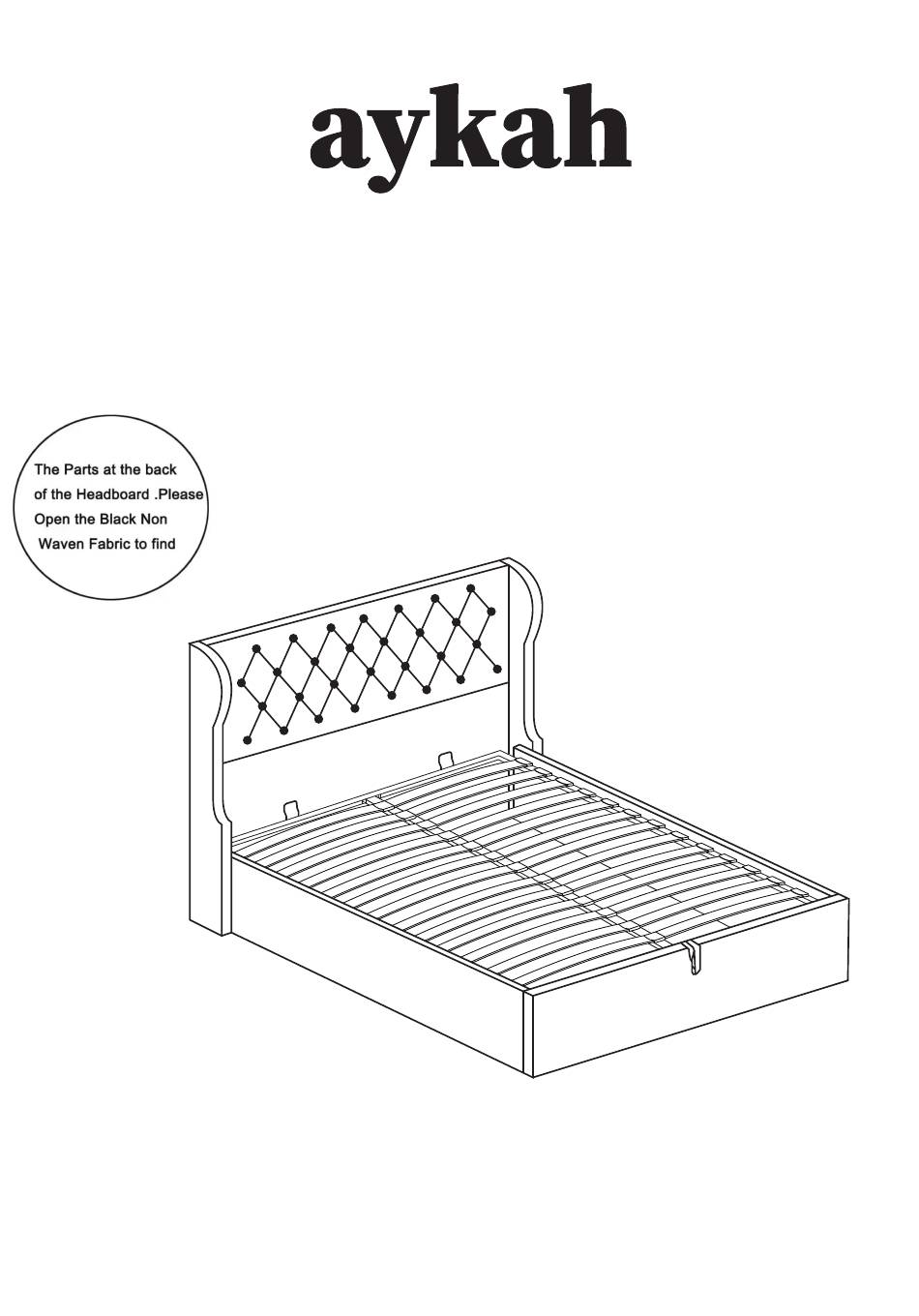

- Page 1 1.0 ASSEMBLY SHEET BRITTANY...
- Page 2 ASSEMBLY INSTRUCTIONS Thank you for making a purchase with Aykah. The goal of this assembly sheet is to help you assembly the product in a way that will contribute to its longevity and durability. Kindly follow all the instructions carefully to ensure a safe and accurate assembling process.
-
Page 3: Parts Inventory
B rittany B ed P age 3 of 13 PARTS INVENTORY PARTS INVENTORY ID DESCRIPTION ID DESCRIPTION Up and Down Metal Frame Headboard Side Rail Connecter Footboard Left Hydraulic Center Frame Right Hydraulic Center Floating Leg Headboard Back Gas Lift Nonwoven Cloth Corner Bracket Left Side Rail... - Page 4 B rittany B ed P age 4 of 13 STEP 1 Step 1: Attach W1 (20) and W2 (21) to the headboard using hardware parts H, A and E. STEP 2 Step 2: Attach mechanism (5) to gas lift (4) on both ends on the right and left gas lift.
- Page 5 B rittany B ed P age 5 of 13 STEP 3 Step 3: Attach the gas lif t mechanism (3and 4) to the side rails 6 and 7 using hardware N, E and B. STEP 4 stick the felt on top of the bracket Step 4: Attach bracket (19) to footboard(2) using hardware A and E.
- Page 6 B rittany B ed P age 6 of 13 STEP 5 Step 5a: Attach the side rail (6 and 7) with the footboard (1), using hardware E, D and A. stick the felt on top of the bracket Step 5b: Attach the corner bracket (17) to side rail (6 and 7) and footboard (2), using hardware E and A .
- Page 7 B rittany B ed P age 7 of 13 STEP 5 Step 5c: Attach the rail to the headboard and metal bar using B and E.
- Page 8 B rittany B ed P age 8 of 13 STEP 6 Step 6: Attach the center support to both the side rails, using hardware A. STEP 7a : pay attention to the three holes on both. They should be on the same side on both rails Step 7a: Attach parts 11 and 12 using hardware C and G.
- Page 9 B rittany B ed P age 9 of 13 STEP 7b Step 7b: Attach part 14 to both sides of part 12, using hardware A, E and F. STEP 8 Step 8: Attach the support legs to part 14, using hardware A, E and F.
- Page 10 B rittany B ed P age 10 of 13 STEP 9a Stick the felt on top of the metal bar. Step 9a: Attach the frame that built in the previous step to the gas lift mechanism at a 45° angle (meaning it will be slanted as the picture), using hardware C, F and E.
- Page 11 B rittany B ed P age 11 of 13 STEP 9b ONCE THE MATTRESS IS ON TOP,YOU CAN OPEN & CLOSE THE BED SAFELY DO NOT USE ONLY 2 HANDS PUSH DOWN ON ONE. IN THE MIDDLE TO OR EITHER SIDE CLOSE Step 9b: Once all the nuts and bolts are tightened firmly, the first time...
- Page 12 B rittany B ed P age 12 of 13 STEP10 Step 10: Attach the slats to the plastic clips and insert them into the holes of the metal bar. : Clips open from both sides will be attached to the middle bar, and clips open from one side will be attached to the side bars.
- Page 13 B rittany B ed P age 13 of 13 STEP11 Step 11a Attach the non-woven fabric to the bottom of the bed Attached the non-woven fabric to the back of the Step 11b headboard.
