Etlin-Daniels FLH5S-M Series Installation Manual

INSTALLATION FOR FLH5S-M HIGH WATTAGE FLOOD SERIES
SAVE THESE INSTRUCTIONS - READ ALL INSTRUCTIONS CAREFULLY
WARNING
PLEASE READ ALL INSTRUCTIONS BEFORE ATTEMPTING INSTALLATION.
• Do not use any electrical generator to test LED fixture.
• To avoid risk of fire or electrical shock, this product should be installed and maintained by a
qualified electrician, in accordance with all national and regional electrical codes.
• Please turn off power before installation or maintenance.
• Proper earth grounding is required to ensure safety.
• After installation, ensure fixture is in correct vertical position.
• Please wear gloves to avoid injury during installation.
• If there is any presence of smoke or fire after installation, please turn off power immediately
and advise relevant personnel.
INSTRUCTION
1 This fixture offers 3 types of dimming function.
2 Constant Current can be achieved by 0-10VDC and 1-10VDC dimming.
3 PWM (Pulse-Width Modulation) Signal dimming
4 Variance of resistance unit dimming
NOTE: Please choose the appropriate dimming way according to your needs.
You can also choose to ignore this function. Choose the wire connection option,
dimming option and install option according to your needs and the LED fixture
being installed.

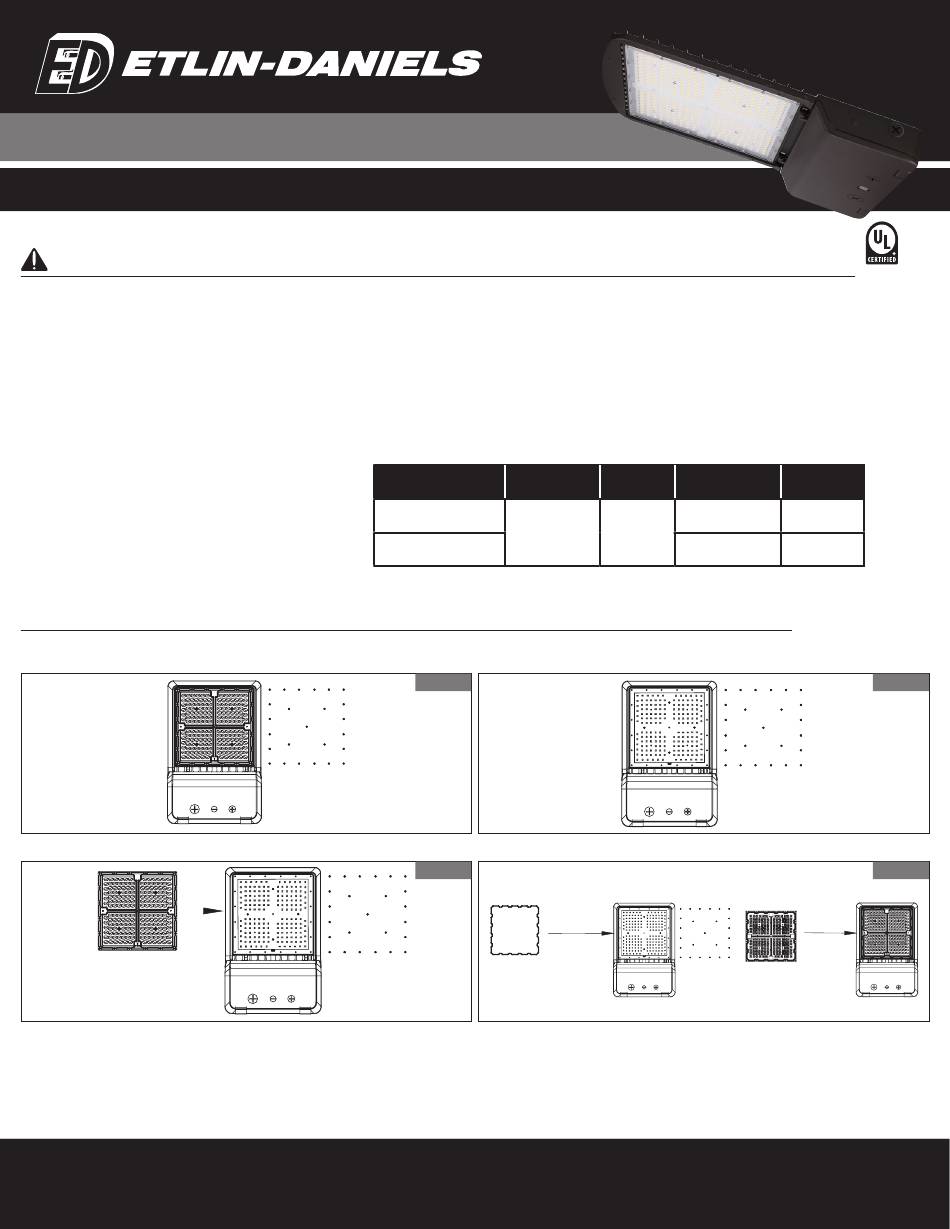

Installation of different NEMA Type Distribution Lenses

PLEASE IGNORE ALL LENS CHANGE INSTRUCTIONS IF YOU ARE NOT CHANGING THE NEMA BEAM PATTERN ORIGINALLY SUPPLIED.
(Please note that lens changes should be performed prior to installing fixture). Note this fixture comes with a NEMA Type V Lens installed – Medium-wide distribution. We also offer optional
NEMA Type II, Type III and Type IV Lens options.
1. Uninstall all screws from the existing lens.
3. Assemble the new lens and gasket.
PARAMETERS
Part No.
FLH5S-M150WC0-5-PBS-DB
FLH5S-M300WC0-5-PBS-DB
Figure 1
Figure 3
Head Office - 1850 Wilson Ave. · Toronto, ON · M9M 1A1 · Tel: 416.741.7336 · Fax: 416.741.9104
Toll free: in Canada. 1.800.661.9610 · in USA. 1.888.762.5384 (SOCKETS4U)
www.etlin-daniels.com· For sales/service questions - sales@etlin.com
CAN ICES-005 (B) / NMB-005 (B)
ATTENTION
1. PLEASE VERIFY IF THERE IS ANY DAMAGE DURING SHIPPING.
If yes, please contact the manufacturer prior to starting installation.
2. Please read the installation guide carefully to check whether all accessories are
included. After confirmation, install the fixture according to Installation Steps.
Input Voltage Frequency
AC 120-347V 50/60Hz
2. Remove the original lens.
4. Screw in all screws when putting in new lens – maintain IP rating.
Power Rated Current
100W/120W/150W 1.5A
200W/250W/300W 3.0A
Figure 2
Figure 4
