Summary of Contents for Supatool STP15151

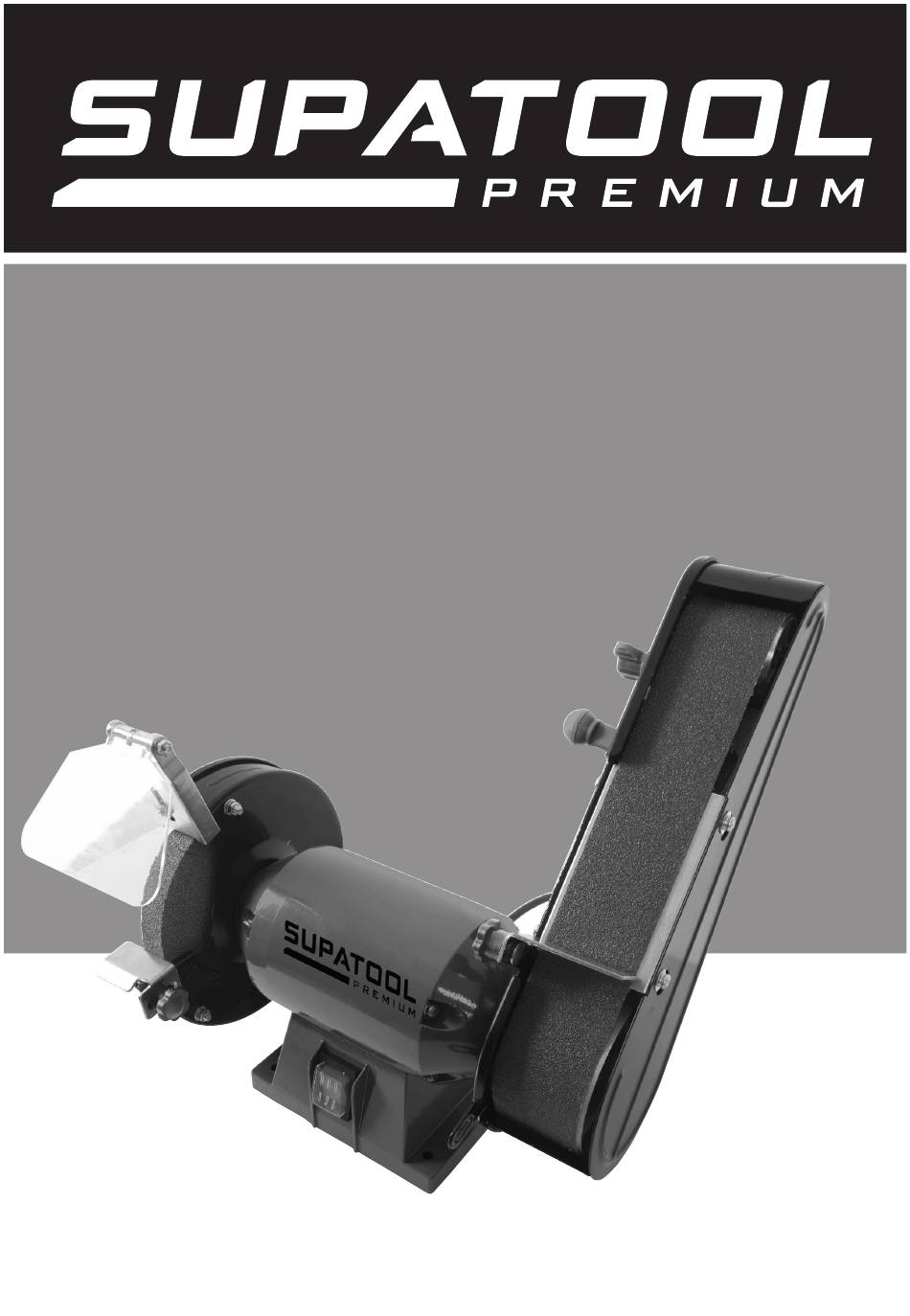

- Page 1 WORKSHOP GRINDER/ LINISHER STP15151 DEC 18 ED1...
-
Page 2: Table Of Contents
14. Linisher Belt Tensioner Lever 7. Grinding Tool Rest Knob 15. Linisher Belt Tracking Knob 8. Grinding Wheel Tool Rest Part No: ........ STP15151 Linishing Belt: ....686mm x 50mm 80# Vo:15m/s Power: ........200W (S2:30min) Output Shaft: ....12.7mm Motor Type: .... -
Page 3: Instruction Manual Images
WORKSHOP GRINDER/LINISHER INSTRUCTION MANUAL IMAGES (Fig 1) (Fig 2) (Fig 3) (Fig 4) (Fig 5) (Fig 6) (Fig 7) (Fig 8) (Fig 9) (Fig 10) (Fig 11) (Fig 12) - Page 4 WORKSHOP GRINDER/LINISHER INSTRUCTION MANUAL IMAGES (Fig 13) (Fig 14) (Fig 15) (Fig 16) (Fig 17) (Fig 18) (Fig 19) (Fig 20) (Fig 21) (Fig 22)
- Page 5 WORKSHOP GRINDER/LINISHER GENERAL SAFETY INFORMATION Save all warnings and instructions for future reference. WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.
- Page 6 WORKSHOP GRINDER/LINISHER Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
- Page 7 WORKSHOP GRINDER/LINISHER ADDITIONAL SAFETY WARNINGS WARNING! To avoid mistakes that could cause serious permanent injury, do not plug the Grinder/Linisher in until the following steps are completed: 1. Young children and the infirm. This appliance is not intended for use by young children or infirm persons without supervision.
-
Page 8: Grinder/Linisher Assembly
WORKSHOP GRINDER/LINISHER RISK OF ELECTRIC SHOCK Never touch the mains plug and the socket with wet hands. Do not pull the plug from the socket by pulling on the power cable. Check the power cord and mains plug for damage before every use. Don’t use damaged appliances. To avoid accidents due to electrical faults we recommend the use of sockets with a line-side current-limiting circuit breaker (max. - Page 9 WORKSHOP GRINDER/LINISHER Safety Eye Shield Bracket (11) Hold the nuts at the rear of the in place with an 8mm spanner (not supplied), while tightening the front adjusting screw with a Phillips screwdriver (not supplied) (Fig. 4& 6). Note: Safety Eye Shield Bracket (11 Adjust the ) periodically to compensate for wear on the Grinding Wheel (9)
- Page 10 WORKSHOP GRINDER/LINISHER OPERATION WARNING! Always observe the safety instructions and applicable regulations. WARNING! To reduce the risk of serious personal injury, turn tool OFF wait until it comes to a complete stop. Disconnect tool from power source before making any adjustments or removing/install- ing attachments or accessories.
- Page 11 WORKSHOP GRINDER/LINISHER Linishing/Sanding Belt (1) Linishing Belt Side If the wanders to the left or right onto the Covers (3) Linisher Belt Tracking Knob (15) , rotate the clockwise or anti-clockwise to track Linishing/Sanding Belt (1) Belt Side , until the belt is running central to the Linishing Covers (3) (Fig.
- Page 12 WORKSHOP GRINDER/LINISHER Grinder Wheel Cover (12) Replace the three Phillips head bolts and nuts securing the securely tighten them. WARNING! STAND WELL CLEAR OF THE GRINDER/LINISHER when switching ON. DO NOT Grinding Wheel (9) use a damaged Grinder/Linisher Grinder Wheel (9) Switch ON the and let the run with no load for one minute...
- Page 13 WORKSHOP GRINDER/LINISHER IMPORTANT! Grinder/Linisher If the still fails to operate correctly after you have carried out the above oper- ations, or in the event of anomalies other than those described above, contact Kincrome Custom- er Service on 1300 657 528 for assistance. SPARE PARTS For a full list of available spare parts for this item visit the Kincrome website www.kincrome.com.
-
Page 14: Trouble Shooting
WORKSHOP GRINDER/LINISHER TROUBLE SHOOTING PROBLEM CAUSES SOLUTIONS Check for damage of the Grinding Wheel (9) Damage Grinding Wheel (9) Grinder spindle damage Ensure the Grinder shaft is Grinding Wheel (9) loose not damaged flanges Check the tightening of the Grinder/Linisher not Grinding Wheel (9) flanges Excessive Vibration fastened to the bench... - Page 15 WORKSHOP GRINDER/LINISHER CONTACT INFORMATION 1300 657 528 Fax: 1300 556 005 enquiries@kincrome.com.au www.kincrome.com.au Warranty given by Kincrome Tools & Equipment Pty Ltd of 3 Lakeview Drive, Caribbean Park, Scoresby, Victoria, Australia (Tel +61 3 9730 7100) If this product has materials or workmanship defects (other than defects caused by abnormal or non warranted use) you can, at your cost, send the product to place of purchase, an authorised Kincrome service agent or one of Kincromes addresses for repair or replacement.
- Page 16 www.kincrome.com.au...
