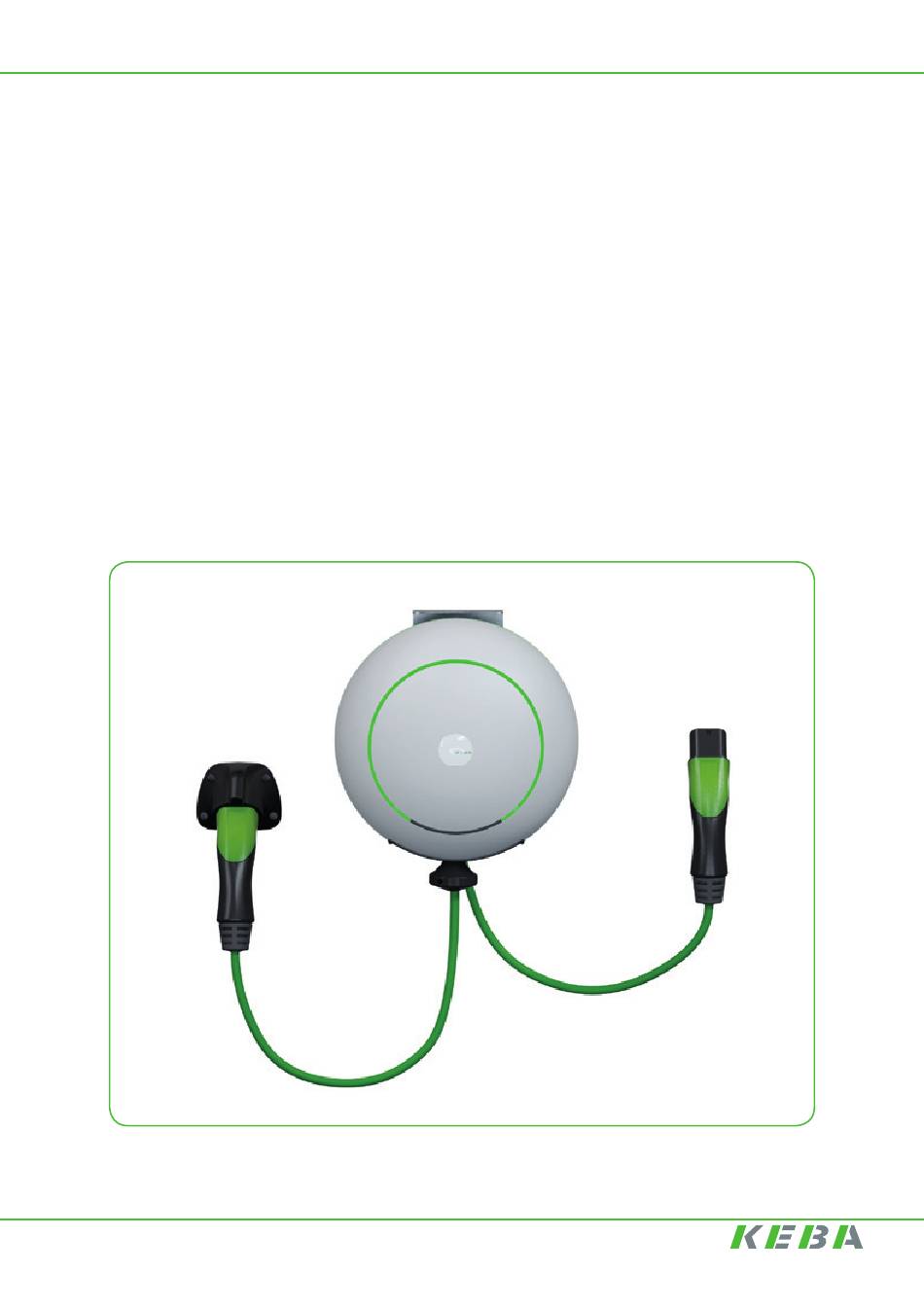

Page 1 KeContact R10 CM KeContact Cable Manager Installation Manual V 1.01 Installation Manual V 1.01 (translated) ® A u t o m a t i o n b y i n n o v a t i o n .
Page 3 KeContact R10 CM Document: Mod. 8.3 - KeContact_R10_CM - K - UM_EN_Rev.1.01 English (translated) Pages: 40 Specifications are subject to change due to further technical developments. Details presented may be subject to correction. All rights reserved. Installation Manual V 1.01...
Page 4: Table Of Contents
KeContact R10 CM Table of contents Table of contents 10. Drill references 1. General notes 10.1 Wall bracket drilling templates 1.1 Manufacturer’s note 10.2 Wall connector holder drilling templates 1.2 Installation note 2. Introduction 11. Disposal 2.1 Purpose of the document 11.1 Device disposal 2.2 Preconditions 2.3 Intended use Annex 001 EU Declaration of Conformity 2.3.1 Contents of this document...
Page 5: General Notes
KeContact R10 CM General notes General notes 1.1 Manufacturer’s note The product’s manufacturer is © R.M.D. Components Italia S.r.l. Via Avigliana 24 - 10040 - Rivalta di Torino (TO) - Italia The product is distributed by © MTPReel GmbH - Allmendstraße 5/1 - D-74629 Pfedelbach Email: sales@mtpreel.com...
Page 6: Purpose Of The Document
KeContact R10 CM Introduction Introduction 2.1 Purpose of the document This document describes start up and operation of the KeContact R10.The figures and explanations contained in this manual refer to a typical device design. The design of the device may deviate from it.
Page 7: Safety Notes
KeContact R10 CM Safety notes Safety notes 3.1 Symbols At various points in this manual, you will see notes and precautionary warnings regarding possible hazards. The symbols used have the following meaning: DANGER! Indicates an imminently hazardous situation, which will result in death or serious bodily injury if the corresponding precautions are not taken.
Page 8: General Safety Instructions
KeContact R10 CM Safety notes 3.2 General safety instructions If you follow the instructions regarding safety and use as described in this manual, the product will, in normal case, neither cause personal injury nor damage to machinery and equipment. The instructions contained in this manual must be precisely followed in all circum- stances.
Page 9: Personnel Safety Instructions
KeContact R10 CM Safety notes Caution • Make sure the device is mounted correctly and safety. • Avoid rolling out the cable jerkily • Make sure the cable is not pressed and so damaged. • Avoid dragging the cable over sharp edges whereby the cable jacket can be abraded.
Page 10: Description Of The Device
KeContact R10 CM Description of the device Description of the device The KeContact R10 is a cable reel to store the charging cable of a domestic and semi- public charging station infrastructure. In summary, the reel is an assembled tool with different part, like a drum to coiled the charging cable with the EV connector, it has a spring load for automatic rewind of the cable.
Page 11: Overview Variants
KeContact R10 CM Description of the device 4.2 Overview variants The following variants of the KeContact R10 are available: Car Side Wallbox Side Configuration Connector Lenght Connector Lenght 1P 16A - 3.7 KW Type 2 Type 2 1.5 m 1P 32A - 7.4 KW...
Page 12: Anti Theft Device
KeContact R10 CM 4.6 Anti theft device To discourage theft, the device is equipped with a safety lock that prevents unauthori- zed disassembly Safety lock must be installed into The bolt must be inserted into its circle seat its square seat Installation Manual V 1.01...
Page 13: Mounting And Installation Instructions
KeContact R10 CM Mounting and installation instructions Mounting and installation instructions In this chapter is described the KeContact R10 installation. 5.1 General instructions Caution If the mounting surface is not fl at the cable reel can be damaged. Hence avoid twisted or damaged mounting surfaces.
Page 14: Mounting Of Cable Reel
KeContact R10 CM Mounting and installation instructions 5.3 Mounting of cable reel For a correct installation of the KeContact R10 need n°4 x anchor bolt with washer are recommended. Print the last 2 pages of this document for drilling templates 90 mm 61 mm The KeContact R10 should only be mounted vertically with the cable output facing down.
Page 15: Installation Site Recommendations
KeContact R10 CM Mounting and installation instructions 5.4 Installation site recommendations KeContact R10 is IP44 protection class and can be installed indoors or outdoors with proper weather protection. The following criteria should be considered when choosing the location: • The device can only be installed for stationary applications.
Page 16: Connection And Wiring
KeContact R10 CM Connection and wiring Connection and wiring 6.1 Connection to E Vehicles The KeContact R10 car side is ready to use, it is only necessary connect the plug in the car. Cable equipped with Type2 - EU connector Cannot be used as an extension of charging cables Installation Manual V 1.01...
Page 17: Connection To E.v. Charging Station
KeContact R10 CM Connection and wiring 6.2 Connection to E.V. Charging Station The connection to the charging station may vary depending on the model of charging station, the KeContact R10 can come in different configurations, please make sure the type matches before connecting the connector. To operate the KeContact R10, simply plug in the connector.
Page 18: Operation And Handling
KeContact R10 CM Operation and handling Operation and handling When starting up for the first time, please reset the resettable thermostat as descri- bed in Chapter 7.3 7.1 Protection during the operation During recharging it is recommended to completely extract the cable from the KeContact R10 to get the maximum performance from your wallbox (Max 16A - 11kW).
Page 19: Resettable Thermostat
KeContact R10 CM Operation and handling 7.3 Resettable thermostat In according to EN 61316 the KeContact R10 is provided by a thermal cut-out, in case of overheating this disconnect the line during the charge. If it happens switch off the current and press the red button to reset to the normal operation.
Page 20: Maintenance
KeContact R10 CM Maintenance Maintenance The following maintenance intervals must be adhered to: Component Interval Whole cable reel Approx. 1 Year Cable Approx. 1 Year Cable brake Approx. 1 Year Locking function Approx. 1 Year The exact maintenance interval depends on the operation environment.
Page 21: Cleaning The Cable Reel
KeContact R10 CM Maintenance 8.2 Cleaning the cable reel • Caution. Never clean the reel with solvents, scouring agent or scrubbing sponges. Use a soft cloth and a bit of water or a mild cleaning agent. • Avoid that foreign bodies or liquids get inside the cable reel. Check the protection covers, totality of the screws of the enclosure as well as damages at the enclosure and the cable exit periodically and in particular after strong shocks (e.g.
Page 22: Technical Data
KeContact R10 CM Technical data Technical data 9.1 In general In accord to the Rolling test Max. actuation cycles cable pullout: “See Annex 001 EU Declaration of Conformity” Protection class: IP44 Minimum cross section (depending on the cable and the line length): Connection cross section: 3 x 2.5 + 0.5 mm²...
Page 23: Cable
KeContact R10 CM Technical data 9.3 Cable Cable length on device side: Wallbox side cable 0.5 m to 2.5 m Car side cable 4.0 m to 7.0 m 9.4 Mechanical properties Standard test: According to IEC 61316:2021 9.5 Dimensions, weight Height: 326 mm...
Page 24 KeContact R10 CM Drill references 10. Drill references 10.1 Wall bracket drilling templates Please print this A4 page at 100% (actual size) bubble level reference 1 cm 50 mm 1 cm Ø 8 mm 61 mm 90 mm Installation Manual V 1.01...
Page 26 KeContact R10 CM Drill references 10.2 Wall connector holder drilling templates Please print this A4 page at 100% (actual size) bubble level reference 1 cm 1 cm 70 mm 74 mm Ø 8 mm 52 mm 94 mm Installation Manual V 1.01...
Page 28 KeContact R10 CM Disposal 11.1 Device disposal Attention Observe the regulations for the disposal of electrical and electronic equipment! The symbol of the crossed-out wheeled bin means that electrical and electronic equipment must not be disposed of with household waste. The materials are recyclable according to the relevant marking. By recycling, reusing materials or other forms of using discarded equipment, you are making a valuable contri- bution to environmental protection.
Page 29 EU-KonformitätserkIärung EU Declaration of Conformity Nr. / No. 001_CE_CReel™_A4_01_2023_d_e_Rev02 Produktbezeichnung: Charge Reel– CReel™ Product identification: Charge Reel – CReel™ RMD Components Italia Srl Hersteller: Manufacturer: Via Avigliana 24 Anschrift: IT-10040 Rivalta di Torino - Italia Address: Die alleinige Verantwortung für die Ausstellung dieser Konformitätserklärung trägt der Hersteller. This declaration of conformity is issued under the sole responsibility of the manufacturer.
Page 30 RoHS III-Richtlinie: 2011/65/EU Richtlinie des Europäischen Parlaments und des Rates vom 8. Juni 2011 , geändert durch (EU) 2015/863 zurBeschränkung der Verwendung bestimmter gefährlicher Stoffe in Elektro- undElektronikgeräten; Amtsblatt der EU L 174, 01/07/2011, S. 88-110 RoHS III Directive: 2011/65/EU Directive of the European Parliament and of the Council of 8 June 2011 as amended by (EU) 2015/863 on the restriction of the use of certain hazardous substances in electrical and electronic equipment;...
Page 31 Unterzeichnet für und im Namen von:/ Signed for and on behalf of: RMD Components Italia Srl Via Avigliana 24 IT-10040 Rivalta di Torino - Italia Name, name Funktion, function Gentile Edoardo Gentile Giuseppe Head of MTPReel™ R&D Products Head of MTPReel™ R&D Products Production and Quality Manager Production and Quality Manager Diese Erklärung bescheinigt die Übereinstimmung mit den genannten Richtlinien, ist jedoch keine...
Page 32 Anhang EMV - Annex EMC zur EU-KonformitätserkIärung for EU Declaration of Conformity Nr. / No. 001_CE_CReel™_A4_01_2023_d_e_Rev02 Charge Reel – CReel™ Produktbezeichnung: Product identification: Charge Reel – CReel™ Die nachfolgend angeführten Komponenten des oben beschiebenen Gegenstandes der Eddärung erfüllen die einschlägige Harmonisierungsrechtsvorschrift der Union: The below-mentioned components of the object of the declaration described above are in conformity with the relevant Union harmonisation legislation: EMV-Richtlinie:...
Page 33 Harmonisierte Europäische Normen: Harmonized European Standards: Referenznummer Ausgabedatum Reference number Edition EN IEC 61000-6-1 2019 EN IEC 61000-6-2 2019 EN IEC 61000-6-3 2021 Das Produkt „Charge Reel - CReel™", für welche dieser Anhang gilt, besteht aus den folgenden Komponenten: The product "Charge Reel - CReel™" to which this Annex applies consists of the following components: RC 4-0280-04-030 ->...
Page 34 Anhang RoHS III - Annex RoHS III zur EU-KonformitätserkIärung for EU Declaration of Conformity Nr. / No. 001_CE_CReel™_A4_01_2023_d_e_Rev02 Charge Reel – CReel™ Produktbezeichnung: Product identification: Charge Reel – CReel™ Die nachfolgend angeführten Komponenten des oben beschriebenen Gegenstandes der Erklärung erfüllen die einschlägige Harmonisierungsrechtsvorschtift der Union: The below-mentioned components of the Object of the declaration described above are in conformity with the relevant Union harmonisation legislation:...
Page 35 Harmonisierte Europäische Normen: Harmonized European Standards: Referenznummer Ausgabedatum Reference number Edition EN IEC 63000 2018 Das Produkt „Charge Reel - CReel™", für welche dieser Anhang gilt, besteht aus den folgenden Komponenten: The product "Charge Reel - CReel™" to which this Annex applies consists of the following components: RC 4-0280-04-030 ->...
Page 36 Anhang Reach - Annex Reach zur EU-KonformitätserkIärung for EU Declaration of Conformity Nr. / No. 001_CE_CReel™_A4_01_2023_d_e_Rev02 Charge Reel – CReel™ Produktbezeichnung: Product identification: Charge Reel – CReel™ Die nachfolgend angeführten Komponenten des oben beschriebenen Gegenstandes der Erklärung erfüllen die einschlägige Harmonisierungsrechtsvorschtift der Union: The below-mentioned components of the Object of the declaration described above are in conformity with the relevant Union harmonisation legislation: Reach Verordnung:...
Page 37 Das Produkt „Charge Reel - CReel™", für welche dieser Anhang gilt, besteht aus den folgenden Komponenten: The product "Charge Reel - CReel™" to which this Annex applies consists of the following components: RC 4-0280-04-030 -> 16A-P3 11kW TYPE 2/2 004_CE CReel™ 01/06/2021 Seite / Page 9 von / of 11...
Page 38 Anhang LVD - LVD zur EU-Konformitätserklärung for EU Declaration of Conformity Nr. / No. 001_CE_CReel™_A4_01_2023_d_e_Rev02 Charge Reel – CReel™ Produktbezeichnung: Product identification: Charge Reel – CReel™ Die nachfolgend angeführten Komponenten des oben beschriebenen Gegenstandes der Erklärung erfüllen die einschlägige Harmonisierungsrechtsvorschtift der Union: The below-mentioned components of the Object of the declaration described above are in conformity with the relevant Union harmonisation legislation: LVD- Richtlinie:...
Page 39 Harmonisierte Europäische Normen: Harmonized European Standards: Referenznummer Ausgabedatum Reference number Edition EN 61316 1999 EN 62196-1 2014 EN 62196-2 2012 + A11 2013 + A12 2014 + A12 2014/AC:2014 Die folgenden Normen werden ebenfalls berücksichtigt: The following standards are also considered: Referenznummer Ausgabedatum Reference number...
