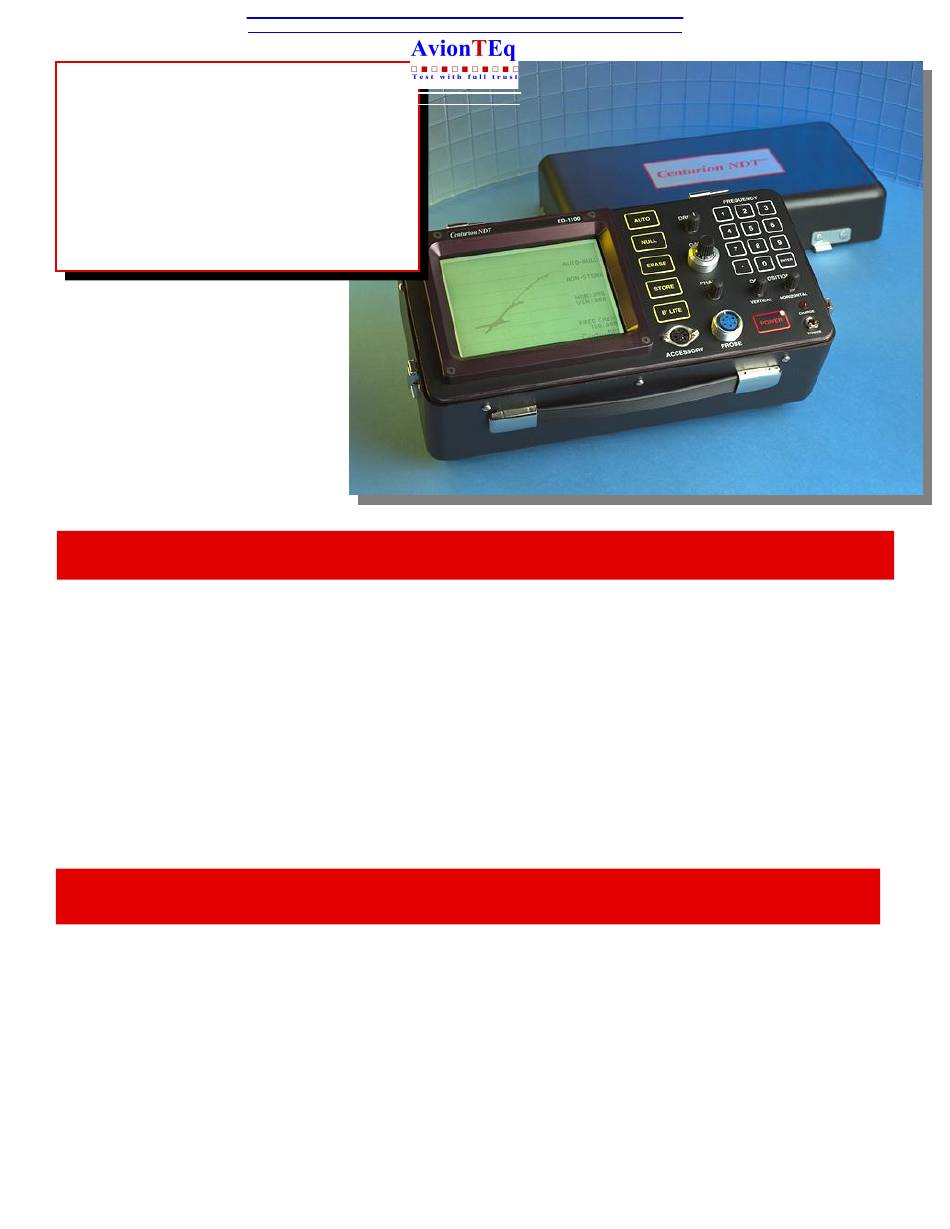

ED-1100
Impedance Plane
Flaw Detector
Special Features
• •
•
•
Large 6" diagonal liquid crystal display provides greater visibility of flaws
Large 6" diagonal liquid crystal display provides greater visibility of flaws
•
•
Selectable frequency range from 100 Hz to 6 MHz
Selectable frequency range from 100 Hz to 6 MHz
•
•
Continuously variable probe drive with overload indicator Wide selection of probes - absolute,
Continuously variable probe drive with overload indicator Wide selection of probes - absolute,
differential, and reflection probes -compatible with existing equipment
differential, and reflection probes -compatible with existing equipment
•
•
Continuous battery operation up to 12 hours
Continuous battery operation up to 12 hours
•
•
Proven, reliable microprocessor-based circuit design
Proven, reliable microprocessor-based circuit design
•
•
Rugged aluminum case for tough environmental conditions
Rugged aluminum case for tough environmental conditions
•
•
Fully portable, weighs only 7.5 lb. (3.4 kg)
Fully portable, weighs only 7.5 lb. (3.4 kg)
•
•
Includes rechargeable batteries, power cord, probe cable and operating manual
Includes rechargeable batteries, power cord, probe cable and operating manual
•
•
Removable steel hinged cover contains accessory pouch
Removable steel hinged cover contains accessory pouch
•
•
Viewing angle can be adjusted with the tilt-stand on the bottom of the unit
Viewing angle can be adjusted with the tilt-stand on the bottom of the unit
Applications
The ED-1100 is a microprocessor-based impedance plane eddy current instrument which offers high
The ED-1100 is a microprocessor-based impedance plane eddy current instrument which offers high
sensitivity, versatility and simplicity of operation. The instrument will locate surface and near-surface
sensitivity, versatility and simplicity of operation. The instrument will locate surface and near-surface
defects and conductivity changes in magnetic and non-magnetic materials. The ED-1100 uses
defects and conductivity changes in magnetic and non-magnetic materials. The ED-1100 uses
absolute, differential and reflection probes to detect flaws or determine properties such as
absolute, differential and reflection probes to detect flaws or determine properties such as
conductivity, hardness, alloy type and heat treat condition. The three modes of operation include:
conductivity, hardness, alloy type and heat treat condition. The three modes of operation include:
flying dot mode for flaw detection, flying dot with storage mode for comparison purposes, and time
flying dot mode for flaw detection, flying dot with storage mode for comparison purposes, and time
base mode for bolt hole scanning. This eddy current instrument is used for a variety of applications
base mode for bolt hole scanning. This eddy current instrument is used for a variety of applications
including detecting flaws in aircraft wheels, struts, propellers, hubs and engine components, and, on
including detecting flaws in aircraft wheels, struts, propellers, hubs and engine components, and, on
automotive brakes, spindles, internal engine components, steering and chassis assemblies and. The
automotive brakes, spindles, internal engine components, steering and chassis assemblies and. The
ED-1100 is used in research, maintenance and quality control to verify test results and check
ED-1100 is used in research, maintenance and quality control to verify test results and check
materials for fatigue.
materials for fatigue.
To buy, sell, rent or trade-in this product please click on the link below:
http://www.avionteq.com/Centurion-NDT-ED-100-Eddy-Current-Tester.aspx
www.avionteq.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for AvionTEq ED-1100
- Page 1 The ED-1100 is used in research, maintenance and quality control to verify test results and check ED-1100 is used in research, maintenance and quality control to verify test results and check materials for fatigue.
- Page 2 Operation The ED-1100 is easy to operate and requires minimal understanding of the principles of eddy current testing. The automatic balance/ null feature substantially reduces set-up time for manual operation and application studies. The liquid crystal display is protected by a replaceable scratch shield and can be backlit in poor lighting conditions.
- Page 3 Specifications Case Dimension: 6.0" (15.2 cm) W x 12.0" (30.4 cm) L x 6.0" (15.2 cm) D with cover closed Case is made of durable aluminum, cover contains accessory pocket Enclosure: 7.5 lb. (16.5 kg) Weight: Rechargeable Ni-Cad battery. 115 or 230V Line operation (specify on order) Power: Frequency Range: Variable from 100 Hz to 6 MHz 6"...
