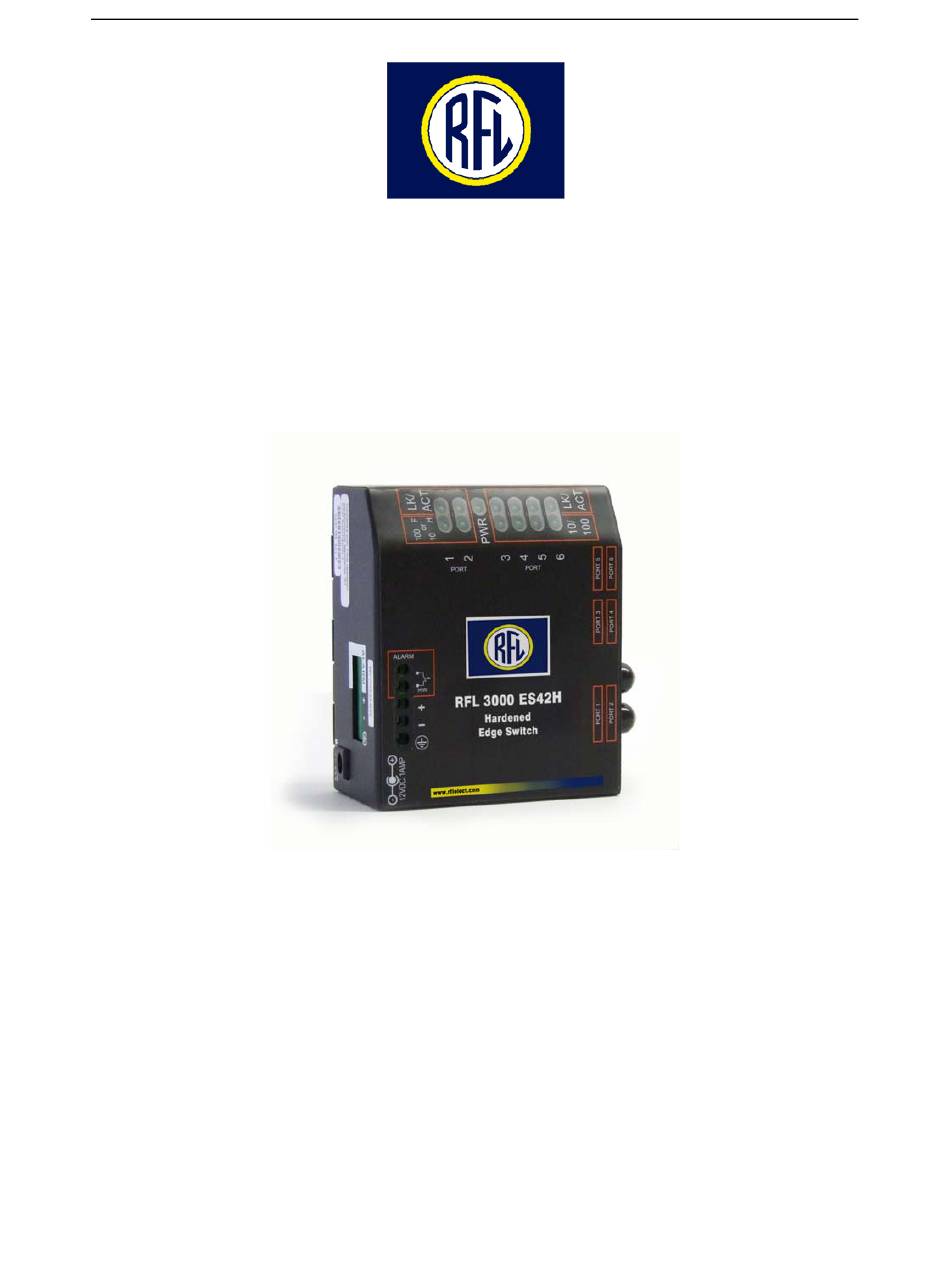

- Page 1 RFL 3000 –ES42H Ethernet Edge Switch Installation & User Guide (5/06) RFL 3000 ES42H Ethernet Edge Switch Installation and User Guide May, 2006...
- Page 2 RFL 3000 –ES42H Ethernet Edge Switch Installation & User Guide (5/06)
- Page 3 10/100 Mb/s Edge Switch products, consult Section 5, Troubleshooting, of this User Guide. Copyright © 2005 RFL Electronics Inc. All rights reserved. No part of this publication may be reproduced without prior written permission from RFL Electronics Inc. Printed in the United States of America.
-
Page 4: Table Of Contents
DIN-Rail mounting option......................14 Power Requirements, Power Supply Types for RFL 3000 ES42H Series Switches ....14 Powering the RFL 3000 ES42H (DC internal) with 12V, 24V or –48VDC power input..... 15 RFL 3000 ES42H DC-powered, 12VDC, 24VDC and -48VDC Installation....... 16 Connecting Ethernet Media ...................... -
Page 5: Specifications
RFL 3000 –ES42H Ethernet Edge Switch Installation & User Guide (5/06) SECTION 1 SPECIFICATIONS Technical Specifications Ports Performance When a port is operating at 100Mbps: Data Rate: 100Mbps When a port is operating at 10 Mbps: Data Rate: 10 Mbps Network Standards 100Mb: Ethernet IEEE 802.3u, 100BASE-TX, 100BASE-FX... - Page 6 Internal 60VA relay contact: Open for power Off, closed for power On (Hardware). POWER SUPPLY The RFL 3000 ES42H products are intended to be supplied by a Listed, Direct Plug-In power unit, marked “Class 2”, or a Listed ITE Power Supply, marked “LPS”, which has suitably rated output voltage (i.e.
- Page 7 They are shielded 8-pin female connectors for shielded (STP) and unshielded (UTP) Cat 3, 4, 5 cable. One Fiber optic port: On the RFL 3000 ES42H Series it is 100Base-FX with a “fiber flavor” choice of multimode SC, ST, LC or MTRJ or single mode SSC, SSCL, SST or SLC connectors.
-
Page 8: Summary Of Models And Descriptions
Three years, return to factory, Made in USA 1.2 Summary of models and descriptions: Note: The RFL 3000 ES42H model # consists of the base unit type and the power input. Insert S for sgl-mode , the fiber flavor (2ff) and the power input. H- hardened, R- Din –Rail MC2, d- domestic, i –... -
Page 9: Introduction
The RFL 3000 ES42 family of Edge Switches have a wide breadth of port configurability and fiber port type options - six 10/100 copper ports or four 10/100... - Page 10 F/H indicates Full and Half duplex for fiber ports only. There is a power (PWR) LED to indicate that the unit is turned ON. The fiber ports on the RFL 3000 ES42H Edge switches are multi-mode or single-mode with an SC, ST or small form factor connector (MTRJ multi mode or LC single-mode).
-
Page 11: Frame Buffering And Latency
This dynamic buffer allocation provides the capability for the maximum resources of the RFL 3000 ES42 Series unit to be applied to all traffic loads, even when the traffic activity is unbalanced across the ports. Since the... -
Page 12: Features And Benefits
(MC14- Tray) or Din-Rail mounted. Rugged metal case, Industrial grade RFL 3000 ES42H Series have a robust design and are packaged in a rugged sheet metal enclosure to ensure high reliability and durability even when placed in industrial or outdoor applications. -
Page 13: Applications For Rfl 3000 Es42H Series Edge Switches
Available in three “hardiness” models (Yellow - “office/wiring closet”, Orange – “Hardened”, Red- “Premium rated (outdoor)”), and hundreds of port-type combinations, RFL 3000 ES42 Series Edge Switches fit very well in almost any environment to enable users to scale their networks quickly and cost effectively. The edge-of-the-network... - Page 14 PLC required one (or two for redundancy) Ethernet ports to carry status and control data to the control center. The RFL 3000 ES42H and CS14H provide a good solution with their multiple options and hardened features. The two Fiber ports on the Edge switches are ideal for secure data communications over long distances.
- Page 15 Installation & User Guide (5/06) Example 3: RFL 30000ES42H: In this example, the RFL 3000 ES4H Edge Switches are deployed to serve as a secure corporate or transportation surveillance system. CCTV cameras may be spread out over many miles in temperature un-controlled locations and with pan, tilt and zoom (PTZ) controlled through an Ethernet copper port .The Edge Switches provide two fiber...
-
Page 16: Installation
Secure attachment of mounting clips for panel - mounting The compact and lightweight design of the RFL 3000 ES42 Series allows it to be easily installed in almost any location. A Velcro strip may be used for mounting the unit on a vertical surface such as a wall or cabinet, or for securing the unit on a table-top or shelf. -
Page 17: Mc14-Tr+Ps9 And Mc14-Tr+Ps9X2 For Rack Mounting Media Edges
AC power supply in the rear area of the tray. (AC PS units that come with the office models of the Edge Switch’s are not used). Because of the thicker size, only eight RFL 3000 ES42H units can fit in one MC14- TRAY. -
Page 18: Din-Rail Mounting Option
The 12V DC power input jack has a plug of 2.5mm, center +ve , with 6 ft. cord. All the AC power supply info detail is provided in Technical Specs Section 1.1. The RFL 3000 ES42 Series is designed to be used with UL listed Class II power supplies. RFL 3000 ES42H 12VDC/ 24VDC/ -48VDC... -
Page 19: Powering The Rfl 3000 Es42H (Dc Internal) With 12V, 24V Or -48Vdc Power Input
Restricted Access Areas (dedicated equipment rooms, electrical closets or the like). 3.6 Powering the RFL 3000 ES42H (DC internal) with 12V, 24V or –48VDC power input Each RFL 3000 ES42H is equipped with an internal DC power supply, and has built-in screw terminals for secure attachment of the power input leads. -
Page 20: Rfl 3000 Es42H Dc-Powered, 12Vdc, 24Vdc And -48Vdc Installation
12VDC leads) to the DC power terminal block on the RFL 3000 ES42H Edge Switch (as shown in the Figure). The DC terminal block on the RFL 3000 ES42H is located on the left side of the unit and is equipped with three (3) screw-down lead posts. The power terminals are identified as positive (+) and negative (-), and they are floating inside the unit so that either of the terminals may be grounded by the user if desired. -
Page 21: Connecting Ethernet Media
Installation & User Guide (5/06) Connecting Ethernet Media The RFL 3000 ES42-Series Edge Switches can be connected to two media types i.e. fiber and copper (RJ-45) types, runt at 100BASE-TX, 10BASE-T and 100BASE-FX only. CAT 5 cables should be used when making 100BASE-TX connections. When the ports are used as 10BASE-T ports, CAT 3 may be used. -
Page 22: Connecting Fiber Optic Sc-Type, "Snap-In
3. Connect the Transmit (TX) port (light colored post) on the RFL 3000 Fiber port to the Receive (RX) port of the remote device. Begin with the color-coded strand of the cable for this first TX-to-RX connection. -
Page 23: Connections To Nics Which Support Auto-Negotiation, Rj-45 Ports
Pulse (FLP) coding for the 100BASE-TX signaling system. When connecting a NIC to the RFL 3000 ES42H-Series, it may be necessary to reload the NIC drivers on the user device if the NIC has been communicating with a protocol other than 100BASE-TX (such as 10BASE-T). -
Page 24: Operation
(See Section 4.2). When the connected device is 10 Mbps, the RFL 3000 ES42Hs obeys all the rules of 10 Mbps Ethernet configurations. The 10 Mbps users can “communicate” with 100Mbps users as well as other 10 Mbps users through the switch. -
Page 25: Dual Leds, Front-Panel And Side-Panel (Rfl 3000 Es42 Series)
When this option is present, the terminal block for Alarm Contacts is part of the Power Input panel in the RFL 3000 ES42s case. The DC power input connection is in the same panel. - Page 26 RFL 3000 –ES42H Ethernet Edge Switch Installation & User Guide (5/06) Useful info about Alarm Contacts in the RFL 3000 ES42H: 1. Two-position terminal block (1,2) provided next to the DC power input, as shown above. 2. The Alarm Relay contact connected to the two terminals (1,2) is hardware operated.
-
Page 27: Troubleshooting
However, if you are unsure of the procedures described in this section or if the RFL 3000 ES42 Series 10/100 Mb/s Switch is not performing as expected, do not attempt to repair the unit; instead contact your supplier for assistance or contact RFL Customer Support. -
Page 28: When Calling For Assistance
(see Warranty Information, Appendix A, for complete details). However, if the problem or condition causing the return cannot be duplicated by RFL , the unit will be returned as:... -
Page 29: Shipping And Packaging Information
(user) charge. Shipping and Packaging Information Should you need to ship the unit back to RFL , please follow these instructions: 1. Package the unit carefully. It is recommended that you use the original container if available. Units should be wrapped in a "bubble- wrap"... -
Page 30: Appendix A: Warranty Information
RFL . This warranty will not be effective if, in the opinion of RFL , the product has been damaged by misuse, misapplication, or as a result of service or modification other than by RFL . - Page 31 RFL 3000 –ES42H Ethernet Edge Switch Installation & User Guide (5/06) Notes...
- Page 32 RFL 3000 –ES42H Ethernet Edge Switch Installation & User Guide (5/06)
