Tutco-Farnam Heat Torch 150 Quick Manual

TM
Heat Torch
Operation
To operate this heater, ensure air is flowing and ener-
gize the main supply disconnect. Set the controlling
device to the desired temperature.
During initial heating, it is recommended to slowly
ramp up the process set point and inspect the heating
system for problems.
DO NOT operate the heater at voltages higher than the
recommended use.
DO NOT operate the heater at flow rates below the
minimum flow range (4.8 SCFM)—reduced flow can
shorten heater life.
Supply clean, dry air to the heater at a max of 120 psi.
CAUTION
Tutco-Farnam Custom Products recommends
installation be performed by qualified personnel
familiar with the National Electrical Code and all
local codes and standards. It is the responsibility
of the installer to verify the safety and suitability
of the installation.
Failure to follow Tutco-Farnam's recommenda-
tions could result in premature failure, serious
equipment damage, injury or death.
www.farnam-custom.com
TM
Heat Torch 150
Quick Guide
150
Quick Guide

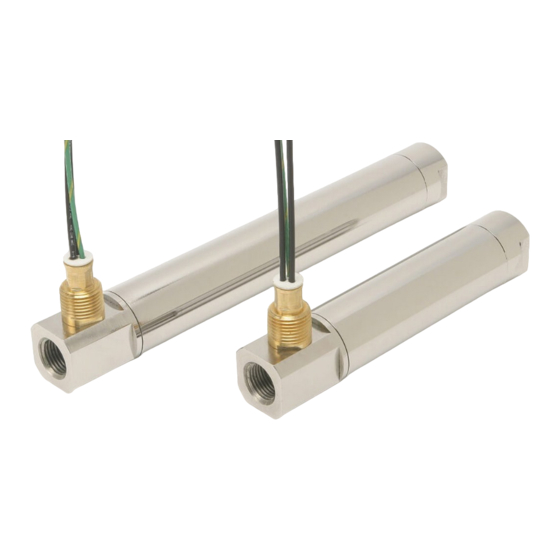

Product Description
Tutco-Farnam's Heat Torch
rapidly heating air. Industrial strength open coil heaters provide
efficient heat transfer through direct heating element contact
with the airflow
Electrical Information
Wiring your Heat Torch 150
WARNING
DO NOT mount heaters in an atmosphere containing combustible gases,
vapors, dusts or fibers.
Hazardous voltages are present in this equipment. Lock out and tag the
branch circuit disconnect switch before working on this heater.
Exterior of heater at exhaust is approximately the air temperature. Treat the
exterior of the heater as a burn hazard.
Typical causes for uneven airflow are structural components blocking air or
mounting the heater too close to elbows, transitions or the fan/blower.
TM
inline air heaters are ideal for
Tutco-Farnam Custom Products strongly recommends the use
of an electrical interlock with the air source—this helps ensure
that the heater will not run without air.
Where thermocouple extension wire is required between the
heater and control panel, verify that it is connected with proper
polarity. Failure to do so may result in an uncontrolled heater.
For Standard type K thermocouple: Yellow + and Red -
The heater must be grounded.

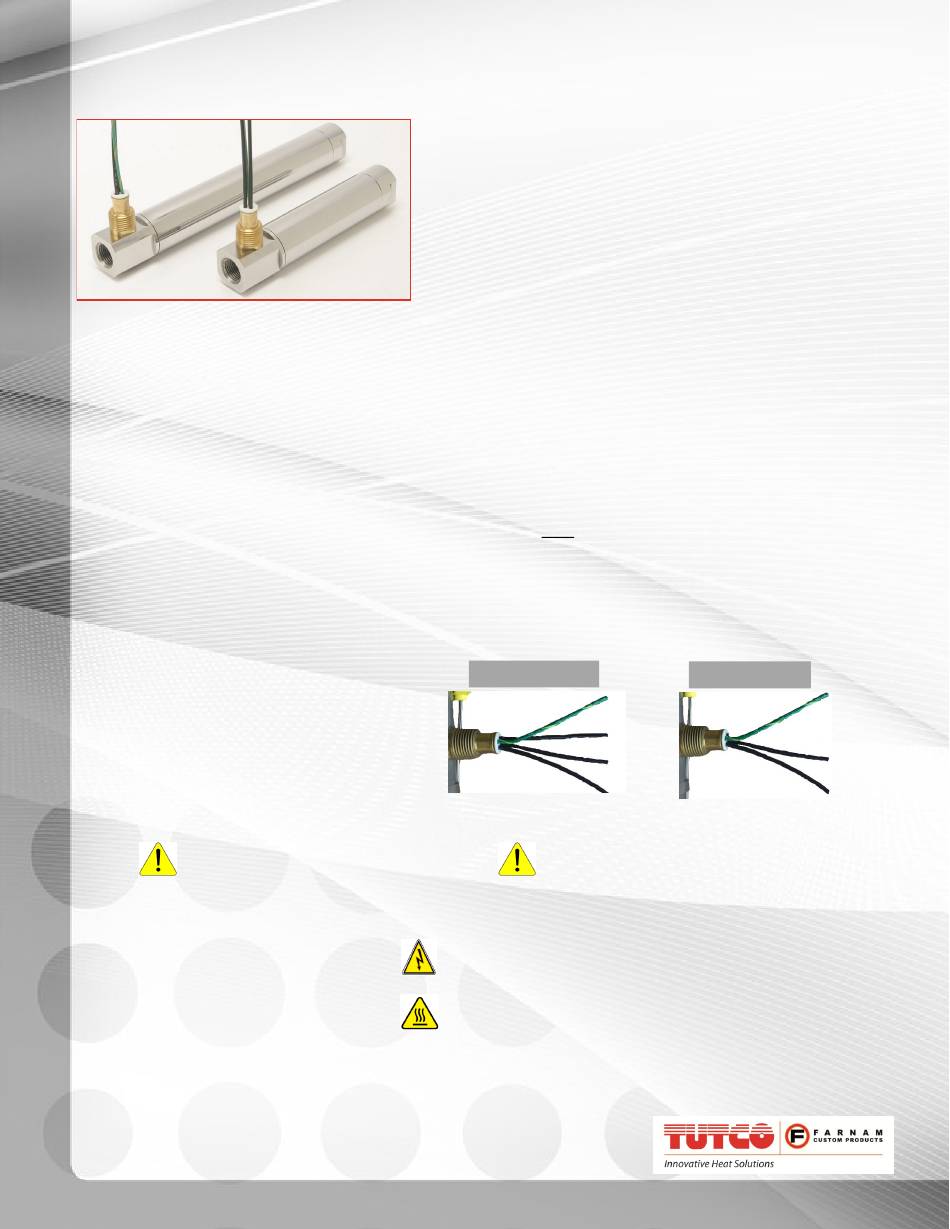

Wire your HT150 according to the images
below.
3 PHASE CONFIG.
Ground
L1
L2
L3
1 PHASE CONFIG.
Ground
L1
L2
REV 02/29/16
