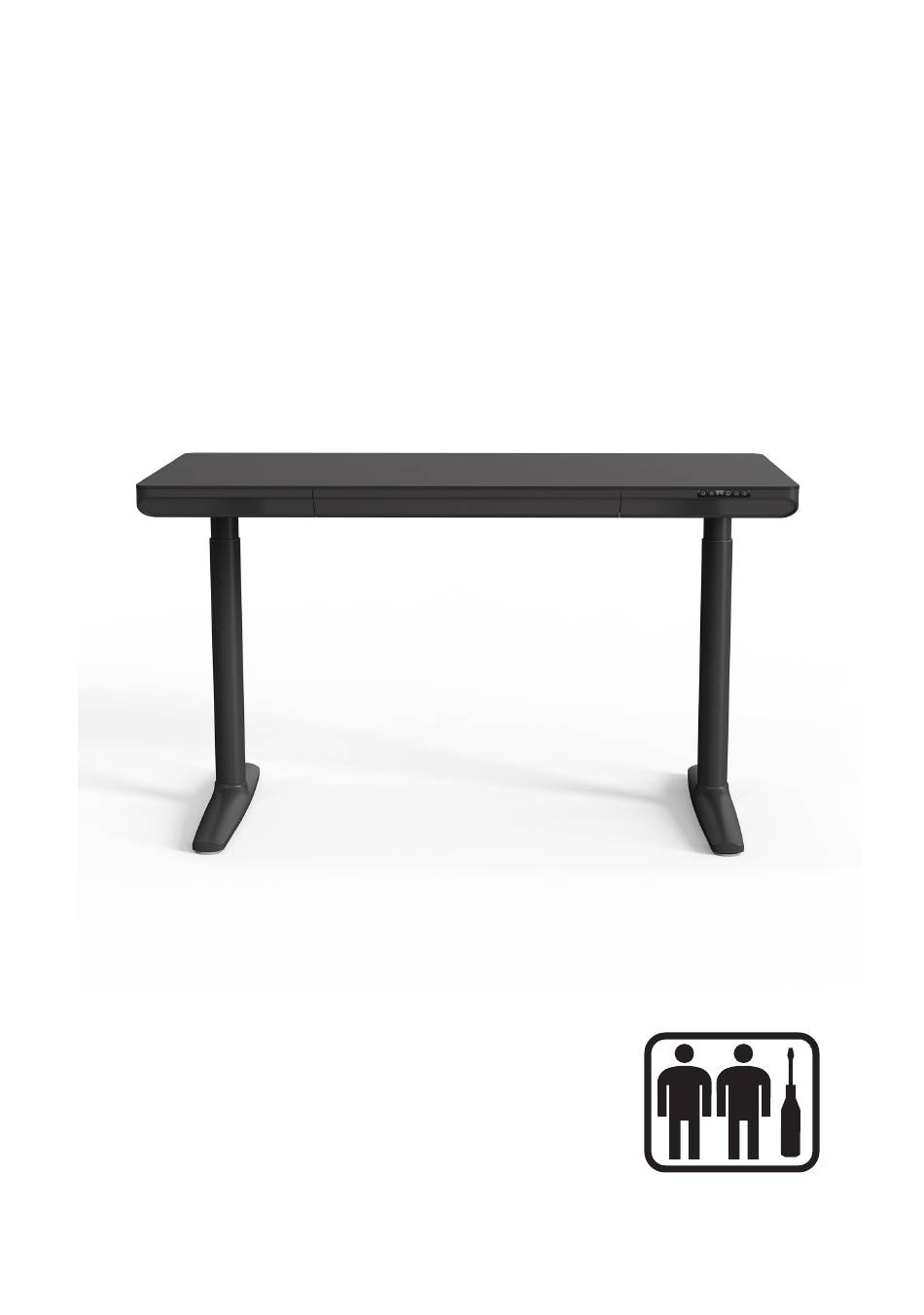

- Page 1 Assembly Instruction/User Manual LUNA Electric Standing Desk Item Code: LU001 (Black) Two-person Assembly...
-
Page 2: Important Safety Instructions
I MPORTANT SA FETY I N S T R U C T I O N S Failure to comply with or observe all assembly, safety and operating instructions and warnings regarding When using an electrical furnishing, basic the use of this product may result in serious bodily injury. precautions should always be followed, read all instructions before using (this furnishing). - Page 3 I MPORTANT SA FETY I N S T R U C T I O N S The LUNA is to be assembled by at least two people. This product contains small items that could be a choking hazard if swallowed. Keep these items away from children and pets. Do not overtighten the screws during installation.
- Page 4 A(M8*18mm)x8+2(Spare) B(M6*15mm)x8+2(Spare)
- Page 6 Assembly Instruction...
- Page 7 Assembly Instruction...
- Page 8 Assembly Instruction Do not connect the power before the cable connected with the adapter Ensure the table is horizontal by adjusting the foot pad...
- Page 9 Assembly Instruction 勹 The cable management can be opened in this way to put sockets and electric wires...
- Page 10 Maximum drawer Maximum weight weight capacity 11kg capacity 120kg...
- Page 11 Product Features Overview An integrated cable management Commercial grade Compact Laminate Includes a felt inlay sta onary solu on allows you to dy your desktop provides high resistance to drawer for storage desktop or install a monitor arm impact, moisture, scratch and fire Fully integrated LED display handset with 2 memory presets and innova ve HSM (Health...
- Page 12 Controller User Guide Standing height memory position Raise/up Lower/down Sitting height LED display memory position While raising or lowering the table, please make sure objects are secure on the Notice table, and nothing prevents the table from raising or lowering through its desired range of adjustment.
- Page 13 HSM mode-Health Spine Mode When the light is flashing, the table will slowly move up 12 cm in 3 minutes, will stop for 2 minutes, and then will slowly move down by 12 cm in 3 minutes. After 2 minutes the movements will repeat.
- Page 14 COMPACT Laminate Care Guide The compact laminate features a surface crafted from a melamine-based resin that possesses excellent stain resistance. Thanks to its remarkable durability and exceptional impermeability, maintaining the surface is a breeze. Simply wipe it with a dampened soft cloth with plain water or a mixture of household detergent, and it effortlessly removes all typical household spills.
- Page 15 LUNA / LUNA LITE DESK Warranty Huali Trading products are warranted against defects in material and workmanship while owned by the “Original Purchaser”. The term “Original Purchaser” is defined as that party or entity which purchases Huali Trading furniture from an authorized Huali Trading retailer as shown by the original sales receipt.
-
Page 16: Technical Specification
TECHNICAL SPECIFICATION Models: THEA-T-FM2S2 Rating 220-240V AC, 50/60Hz, 2.5A Models: THEA-T-FM2S2 Desk Top Dimensions (Metric): 1400 x 700mm Desk Top Dimensions (Imperial): 55.1 X 27.6“ Height Range: 735 - 1180mm/28.9 - 46.5" Maximum Load of Desk Top (inclusive of Desk Top): 120kg/264lb Frame Construction: Steel...
