AtlasIED TSD-TXHL Owner's Manual

High level to line level converter & signal isolator
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
TSD-TXHL
Owner's Manual
High/Low Level Converter
TSD-TXHL
High Level to Line Level
Converter & Signal Isolator
1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.
Telephone: 800.876.3333 • Fax: 800.765.3435
– 1 –
AtlasIED.com
Specifications are subject to change without notice.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TSD-TXHL and is the answer not in the manual?

Questions and answers

Summary of Contents for AtlasIED TSD-TXHL

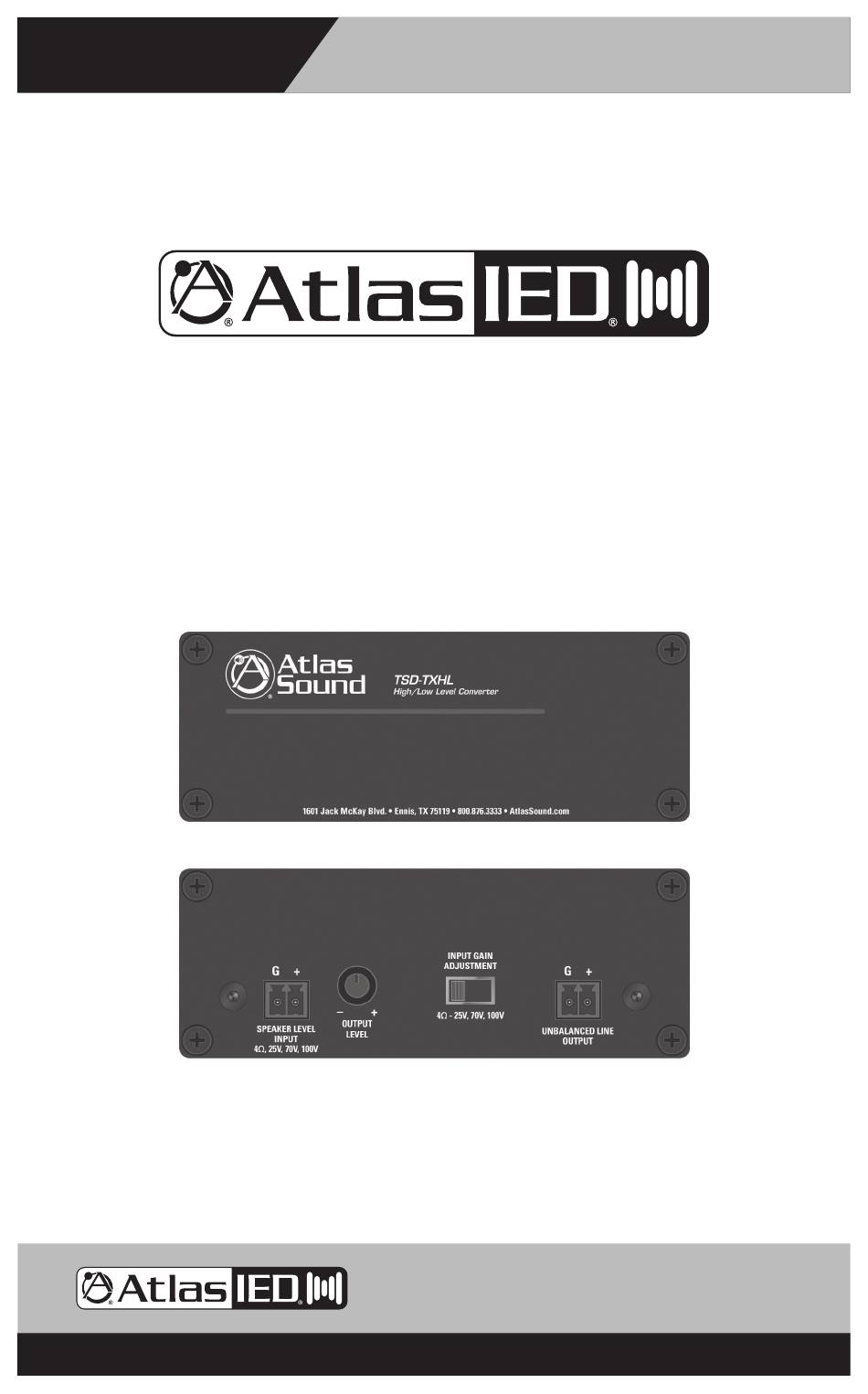

  • Page 1 TSD-TXHL Owner’s Manual High/Low Level Converter TSD-TXHL High Level to Line Level Converter & Signal Isolator 1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A. Telephone: 800.876.3333 • Fax: 800.765.3435 – 1 – AtlasIED.com Specifications are subject to change without notice.

  • Page 2: Audio Applications

    Owner’s Manual High/Low Level Converter Description The AtlasIED TSD-TXHL is a high to low level converter designed to interface with 4Ω/25V/70V/100V distributed speaker lines. An unbalanced line level output is provided to drive remote amplifiers or other devices. The TSD-TXHL allows easy expansion of zones without the need for dedicated wiring to remote locations.

  • Page 3: Rear Panel Description

    TSD-TXHL Owner’s Manual High/Low Level Converter Rear Panel Description TSD Input/Output connections are removable for easy system wiring. The connector has a 3.5mm pitch between pins. 1. Speaker Level Input - Connect the loudspeaker line to the (G) and (+) terminals. The loudspeaker line can be 4/8 ohm system or 25/70/100V signal levels.

  • Page 4: Cable Management

    TSD-TXHL Owner’s Manual High/Low Level Converter Cable Management Knob and Security Cover All front panel level controls feature a removable knob that can be replaced with an included security cover. Follow these steps to prevent potentiometer damage or unwanted changes.
  • Page 5 M3 x 4mm screws as other screws may be too long and will cause internal damage to the TSD. The multi-position mounting plate is a new addition being included with TSDs. If the TSD being used did not include the mounting plate, contact AtlasIED customer service at 1-800-876-3333.

  • Page 6: Optional Mounting Accessories

    High/Low Level Converter Optional Mounting Accessories 1. TSD-RMK 19" Width Rack Mount Kit - For 19" rack mounting, AtlasIED offers an optional rack mount kit, the TSD-RMK. This rack mount kit can support up to four TSD units. The kit includes three blank panels designed to fill any unused slots. Use the included hardware to mount the TSD...
  • Page 7 TSD-TXHL Owner’s Manual High/Low Level Converter 3. TSD-RRMK Rear Rack Mounting Kit - For complete flexibility in mounting a TSD or TSD external power supplies the optional TSD-RRMK is available. The TSD-RRMK can support mounting of either two larger TSDs with external power supplies or up to 4 TSD models. Note: Only use the included M3 x 4mm screws as other screws may be too long and will cause internal damage to the TSD.

  • Page 8: Block Diagram

    TSD-TXHL Owner’s Manual High/Low Level Converter Block Diagram UNBALANCED INPUT OUTPUT 100V 1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A. Telephone: 800.876.3333 • Fax: 800.765.3435 AtlasIED.com – 8 – Specifications are subject to change without notice.

  • Page 9: Specifications

    TSD-TXHL Owner’s Manual High/Low Level Converter Specifications Description High Level to Line Level Converter & Signal Isolator Chassis Color Black Chassis Material Aluminum Inputs High Level Input Qty 1, Amplifier Speaker Outputs 4Ω, 8Ω, 25V, 70V, 100V Connection Removable 2 Position Captive Screw 3.5mm Spacing...
  • Page 10 TSD-TXHL Owner’s Manual High/Low Level Converter Notes: 1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A. Telephone: 800.876.3333 • Fax: 800.765.3435 AtlasIED.com – 10 – Specifications are subject to change without notice.
  • Page 11 TSD-TXHL Owner’s Manual High/Low Level Converter Notes: 1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A. Telephone: 800.876.3333 • Fax: 800.765.3435 – 11 – AtlasIED.com Specifications are subject to change without notice.

  • Page 12: Limited Warranty

    AND FITNESS FOR A PARTICULAR PURPOSE. AtlasIED does not assume, or does it authorize any other person to assume or extend on its behalf, any other warranty, obligation, or liability. This warranty gives you specific legal rights and you may have other rights which vary from state to state.
