MODELS:

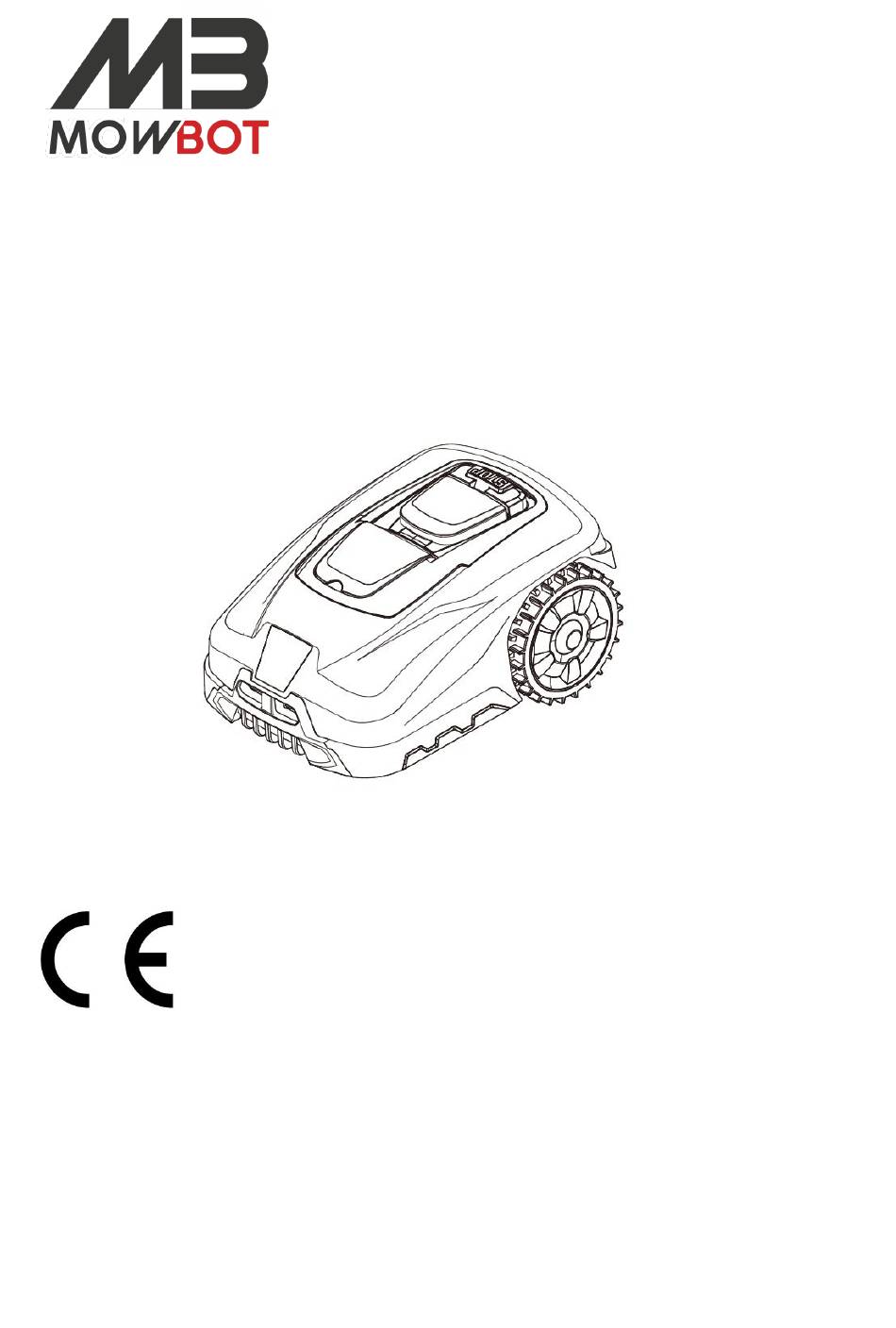

OWNER'S MANUAL
MowBot - Robotic Lawnmowers
Henton and Chattell Ltd., London Road, Nottingham NG2 3HW UK
www.mowbot.co.uk
Please read this manual carefully prior to assembling and operating the
Mower. It is dangerous to operate this product without being familiar with
these instructions. Keep this manual in a safe place and have it ready for
future reference.
1
MOWBOT800 (DYM220601)
MOWBOT1200 (DYM220602)
Advertisement
Table of Contents
Summary of Contents for MOWBOT MOWBOT800
- Page 1 MODELS: MOWBOT800 (DYM220601) MOWBOT1200 (DYM220602) OWNER’S MANUAL MowBot - Robotic Lawnmowers Henton and Chattell Ltd., London Road, Nottingham NG2 3HW UK www.mowbot.co.uk Please read this manual carefully prior to assembling and operating the Mower. It is dangerous to operate this product without being familiar with these instructions.
-
Page 2: Table Of Contents
Table of Contents Chapter 1 –Safety instructions 1.1 Safe operating practice 1.2 The robotic mower safety features 1.3 Safety symbols 1.4 Lightning protection Chapter 2 – Technical data Chapter 3 – Understanding the robotic mower 3.1 Packaging contents 3.2 The robotic mower basic operating principles 3.3 Cutting height adjustment Chapter 4 –... -
Page 3: Chapter 1 -Safety Instructions
Chapter 1- Safety Instruction IMPORTANT Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and / or serious injury. Carefully read the instructions for the safe operation of the machine. Save all warnings and instructions for future reference. - Page 4 8. Use the Robotic Mower for lawn mowing only. 9. Keep all guards, shields, safety devices, and sensors in place. Repair or replace damaged parts, including warning labels. Transportation To safely move from or within the working area: 1. Press the red STOP button to stop the Robotic Mower. 2.
-
Page 5: The Robotic Mower Safety Features
6. Disconnect the equipment from the power supply before cleaning. Do not use any liquid or aerosol cleaner. 7. The charger should be placed on a stable surface. A drop may cause damage. 8. If the equipment is not used for a long time, disconnect it from the power supply to avoid damages from voltage peaks or lightning strikes. -
Page 6: Safety Symbols
1.3 Safety symbols Symbols on the Robotic Mower WARNING - Read user instructions before operating the machine. The device can be dangerous if incorrectly used. Read and understand these operating instructions before use. WARNING - Keep a safe distance from the machine during operation. Keep your hands and feet away from the rotating blades. -
Page 7: Lightning Protection
recycle where facilities exist. Check with your local authority or retailer for details. 3.15A time-lag fuse link Short-circuit-proof safety isolating transformer Main unit power supply switch In accordance with the applicable European directives on safety standards Symbols on the battery pack Safety alert Volts Recycle... -
Page 8: Chapter 2 - Technical Data
Chapter 2 – Technical data Model number Mowbot800 (DYM220601) MowBot1200 (DYM220602) Max. cutting area 800 m 1200 m Electrical power system lithium-ion battery. lithium-ion battery. Battery 28 V / 2.5Ah. 28 V / 3.0Ah. input 100-240 V AC, 50/60Hz, input 100-240 V AC, 50/60Hz, Charger/ power supply Output 28 V DC, CC1.8A(IP65) -
Page 9: Chapter 3- Understanding The Robotic Mower
Chapter 3- Understanding the Robotic Mower Thank you for purchasing our Robotic Mower. Over the next few pages, the Robotic Mower will be explained in further detail considering t h e operation procedure. 3.1 Packaging contents Please inspect all packaging contents as follows: Fig.1 Robotic Mower Blades (3 pcs+3pcs) -
Page 10: The Robotic Mower Basic Operating Principles
3.2 The Robotic Mower basic operating principles The Robotic Mower chooses its direction randomly, which means it will mow your garden completely, without leaving behind any uncut parts in the area you have defined within the boundary wire. Once the Robotic Mower detects a c o r r e c t l y installed boundary wire, it will turn around and head in a different direction inside the area. -
Page 11: Chapter 4 - Installation Guide
Chapter 4 – Installation guide This chapter explains how to install the Robotic Mower, please read this completely before you start the installation. 4.1. Introduction We recommended you to make a sketch of your lawn, including all obstacles and how these should be protected. -
Page 12: Boundary Wire
4.3. Boundary wire You may choose to either install the boundary wire above or below the soil of the lawn. A mixture of installations is acceptable as well. It is recommended to cut the lawn as low as possible where the wire will be installed beforehand. - Installation on the soil Attach the boundary wire onto your lawn with pegs. - Page 13 Trees The Robotic Mower treats trees as common obstacles, but if some roots of the tree are exposed in your garden and lower than 100 mm, this area should be protected in order to prevent the tree root, cutting blades or rear wheels profile damage.
-
Page 14: Charging Station
30cm 40cm 17%-35% <17%slope Fig.12 Paths, Driveways and Roads Exclude elevated pavements with a boundary wire loop. Place the wire around 20-30 cm away (Fig.13). 20-30cm Fig.13 Even pavements don’t need to be excluded. The Robotic Mower can drive over. The boundary wire is allowed to cross the pavement. -
Page 15: Prepare The Boundary Wire For The Charging Station
≥2m The potential location of charging station Fig.16A Fig.16B Fig.16C Locating the charging station After working, when your Robotic Mower's battery voltage is low, the Robotic Mower will automatically return to the charging station by following the boundary wire anti-clockwise. After a full recharge, your Robotic Mower will start again with its next cutting sequence (if within your set worktime window) (Fig.17A/Fig.17B). -
Page 16: Connect The Charging Station With The Boundary
4.4.2 Connect the charging station with the boundary wire The wire leading to the front of the charging station must be thread underneath the base, using the cable holders on the station’s underside. Connect it to the connector marked "+", and connect the rear boundary wire to the connector marked “... -
Page 17: Charging Information
4.5 Charging Information The device will return to the charging station in one of the following situations: 1. You press the Home button and close the LCD cover. 2. The battery capacity decreases to less than 30% . After a full charge, it will go back to work or wait in the base station until the next work time window is reached. -
Page 18: Chapter 5 - Programming
Chapter 5 – Programming IMPORTANT! PLEASE SET T H E DATE AND TIME F I R S T 5.1 Control panel The Robotic Mower has already been pre-programmed in the factory to standard settings, but these can be changed as required. Even though factory settings will suit the majority of gardens, it’ll be worthwhile to familiarize yourself with the available options. -
Page 19: Main Operation Menu Overview
5.2 Main operation menu overview 2018-08-25 Robot 08-59-21 Mower General Setting. Includes "set data and time", "mow in the rain", "language", “secondary areas” and "information"; Function setting Includes "set work time", "boundary cut" and “WIFI Setting”; Change PIN. 5.3 Battery Battery is fully charged. -
Page 20: Settings
5.4 Settings 5.4.1 Set Date and Time General Setting 2018-08-25 Robot Set Date and Time 08-59-21 Mower ■ Mow in the Rain Language Secondary areas Information Set Date and Time Data: 2018-08-25 YYYY-MM-DD Save it? ---------------------------------- Time: 08:38 Step 1: Move the cursor to the general setting , then press the OK button . - Page 21 Rain sensor Mowing in the rain is not recommended. The Robotic Mower has got a rain sensor and may prevent the robot from mowing in the rain. In the default factory setting, the Robotic Mower returns back to the charging station if rain is detected, where it will continue to charge.
- Page 22 5.4.4 Secondary area General Setting 2018-08-25 Robot Set Date and Time 08-59-21 Mower Mow in the Rain Language Secondary areas ■ Information Second area Area2_Per : ____ % Area2_Dis : ____ m Save it? Third area Area3_Per : ____ % Area3_Dis : ____ m Step 1: Move the cursor to “General setting”...
- Page 23 5.4.5 Set cutting weekday and time 2018-08-25 Robot Set Work Time 08-59-21 Mower ■ Boundary Cut WIFI Setting Set Work Time Set Work Time Start Hours Start Hours 02:00 22.0h 02:00 22.0h 02:00 22.0h 02:00 22.0h 02:00 22.0h 02:00 22.0h 02:00 22.0h 02:00...
- Page 24 5.4.6 Boundary cut 2018-08-25 Robot 08-59-21 Mower Set Work Time Boundary Cut ■ WIFI Setting Boundary Cut Save it? ■ Step 1: Move the cursor to the Function setting , then press the OK Key Step 2: Move the cursor to “Boundary cut”, then press the OK Key Step 3: Use to move the cursor to “No”...
-
Page 25: Cutting
5.5 Cutting Push the “Start” key and close the LCD cover to let the Robotic Mower start to work. 2018-08-25 Robot 2018-08-25 Robot 08-59-21 Mower 08-59-21 Mower Close cover to start During cutting time, the battery capacity level is monitored and displayed. When the battery capacity has discharged to 30%, the Robotic Mower will aut o m atic all y go back to the... -
Page 26: Change Pin Code
5.7 Change PIN code Note: Change the PIN code when the main power switch is set “ON” Every time you open the LCD cover, you need to input the PIN code to unlock the Robotic Mower. The factory-set PIN code is “1-2-3-4”; you can change this PIN code as below: 2018-08-25 Robot 08-59-21... -
Page 27: Firmware Update
During the winter service completed by an authorized service centre the software will be updated. 3. USB memory stick update from Mowbot service The robotic mower has a USB port located in the battery compartment for manual firmware updates. To access the USB socket, remove the battery and insert a USB memory stick containing the firmware update. - Page 28 Mower tilted Mower rolling over Press OK to Go ON Press OK to Go ON Motor over current Motor Fault Press OK to Go ON Check the motor and Restart the mower Battery low voltage Battery error Press OK to Go ON Please check the battery Restart the mower Warning!
- Page 29 Mower lifted: If the lift sensors are activated continuously for ten seconds, the Robotic Mower will stop and display the information “Mower lifted”. Please open the LCD cover and hit to restart the robotic mower. If this error message shows frequently, please check if there are obstacles taller than 100 mm in the working area and move these obstacles out of the working area or change the boundary wire layout to exclude these objects.
- Page 30 Boundary signal error If the boundary signal is not operating correctly - for example, the Robotic Mower is outside the working area, the boundary wire is incorrectly connected or is damaged, or if there is no power supply, the Robotic Mower will turn in circles searching for the boundary signal and will finally stop;...
-
Page 31: Chapter 6 - Maintenance
6.4.3 Cutter blade sharpening WARNING! Ensure the Robotic Mower is completely shut off and wear protective gloves before cleaning, adjusting or replacing the blades. WARNING! To ensure maximum cutting efficiency and safety, always use Mowbot replacement blades and blade mounting parts when replacing. - Page 32 Step 2 - Disassemble 6 fixing screws from the bottom. Step 3 - Pull out the battery. Step 4 - Install the new battery, replace the battery pack cover and secure with the 6 screws. The old battery should be recycled correctly. ONLY USE ORIGINAL REPLACEMENT BATTERIES. MOWBOT...
-
Page 33: Chapter 7 -Troubleshooting
Chapter 7 -Troubleshooting 7.1 Troubleshooting: Charging station Description Solution Light off No power Check power supply Constant Ready for mowing (Battery fully Correct connection Green light on charged, Boundary wire OK) Boundary cut or connected Check the two wire ends are connected to the correct Flashing terminals securely. - Page 34 Battery voltage is too low and The Mower Battery low Carry the Robotic Mower to the station for charging. not on the voltage stopped charging station, the the screen Mower will stop is off. and the display will be blank. Battery The battery may Robotic...
- Page 35 Hit the Power 1. Make sure the main power switch is “ON”. key on the key 2. When you first use the Robotic Mower the battery board for 3 sec. may not be fully charged. Put the Robotic Mower into to turn the LCD its charging station.
- Page 36 1. Damaged 1. Replace all of the 3 blades together. cutting blades. The Robotic Mower’s cutting efficiency depends on Robotic 2. Cutting blade sharp blades, so please keep them in good condition. Mower is None is partially 2. Stop the Robotic Mower safely, use protective gloves very noisy.
-
Page 37: Warranty
Your purchase receipt must be kept as proof for the date of purchase. Your un-dismantled mower must be returned to your dealer in an acceptably clean state, accompanied by your proof of purchase. Register your purchase: Please register your robotic mower on mowbot.co.uk, for warranty and security identification purposes for PIN code recalling. 9. ENVIRONMENT Should your machine need replacement after extended use, do not put it in the domestic waste but dispose of it in an environmentally safe way. -
Page 38: Ec-Declaration Of Conformity2
In case of alteration of the machine, not agreed upon by us, this declaration will lose its validity Product Robotic Mower Machine Type: MOWBOT800 (DYM220601) MOWBOT1200 (DYM220602) Rated voltage/power 24VDC/50W Measured sound power 62.7dB(A)
