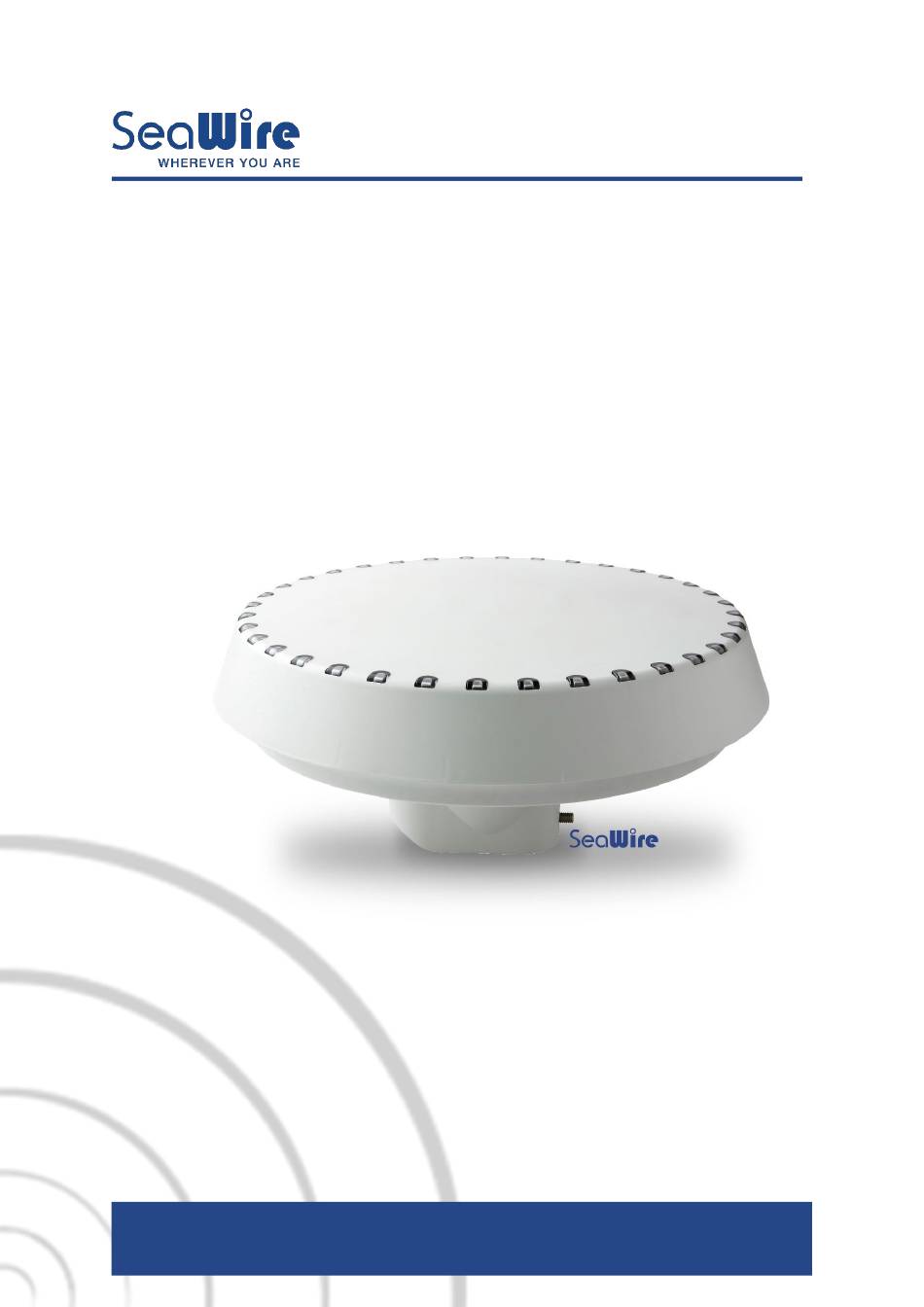

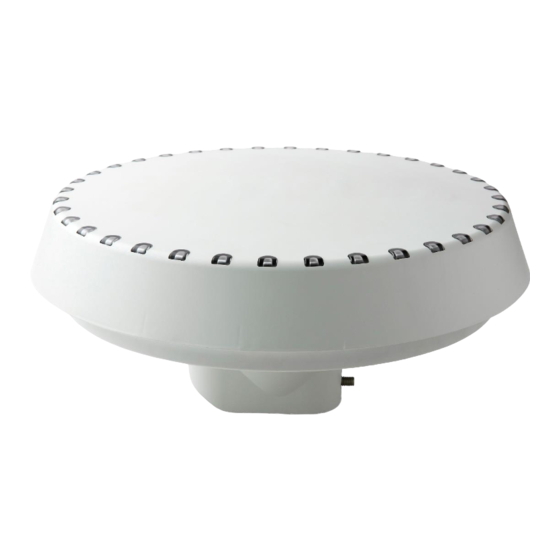

- Page 1 ROUDEM User Guide SeaWire RouDem UserGuide_SeaWireRouDem_Rev.1.02 Developed and produced by MiWire ApS, Denmark Diplomvej 381, DK-2800 Kongens Lyngby Phone: +45 82 820 820, E-mail: info@miwire.net...
-
Page 3: Table Of Contents
STEP 3 – Mounting the SeaWire RouDem ................9 STEP 4 – Cable wiring ......................10 STEP 5 – Powering the RouDem ................... 10 STEP 6 – Configuration of internet via SeaWire RouDem ............ 12 STEP 7 – Registration ......................12 MiWire user interface ......................... 13 Specifications .......................... -
Page 4: Introduction
Introduction User Guide SeaWire RouDem Introduction Thank you for purchasing SeaWire RouDem. The SeaWire RouDem makes it possible to extend the reach of mobile networks in coastal areas with an automatic directional turning antenna. Safety information Read, follow, and keep this instruction. -
Page 5: Package Content
Introduction User Guide SeaWire RouDem Package Content Name Picture Quantity SeaWire RouDem Mounting Bracket PoE Power Supply Screws M4x10mm Unbraco 4 Key Torx 10 Key Privacy Policy User Guide Registration Information MiWire ApS... -
Page 6: Requirements
User Guide SeaWire RouDem Requirements • Data subscription To receive data via SeaWire RouDem you must have a subscription with a data provider and a SIM card. • Cable(s) The package content DOES NOT include cables for cable run installations. To install... -
Page 7: Hardware Overview
The On/Off button is a push button. Press 1x for on/off. The LED will flash for on and off. PORTS POE ADAPTER ❶ PoE port (Power over Ethernet) The RJ45 port is reserved for the ethernet cable from the RouDem. ❷ LAN port The RJ45 port is for optional LAN connection. -
Page 8: Led's
Introduction User Guide SeaWire RouDem LED’s SEAWIRE ROUDEM Red: When the device is starting the LED will light red while it is calibrating the compass. The red light will remain on if there are errors for example if there is no data on the SIM card or APN is wrong. -
Page 9: Installation Of The Seawire Roudem
IMPORTANT: press on the top of the SIM card to make sure there is a smooth surface. 2. RouDem’s SIM card slot is a click system. Do not use tweezers, pliers, or other tools to force the SIM card in/out. Use the click system to gently insert/remove the SIM card by using your fingers by clicking it into place and clicking it out. -
Page 10: Step 2 - Preparing Mounting Bracket And Connecting The Ethernet Cable
2. Connect the Ethernet cable to the Ethernet port in the RouDem. 3. Affix the mounting bracket to the RouDem with the five screws using the supplied Torx 10 Key. IMPORTANT: it is important that the mounting bracket is secured with all five screws to maintain waterproofness. -
Page 11: Step 3 - Mounting The Seawire Roudem
Ø38mm/1.5”. • Place the RouDem where there is a good all-round view. It is rarely possible to place the RouDem where a completely clear view in all directions are available, but as good as possible to obtain best performance. -
Page 12: Step 4 - Cable Wiring
RouDem on by pressing the on/off button in the bottom of the RouDem. If you do not have access to the on/off button please read the restart/reboot part in the troubleshoot section. - Page 13 Installation of the SeaWire RouDem User Guide SeaWire RouDem Powering the RouDem with a DC converter: When purchasing SeaWire RouDem is it possible to buy a 12 V DC converter. • Input Voltage 9-36VDC; Output 18V, 24V or 48VDC, Max output 500mA •...
-
Page 14: Step 6 - Configuration Of Internet Via Seawire Roudem
The device will automatically search for available WiFi networks (make sure WiFi is on). 2. Choose the WiFi network with the name containing MiWire. The SSID (network name) and WiFi key. Find the information on the unit label, which is found under the RouDem, on the box or on the registration flyer. -
Page 15: Miwire User Interface
Web Server/MiWire user interface. MiWire user interface presents an overall status of the RouDem and allow the user to configure WiFi and network related settings, see SIM card information and perform device commands. You can only access the user interface if you are connected to a MiWire related network either by WiFi or cable. - Page 16 User Guide SeaWire RouDem Status The status page presents an overall status of the RouDem. The lamps in the left side can light red, yellow, and green (see the Troubleshoot section if some of the lamps are red). The right side shows unique information for the specific RouDem.
- Page 17 Installation of the SeaWire RouDem User Guide SeaWire RouDem Password/repeat password Change WiFi password Ethernet IPv4 Address Change of IP address. 192.168.2.1 (default) IPv4 Netmask Change of netmask. 255.255.255.0 (default) DHCP Start IP Address 10 (default) Address Limit 100 (default)
- Page 18 Installation of the SeaWire RouDem User Guide SeaWire RouDem Network operator Scan mode Select between: 4G-LTE Only (default) LTW-HS (High Speed) LTE-800 LTE-1800 LTE-2100 LTE-2600 Auto 4G/3G 3G WCDMA Only Network Discovery Roaming Turn Roaming ON (default)/OFF APN List Select between:...
- Page 19 Brightness Select a value between 0 (off) and 255 (max) to define the brightness of the external LED. Compass & Map Shows the GPS position of the SeaWire RouDem Compass Shows the direction the antenna is pointing. Calibrate the antenna if needed...
- Page 20 PoE adapter three times. Reset to factory settings This will reset the RouDem to its factory settings. Get latest software Check for new firmware. If a new firmware version is available, then the unit will upgrade, and you will lose connection to the device.
-
Page 21: Specifications
Specifications User Guide SeaWire RouDem Specifications SeaWire RouDem CAT6 Dimensions Ø335mm x (H1)80mm/(H2)160mm Weight 1.8 kg with mounting bracket 2.1 kg Networking Interface 10/100 Mbps Button On/off Power Method Passive POE 22-48V, Max 0.5A Power Supply 100-240VAC, 47-63Hz, 24W 48VDC, 500mA... -
Page 22: Faq/Troubleshoot
Turn it off and wait until the LED in the on/off button stops flashing. Then turn it on again. • If the RouDem is installed so that you cannot reach the on/off button: reboot the RouDem via the MiWire user interface (192.168.2.1) by pressing Reboot on the... - Page 23 FAQ/Troubleshoot User Guide SeaWire RouDem the device outdoors and up so that it has a clear line of sight through 360 degrees. • If the indicator is red, this is because there are problems with the data subscription. Contact your provider if the problem persists.
-
Page 24: Service & Repair
Alternatively log on MiWire user interface and read out the serial number or IMEI number. If the RouDem is offline it is a great help for the support if a TeamViewer session can be established through a PC and another internet connection with a cable from the PC to the RouDem.
