marvelTech MDU-POE LFP 9 User Manual

MDU-POE LFP 9

Table of Contents

Need help?

Do you have a question about the MDU-POE LFP 9 and is the answer not in the manual?

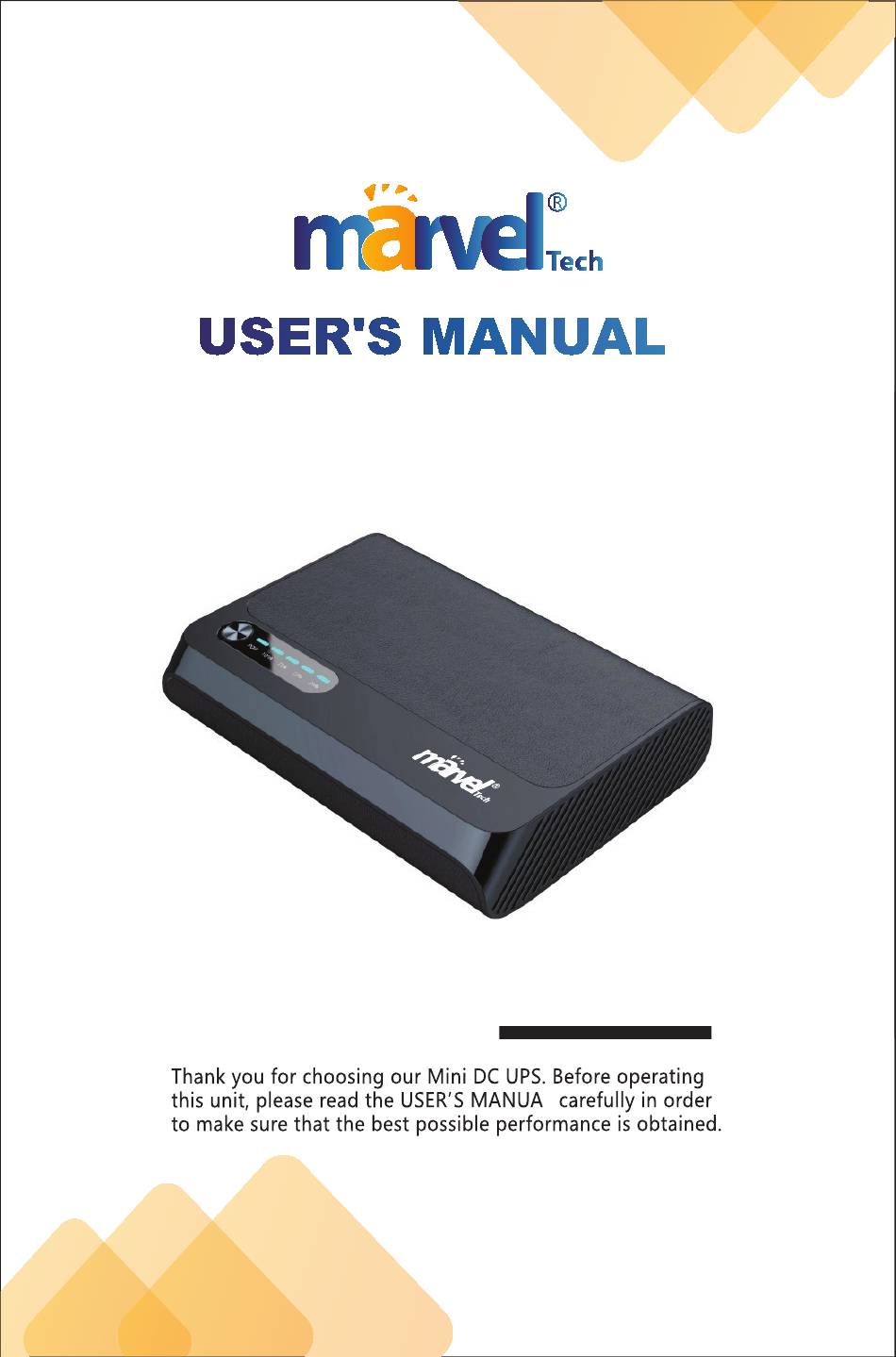

Page 1 MDU-POE LFP 9 MDU-POE LFP 9...
Page 2 MDU-POE LFP 9 9) Output socket 9V/12V 1) ON/OFF switch 10) Output voltage selector 9V/12V 2) Power LED indicator 3) 100% Battery LED lndicator 11) Reset button for POE devices 4) 75% Battery LED lndicator 12) Ethernet output interface (POE output: 15V/24V)
Page 3 1) High capacity LiFePO4 batteries, provides long backup to the loads, Cycle Life :1500 Cycle 2) High compatibility, suitable for most digital products in the market. 3) USB output (5V), can supply charging for digital products like mobile phone, PDA, PSP, IPOD, MP4... etc. 4) Power Over Ethernet(POE) can transmit the data and power at the same time to simplify wire set.
Page 5 Before connecting the devices to the UPS, you must check the nominal working connecting the devices to the UPS, you must check voltage, current and polarity of the load, then adjust the voltage of the UPS to the corresponding load voltage, confirm that the corresponding port is correct then connect to the load to prevent the machine from being burned out by connecting the wrong voltage.
Page 6 Model MDU-POE LFP 9 Rated working voltage 100~240Vac / 50-60Hz Output power(Max.) Output Output voltage(selectable) 9Vdc / 12Vdc 15Vdc / 24Vdc 5Vdc Output polarity +4,5pins -7,8pins 15V1A / 24V0.7A 9V1.8A / 12V1.4A 5V2A Output power & current (in common) QTY. & capacity of battery...
