Summary of Contents for BlueRange TRUCK550

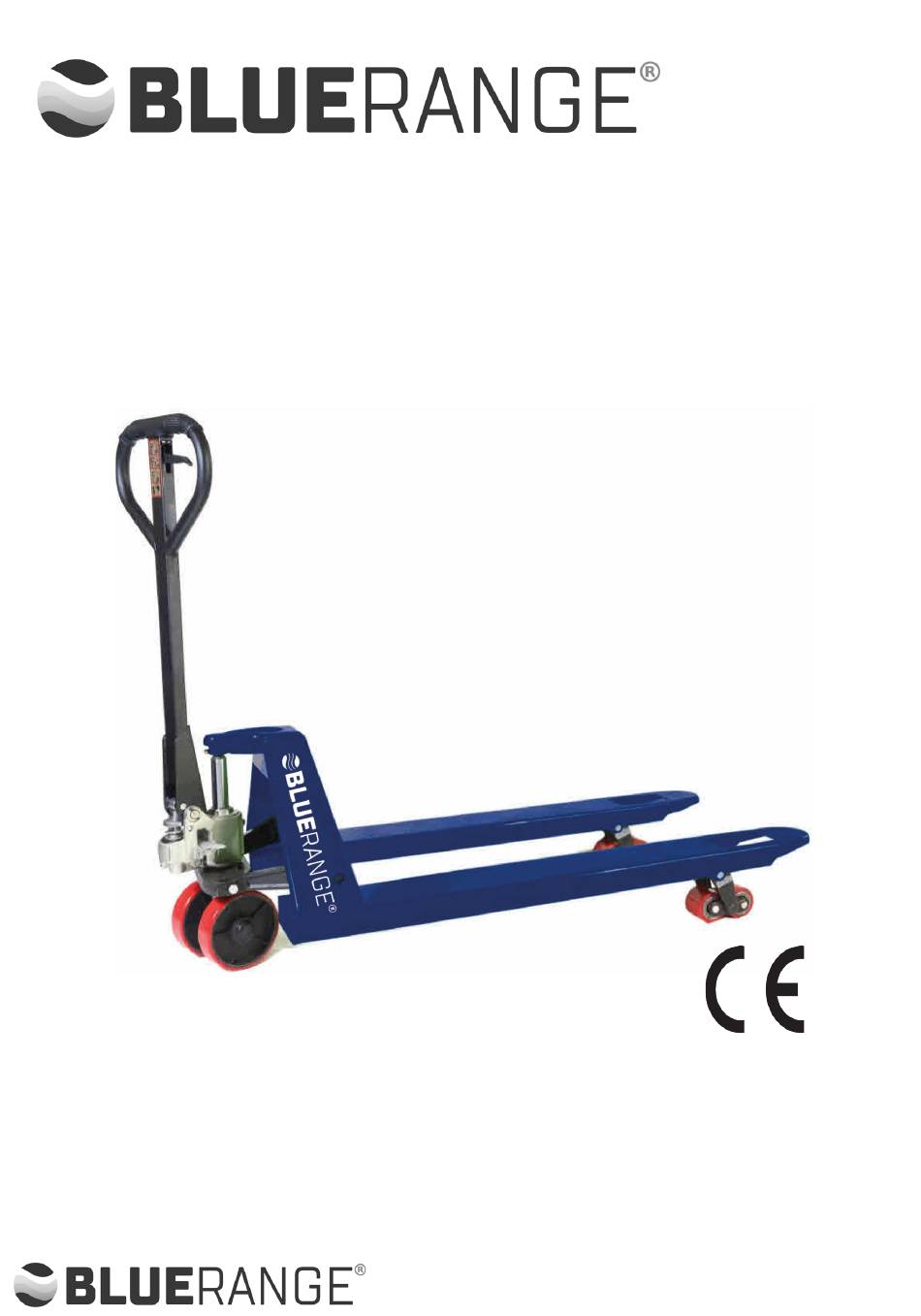

- Page 1 OPERATION MANUAL HYDRAULIC HAND PALLET TRUCK IMPORTANT NOTICE: Operator MUST read and understand the operating manual before using the hand pallet truck. Page 1...
- Page 2 Page 2...
- Page 3 HYDRAULIC HAND PALLET TRUCK INSTRUCTIONS This pallet truck is made of high quality steel and is designed for the horizontal lifting and transport of loads on a pallet or standardized containers on a level, fixed base. For your safety and correct operation, please carefully read this instruction before using it. NOTE: All of the information contained herein is based on data available at the time of printing.
- Page 4 2. TO ATTACH DRAW-BAR TO PUMP UNIT (SUPPLIED UNASSEMBLED) If your pallet truck has arrived unassembled, please follow the instructions to attach the Drawbar. You will need following tools - a hammer, pliers, and spanner. Plus the following parts contained in the enclosed bag:- Axle (A105), two cotter pins (A106) (Note one is pre fitted in the axle A105) NOTE: The number of draw-bar and pump should be the same.
- Page 5 3. TO ADJUST RELEASE DEVICE The control handle (A117) is located in at the top of the Draw Bar handle, it has three positions: Lower position - RAISE the pallet forks when pumped. Middle Position: DRIVE position – no movement of the forks when pumped. Top Position: Lowers the pallet forks when handle is lifted, springs back to centre position when released.
- Page 6 5 GUIDE TO SAFETY OPERATION 5.1 Operator should read all warning signs and instructions here and on the pallet truck before using this truck. 5.2 Do not use on a slopping ground. 5.3 Do not operate a pallet truck unless you are familiar with it and have been trained or authorized to do so.
- Page 7 6. TROUBLESHOOTING Problem Cause Solution The forks cannot be • Not enough hydraulic oil in the • Top the unit up with hydraulic oil raised up to their pump maximum height. The forks cannot be • No hydraulic oil. • Fill the pump with oil. lifted up •...
- Page 8 EC DECLARATION OF CONFORMITY Hand Pallet Truk Type: TRUCK550 TRUCK680 Date of Manufacture: Is in Conformity with the following requirements: Directives: • 2006/42/CE • 2006/95/CE • 2004/108/CE Manufacturer or his authorised representative in Community: BLUERANGE PO BOX 29 BOOTLE MERSEYSIDE L20 1EJ...
