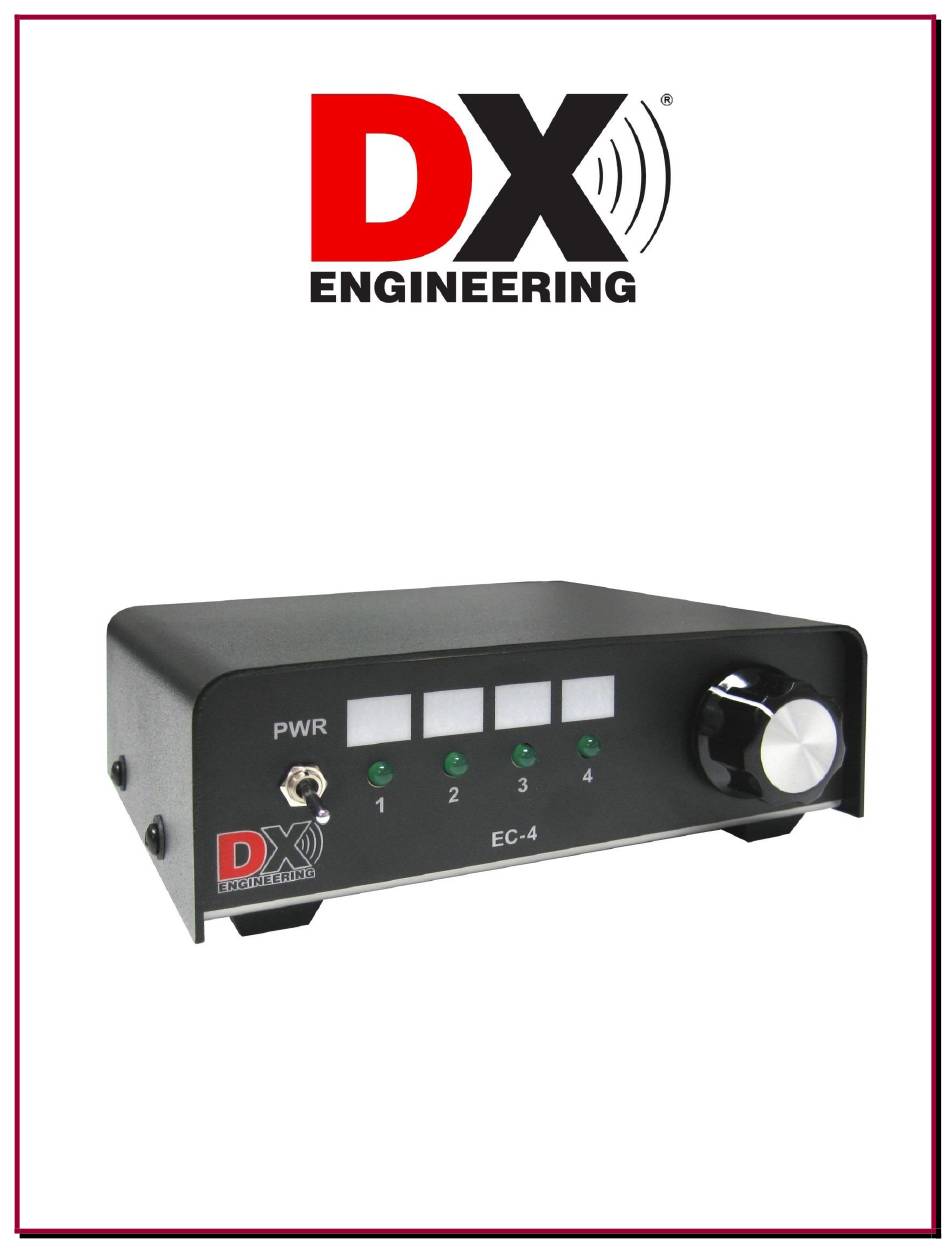

- Page 1 BCD Control Console DXE-EC-4 DXE-EC-4-INS-Revision 1b DX Engineering 2023 1200 Southeast Ave. - Tallmadge, OH 44278 USA Phone: (800) 777-0703 Technical Support and International: (330) 572-3200 E-mail: DXEngineering@DXEngineering.com - 1 -...
- Page 2 Introduction The DXE-EC-4 is a flexible, 4 position controller used to control the DX Engineering Receive Four Square series or any other products using a 4 position (3 wire plus ground) BCD control format. The DXE-EC-4 offers the following features: ...
- Page 3 Control lines (usually BCD ) can normally use good quality CAT5e cable (4 twisted pairs of 24 AWG wire) for runs up to 1000 feet. Typical DX Engineering BCD control lines requirements are +12 VDC at 25 milliamps. Depending on the number of control lines needed (usually 3 or 4) you can double up the twisted pairs of CAT5e cable, or use control wire that is at least 22 AWG, allowing runs up to 1500 feet.
- Page 4 Warranty All products manufactured by DX Engineering are warranted to be free from defects in material and workmanship for a period of one (1) year from date of shipment. DX Engineering’s sole obligation under these warranties shall be to issue credit, repair or replace any item or part thereof which is proved to be other than as warranted;...
