Summary of Contents for HEDBOX NINA-Mg

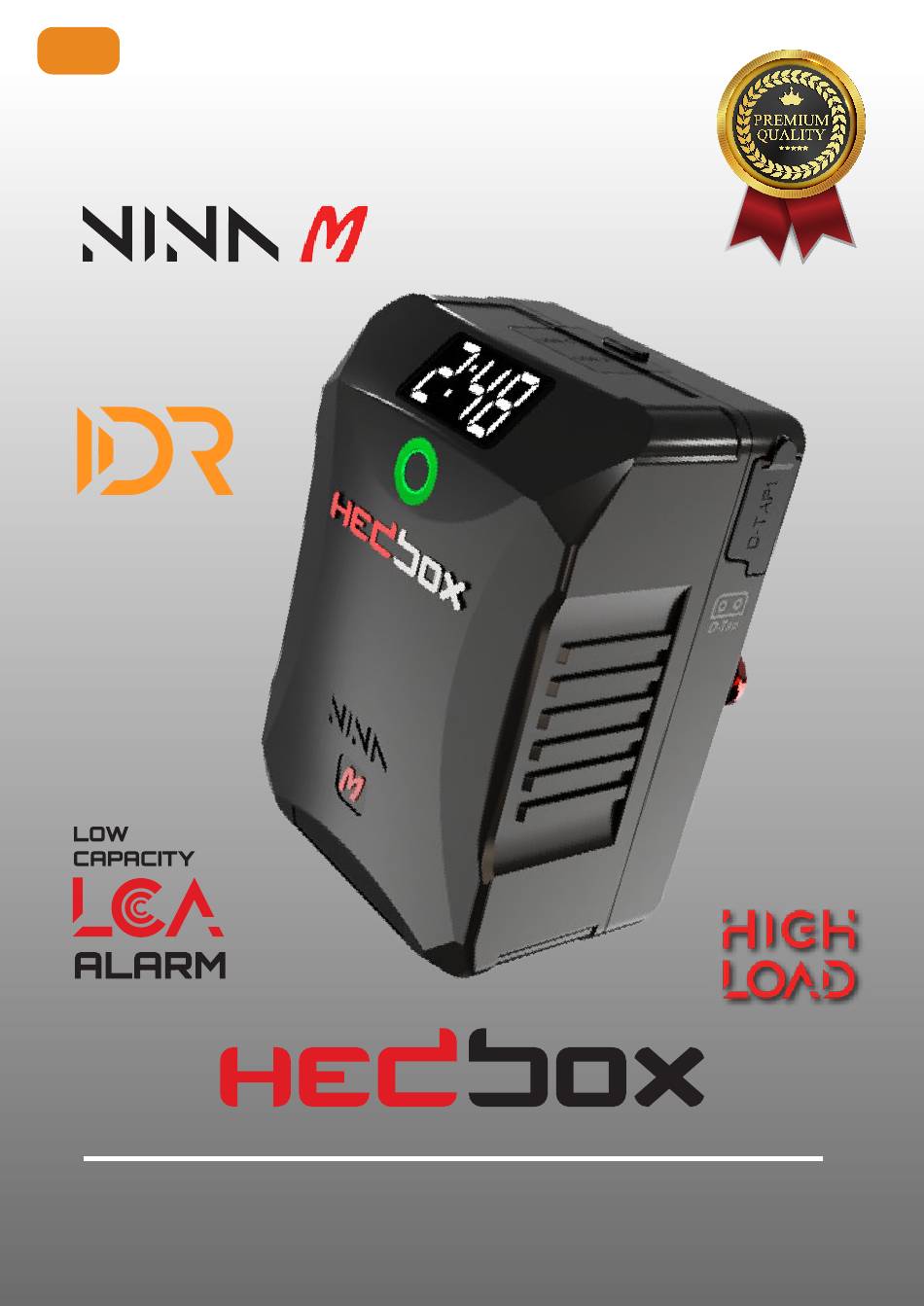

- Page 1 English Li-Ion Battery Pack User Manual...
-
Page 2: Important Safety Instructions
• Do not expose to temperatures higher than 60°C (140°F) direct sunlight or in car parked in the sun. • Do not incinerate or dispose of in fire. • Be sure to charge the battery pack using a genuine Hedbox battery charger or a device that can charge the Li-Ion battery pack. -
Page 3: Product Components
English Overview Product Components: 1. Hologram Security QR Serial Number label 2. IDR Push button 3. IDR LED Ilumination ring 4. OLED Display Screen Monitor (28mm / 1.1 Inch) 5. D-Tap 1 ... Power In / Out 16.8V 6. USB-C ... Power In / Out 3A PD 3.0 7. - Page 4 English OLED Display overview Total Capacity percentage Display Upon pressing the IDR push button (Overview: Product Component: The OLED Display shows the battery capacity status in percentage “%”. Total Capacity OLED Display in percentage (%) • Press the IDR push button until the capacity readout displays in percentage “%”.
-
Page 5: Battery Charging Display
• The USB-C port with QC 3.0 protocol establishes direct communication with the battery BMS, ensuring chargers can effectively charge batteries to 100%. • For optimal and thorough charging, we suggest using the HED-DC10 battery charger from Hedbox. - Page 6 English Low Capacity Battery Alarm NINA has a revolutionary early warning system for low battery capacity. The Low-Capacity Alarm (LCA) operates consistently within the battery, keeping a constant watch on the battery capacity status around the clock. When activated, the alarm exclusively provides visual signals (without any sound) through the IDR LED ring.
- Page 7 English BMS OLED Display warning code OP Code / Battery system OVER POWER When the battery is overpowered during the discharging/draining. The automatic BMS protection system activates the OP Code on the OLED. • The OLED display shows a flashing OP code (Photo I.) •...
- Page 8 English External Battery Power Output D-Tap USB-A USB-C Battery Dual D-Tap Power In / Out • The Battery is equipped with dual DC D-Tap Power In/Out, one on each side of the Battery. • Both D-tap power ports are bidirectional and can be used as Power Out supply and Battery charging •...
- Page 9 Product registration and verification To verify your product and proceed with registration, please follow the next steps • Go and visit the verification section on the Hedbox web page at www.hedbox.com/verification. • Follow the verification procedure...
-
Page 10: European Union Compliance Statements
English Compliance Statements EUROPEAN UNION COMPLIANCE STATEMENTS Hedbox declares that the radio equipment described in this document comply with the EMC Directive 2041/30/EU & RoHS 2011/65/EU and the amendment directive (EU) 2015/863 European standards: • EN 55032:2015: Electromagnetic Interference (Emission) •... -
Page 11: Battery Life
• If the second attempt at charging proves unsuccessful, there could be a potential issue with either the battery or the charger. Stop using them and reach out to your authorized Hedbox dealer, or contact us at support@hedbox.com for assistance. -
Page 12: Trademark Disclaimer
As the aim of Hedbox is to give customers the most updated and state-of-the-art products, it may operate some technical modifications and improvements in time. -
Page 13: Specification
• Compensation for the recording content is not feasible in the event of a malfunction in the battery pack on other devices, preventing shooting or reproduction. • Please note that design and specifications may change without prior notice. If you want to know more about HEDBOX Products please visit our website: www.hedbox.com # 13... - Page 14 English Supplied USB-C LCD power cable USB-C LCD Power Cable • For best USB-C battery charging and power supplay capabilities, please use supplied RPC-D65W USB-C / USB-C power cable • The cable has an LED display that in real-time show charging power, charging status. •...
-
Page 15: Recommended Accessories
Recommended Accessories HED-DC10 USB-C Fast Battery Charger • For the best battery charging performance, we highly recommend using the Hedbox HED-DC10 Fast Li-Ion Battery Charger. The supplied cable model RPC-D65W makes battery charging extremely fast and secure. With PD 3.0 quick charge, the recommended charger HED-DC10 fully charged battery:... -
Page 16: Battery Chargers
We Power Your Bussines NINA HED-BPU NERO Series BATTERY CHARGERS... - Page 17 HED-A60 RP-BP975 RP-VBD78 RP-LPE6H UNIX HOLD II 4CH CHARGER...
