GULFSIP G1S User Manual

Voip analog telephone adapter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

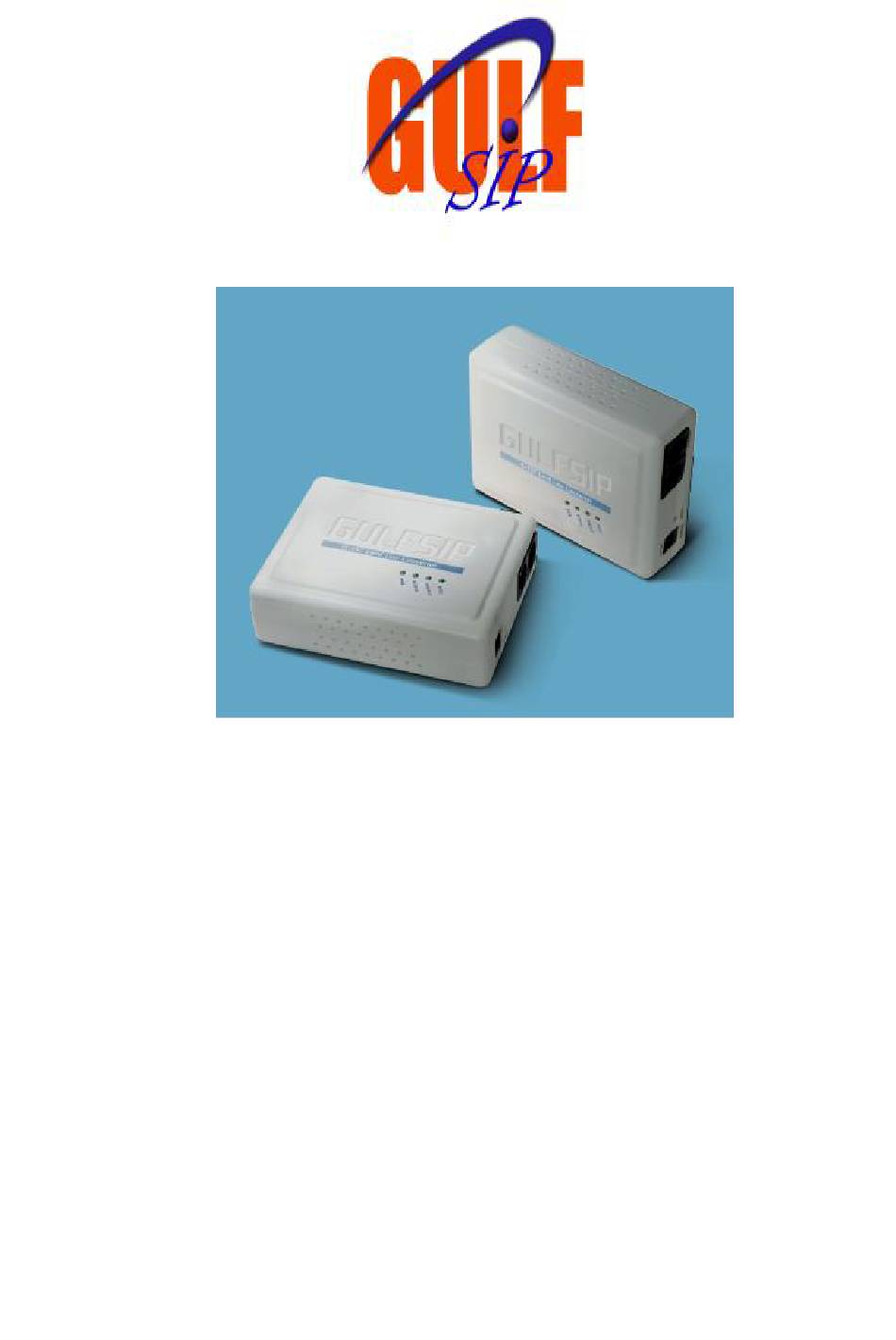

Communication Services
VoIP Analog Telephone Adapter
G-157 Land Line Converter
User's manual
Version 1.1
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G1S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for GULFSIP G1S

  • Page 1 Communication Services VoIP Analog Telephone Adapter G-157 Land Line Converter User’s manual Version 1.1...
  • Page 2 GULFSIP has made every effort to ensure that this User’s Manual is accurate; GULFSIP disclaims liability for any inaccuracies or omissions that may have occurred.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Chapter 1..........................5 Introduction ......................... 5 Overview..............................5 Package Content............................6 Physical Details............................6 LED Display & Button ........................7 Chapter 2 Preparations & Installation ................9 Physical Installation Requirement ......................9 LAN IP address configuration via web configuration interface............10 Chapter 3 Network Service Configurations..............17 Configuring and monitoring your ATA from web browser..............17 Overview on the web interface of ATA....................17 Manipulation of ATA via web browser ....................17...
  • Page 4 Codec ID Setting ..........................36 DTMF Setting ...........................37 RPort Settings............................37 Other Settings............................38 STUN settings ...........................38 Auto Configuration..........................39 PTT Settings............................39 Cancel without to tag.........................40 MAC CIone Setting...........................40 Tone Settings.............................42 Advanced Settings ..........................42 System Authority..........................43 Save & Reboot ..........................44 Firmware Upgrade..........................44 Auto Upgrade............................45 Reset to Default ..........................46 Reboot without saving ........................47 Appendix A The method of operation guide...................47...

  • Page 5: Chapter 1

    Based on years of VoIP manufacturing experiences, GULFSIP Communications Services provide a varity of VoIP Telecommunication Solutions which meet GULFSIP Customers needs. Cost-effective, easy-to-install and simple-to-use, the GULFSIP G1S, G157 land line converter VoIP Phone Adapters (“ATA” in the following term) converts standard telephones to IP-based networks.

  • Page 6: Package Content

    • T.38 FAX transmission over IP network • Voice processing: Voice Active Detection, DTMF detection/ generation, G.168 echo cancellation (16mSec.), Comfort noise generation (CNG) • In band, out-of-band, and SIP-info DTMF support Package Content The contents of your product should contain the following items: VoIP Telephone Adapter G-157 Land Line Converter Power adapter Quick Installation Guide...

  • Page 7: Led Display & Button

    Left / Right Panel of G-157 Land Line Converter LED Display & Button RJ-45 connector, to maintain the existing network structure, connected directly to the PC through straight CAT-5 cable RJ-45 connector, for Internet access, connected directly to Switch/Hub through straight CAT-5 cable. 12V DC 12V DC Power input outlet Reset...
  • Page 8 LED display of G-157 Land Line Converter LED Indicators Descriptions STATUS The Status LED will be flashing when the machine is operational LNK/ACT OFF: the device is connected to LAN at 10Mb/s. ON: the device is connected to LAN at 100Mb/s. RING 1 OFF: the phone is idle.

  • Page 9: Chapter 2 Preparations & Installation

    For Internet Access, an Internet Access account with an ISP, and either of a DSL or Cable modem Administration Interface GULFSIP G-157 Land Line Converter provides GUI (Web based, Graphical User Interface) for machine management and administration. Web configuration access...

  • Page 10: Lan Ip Address Configuration Via Web Configuration Interface

    ATA will prompt for logon username/password, please enter: admin / gulfsip to continue machine administration. Please make sure that your PC is connected to the PC port ë Note in the G-157 Land Line Converter to start access to the device.
  • Page 11 Figure (5) Execute your web browser, and insert the IP address (default: 192.168.123.1) of G-157 Land Line Converter in the adddress bar. After logging on machine with username/password (default: admin/gulfsip), browse to “Network” --> “LAN Settings” configuration menu:...
  • Page 12 IP address Subnet Mask Default Gateway DNS Server address Figure (6) Parameter Description IP address LAN IP address of Default: None Subnet Mask LAN mask of Default: None Default Gateway Gateway of Default: None...
  • Page 13 Network settings via Keypad commands The G-157 Land Line Converter support telephone keypad configurations, please connect analog telephone set and refer to the following table for machine network configurations. ! Note: Pick up the handset and press #190# then hang up before you do following Settings: IVR Menu Choice...
  • Page 14 IVR Menu Choice Machine operation Parameter(s) Notes: #138# Enable call waiting None Enable Call waiting #139# Disable call waiting None Disable Call waiting #160# Update firmware None Update firmware #510# Blind Transfer ATA Bland Transfer #511# Attendant Transfer ATA Attendant Transfer #512# 3-way calling ATA 3-way calling...
  • Page 15 Disable VLAN #119# None Disable VLAN function function Set the number of #134 + [numberof rings] To set the number of rings rings before the Line for Auto Answer. port open. #127 + [port number] # Set a SIP Port None To change the SIP Port.
  • Page 16 Please contact your Internet service provider to obtain the Internet access type, and select the proper network settings Hint to establish the network connections. After confirming the modification you’ve done, Please click on the Submit button to apply settings and browse to “Save &...

  • Page 17: Chapter 3 Network Service Configurations

    Manipulation of ATA via web browser Log on ATA via web browser After TCP/IP configurations on your PC, you may now open your web browser, and input http://192.168.123.1 to logon Phone Adapter web configuration page. Phone Adapter will prompt for logon username/password: admin / gulfsip...
  • Page 18 G-157 Land Line Converter log in page When users login the web page, users can see the Phone Adapter system information like firmware version, company…etc in this main page. G-157 Land Line Converter main page...

  • Page 19: Chapter 4 Voip Telephone Adapter Configurations

    Chapter 4 VoIP Telephone Adapter Configurations Phone Book ATA can set up 140 records of Phone Book. User can dial the Name records to make calls via Phone Book feature. Field Description The default is Page 1. It can select Page1 ~ Page 14 to Phone Book Page look round Phone Book records.
  • Page 20 numerals. Fill in the outgoing number (Line Number) or IP address. Select To select this record. If you need to add a phone number into the Phone Book list, you need to input the position, the name, and the phone number (by URL type). When you finished a new phone list, just click the “Add Phone” button.

  • Page 21: Call Forward

    Call Forward This page defines Call Forward function. You can setup the phone number you want to forward in this page. There are three type of Forward mode. You can choose All Forward, Busy Forward, and No Answer Forward by click the icon. All Forward: All incoming call will forward to the number you chosen.

  • Page 22: Sntp Settings

    Call Forward function for G-157 Land Line Converter SNTP settings This page defines the primary and second SNTP Server IP Address, to get the date/time information. Also you can base on your location to set the Time Zone, and how long need to synchronize again. When you finished the setting, please click the Submit button.

  • Page 23: Block Setting

    Beside the above settings, G-157 also can set the volume of PSTN. PSTN-Out Volume is to set the PSTN volume for you can hear. PSTN-In Gain is to set the volume send out to the other side’s handset. Volume Settings for G-157 land Line Converter Block Setting This page defines the Block Setting to keep the phone slience.

  • Page 24: Caller Id Settings

    Auto Answer Counter is to set after the ring count met the number you set then the auto answer will enable. For security issue, you’d better to set the PIN Code. If you have set the PIN code, you will hear a tone to inform you input the PIN Code then you can dial out.
  • Page 25 Field Description Drop Prefix The rule of add or replace code. If setup as No, it will add the prefix number prior to the identification number. If setup as Yes, it will replace the identification number. Replace rule The prefix number. It only accept the numeral and the max length is 8. The identification number.

  • Page 26: Flash Time Setting

    Dial Time, it will carry out the calling if there isn’t receive the digit after the Auto Dial Time. If setup as No, the system just according to the Auto Dial Time to determine the end time. Use * for IP dialing If setup as Yes, the system will look on [*] as [.].

  • Page 27: Call Waiting Settings

    Flash Time Settings for G-157 Land Line Converter Beside the above settings, G-157 Land Line Converter also can set the flash time of FXO port. Flash Time Settings for G-157 Land Line Converter Call waiting Settings When you are talking with other people, You can choose If you want to hear the notice when there is a new coming call.

  • Page 28: Hot Line Settings

    T.38 (FAX) Settings for G-157 Land Line Converter T.38 (FAX) Settings for G-157 Land Line Converter Hot line Settings This page defines the Hot line setting in this page. When user pick up the handset, the device will call to the specific number automatically.

  • Page 29: Alarm Settings

    Alarm Settings This page defines the Alarm setting in this page. It provides the alarm function, and it can set up the Alarm Time to get the telephone ringed up every day. Alarm: The default is Off. If set up as On, the telephone will ringed up at the specific time. Alarm Time: It can set up the system prompt time with 24 hours.

  • Page 30: Pc Settings

    PC Settings This page defines the PC setting in this page. IP: The IP address of PC port. (Default: 192.168.123.1) Mask: The sub net address. (Default: 255.255.255.0) MAC: The MAC of PC port DHCP Server: It will allot the IP address automatically when enable this function. Start IP: Start IP of lease table End IP: End IP of lease table.

  • Page 31: Ddns Settings

    DDNS Settings This page defines the DDNS setting in this page. You need to have the DDNS account and input the informations properly. You can have a DDNS account with a public IP address then others can call you via the DDNS account. But now most of the VoIP applications are work with a SIP Proxy Server. When you finished the setting, please click the Submit button.

  • Page 32: Vlan Settings

    VLAN Settings This page defines the VLAN setting in this page. This function needs to co-operate with network devices which have VLAN function. VLAN Packets: If setup as On, it could receive VLAN messages. VID (802.1Q/TAG): Dispose VLAN ID is add a Tag header after realize enable the VLAN function. The realized voice packets transfer at the same VLAN.

  • Page 33: Virtual Server

    Virtual Server This page defines the Virtual Server setting in this page. You could define 24 virtual service information in this page. When you finished the setting, please click the Submit button. Virtual Server Page: There are total page1 to page 3. It could choose the page which want to go over. Num: The serial number.

  • Page 34: Pptp Settings

    PPTP Settings This page defines the PPTP setting in this page. You could setup the PPTP Server connection information. When you finished the setting, please click the Submit button. Service Domain Settings In Service Domain Function you need to input the account and the related informations in this page, please refer to your ISP provider.

  • Page 35: Port Settings

    iNote ATA can register to three different SIP Proxies at the same time. It can receive any one of different SIP accounts incoming call, and it can switch to any one SIP accounts for making calls through input the switch code. Realm switch code: 1*: Realm 1 2*: Realm 2...

  • Page 36: Codec Settings

    Codec Settings This page defines the Codec priority, RTP packet length, and VAD function in this page. You need to follow the ISP suggestion to setup these items. When you finished the setting, please click the Submit button. Codec ID Setting This page defines the Codec ID.

  • Page 37: Dtmf Setting

    DTMF Setting This page defines the RFC2833 Out-Band DTMF, Inband DTMF and Send DTMF SIP Info in this page. To change this setting, please following your ISP information. When you finished the setting, please click the Submit button. RPort Settings This page defines the RPort Enable/Disable in this page.

  • Page 38: Other Settings

    Other Settings This page defines the Hold by RFC, Voice/SIP QoS and other settings in this page. To change these settings please following your ISP information. When you finished the setting, please click the Submit button. Hold by RFC: The default is disable, and to start up communication hold back function (RFC definition). Set enable to start up the Hold by RFC function.

  • Page 39: Auto Configuration

    Auto Configuration This page defines the Auto Configuration (Auto Provision) setting. ATA supports TFTP, FTP, HTTP and IP PBX auto configuration function in total. In IP PBX Auto Configuration Setting you need to check with your service provider if they have provided this function. Usually this function will be boundle with an IP PBX to use in the office.

  • Page 40: Cancel Without To Tag

    PTT Settings for G-157 Land Line Converter Beside the above settings, G-157 Land Line Converter also can set country of FXO port. PTT Settings for G-157 Land Line Converter Cancel without to tag This function can decide the device if send the cancel tag to Proxy Server. If there has the similar symptom that the caller cancel the call before the called answer the call, the called still continue to ring up even the caller has cancel this call.
  • Page 41 Please refer to the following operate procedures for more understandings to carry out the MAC Clone function. 1. Please login ATA and browse to “Network -> LAN Settings” page. To switch the LAN mode to NAT mode then press Save&Reboot button to save the settings and reboot machine. 2.

  • Page 42: Tone Settings

    5. After Save&Reboot, the MAC of LAN port will become to PC’s original MAC address. Tone Settings This page defines the Tone settings. This function can setup the related parameters of Dial Tone, Ring Back Tone, Busy Tone, Error Tone and Inser Tone. When you finished the setting, please click the Submit button.

  • Page 43: System Authority

    (The Registration Server also need support this function) CPC Delay: When receive the disconnect signal, machine will to cut the voltage down to 0V after this time. CPC Duration: When starting to cut the voltage down to 0V, machine will to continue this state by this time.

  • Page 44: Save & Reboot

    Select the correct file you want to download to the device then click the Update button. iNote For technological consideration, we’ve strongly suggested refering to the following upgrade methods for update your device. After firmware loaded, the unit will be reboot, and Default IP address of the customized firmware: http://192.168.123.1; login name/password: admin/Gulfsip...

  • Page 45: Auto Upgrade

    Auto Upgrade The device can update new firmware with the gz or ds file format automatically by the Auto Upgrade function. Field Descriptions Update via There are TFTP/ FTP and HTTP three ways to provide the auto upgrade function. TFTP Server Input the TFTP Server address, and it could input the IP or Domain Name form.

  • Page 46: Reset To Default

    firmware. - Power On (+ Scheduling): The machine will check the new firmware when power on and following the scheduling date and time. - Scheduling: The machine will follow the scheduling date and time to check the new firmware. Scheduling (Date) The machine will check the new firmware between the time range by random.

  • Page 47: Reboot Without Saving

    Reboot without saving Reboot function you can restart the Phone Adapter. If you want to restart the Phone Adapter, you can just click the Reboot button, then the Phone Adapter will automatically. Appendix A The method of operation guide In this section, we’ll introduce the features method of operation, and lead you step by step to establish these features.

  • Page 48: Call Transfer

    Call Transfer A. Blind Transfer 1. B call to A and they are in the process of conversation. 2. A carry the transfer function out (Press “transfer” button) to hold the conversation with B. 3. A press “#510#” and hear the dial tone, then input the number of C (Follow by the “#” key). 4.

  • Page 49: Auto Update Firmware By Manual (Keypad)

    3*: Realm 3 For example: The default is realm 1, input the (Follow by the # key) from keypad and hang up the telephone set. It will switch to realm 2, and it can make the SIP calls via realm 2. Auto Update firmware by manual (Keypad) If pick up the handsetof ATA, it will hear the “DoDoDo”...
