Summary of Contents for Blue Marble OSTRA

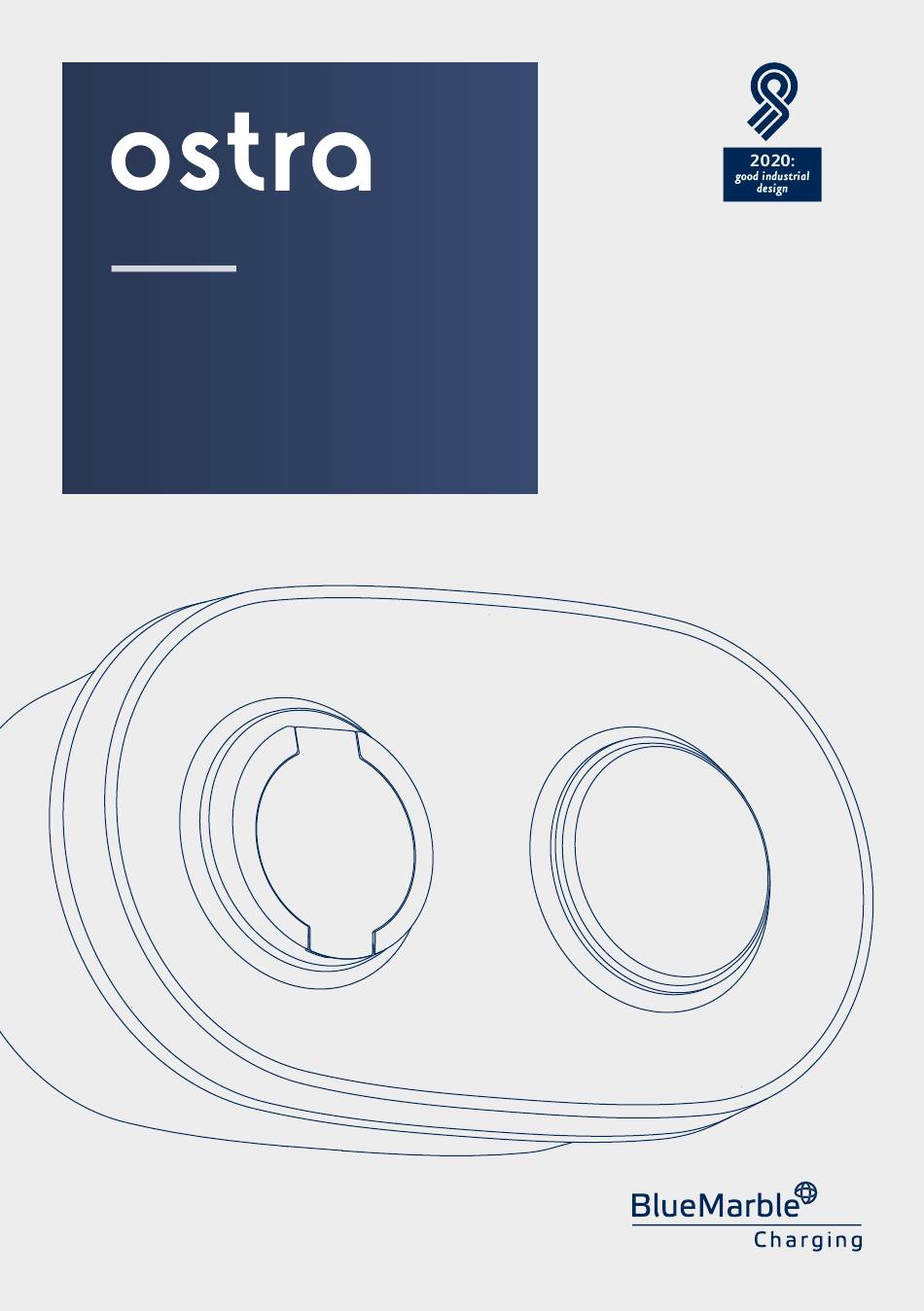

Page 1 Made in the Netherlands Installation manual...
Page 2: Table Of Contents
Contents 1. Introduction 1 Introduction OSTRA is the smart charging station with a single socket for charging electric 2 About the manual vehicles. 3 Product description This manual contains the information necessary to install and use the OSTRA. 4 Conditions for installation of the OSTRA...
Page 3: About The Manual
This is followed by general information about the OSTRA charging station (section 3), followed by section 4 with conditions for the installation. These must be observed in order to install the OSTRA correctly; something that is explained in section 5.
Page 4: Product Description
Standard embedded kWh meter * To enable power to the socket, both charging cable plugs must be inserted in both the OSTRA and the vehicle and authorisations have been granted. Optional MID-certified kWh meter for business ** OSTRA models connected to myOSTRA via an OSTRA Charging Controller can also start a charging session by transactions means of a start/stop command from the myOSTRA back office.
Page 5 Dimensions in mm 370 x 135 x 210 mm 3.8.1 Installation – Only install the OSTRA on a suitable supply circuit while complying fully Weight 3.4 kg with local technical requirements and safety regulations. – Do not install an OSTRA in an environment of explosive and/or highly...
Page 6 IEC – Make sure that the location of the OSTRA is such that users can use their 60364 (Electrical Installations for Buildings). Failure to do so can result in charging cable without putting strain on it (i.e.
Page 7: Installation Of The Ostra
Type 2 plug on the type of OSTRA component. Every model of OSTRA is equipped with a DC 6 mA and AC 30 mA leakage current detection as standard.
Page 8 5.2 Installation tool CEMENT CEMENT CEMENT – OSTRA Charging Controller (depending on the OSTRA model) – OSTRA User interface sticker and infographic Use the following tools and materials for the installation: – Charging Station Identifier Label (C) and infographic – Wire stripper –...
Page 9 Torx CEMENT CEMENT CEMENT CEMENT CEMENT CEMENT 5.3 Preparing the power cable 5.4 Mounting of the cable clamp Min 35 mm Max 45 mm 450 mm Screw: KN6038 5x50 (T25) 5.3.1 5.4.1 Strip the outer cover of the 3 or 5-wire power cable to 450 mm so that the Slide the cable clamp over the power cable as indicated in the image above.
Page 10 5.5 Connection of the cables to the terminal block 6 mm CEMENT CEMENT 5.6 Wall mounting of the OSTRA 3 0 0 m 7 8 m 5.5.1 Connect the cables as indicated in image 5.5.1. 50 mm 950 - 1400 mm...
Page 11 Now mount the OSTRA to the wall using the fastening materials from bag B. Make sure that by tighte- ning, the OSTRA Base does not warp or buckle, or does so as little as possible. CEMENT 5.7 Mounting of the cutting gland...
Page 12 5.9 Installation of the OSTRA Cover Connect the cables as indicated in image 5.8.1. Use the tie-wraps from bag B to mount the cabling in the OSTRA Base and to tie it together. Cut off the excess pieces of tie-wrap for an attractive finish.
Page 13 ! Tip Half mount all screws before tightening them completely. After mounting Place the attachment hooks of the OSTRA Front in the notches on the top of the 4 screws, they can be firmly tightened. the OSTRA Perla. By firmly pressing the OSTRA Front when tightening the...
Page 14 Screw: DIN912 M4x8 5.11.2 In the case of an OSTRA with a fixed cable, the charging cable must be inser- ted through the OSTRA Front first (image 5.10.2). Orientate the OSTRA Front such that the attachment hooks fall in the OSTRA Perla’s notches. Use the CEMENT fastening materials from bag E and fasten to the bottom of the OSTRA Front.
Page 15: Mounting Of The Ostra Pole/Ostra Column
In addition to wall-mounting, an OSTRA can be attached to an OSTRA Column CEMENT 6.1 Mounting of the OSTRA Pole or an OSTRA Pole. The OSTRA Column and OSTRA Pole are available in sever- The OSTRA Pole is available in two different types: al designs.
Page 16 (not provided). 6.1.2 Installation of OSTRA Pole with foot plate The OSTRA Pole with foot plate comes with a foot plate with holes for a bolt- nut connection for installation on a toughened surface. To install an OSTRA with foot plate, carry out the following steps: Determine the location of the pole and prepare the attachment points in the surface.
Page 17 CEMENT Installation of the ground anchor on a soft surface An OSTRA Ground Anchor can be used to mount an OSTRA Column on a soft CEMENT CEMENT surface. Go through the following instructions before installing an OSTRA Column on an OSTRA Ground Anchor: 1.
Page 18 Installation of OSTRA Column on toughened surface You can screw the OSTRA Column to the ground through the holes in the base of the OSTRA Column. Go through the following steps before mounting the OSTRA Column on a toughened surface: 1.
Page 19 Do not use electrical tools for this. 7. Return the front panel of the OSTRA Column to its original place. Turn the screw sufficiently into the frame so that the panel is unable to slide up- A.
Page 20 1. Prepare the strain relief as stated in section 5.3 and insert the supply cable into the OSTRA. 2. Screw the OSTRA onto the OSTRA Column using the fastening materials from bag F-2. 3. Go to section 5.6 for the further installation of the OSTRA(s).
Page 21: Commissioning Of The Ostra Charging Controller
OSTRA Charging Controller and the OSTRA. An example of optimal placement, for example, is: the OSTRA Charging Controller on the ceiling of the carport and an OSTRA on an OSTRA Column on OSTRA Charging Controller UTP-P1 the driveway.
Page 22 OSTRA, the Charging Controller must be mounted vertically to the wall with * In the case of the OSTRA 4G Internal Charging Controller, the range is 180º forwards. the “lid” in the direction of the location where the OSTRA(s) have been 3.
Page 23 The OSTRA 4G Internal Charging Controller is built in to the OSTRA (as part ! Caution, danger of the OSTRA Perla) and is powered when the OSTRA is powered up. It is not currently possible to apply dynamic load-balancing with the help of the The OSTRA Charging Controller must be connected and have an internet 4G Internal Charging Controller.
Page 24 For specific projects or questions, please contact BlueMarble Charging to www.e-voltt.com for project support. If an OSTRA Access Point is being used, enter the Serial number under ! Tip “Access points linked with Charging Controller (optional)”. Open “Chargestation_0” and enter the fuse rating of this charging station The myOSTRA and BlueMarble Charging Back Office is an open platform with linked OSTRAs.
Page 25 Controller*. This will take around 1 minute. During this start-up phase, the LED indicators will give the following colour indications: * When starting up the charging station, the OSTRA Plug & Charge will carry out a self-test but will not search for a connection with an OSTRA Charging Controller.
Page 26: Use Of The Ostra
8.3 LED colour codes A user interface sticker is provided with every OSTRA, intended to adhere to the top of the OSTRA Front if required. As a result, the status of the charging 8.1 Starting charging station and charging session can be read according to the table below.
Page 27: Maintenance And Faults
The OSTRA can be cleaned on the outside using a soft, damp cloth. Do not vehicle supplier, for example: use any aggressive or chemical cleaning agents for this and keep the socket Renault Zoe <...
Page 28 – The Charging Control- – Check whether there is an configured) Controller ler is not connected active internet connection at – Check whether the OSTRA UTP-P1 LED is to the internet or the the location. Charging Controller has a illuminated red CPMS (Charge Point –...
Page 29 – Before the OSTRA Perla is replaced, check whether the O-ring (arrow A) and the rubber plug (arrow B) have been installed on the back of the OSTRA Perla. Do as in image 10.1.1. – Replace all parts in the opposite order, making use of the correct fastening...
Page 30: Declaration Of Conformity
BlueMarble Charging B.V., Radioweg 4, 1324 KW Almere, the Netherlands, declares entirely under its own responsibility that its products under the name ‘OSTRA Charger’, to which this declaration relates, are CE-certified and meet the essential requirements of the EMC directive 2014/30/EU, low...
Page 31 www.ostracharger.com...
