Summary of Contents for Leader LD-CLD1.0
- Page 1 LD-CLD1.0 COLOR SMOKE APPLICATOR User Manual V1.0 2023.03 Please read this book carefully and keep it properly before using this product If you have any questions, please contact the sales personnel...
-
Page 2: Precautions During Operation
Cautions Precautions during operation Check whether the power supply line is connected properly, and whether the video signal line is connected to the designated interface and plugged in properly. Check if the connection between the mounting components and the drone is securely installed. - Page 3 Catalogue Cautions ...............................1 Precautions during operation ....................1 Introduction ............................3 LD-CLD1.0 ............................. 3 Part Name ............................. 3 Installation ............................4 Mount installation ........................4 Connection between power cable and video signal cable ......... 5 Control and Operation .......................6 Remote control operation ...................... 6 Ammunition loading operation ....................

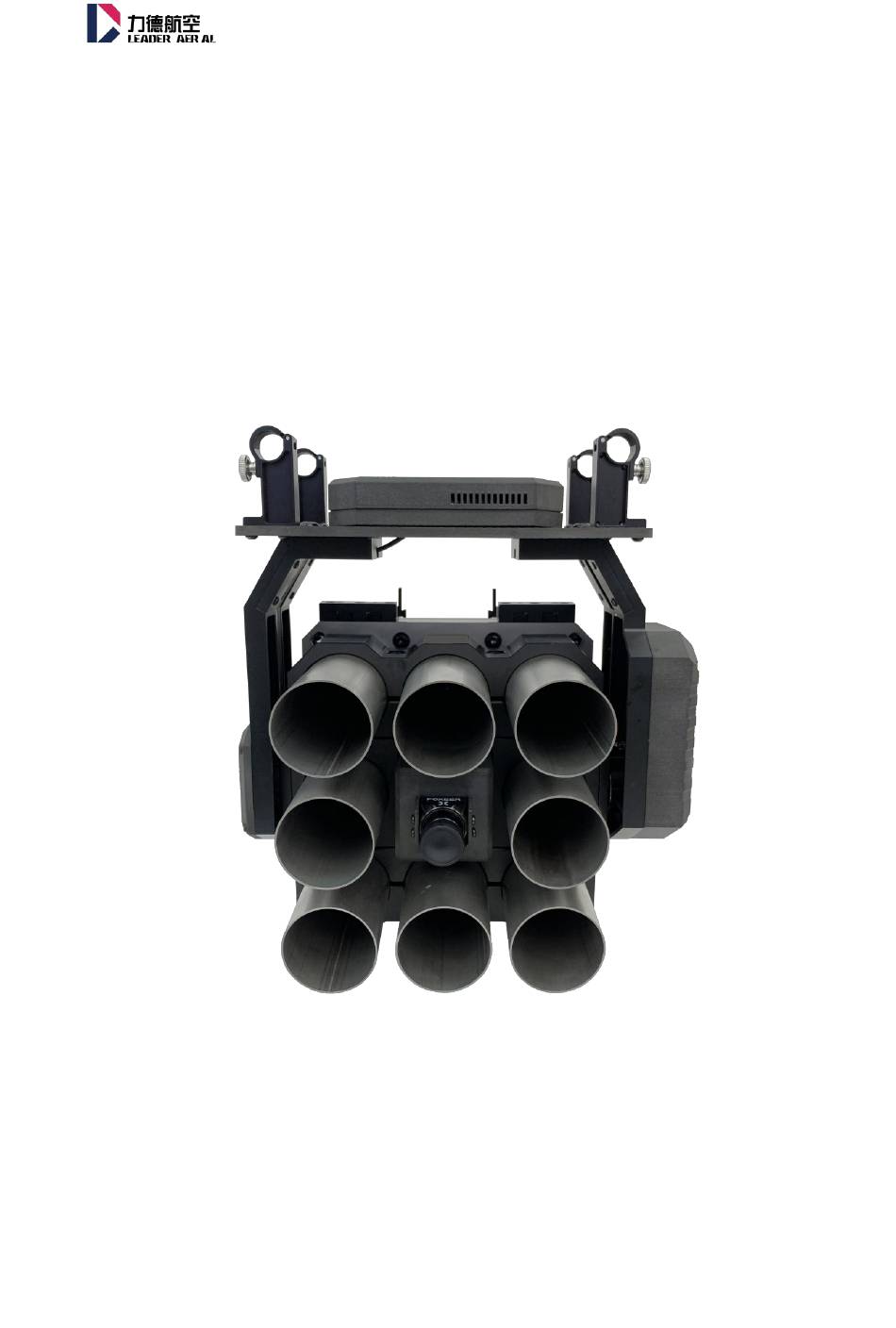

- Page 4 Introduction LD-CLD1.0 This product is a 38mm caliber cigarette dispenser for unmanned aerial vehicles, which can be adapted to the DJI M600 PRO and various other unmanned aerial vehicle flight platforms, and is compatible with a variety of ammunition types.
-
Page 5: Installation
Installation Mount installation Pick up the mounting plate, unscrew the hand screw on the mounting parts to open the upper cover of the mounting parts of the mounting parts of the mounting parts, open all the upper covers of the four mounting parts, take them to the lower part of the UAV, align the gap of the mounting parts with the left and right mounting bars, cover the upper cover of the four mounting parts, and adjust the position front and back to ensure that the mounting is near the center of gravity of the UAV. - Page 6 Connection between power cable and video signal cable Firstly, plug one end of the power cord into the power socket of the cigarette dispenser, and connect the XT30 power plug on the other end to the positive and negative poles of the power plug under the body (24V interface). Insert the red plug of the video signal cable into the AV signal plug, and the white plug is the connector for connecting to the LB2 high-definition image transmission AV video input port.
-
Page 7: Control And Operation
Control and Operation Remote control operation Pick up the remote control, open the battery cover behind the remote control, and insert four No. 5 batteries into it. Be careful not to reverse the positive and negative poles, and install the battery cover. On the front of the remote control, push all the top switches forward to reset them. - Page 8 Ammunition loading operation Pick up the cigarette dispenser and press the unlocking wrench at the magazine lock position inward. Be sure to press both the left and right magazine locks simultaneously, and then the back cover will pop up a gap. Open the back cover and load the ammunition.
- Page 9 The second： The surface of the shell has silver anodization, the shell and the outer ring of the primer are not conductive, this ammunition must polish the surface of the shell outside the outer ring of the primer to the metal primary color, in order to successfully make the shell and the primer completely conductive, in order to meet the requirements of use.
-
Page 10: Specifications
SPEC Specifications Color smoke applicator Product size 220mm*135mm*260mm Outer packing box 473mm*348mm*185mm Net weight 3.85 KG POM Saigang, aviation aluminum, carbon fiber, Material quality stainless steel materials Installation method Quick release type Launch method Electric shock 38 mm (adaptation: 1~2kg recoil, 80m range, Caliber size electric shock) Loading capacity... - Page 11 Remote control Overall dimensions 180*82*161mm Weight 392g Input power supply 6V 1.5AA*4 Data output PS2 interface PPM Frequency range 2.4055 - 2.475GHZ Band width 500KHZ Transmitter power Not higher than 20dBm Low voltage alarm Below 4.2V Charging interface Not have Length of antenna 26 mm*2(dual antenna) STN semi transparent forward display,...
