Summary of Contents for Osmo VisionHunter
- Page 1 VisionHunter User Manual...
- Page 2 If you want to read this user manual in a different language, visit osmousermanual.com...

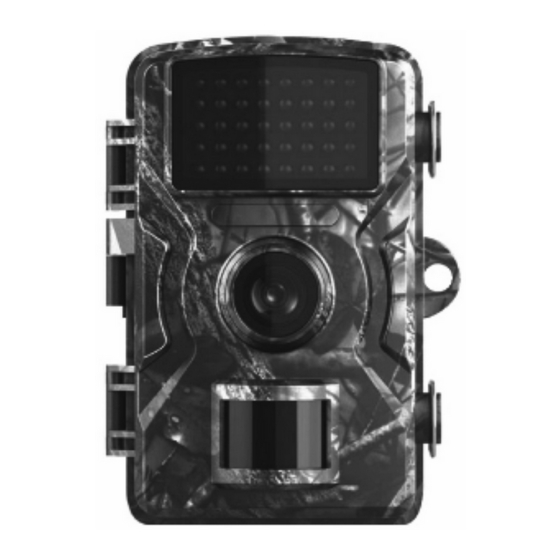

- Page 3 Information This tracking camera(also known as a search or hunt camera) is a search device. It is equipped with a PIR pyroelectric infrared sensor with high sensitivity. When a human body (or animal) moves and causes the temperature change of the external environment, it will be triggered by induction, and automatically capture pictures or record high‐definition video.This camera can realize more applications by setting timing, interval interval and other functions.
- Page 4 Main Features Information 90 degree camera lens Optional high resolution of 0.3m, 1.3m, 3m, 5m, 8m and 12m, 16m pixels The time of triggering to capture the picture can reach 0. 8 seconds. Builtin 2.0‐inch TFT color display which can display pictures and videos Support high-speed TF Waterproof grade:IP 66...
- Page 5 Application 1. It can be used as the track of hunting, animal movement or habit 2. It can be used for wildlife observation and research, capturing videos and pictures of wildlife. 3. Use as sports camera for driving, camping or exploration.
- Page 7 This camera provides the following device connections: How To Use USB interface,TF card slot, and external DC power socket Select: OFF/TEST/ON LED light indication: red indicates PIR monitoring:A white light flashes once, and a red light captures a picture or video.
- Page 8 Press"M" to bring up menu options and exit the menu Press" "button to enter the video mode, move up in the menu mode, and press up to tum pages in the playback mode. Push" "to go into photo mode, and"push"to move down in menu mode;...
- Page 9 Enter real time mode Different Units When the switch is in the"on"position, it will enter the real time mode. At the same time, it will start to work without manual operation of the camera. When the prey or other objects enter the PIR sensing area, they will immediately take photos or record videos.
-
Page 10: Parameter Setting
parameter Setting Choose to take a photograph picture or video.In cam Pattem Camera + video mode, first take Photo+Video a picture, then take a video Language English,Chinese get into family (Simplified) Select the required image pixel, 0.3mp‐ 16mp is optional, the image quality will be better with higher 16MP 12MP 8MP... - Page 11 Select the video resolution (pixels per frame), the video 1080FHD 1920 quality of x1080 the higher resolution Video size 720P 1280 x720 will be better, but the WVGA 848 x480 created file will VGA 640x 480 occupy a larger space capacity of the TF card AVI 10 seconds...
- Page 12 Select date/time from Set date /time Get into the menu and press "ENTER" to set the date If you want to have a date/time watermark on each image, you Time Open can choose a time watermark shut watermark. Select "off "and there will be no watermark on the image...
- Page 13 The default setting is Video on. When it is on, the recording Get into camera can record. sound Otherwise, there is only silent video When formatting the TF card, all files will be deleted. When your TF format card has been used on other devices, it is strongly recommended to format the TF card.
-
Page 14: Specifications
File format The pictures and videos of the camera are stored in the folder of\ DCIM\100 media in TF card. The image file name is saved as imag0001.jpg, and the video file name is saved as imag0001. AVI In "open" mode, you can download these files to the computer using the USB data cable provided, or you can put the TF Card in the reader and insert the computer to browse the files in the U disk. -
Page 15: Technical Parameters
Technical parameters Model DL001 image sensor 1. 3 megapixel color CMOS Max pixel 4000x3000 Fixed lens(angle depends Camera lens on lens) Infrared lamp 940nm infrared lamp LED display 2.0 "TFT" color display 6 key, third gear switch TF card (up to 32GB Storage capacity supported) 16M、12M、8M、... - Page 16 PIR sensing distance Within 10 meters Working mode Day and night Trigger time 0. 8 seconds Number of consecutive 1~ 3 page photos Video length 10 seconds to 3 minutes Take a picture first and then Photo+Video take a video Password 4 digits Equipment serialnumber...
- Page 17 Standby current <0.15mA Standbytime 4‐8 months(4 x AA‐8 x AA) Of f/ 3 minutes / 5 minutes / Automatic shutdown 10 minutes 180mA (1000mA when the Power consumption external light is on) , at DC 6V Low power reminder 4.5V Interface USB、TF card slot Install...
- Page 18 Technical parameters Appendix II: FAQ Problem answer When you forget your Forget password, enter the super password/super password password "pass" to open it. 180mA (1000mA when the Power consumption external light is on) , at DC 6V...
- Page 19 If you want to read this user manual in a different language, go to osmousermanual.com Have any questions or need further assistance? Send us an email at support@osmo-official.net and we will be happy to help!
