Huace Navigation Technology LT500XYZ Operational Description

Table of Contents

Download this manual

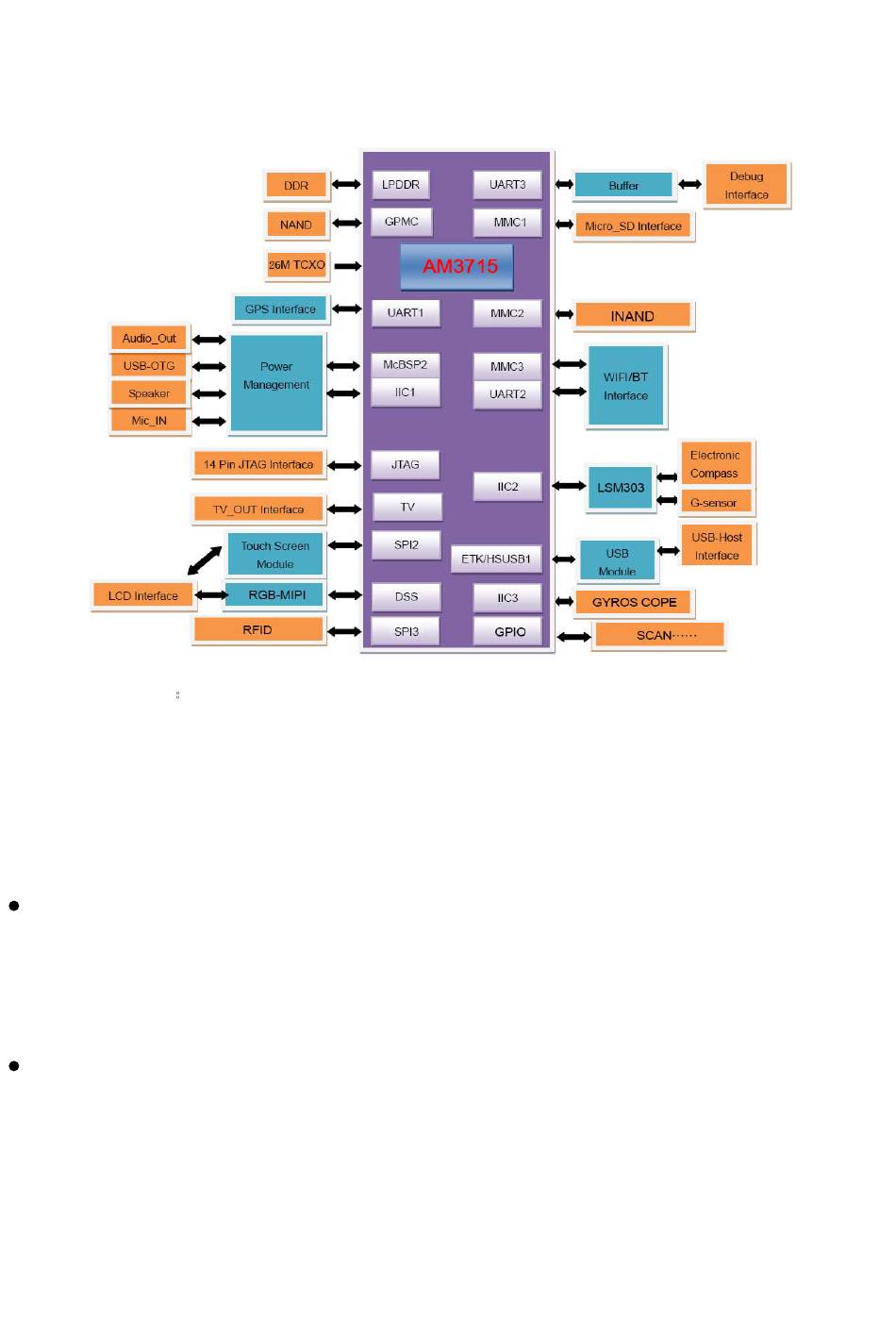

1. LT500XYZ Block Diagram

2. Operating steps：

I. Charging

II. Fix TF card/SIM card/battery

III．Turn on the collector

IV. Connect to PC to install application or data

V. Collect GIS data with internal GPS and GIS application

VI. Upload data

Insert the Li-ion battery into the battery charger to charge.

Remark: USB cable can also be used to charge the receiver. When normally charged, there is charging

icon in the screen if receiver is off and there is charging icon to the top right corner in the screen

if receiver is on.

1、Turn the back cover screw to the open position according to the instruction on the back

cover and take off the back cover

2、Fix the SIM card and TF card according to the instruction in the battery cabin

3、Fix the battery and turn the back cover screw to the lock position according to the

instruction on the back cover

LT500XYZ Operational description

Table of Contents

Do you have a question about the LT500XYZ and is the answer not in the manual?

Page 1 LT500XYZ Operational description 1. LT500XYZ Block Diagram 2. Operating steps： I. Charging II. Fix TF card/SIM card/battery III．Turn on the collector IV. Connect to PC to install application or data V. Collect GIS data with internal GPS and GIS application VI.
Page 2 Turn on/off collector 1、Make sure there is enough power in battery, or connect receiver to PC with USB cable (with battery in). 2、Press power button for 3～5 seconds to turn on(until the boot screen appears)/ turn off. Remark: if receiver is down, press the reset button in the bottom of receiver to reset. Connect to PC 1、Make sure Microsoft ActiveSync application has been installed in PC.
Page 3 2、Select ‘Start->Settings->Connections->Connections’. 3、Click ‘Add a new modem connection’. 4、Input connection name, select ‘Cellular Line(GPRS)’, click ‘Next’. 5、Input ‘cmnet’, click ‘Next’. 6、Click ‘Finish’ and add new connection successfully. 7、Click ‘Manage existing connections’. 8、Click on the new connection for a while and select ‘Connect’. 9、There is GPRS identifier on the signal icon on the top right corner, indicates the successful connection.
