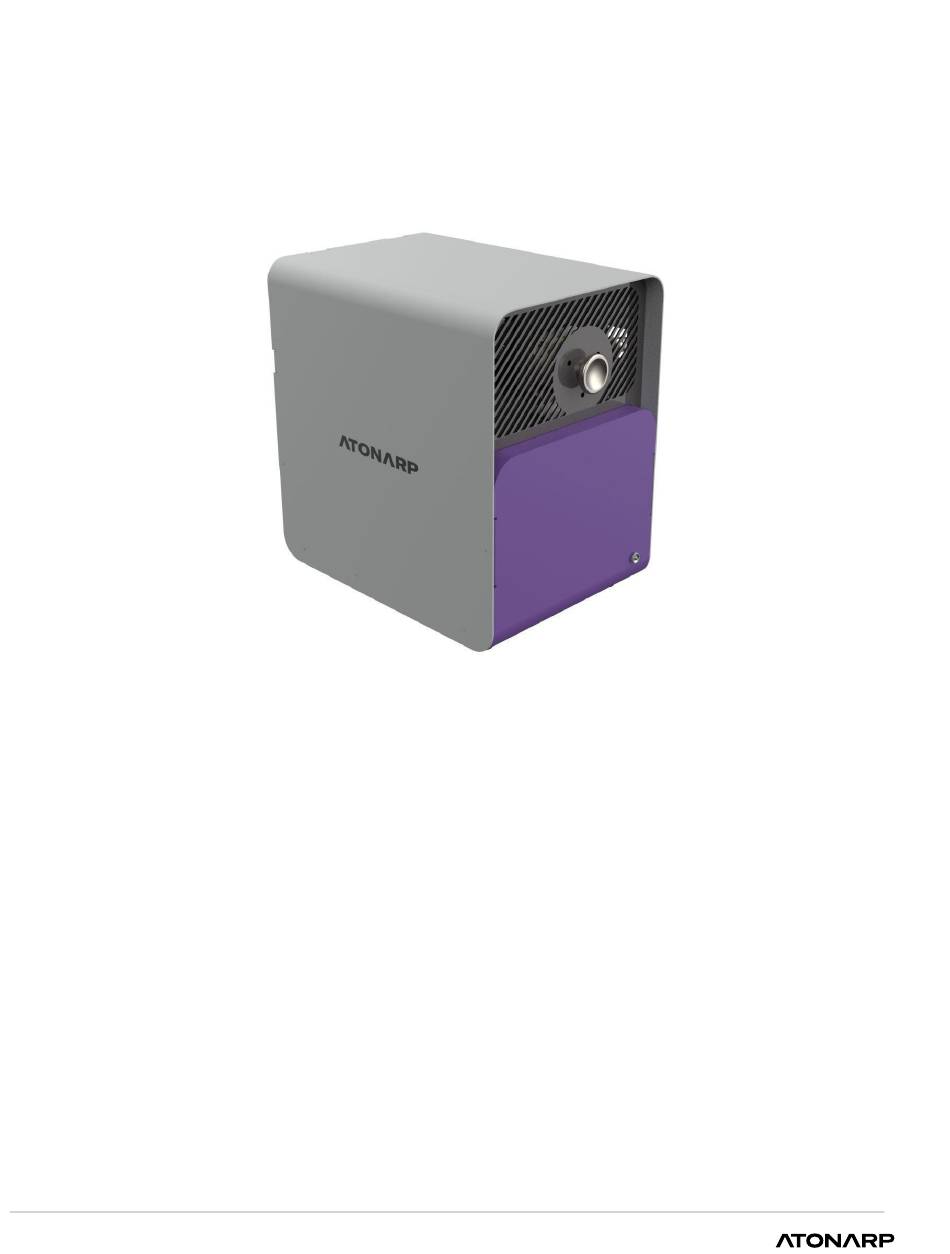

- Page 1 ASTON IMPACT PRODUCT MANUAL April 2022 Software Version: 1.0 Document Version: 1.0 ASTON IMPACT PRODUCT MANUAL, USM-980-0003, REV.A...
- Page 2 Atonarp products provided are subject to US and Japan Export Regulations. Transfer of Atonarp products contrary to US and Japan laws is prohibited. Atonarp® is a trademark of Atonarp Corporation.
- Page 3 Revision History Revision Change Log Author ECO-001XX No content change in this guide Vinay Kulkarni ASTON IMPACT PRODUCT MANUAL, USM-980-0003, REV.A...
-
Page 4: Table Of Contents
2.1 Electrical specifications 2.2 Technical specifications 2.3 Environmental specifications 2.4 Physical dimensions 3. Physical Overview 3.1 Rear panel 3.1.1 Remote IN (DSUB9 Male) 3.1.2 Remote OUT (DSUB9 Female) 3.2 Side panel 3.3 System LEDs ASTON IMPACT PRODUCT MANUAL, USM-980-0003, REV.A... -
Page 5: Document Scope
4.6.1 Pressure sensor specification 4.7 Sensor heater 4.8 Controllers 4.8.1 Main controller 4.9 Pumping system 5. Legal Information 5.1 Liability 5.2 Licenses, trademarks, and copyright 6. Abbreviations 7. Quick Access to Impact Files 8. Glossary ASTON IMPACT PRODUCT MANUAL, USM-980-0003, REV.A... -
Page 6: Introduction
1. INTRODUCTION 1.1. About Aston Impact Aston Impact uses mass spectrometry to quantify the composition of constituents in an analyte by filtering associated ions according to their mass-to-charge ratio (m/z) and measuring their abundance. A mass spectrum, consisting of ion signal vs m/z is generated. -
Page 7: Notational Conventions
1.8. Customer support When issues are encountered with the operation of Aston Impact, or if there are any queries regarding the product, it is advised to raise a support request at the Atonarp customer portal available at support.atonarp.com. -
Page 8: Specifications
(See product brochure for latest) PARAMETER CONDITION MIN TYPICAL UNITS Mass Range Full Width at 10% Mass Resolution valley for Mass Number Stability Sensitivity Nitrogen- 5×10 /5×10 A/Torr (FC/SEM) equivalent Minimum Nitrogen- Detectable Partial Torr equivalent Pressure(FC/SEM) ASTON IMPACT PRODUCT MANUAL, USM-980-0003, REV.A... -
Page 9: Environmental Specifications
Concentration <2 Accuracy Concentration ±0.5 ±0.5 ±1 Stability 2.2. Environmental specifications Table 3. Environmental Specifications SPECIFICATION VALUE Indoor/Outdoor Indoor controlled environment Relative Humidity 80%, non-condensing Altitude max. 2000 m Ambient Temperature 5 – 35 ASTON IMPACT PRODUCT MANUAL, USM-980-0003, REV.A... -
Page 10: Physical Dimensions
25.4 mm clearance around the Aston Impact if necessary. It is also necessary that the users have easy access to the rear side of the Aston Impact, where the power inlet is located. This is necessary whether the Aston Impact is installed inside an enclosure or not and will allow easy and quick disconnection of power to the unit if necessary. -
Page 11: Physical Overview
3. PHYSICAL OVERVIEW The physical design of Aston Impact, the various connections and their functions are described in this section. Rear panel The figure below shows the rear panel of Aston Impact. For a detailed description of the rear panel interfaces, see the table below. -
Page 12: Remote In (Dsub9 Male)
Analog IN (0-10V) 3.1.2 Remote OUT (DSUB9 Female) Table 8. Remote OUT Pin PIN. NO ASSIGNMENT Analog out (0-5V) Digital OUT (24V) Ch.1 Digital OUT (24V) Ch.2 Digital OUT (24V) Ch.3 24 V (power) ASTON IMPACT PRODUCT MANUAL, USM-980-0003, REV.A... -
Page 13: Side Panel
Below figure shows the side panel of the Aston Impact system. Analytes are fed to Aston Impact through the top inlet port on the side panel. The inlet is a ¼” VCR female connector. There is a second inlet port for the Aston Impact that can be used as sample bypass for fast response time of the mass spectrometer. -
Page 14: System Components And Operation
4. SYSTEM COMPONENTS AND OPERATION The core of Aston Impact is the mass spectrometer (MS). Inside the MS, the analyte is processed in three stages. First, the analyte molecules are ionized in the ion source. The ions are then filtered according to their mass-to-charge (m/z) ratio in a mass filter. After filtering, ions of specific mass are captured in a detector which produces an electric current proportional to the molecule/ion count. -
Page 15: Detector
RF and DC voltages and recording the ion current at each increment. Aston Impact uses a Faraday cup (FC) as a detector. The collected charge is converted to an electric current in a capacitive feedback electro-meter circuit. The electric current is proportional to the number of ions colliding with it. -
Page 16: Quadrupole Pressure Sensor
Run a web application to provide the user interface for instrument configuration, control, and reporting Aston Impact controller supports different scan types to generate, fragment, and eject ions from the mass filter. The ability to adjust the scan type, and other settings gives flexibility to adapt it to process requirements. -
Page 17: Legal Information
On receiving a signal from Aston Impact controller, the turbo controller initiates the start- up procedure for the turbo pump. During normal operation, the pump controller monitors the turbo pump for significant changes in turbo speed, operating temperature, and load faults. - Page 18 5.2.8. ®Firefox is a registered trademark of Mozilla. 5.2.9. ®Ubuntu is a registered trademark of Canonical. 5.2.10. Putty is open source certified (BSD License). 5.2.11. ©ISO 7010:2011 (E), Graphical symbols — Safety colors and safety signs — Registered safety signs. ASTON IMPACT PRODUCT MANUAL, USM-980-0003, REV.A...
-
Page 19: Abbreviations
Portable Document Format Picofarads Portable Network Graphics Radio Frequency Revolutions per Minute RS-232 Recommended Standard no. 232 Request to Send Receive System on a Chip Secure Shell Secure Sockets Layer Scalable Vector Graphics Thomson ASTON IMPACT PRODUCT MANUAL, USM-980-0003, REV.A... -
Page 20: Quick Access To Impact Files
Universal Serial Bus User Interface Uniform Resource Locator Volts (voltage) Watts (power) 7. QUICK ACCESS TO ASTON IMPACT FILES Quick Links to Aston Impact Source Files Atonarp knowledge base Aston Impact Windows client application Aston Impact Ubuntu client application 8. GLOSSARY... - Page 21 Aston Impact Aston Impact uses mass spectrometry to quantify the composition of constituents in a gas blend by measuring the mass to charge ratio of the ions generated from the blend.
- Page 22 The magnitude of the RF voltage determines the mass-to-charge ratio of the ions that pass through the mass filter and reach the detector. The ratio of DC-to-RF voltage determines the resolution (widths of the mass peaks). ASTON IMPACT PRODUCT MANUAL, USM-980-0003, REV.A...
- Page 23 Standby Put the system in a state not ready for scan so that it can then be shutdown. Also required before certain features in the Aston Impact software can be used. Workflow Workflows allow the user to sequence scan events with unique scan properties and controls valves alongside running scans in the sequence ASTON IMPACT PRODUCT MANUAL, USM-980-0003, REV.A...
- Page 24 5960 Inglewood Dr. Suite 100 Pleasanton, CA 94588, USA Tel: (510) 319-7535 https://www.atonarp.com/solution/semiconductors ASTON IMPACT PRODUCT MANUAL, USM-980-0003, REV.A...
