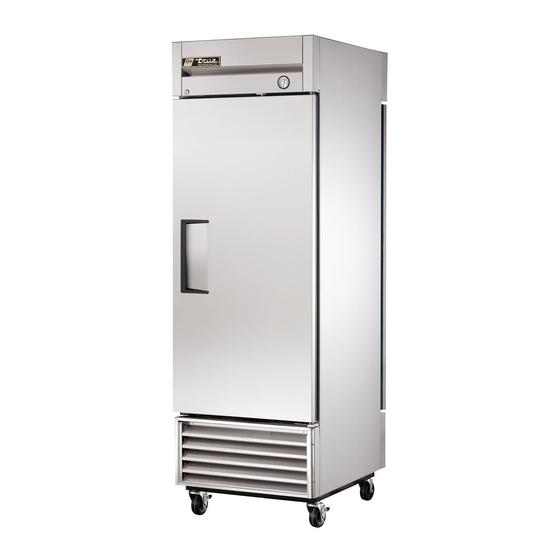

T-series freezer / refrigerator (swing and slide door)
Hide thumbs Also See for T-12FG:
Table of Contents

Advertisement

Quick Links

I N S T A L L A T I O N M A N U A L F O R T - S E R I E S F R E E Z E R /
R E F R I G E R A T O R ( S W I N G A N D S L I D E D O O R )
T-23
T-35
TSD-47G
TSD-69
F R E E Z E R / R E F R I G E R A T O R
F R E E Z E R / R E F R I G E R A T O R
S W I N G & S L I D E D O O R
S W I N G & S L I D E D O O R
(636)-240-2400 • FAX (636)272-2408 • INT'L FAX (636)272-7546 • (800)325-6152
T - S E R I E S
T - S E R I E S
............ www.truemfg.com ............
............ www.truemfg.com ............
TRUE FOOD SERVICE EQUIPMENT, INC.
2001 East Terra Lane • P.O. Box 970 • O'Fallon, Missouri 63366
Parts Department (800)424-TRUE • Parts Department FAX# (636)272-9471

TABLE OF CONTENTS

Cleaning Condenser Coil
*Spanish, German, French and Arabic versions included.
CONGRATULATIONS!
You have just purchased the finest commercial
freezer / refrigerator available. You can expect many
years of trouble-free operation.
1
2
3
3
4
4
4
5
6
7
8
9
10
11
12
13-14
15
16-17
18
19-20
20
21
11/12/07 -20K SB #897001

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T-12FG and is the answer not in the manual?

Questions and answers

Related Manuals for True T-12FG

Summary of Contents for True T-12FG

  • Page 1: Table Of Contents

    TRUE FOOD SERVICE EQUIPMENT, INC. 2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366 (636)-240-2400 • FAX (636)272-2408 • INT’L FAX (636)272-7546 • (800)325-6152 Parts Department (800)424-TRUE • Parts Department FAX# (636)272-9471 TABLE OF CONTENTS Safety Information...
  • Page 2 True Food Service Equipment, Inc. True Food Service Equipment, Inc..www.truemfg.com ..www.truemfg.com ...

  • Page 3: Safety Information

    You have selected one of the finest commercial refrigeration units made. It is manufactured under strict quality controls with only the best quality materials available. Your TRUE cooler when properly maintained will give you many Use this appliance for its intended purpose as described...

  • Page 4: Proper Disposal

    Leave the shelves in place so that children may not easily climb inside. USE OF EXTENSION CORDS NEVER USE AN EXTENSION CORD! TRUE will not warranty any refrigerator that has been connected to an extension cord..www.truemfg.com ..www.truemfg.com ...

  • Page 5: Connecting Electricity

    If you do not have the right outlet (North America Use Only!) NEMA plugs TRUE uses these types of plugs. have a certified electrician install the correct power source.

  • Page 6: Installation / Operation Instructions Ownership

    ... www.truemfg.com ... True Food Service Equipment, Inc. True Food Service Equipment, Inc. Before you start to install your True unit, carefully inspect it for freight damage. If damage is discov- ered, immediately file a claim with the delivery freight carrier.

  • Page 7: Leveling Cabinet

    (100°F+, 38°C+), you may want to install an exhaust fan. Warning Warranty is void if ventilation is insufficient. B. Proper leveling of your True cooler is critical to operating success (for non-mobile models). Effective condensate removal and door operation will be effected by leveling.

  • Page 8: Installation Of Castors Or Optional Legs

    Lower Rail Assembly Rail End Snug Fit Here True Food Service Equipment, Inc. True Food Service Equipment, Inc. CAUTION slowly raise unit to upright position. Thread leg into cabinet bottom frame rail. Lower Rail Assembly...

  • Page 9: Installing Optional Castors On A T-12Fg

    6 1/2ft. (1.98m) from plug-in connection..www.truemfg.com ..www.truemfg.com ... K. Proper leveling of your TRUE cooler is critical to operating success. Effective condensate removal and door operation will be effected by leveling. Adjust castors or add shims POSITIONING OF THE CASTOR IS CRITICAL.

  • Page 10: Wire Gauge Chart

    Wire Gauge for 2% Voltage Drop in Supply Circuits 230 Volts Amps ... www.truemfg.com ..www.truemfg.com ... True Food Service Equipment, Inc. True Food Service Equipment, Inc. Distance In Feet To Center of Load Distance In Feet To Center of Load...

  • Page 11: Sealing Cabinet To Floor & Electrical Inst

    Refer to cabinet data plate for this voltage. True requires that a sole use circuit be dedicated for the unit. Failure to do so voids warranty. SEALING CABINET TO FLOOR...

  • Page 12: Startup

    True dealer or recommended service agent. D. Good air flow in your True unit is critical. Be careful to load product so that it neither presses against the back wall, nor comes within four inches of the evaporator housing.

  • Page 13: Shelving Install/Operation & Light Switches

    True Food Service Equipment, Inc. True Food Service Equipment, Inc. INSTALLATION / OPERATION INSTRUCTIONS INSTALLATION / OPERATION INSTRUCTIONS SHELVING INSTALLATION / OPERATION & LIGHT SWITCH LOCATION SHELF & ORGANIZER INSTALLATION: Step 1 A. Hook shelf clips onto shelf standards. (see illustration).

  • Page 14: Grasslin Defrost Timer (Freezer Units Only)

    All refriger- ation equipment operating below 30°F will accumulate frost on the evaporator coil and will require routine defrost. Your True equipment has been designed for three defrost periods (6:00 a.m., 2:00 p.m. and 10:00 p.m.). If you decide to deviate from these defrost time settings please follow the procedures for adjustment below.

  • Page 15: Field Troubleshooting (Freezer Units Only)

    True Food Service Equipment, Inc. True Food Service Equipment, Inc. INSTALLATION / OPERATION INSTRUCTIONS INSTALLATION / OPERATION INSTRUCTIONS IF THE COMPRESSOR WILL NOT RUN 1. If there is no voltage at the compres- sor terminals, follow the wiring dia- gram and check back from compressor to the power supply to find where the circuit is interrupted.
  • Page 16 This will be true only if liquid refrigerant is in the line at the restricted point, since any temperature change due to restric-...

  • Page 17: Light Cover Install For T-12Fg

    True Food Service Equipment, Inc. True Food Service Equipment, Inc. INSTALLATION / OPERATION INSTRUCTIONS INSTALLATION / OPERATION INSTRUCTIONS Light Cover Installation for T-12FG REQUIRED TOOLS • none - IMPOR - IMPOR ANT - ANT - - IMPOR - IMPOR ANT -...

  • Page 18: Maintenance, Care & Cleaning

    After brushing condenser coil vacuum dirt from coil, and interior floor..www.truemfg.com ..www.truemfg.com ... True Food Service Equipment, Inc. True Food Service Equipment, Inc. OUTDOOR LOCATION: (GDM-33, GDM-47, and GDM-49 only) After brush- ing condenser coil blow CO 2 through condenser from fin side to fan.

  • Page 19: Important Warranty Information

    5. When finished be sure to replace the louvered grill. The grill protects the condenser. 6. Reconnect the electrical power to the unit. If you have any questions, please call True Manufacturing at 636-240-2400 or 800-325-6152 and ask for the Service Department. Service Department Availability Monday-Friday 7:30 a.m. to 5:30p.m.

  • Page 20: Temperature Control Adjustment

    ... www.truemfg.com ..www.truemfg.com ... True Food Service Equipment, Inc. True Food Service Equipment, Inc. ___________ STEP 4 ___________ For high elevation installations, it may be necessary to "warm-up"...

  • Page 21: Stainless Steel Equipment Care & Cleaning

    True Food Service Equipment, Inc. True Food Service Equipment, Inc. MAINTENANCE, CARE & CLEANING MAINTENANCE, CARE & CLEANING Stainless Steel Equipment Care and Cleaning CAUTION: Do not use any steel wool, abrasive or chlorine based products to clean stainless steel surfaces.

  • Page 22: Light Bulb Replacement

    Disconnect power to cabinet before replacing light bulbs. Interior Light Interior Light ... www.truemfg.com ..www.truemfg.com ... True Food Service Equipment, Inc. True Food Service Equipment, Inc. NOTE: INTERIOR LIGHTS: Simply unscrew the light bulb(See Image 1 & 2). IDL (INTEGRATED DOOR LIGHTING): Squeeze the plastic lampshield together and pull away from the door (See Image 3).

  • Page 23: Warranty (U.s.a. & Canada Only!)

    SINCE 1945 TRUE warrants to the original purchaser of every new TRUE refrigerated unit, the cabinet and all parts thereof, to be free from defects in material or work- manship, under normal and proper use and maintenance service as specified by TRUE and upon proper installation and start-up in accordance with the instruction packet supplied with each TRUE unit.
