Catalina Sheepskin Beds
SAN finish
Assembly Instructions
Model #
3336SAN
Catalina Queen Sheepskin Bed
3338SAN
Catalina King Sheepskin Bed
Catalina Queen Sheepskin Storage
Catalina King Sheepskin Storage
Thank you for allowing us to help you furnish your
home. We are certain you will be delighted with
your new furniture for many years to come.
If you ever have questions about your furniture, please do not hesitate to contact us. In the unlikely event you need a
replacement part; we can make those parts available through an authorized Whittier Wood Furniture dealer. If you
cannot order replacement parts through your dealer, please contact our customer service department.
Customer Service: 800-653-3336 • Outside the U.S.: 541-687-0213
3356SAN
3357SAN
CUSTOMER SERVICE
Hours: Our friendly customer service staff can be reached:
Monday-Friday 8:00 a.m. to 5:00 p.m. (Pacific Time).
You may leave a message 24 hours a day, seven days a week.
Fax: 541-687-2060• Email: info@whittierwood.com
P.O. Box 2827
Eugene, OR 97402 USA
IMPORTANT NOTES:
• Furniture can be susceptible to changing color over time when exposed
to strong sunlight. Use window shades, drapes or blinds to protect your
furniture. To help the surface age evenly and avoid dark and light
spots, periodically move items to expose the entire surface to an even
amount of light so it may develop a uniform patina.
• For normal household use only. Not recommended for commercial use.
• Remove items before you move this unit.
• Do not overload the drawers.
• This assembly requires two people.
Drilling, sawing, sanding or machining wood products can expose you to
wood dust, a substance known to the state of California to cause cancer.
Avoid inhaling wood dust or use a dust mask or other safeguards for
Bed
personal protection.
For more information go to: www.p65warnings.ca.gov/wood
This product can expose you to chemicals, including formaldehyde,
which are known to the State of California to cause cancer.
For more information go to: www.p65warnings.ca.gov/furniture
Bed
Care and Maintenance:
• Avoid direct sunlight to reduce UV damage, fading and spotting.
• Dry vacuum with an upholstery attachment to remove dust and
maintain fibers. Ensure the turbo and revolving brush setting is off.
• Brush with a wire pet brush to restore appearance.
• There are a number of cleaning treatments depending on the type of
the stain (wet or dry). BEFORE using any of them make sure the stain
has been contained by firmly blotting up any excess liquid spills and
scraping up any solids.
• Never rub wet wool.
For detailed step-by-step information please refer to the website:
https://fibrebyauskin.com/why-natural-fibre/easy-sheepskin-care
https://fibrebyauskin.com/resources/Woolskin-Stain-Cleaning-Guide-
Letter.pdf
DESIGN SUBJECT TO CHANGE WITHOUT NOTICE.
WARNING
Production Code:
VN
05/23

Advertisement

loading
Need help?

Need help?

Do you have a question about the Catalina 3336SAN and is the answer not in the manual?

Questions and answers

Summary of Contents for Whittier Wood Furniture Catalina 3336SAN

  • Page 1 If you ever have questions about your furniture, please do not hesitate to contact us. In the unlikely event you need a replacement part; we can make those parts available through an authorized Whittier Wood Furniture dealer. If you cannot order replacement parts through your dealer, please contact our customer service department.
  • Page 2: Parts List

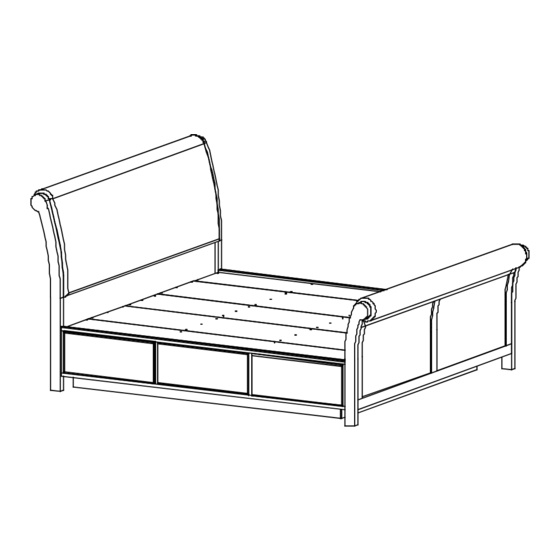

    3336SAN Catalina Queen Sheepskin Bed 3338SAN Catalina King Sheepskin Bed 3356SAN Catalina Queen Sheepskin Storage Bed 3357SAN Catalina King Sheepskin Storage Bed Parts List Please note this Assembly Instruction is for Catalina Sheepskin Beds (#3336 Queen and #3338 King), and Catalina Sheepskin Storage Beds (#3356 Queen and #3357 King).
  • Page 3 3336SAN Catalina Queen Sheepskin Bed 3338SAN Catalina King Sheepskin Bed 3356SAN Catalina Queen Sheepskin Storage Bed 3357SAN Catalina King Sheepskin Storage Bed Parts List 3350SAN Queen Base Kit (x1) 3352SAN King Base Kit (x1) Quantity Part Description 3350SAN 3352SAN #8 x 1-1/4" Black Screw Mitered End Support Square End Support Left Support...
  • Page 4 3336SAN Catalina Queen Sheepskin Bed 3338SAN Catalina King Sheepskin Bed 3356SAN Catalina Queen Sheepskin Storage Bed 3357SAN Catalina King Sheepskin Storage Bed Parts List 3349SAN Queen/King Pedestal Kit (x2) Part Description Quantity Pedestal Drawer Box (assembled) Drawer Face (attached) Left/Right Center Deckboard 20"...
  • Page 5 3336SAN Catalina Queen Sheepskin Bed 3338SAN Catalina King Sheepskin Bed 3356SAN Catalina Queen Sheepskin Storage Bed 3357SAN Catalina King Sheepskin Storage Bed Parts List 3329SANa Queen Panel Rail Kit (x1) 3332SANa King Panel Rail Kit (x1) Quantity Part Description 3329SANa 3332SANa #8 x 1-1/4"...
  • Page 6 3336SANa Catalina Queen Sheepskin Bed 3338SANa Catalina King Sheepskin Bed 3356SAN Catalina Queen Sheepskin Storage Bed 3357SAN Catalina King Sheepskin Storage Bed Assembly Instructions This assembly requires two people. Tool Included: 5mm Z Hex wrench. Tools Required: Phillips screwdriver, 1/2" open end or box end wrench. Notes: Steps 1 through 11 are for the Catalina Queen Sheepskin Storage Bed (#3356) and Catalina King Sheepskin Storage Bed (#3357).
  • Page 7 3336SANa Catalina Queen Sheepskin Bed 3338SANa Catalina King Sheepskin Bed 3356SAN Catalina Queen Sheepskin Storage Bed 3357SAN Catalina King Sheepskin Storage Bed Assembly Instructions This assembly requires two people. Place each pedestal (C) on top of the base kit against the side of and between the locater blocks of the Base Kit.
  • Page 8 3336SANa Catalina Queen Sheepskin Bed 3338SANa Catalina King Sheepskin Bed 3356SAN Catalina Queen Sheepskin Storage Bed 3357SAN Catalina King Sheepskin Storage Bed Assembly Instructions This assembly requires two people. Open the drawers and attach the pedestal to the base using Hex Bolts (X) and Washers (V) only finger tight.
  • Page 9 3336SANa Catalina Queen Sheepskin Bed 3338SANa Catalina King Sheepskin Bed 3356SAN Catalina Queen Sheepskin Storage Bed 3357SAN Catalina King Sheepskin Storage Bed Assembly Instructions This assembly requires two people. NOTE: When attaching the Footboard (B) to the Pedestal/Base assembly attach it at the end of the Base with the leveler behind the crosspiece.
  • Page 10 3336SANa Catalina Queen Sheepskin Bed 3338SANa Catalina King Sheepskin Bed 3356SAN Catalina Queen Sheepskin Storage Bed 3357SAN Catalina King Sheepskin Storage Bed Assembly Instructions This assembly requires two people. Attach the Headboard (A) with Hex Bolts (ZA) using assembly option a) or b) from Step 5. See Figures 6 and 6a.
  • Page 11 3336SANa Catalina Queen Sheepskin Bed 3338SANa Catalina King Sheepskin Bed 3356SAN Catalina Queen Sheepskin Storage Bed 3357SAN Catalina King Sheepskin Storage Bed Assembly Instructions This assembly requires two people. Once the Headboard and Footboard are attached, open all drawers and tighten Hex Bolts (ZA) on the inside of the bed assembly.
  • Page 12 3336SANa Catalina Queen Sheepskin Bed 3338SANa Catalina King Sheepskin Bed 3356SAN Catalina Queen Sheepskin Storage Bed 3357SAN Catalina King Sheepskin Storage Bed Assembly Instructions This assembly requires two people. Insert Queen Trestle Rail Supports (Q) or KingTrestle Rail Supports (R). See Figures 9 and 9a. Fig.
  • Page 13 3336SANa Catalina Queen Sheepskin Bed 3338SANa Catalina King Sheepskin Bed 3356SAN Catalina Queen Sheepskin Storage Bed 3357SAN Catalina King Sheepskin Storage Bed Assembly Instructions This assembly requires two people. Step 11 is for the Catalina King Upholstered Panel Storage Bed (#3351) 11.
  • Page 14 3336SANa Catalina Queen Sheepskin Bed 3338SANa Catalina King Sheepskin Bed 3356SAN Catalina Queen Sheepskin Storage Bed 3357SAN Catalina King Sheepskin Storage Bed Assembly Instructions This assembly requires two people. 12. Align the Left Bed Brackets (ZV) over the pre-drilled holes in the Headboard (A). Brackets that mount to the Headboard always have the round tab pointing up.
  • Page 15 3336SANa Catalina Queen Sheepskin Bed 3338SANa Catalina King Sheepskin Bed 3356SAN Catalina Queen Sheepskin Storage Bed 3357SAN Catalina King Sheepskin Storage Bed Assembly Instructions This assembly requires two people. 13. Align the Left Bed Brackets (ZV) over the pre-drilled holes in the Footboard (B). Brackets that mount to the Headboard always have the round tab pointing up.
  • Page 16 3336SANa Catalina Queen Sheepskin Bed 3338SANa Catalina King Sheepskin Bed 3356SAN Catalina Queen Sheepskin Storage Bed 3357SAN Catalina King Sheepskin Storage Bed Assembly Instructions This assembly requires two people. 14. Position the Footboard Support (ZM) over the block that is mounted onto the back side of the Footboard (B) and attach with four #10 x 2"...
  • Page 17 3336SANa Catalina Queen Sheepskin Bed 3338SANa Catalina King Sheepskin Bed 3356SAN Catalina Queen Sheepskin Storage Bed 3357SAN Catalina King Sheepskin Storage Bed Assembly Instructions This assembly requires two people. 16. Repeat step two for the other side. See Figures 16 and 16a. Fig.
  • Page 18 3336SANa Catalina Queen Sheepskin Bed 3338SANa Catalina King Sheepskin Bed 3356SAN Catalina Queen Sheepskin Storage Bed 3357SAN Catalina King Sheepskin Storage Bed Assembly Instructions This assembly requires two people. 18. Attach an Assembled Foot (ZI) to four of the five Slats (ZJ or ZK) as shown in Figure 18. Fig.
