Summary of Contents for Rubix POD2

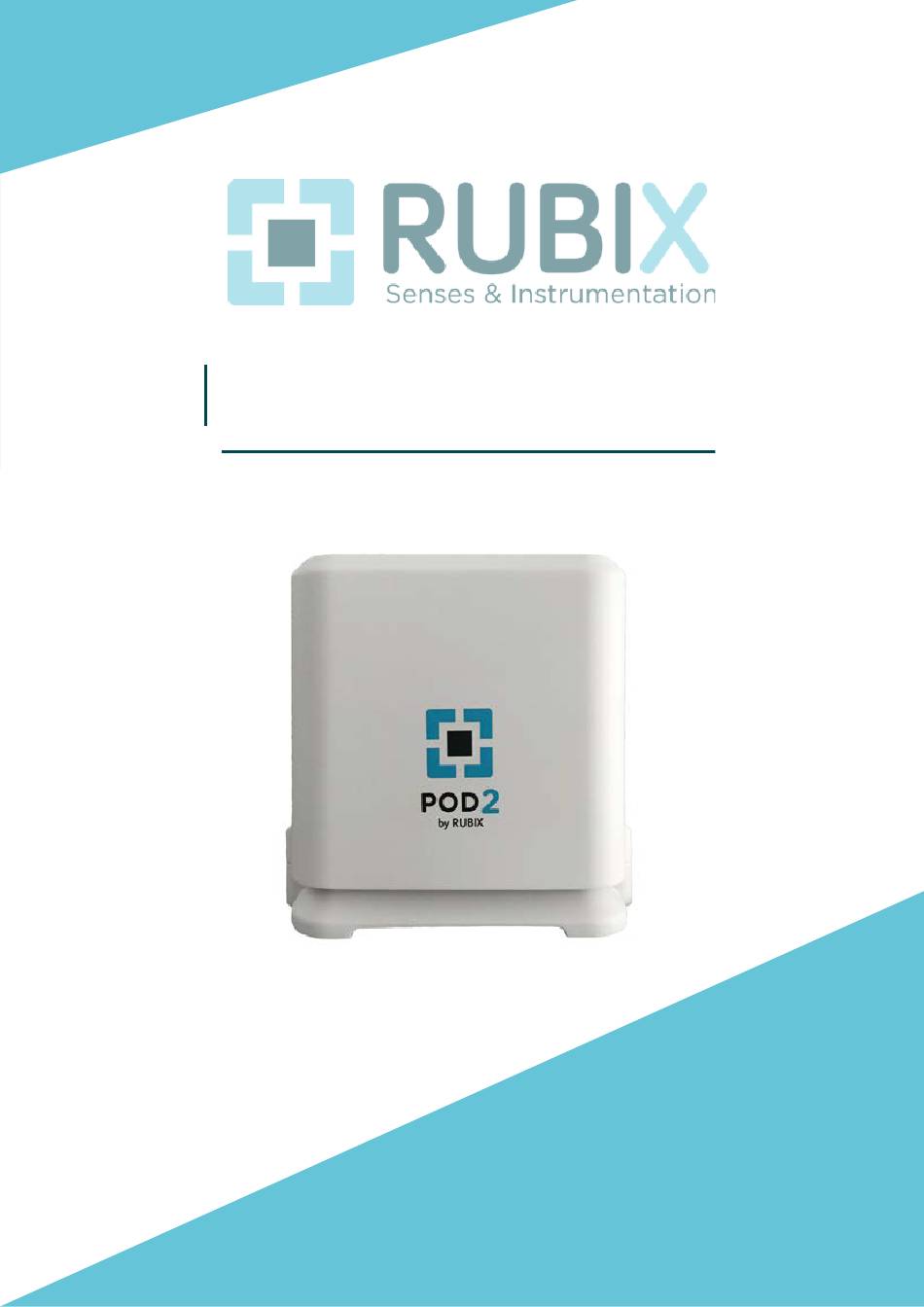

- Page 1 POD2 User Guide...
-
Page 2: Table Of Contents
Table of Contents Specifications Power device Measured parameters Measurement options Connectivity First Installation Positioning Commissioning Network connexion Opening the connexion page Selecting the network configuration Wifi : LTE-M (Option) : Ethernet : Reset mode Notification Troubleshooting Gas table... -
Page 3: Specifications
Specifications Power device • +5V/2A Micro-USB connector • 3.7V 1800mAh battery Measured parameters Type of sensor Measuring range Accuracy Resolution Temperature -40°c to +85°c 0.5°C to 2°C Atmospheric pressure 300 to 1100 hPa 0.25% 1 hPa Humidity 0 to 100% Rh concentration 400 ppm to 5000 ppm pending... -
Page 4: Measurement Options
Measurement options Type of sensor Measuring Accuracy Resolution range PM1 Mass 0 to 1000 µ µ µ concentration of particles ≤1 µ PM2.5 Mass 0 to 1000 µ µ µ concentration of particles ≤2.5 µ PM4 Mass 0 to 1000 µ... -
Page 5: Connectivity
Connectivity • Base: Wifi : 802.11 b/g/n, Wifi 2.4Ghz • Option: LoRa High Frequency Class A, 1.02 Version (EU868,US 915,AU915,KR920,AS923,IN865) • Option: LoRa Low frequence Class A, 1.02 Version (EU433,CN470) • Option : LTE-M fallback 2G • Option : Ethernet with PoE 802.3af... -
Page 6: First Installation
First Installation Positioning The POD must be positioned on a table, desk, or high up. The positioning must be adapted to the measurements for which it is intended. Ideally it should be placed at breathing level in the room where it is located: Ex : •... -
Page 7: Network Connexion
Locate the serial number of the POD you want to install on the identification plate on the bottom of the unit. • In the list of available networks select the network that starts with «R-POD2-» followed by the serial number. • Fill in the following password « rubixpod2 ». -
Page 8: Selecting The Network Configuration
Selecting the network configuration The page that appears allows the selection of the network configuration. Depending on the POD options, you will be able to choose between several means of communication. Wifi : The Wifi network is available regardless of the POD options. To connect to the network: select the Wifi network in the drop-down list entitled «... - Page 9 » option from the drop-down list. The options to manage access to the LTE-M network will be displayed. If the SIM card is provided by RUBIX S&I, there is no need to modify these fields. Otherwise, use the information provided by the operator to fill them in.
-
Page 10: Ethernet
Ethernet : Configuration Ethernet IP DHCP mode Select « Apply » to validate the changes. A window will offer you to restart in the selected network configuration. Ethernet IP manual mode configuration There is possibility to enter IP address, subnet mask and gateway parameters. -
Page 11: Reset Mode
Reset mode A button located on the upper part and accessible at the level of the grid allows you to return to the configuration mode, we then first installation return to the case described in the « » section. In order to activate the reset mode you need to : •... -
Page 12: Notification
Notification The POD is equipped with a status notification LED. The displayed color represents the status of the POD or an alert level according to the following table: State Color Start Light blue flashing Alert: Normal Green Alert: Info Yellow Alert: Warning Orange Alert: Critical... -
Page 13: Gas Table
Gas Table Gas type Measuring Resolution range 0 to 100 ppm 0.03 ppm 0.09 ppm 0 to 200 ppm 0.002 ppm 0.006 ppm 0 to 50 ppm 0.003 ppm 0.008 ppm 0 to 20 ppm 0.01 ppm 0.03 ppm 0 to 10 ppm 0.003 ppm 0.009 ppm 0 to 50 ppm...
