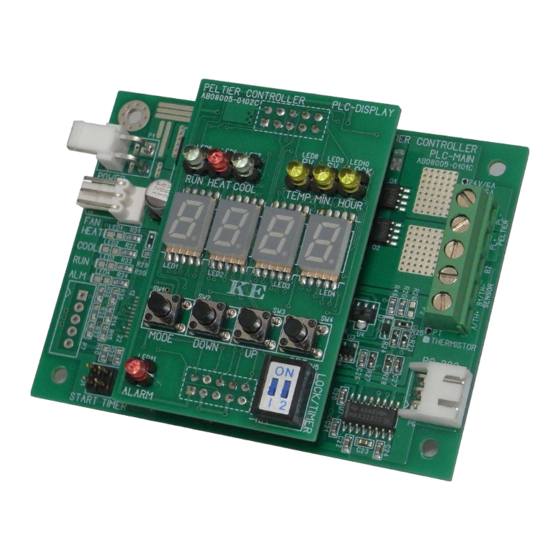

TEC (Peltier) Controller
Instruction Manual
Thank you for purchasing the TEC (Peltier) Controller PLC-24V6A.
Read these operating instructions carefully to ensure effective use of all the performance
this product as to offer, and then use the product properly.
In particular, please be sure to read "Cautions on use" before use.
After reading these operating instructions, be sure to store them in a place where they can
be readily consulted whenever necessary.
Technical support and after-sales service
About support, such as an inquiry about this product, a request for repair, and download of
application software, and after-sale service, it is accepted at the WEB site of our company.
Please contact the address listed below.
KURAG ELECTRONICS WEB site: http://kurag.o.oo7.jp/kurag-el/
Peltier Controller Support: kurag.tslab@biz.nifty.jp
PLC-24V6A
(Rev.2.20)
Kurag Electronics LLC
(1/8)
Advertisement
Table of Contents
Related Manuals for KURAG ELECTRONICS PLC-24V6A
Summary of Contents for KURAG ELECTRONICS PLC-24V6A

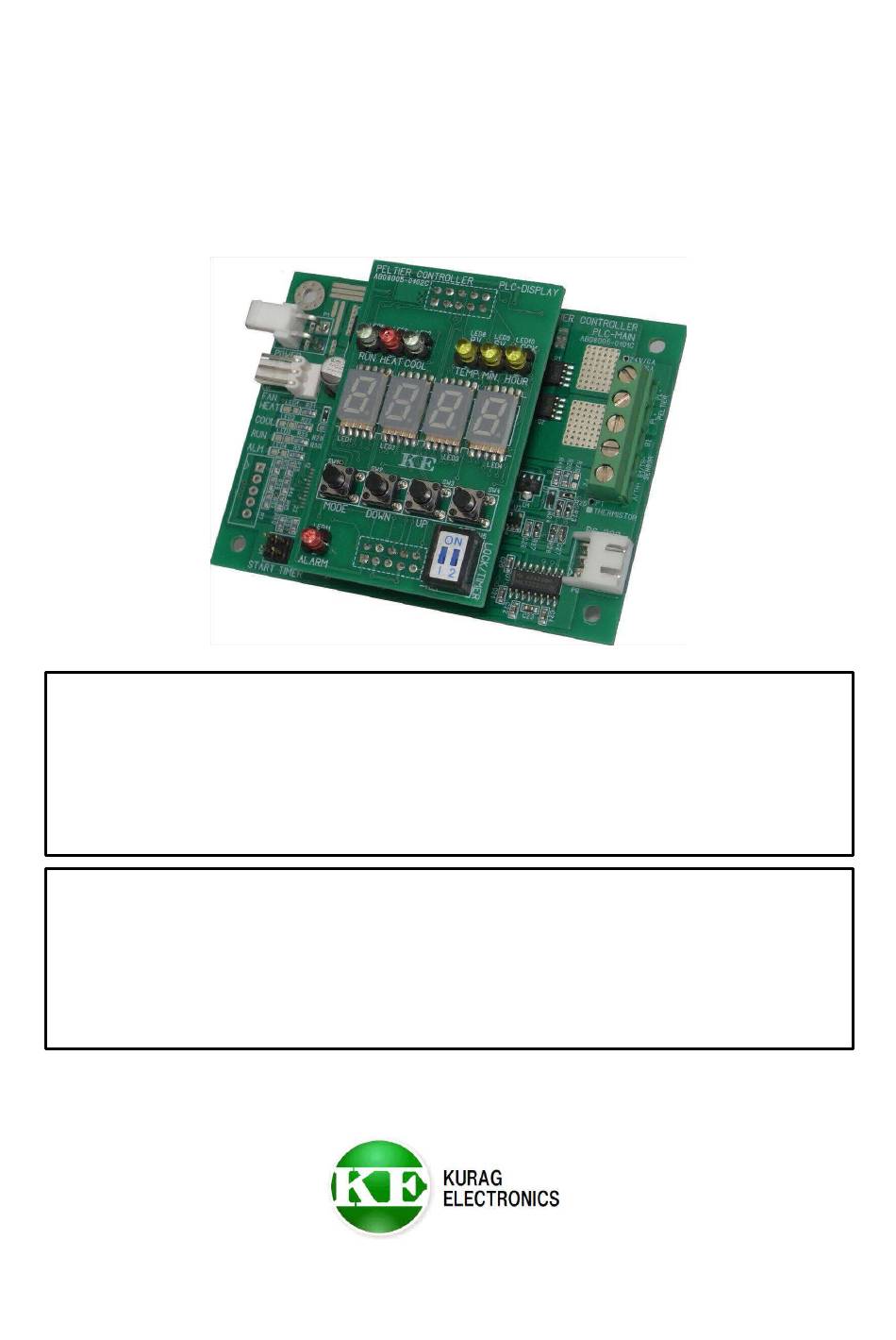

- Page 1 PLC-24V6A Instruction Manual (Rev.2.20) Thank you for purchasing the TEC (Peltier) Controller PLC-24V6A. Read these operating instructions carefully to ensure effective use of all the performance this product as to offer, and then use the product properly. In particular, please be sure to read "Cautions on use" before use.
- Page 2 1. Cautions on use ✔ The use of KE (Kurag Electronics LLC) products with production equipment for the manufacture of weapons of mass destruction (WMD) or any other weapon is strictly prohibited. ✔ The exports of KE products or technology from one country to another are governed by the relevant security laws and regulation of the countries involved in the transaction.
- Page 3 Stack-able display board for stand-alone operation. • The communication port of RS-232 conformity is equipped. • Free control software and setting software are available from Kurag Electronics WEB site. • 3. Contents Listed items are included in this product package.
- Page 4 4. Names of parts and functions (Main board) 1. Power Supply Connector The range of supply voltage is DC 7 to 24V. 2. TEC(Peltier) and temperature sensor terminal It is a terminal which connects a TEC(Peltier) element and a temperature sensor. 3.
- Page 5 5. Names of parts and functions (Display board) 1. 2. Connectors for Main Board The connectors combine a display board with a main board. 3. 4. 5. Operation status LED lamps These LED lamps display the product operation status. 3. The temperature control is at work: Lights up “RUN” (GREEN) 4.
- Page 6 6. Connection 1) Connecting the display unit to the main unit. * The connection is already established in case of Main and Display set. Please align the direction of a substrate, and the position of two connectors, and insert straightly. If the direction is wrong or the position of each connector is shifted, you can not perform the connection physically.
- Page 7 7. Operation Display change by MODE key Every time when MODE key is pushed, the display of 7 segment LED changes as follows. Current temperature Push SET key Remaining Time (*) Push MODE key (*)Displays “---- “ at continuous operation mode. Push SET key Target temperature setting Push MODE key...
- Page 8 5%RH to 85%RH Storage -20°C to 60°C No condensation temperature/ humidity 5%RH to 90%RH TEC (Peltier) Controller PLC-24V6A Instruction Manual Date: July 28, 2017 （ Rev.2.20 ） Developer: T.S. Laboratory Corporation Manufacturer: Kurag Electronics LLC URL http://kurag.o.oo7.jp/kurag-el/ (8/8)
