WIRELESS CHARGING
POWER STATION USER MANUAL
ACC PS2 QU2 02

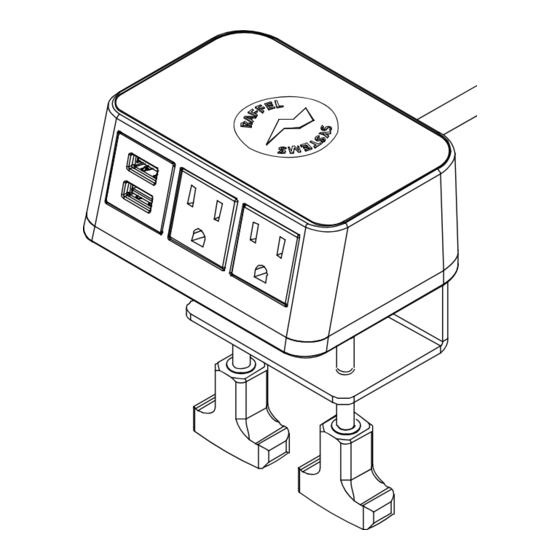

PRODUCT OVERVIEW*
*drawings are not to scale
power station
ASSEMBLY INSTRUCTIONS
1. Place mounting bracket on
bottom of the power station
888-987-1011 | raffel.com | customerservice@raffel.com
AC plug
cap
hand knob (x2)
screws (x4)
2. Attach mounting
bracket with four
screws provided
mounting bracket
3. Thread hand knobs
into mounting bracket
3. Add cap to hand knob
top (optional)
Advertisement
Table of Contents
Summary of Contents for RAFFEL SYSTEMS ACC PS2 QU2 02
- Page 1 WIRELESS CHARGING POWER STATION USER MANUAL ACC PS2 QU2 02 PRODUCT OVERVIEW* *drawings are not to scale AC plug hand knob (x2) mounting bracket screws (x4) power station ASSEMBLY INSTRUCTIONS 1. Place mounting bracket on 2. Attach mounting 3. Thread hand knobs 3.
- Page 2 ·Do not use attachments not recommended by the manufacturer. part, which option shall be the sole decision of Raffel Systems. This warranty is effective only on behalf of the original owner of the product and is not transferable. This warranty is effective only ·Keep all cords away from heated surfaces and pinch points.
