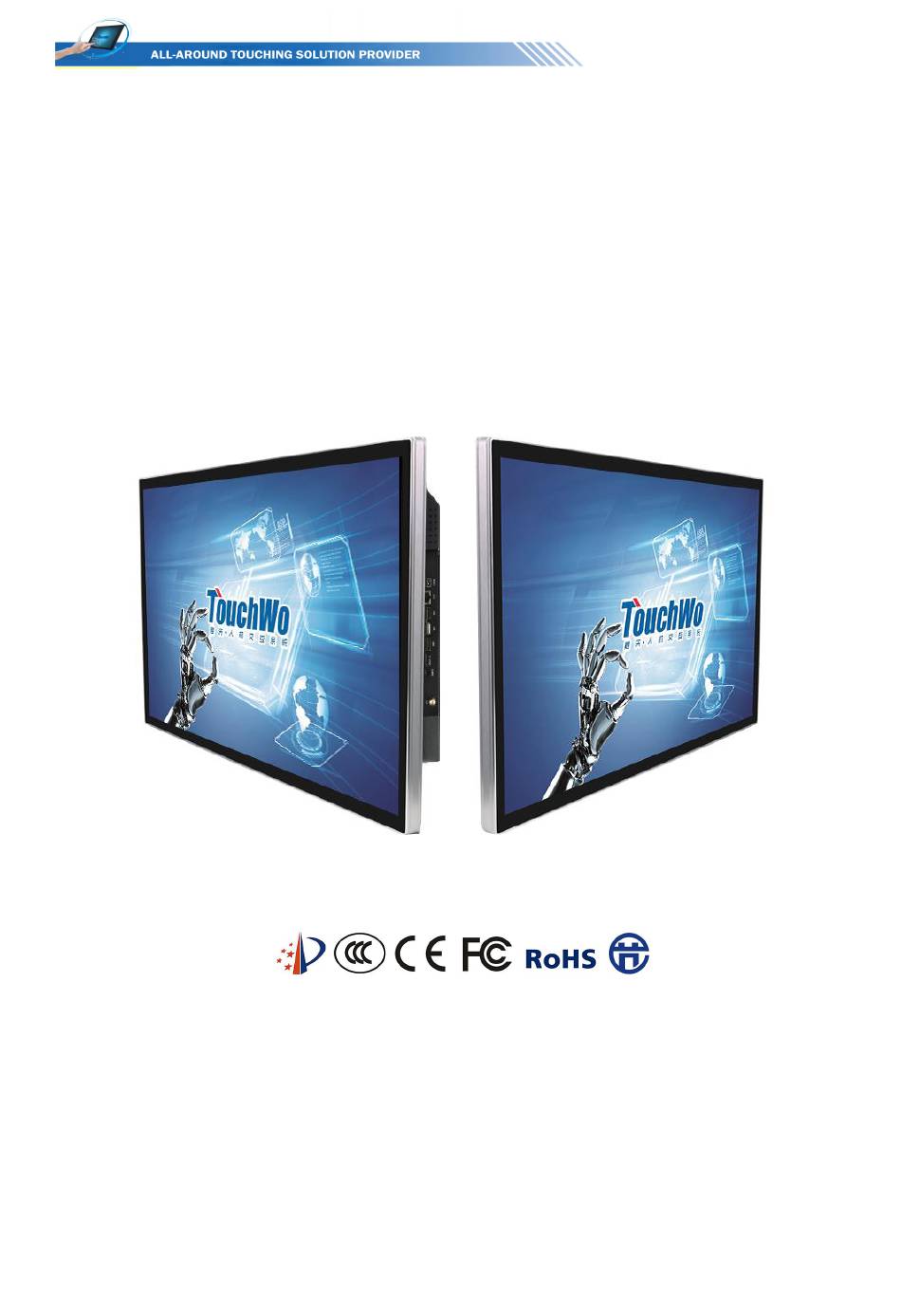

- Page 1 55 Inch Capacitive Touch Screen All In One/ Monitor （Model No.TD55HD） Guangzhou TouchWo Electronics Co., Ltd ——————— ————————————— Version V1.
-
Page 2: Table Of Contents
Catalog Product overview 1、 ………………………………………………………………………………1 1.1 Introduction …………………………………………………………………………………………………1 1.2 Features …………………………………………………………………………………………………1 Technical Parameters 2、 ……………………………………………………………………………2 System Design ………………………………………………………………………………………………2 LED Parameters ………………………………………………………………………………2 2.3 Touchscreen Parameters ………………………………………………………………………………3 Electrical Performance …………………………………………………………………………………3 Work Environment ……………………………………………………………………………………3 All In One Configuration ………………………………………………………………………………4 3、 Interface & Accessory Parameters ………………………………………………………………5 Touch Monitor Interfaces Parameters ……………………………………………………………………5... -
Page 3: Product Overview
Product Overview 1.1 Introduction TouchWo capacitive touch screen all-in-one /monitor is the most convenient & advanced human-machine interactive equipment. Which integrates many functions such as touch screen. Computer, multimedia, acoustics,network,industrial design and innovated structure etc. with pure flat structure combined with excellent performance of touchscreen to reach the real human-machine interactive. -
Page 4: Technical Parameters
Max. resolution Default is 1920*1080P (optional 3840*2160P ) Brightness Contrast ≥300cd/m2 ≥1200：1 Response time 6(Typ.)(Tr/Td) ms Refresh 60Hz No. of colors 16.7M（LVDS, 51 Pins） Angle of viewing Full viewing89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) Life time 30000H TD55HD Touchwo Touch screen All in one /Monitor... -
Page 5: Touchscreen Parameters
﹤115 W Windows Speaker power 8Ω5W ＜140W 2.5 Working Environment Working temperature 0℃-50℃ Working humidity 10% - 80% Relative humidity Storage temperature -5℃-60℃ Storage humidity 10% - 70% Altitude Below 5000 meters TD55HD Touchwo Touch screen All in one /Monitor... -
Page 6: All In One Configuration
3.1 Touch monitor interfaces DC port Audio VGA Input(15pins D-Sub) HDMI Input DVI Input USB touch port 3.2 Android AIO interfaces DC port Headphone RJ45 HDMI USB(OTG) WIFI TF /SD slot TTL/232 serial options TD55HD Touchwo Touch screen All in one /Monitor... -
Page 7: 3、 Interface & Accessory Parameters
Note: The interfaces and locations of different motherboards may vary, subject to availability. 3.4 Accessories Instruction manual Power cable Wall mount bracket Warranty card Certificate HDMI/USB cable 1 for each（default is 1.5 meter , for touch monitor only） WIFI Antenna 1（for Windows/Android AIO only） TD55HD Touchwo Touch screen All in one /Monitor... -
Page 8: 4、 Physical Specs & Drawings
55 inch Display area 1212* 683.7 mm （16：9） 1259.8（W）×731（H）×75.6（T）mm Machine dimension（W×H×T） 1360（W）×890（H）×173（T）mm Packing dimension（W×H×T） Stand Wall mount default（N.W 1.82 kg），Floor-Stand options Wall mount holes（L×W） 400×300 mm Wall mount screws 30 KG 35 KG TD55HD Touchwo Touch screen All in one /Monitor... -
Page 9: Drawings
4.2 Drawings Front View Back View TD55HD Touchwo Touch screen All in one /Monitor... -
Page 10: Pictures
Pictures 5.1 Product Views Note: The interfaces and locations of different motherboards may vary, subject to availability. 5.2 Details TD55HD Touchwo Touch screen All in one /Monitor... -
Page 11: Color
5.3 Color Black panel+Silver frame+Black back cover All Black More colors can be customized TD55HD Touchwo Touch screen All in one /Monitor... -
Page 12: Installation
5.4 Installation Standard with: Wall mount bracket More bases for Sale Penguin base Movable stand S type base For more color options, please contact sales TD55HD Touchwo Touch screen All in one /Monitor... -
Page 13: 6、Warning
When the temperature is below 0 °C, the screen may not work properly due to the deflection of the liquid crystal molecules. It is not recommended to use below 0 °C； The recommended ambient temperature for this product is 0-50℃，and humidity is 10%-80%。 TD55HD Touchwo Touch screen All in one /Monitor...
