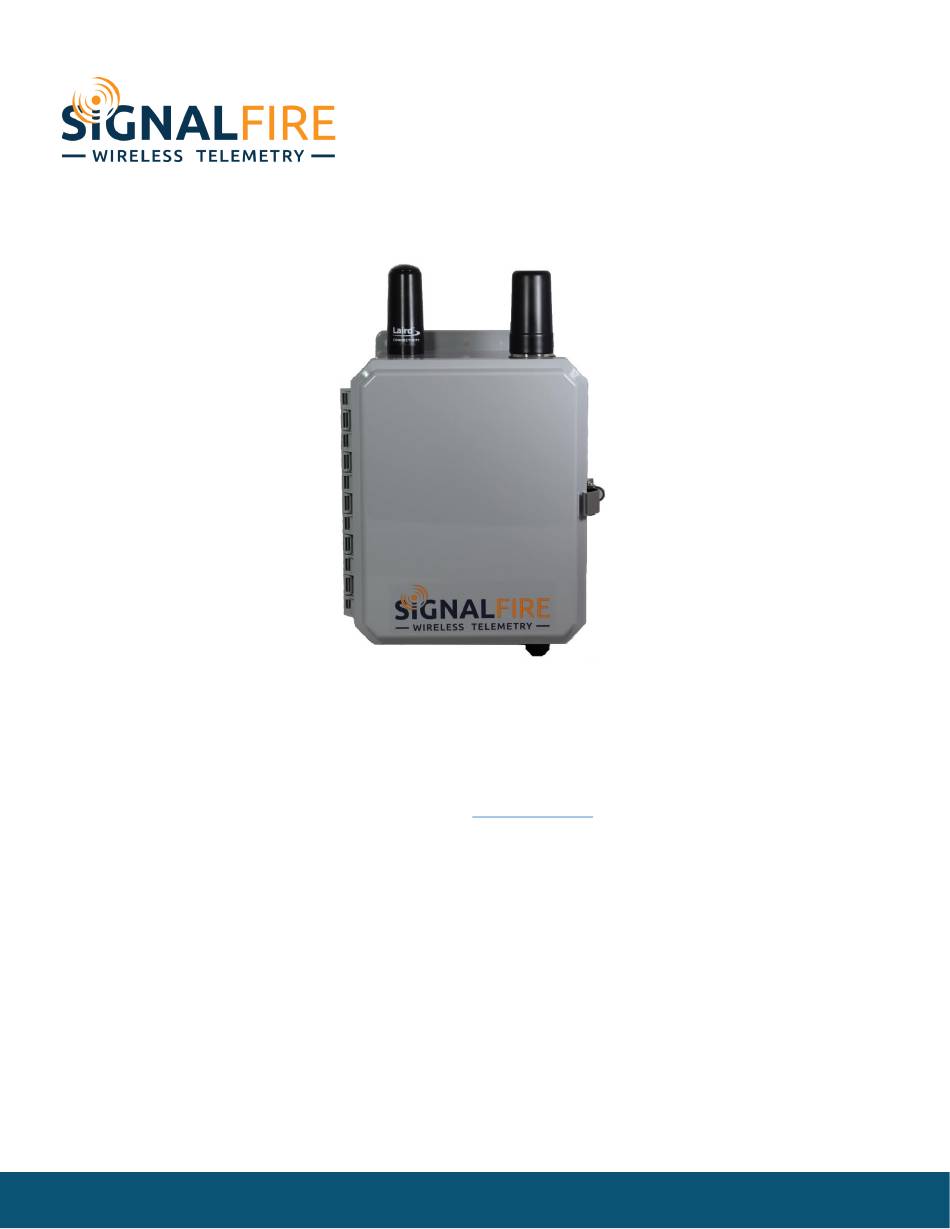

Ranger-900 Manual
The Ranger-900 is an integrated assembly that allows a local 900MHz radio network to communicate with the
SignalFire Cloud over an LTE-M1 cellular network.
-
DIN Gateway v2 and Ranger-Modbus integrated into a single enclosure
-
Solar panel, rechargeable battery, and power management system included
-
Configurable from the SignalFire Cloud website
-
SignalFire Cloud allows for data visualization, trending and alarming
-
Supports MQTT Sparkplug B communication protocol for connection to other servers
-
Compact and simple to install and maintain
-
Local configuration and diagnostics available using the SignalFire ToolKit and SignalFire Ranger ToolKit
-
Internal backlog of a minimum of 200 datapoints in the event of loss of signal. Backlog will be
automatically sent when the Ranger reconnects
Rev 1.1
signal-fire.cloud
1
Advertisement
Table of Contents
Related Manuals for SIGNAL FIRE Ranger-900
Summary of Contents for SIGNAL FIRE Ranger-900
- Page 1 Ranger-900 Manual The Ranger-900 is an integrated assembly that allows a local 900MHz radio network to communicate with the SignalFire Cloud over an LTE-M1 cellular network. DIN Gateway v2 and Ranger-Modbus integrated into a single enclosure Solar panel, rechargeable battery, and power management system included Configurable from the SignalFire Cloud website signal-fire.cloud...
-
Page 2: Specifications
Specifications Enclosure UL/NEMA 4X (IP66/68) rated Polycarbonate. 14.1” tall × 9.8” wide × 7.0” deep Power Source 10W solar panel, 12A-hr rechargeable SLA battery backup, 4.5A battery management system. Or optional 10-30VDC input Temperature -40°C to +85°C Rating SIM Slot Nano SIM card (LTE Cat M SIM and data plan required) Local config port Micro-USB (RANGER), DB-9 (Gateway) -
Page 3: Mechanical Dimensions
Mechanical Dimensions Rev 1.1... -
Page 4: Table Of Contents
Table of Contents Specifications ..................................2 Mechanical Dimensions ................................3 Table of Contents ..................................4 Hazardous Location Certification ............................5 Overview ....................................5 Power ...................................... 5 Software Configuration ................................5 Sensor Connections................................. 5 Setup ....................................... 6 Power ...................................... 6 Cloud ....................................... 7 Gateway .................................... -
Page 5: Hazardous Location Certification
RANGER data. Power The RANGER-900 is powered by a 10W solar panel, with a rechargeable 12A-hr SLA backup battery. A fully charged battery can provide power for over 16 days. An optional DC input is also available for situations were local power exists. -
Page 6: Setup
Setup Power The solar panel and battery will be packed separately and need to be assembled with the enclosure. Please follow the step-by-step instructions below to get power to the system. 1. Unlock the enclosure and open the door. 2. Pull the solar panel’s wire in through the cable gland on the underside of the enclosure and land them on the terminals as shown below, such that red goes to red and black goes to black. -
Page 7: Cloud
5. Insert the disconnects on to the battery’s tabs, red to red, black to black. The system will then be fully powered on. Cloud RANGER-900’s purchased with the SignalFire Cloud service come with a pre-installed SIM card. Customers will require a login to access the SignalFire Cloud server (signal-fire.cloud). Fill out the request form here: https://signal-fire.com/lte-m1-cellular-products/cloudregister/... -
Page 8: Ranger
RANGER The RANGER can be programmed to pull individual registers from the Gateway from the various nodes. To do so, click on the “Configure” button on the Modbus tile. The RANGER can read up to 32 datapoints (or 96 with an expanded subscription) from up to 8 connected devices. - Page 9 In the example above, the RANGER is transmitting information from a Pressure Scout as well as the Gateway’s supply voltage. Clicking on “Show In Trend” will add that register to the historical data view at the bottom of the page. Clicking on “Modify” will bring a pop-up to configure alarms, or to do a register write to set a Modbus value in a register.
-
Page 10: Cloud Setup And Information
Cloud Setup and Information Full documentation on using the SignalFire Cloud features and how to remotely configure your RANGER is available in an online knowledge base. The manual provides instructions on user management, configuring alarms, generating reports, and more. Whether you are a new or experienced user, this manual serves as a valuable resource to maximize the platform's capabilities. -
Page 11: Technical Support And Contact Information
Technical Support and Contact Information SignalFire Telemetry 140 Locke Dr, Suite B Marlborough, MA 01749 (978) 212-2868 support@signal-fire.com Revision History Revision Date Changes/Updates 05/14/21 Initial release 08/02/23 Updated to reference RANGER-DIN and added DC power option Rev 1.1...
