[ ] Slide Switch (TOG-BR100 only)
~
ncreasestheWidthOftheglasses
b:J ---.
Set both the switches on either side for a
comfo~table
fit. Close
~
the temple frames slightly inwards to set the SWItch.
W-~
Decreases the width of the glasses
Please keep the IR Sensor clean.
[§]
Power Button
Power on: Press once
Power off: Hold power button down for 2 seconds
• Auto power off: More than 5 minutes without IR signal
lID
Nose pad (TOG-BR100 only)
Adjust the nose pad for a comfortable fit.
[l]
Temple frames (TOG-BRl 00 only)
You can bend (adjust) the temple frames for a comfortable fit.
Replacing the battery
If the LED indicates low battery power, replace the battery. Use a CR2032 battery.
TOG·BR100
CD
Push the button.
When opening or closing the battery cover, make sure the coin, etc., is properly inserted in the
groove of the battery cover.
@]
IR Sensor
Receiving signals from the 3D Sync Transmitter.
ThispartreceiveSIR~
(infrared rays) from the
3D Sync Transmitter.
IR's entry angle differs according to distance or usage environment.
..
~ Battery Cover
Detaching or opening the cover when replacing the battery.
~ LED indicator
Flashes one time every 3 seconds: Power on
Flashes three times every 3 seconds: Low battery: Battery capacity is almost running out.
Flashes three times: Power off
Troubleshooting
In the event of a problem, refer to the TV's instruction manual.
Refer to Sony website for Ihe latest information.
For United States
www.sony.com/tvsupport
For Canada
www.sony.ca/support
TOG-BRSO
• Push the button of the battery cover with the tip of a pen, elc. (Q))
• Slide the battery cover upward to open. (®)
• Slide the battery cover to close. (@)
Pouch (1)
3DGlasses(1)
Pouch (1)
Pursuant to FCC regulations, you are cautioned that any changes or modifications
not expressly approved in this manual could void your authority to operate this
equipment.
For Customers in Canada
This Class B digital apparatus complies with Canadian ICES-003.
Precautions for use
• The 3D Glasses are operated by receiving infrared rays from the 3D Sync Transmitter.
Mis-operation may occur if:
- The 3D Glasses do not face the 3D Sync Transmitter
- If there are objects blocking the path between the 3D Glasses and the 3D Sync Transmitter
- If there are other infrared communication devices or lighting equipment, residential heating
equipment, etc. nearby, this may affect their performance.
• Watch the TV using the 3D Glasses, facing squarely towards the TV.
• 3D effect is inadequate and screen color will be shifted with lying down position or leaning your head.
• To preserve our environment dispose of used batteries according to your local laws or regulations.
Safety Precautions
• You should only use this product for watching 3D video images on a compatible Sony television.
• Some people may experience discomfort (such as eye strain, fatigue, or nausea) when using Ihis
product. Sony recommends that all viewers take regular breaks while watching 3D video images or
playing 3D stereoscopic games. The length and frequency of necessary breaks will vary from person
to person. You must decide what works best. Ifyou experience any discomfort, you should stop using
this product and watching the 3D video images until the discomfort ends; consult a doctor if you
believe necessary. You should also review (i) the instruction manual of your television, as well as any
other device or media used with your television and
(ii)
Sony website for the latest information. The
vision of young children (especially those under six years old) is still under development. Consult
your doctor (such as a pediatrician or eye doctor) before allowing young children to watch 3D video
images or play 3D stereoscopic games. Adults should supervise young children to ensure they follow the
recommendations listed above.
• Do nol drop or modify these 3D Glasses.
• If these glasses are broken, keep broken pieces away from your mouth or eyes.
• Keep children away when replacing the battery or opening the battery cover. If a child swallows
the battery or battery cover, consult a doctor immediately.
• Do not dispose of the batteries used in 3D Glasses in a fire.
• When replacing the battery, insert it using the correct
+/-
orientation.
• Use only the specified battery for this product: Lithium coin cell battery, CR2032.
• Be careful not to pinch your fingers in hinges when bending the temple frames.
• Do not use, store, or leave the 3D Glasses or the battery near fire, or in places with a high
temperature, e.g., in direct sunlight, or in sun-heated cars.
Maintenance of your Glasses
• Wipe the Glasses gently with a soft cloth.
• Stubborn stains may be removed with a cloth slightly moistened with a solution of mild soap and
warm water.
• If using a chemically pretreated cloth, be sure to follow the instructions provided on the package.
• Never use strong solvents such as a thinner, alcohol or benzine for cleaning.
FCC Related Information
This equipment has been tested and found to comply with the limits for a Class Bdigital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
o
Reorient or relocate the receiving antenna.
o
Increase the separation between the equipment and receiver.
Parts and Components
TOG-BR100
1
Before use
~
Remove the battery's insulating sheet before using
-.;
m
the product for the first time.
t
4-198-235-11 (1)
1
1.7
oz.
(49
g
(including
battery))
1
6 xl
5/ 8 X
6
1/4
inches
(152 x 40 x 157 mm)
This device complies with part 15 of the FCC
rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any
interference received, including interference that
may cause undesired operation.
TDG-BR100
Up to 100 hours of battery life
The battery life will vary based on usage patterns,
environmental condition (temperature) and the battery
brand(s).
2.7 oz. (77
g
(including
battery))
CR203213V
7
l/~
x 1
S/3 X
7 L14 inches
(l79x40x183mm)
Owner's Record
The model and serial numbers are
located at the side and rear of the
product. Record these numbers in
the spaces prOVided below.
Refer to them whenever you call
upon your Sony dealer regarding
this product.
Model Name
Serial No.
-jAppnlx.)
(wxhxcll
© 2010 Sony Corporation
Printed in China

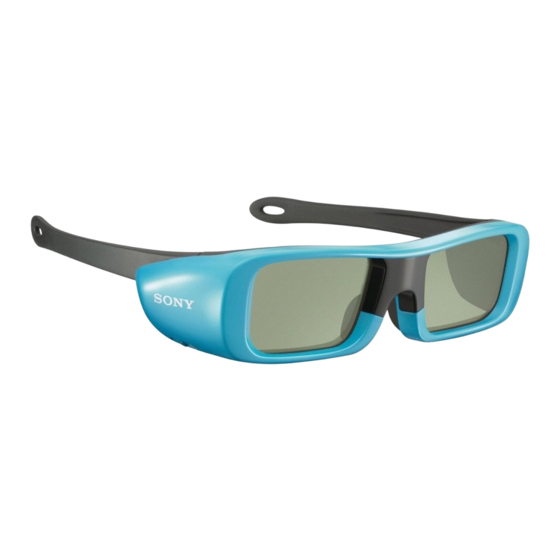

Product Overview
You can enjoy video programs in 3D.
For details on how to enjoy 3D viewing or to make settings, refer to the TV's instruction manual.
Specifications
Caution
Please read these safety instructions to ensure your personal safety and prevent property damage.
3D Glasses
Instructions
Mode d'emploi
Manual de instrucciones
http://www.sony.net!
TDG-BR100/BRSO
