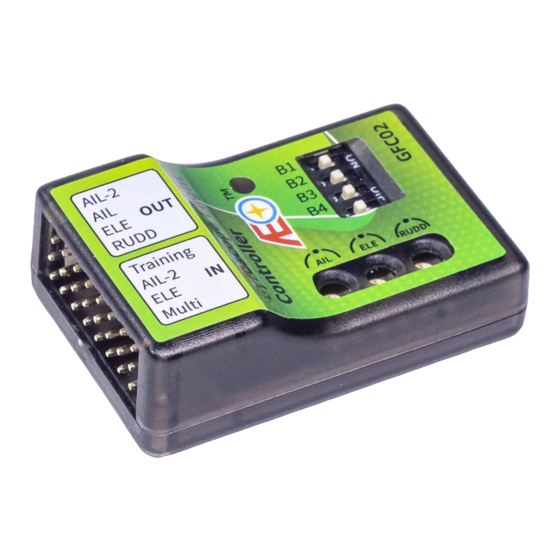

AEO GFC02 Instructions

TM
产品规格 Product specifications
工作电压：4.5-6V Working voltage ：4.5-6V
响应频率：100Hz Response frequency ： 100Hz
工作温度：0-50℃ Working temperature : 0-50℃
尺寸： 43*28*15 Size : 43*28*15mm
重量：11g Weight: 11g
首次使用注意事项 Notice in first use
1 舵机使用中带来的压降可能会影响飞控的稳定，请注意保证稳定的工作电压。
The voltage drop caused by the use of the servo may affect the stability of flight control. Please pay attention to ensure a stable working
voltage.
2 三角翼/V尾机型请先关闭遥控器内部混控。
For Delta wing/V-tail models, please turn off the internal mixing control of the remote control firstly.
3 若在飞行中调整了微调，请在降落后进行断电重启或中立点校准。
If micro adjustments are made during flight, please perform power off and restart or neutral point calibration after landing.

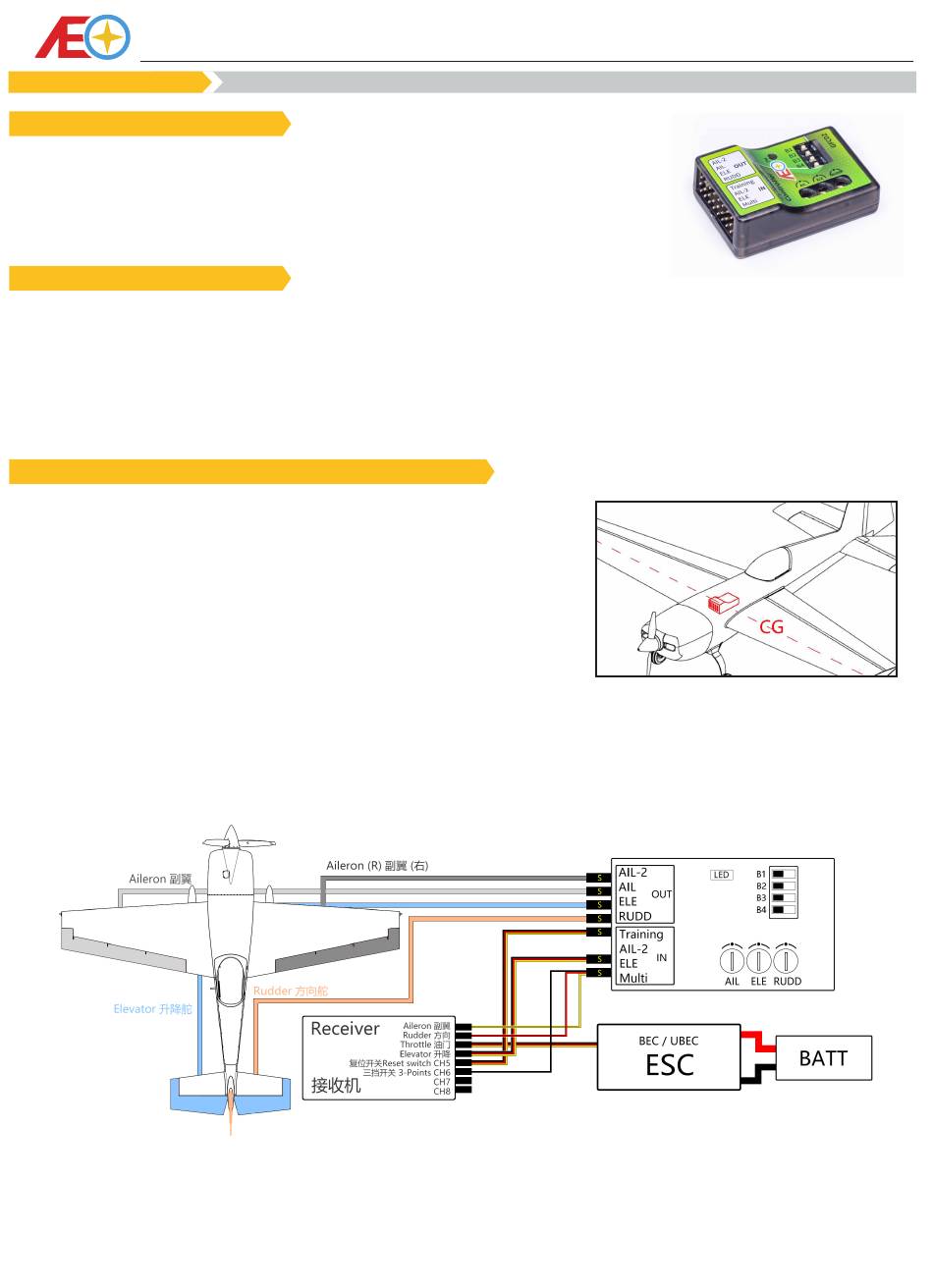

设备安装&线路连接Equipment installation & line connection
设备安装

Equipment installation

1 正常安装固定翼电子设备并调试好。
Install and debug the fixed wing electronic equipments normally.
2 将飞控设备长边与机身平行，标签面超上，尽量靠近重心和中心线处粘牢。
Place the long side of the flight control device parallel to the fuselage, the label
surface upwards, and as close to the center of gravity as possible and glue firmly at the
center line.
线路链接
（不同接收机的通道定义不同，请注意。）

Line connection

(Channel definitions vary for different receivers, please note.)
1 副翼Y线模式
Aileron y-Y-line pattern
2 左右副翼单独控制（遥控器需要设置双副翼通道，适用于襟翼副翼混控模式）
Left and right aileron are independently controlled (remote control require to set up double aileron channel, suitable for
flap aileron mixing mode)
Gyroscope Flight Controller Instruction 使用说明
