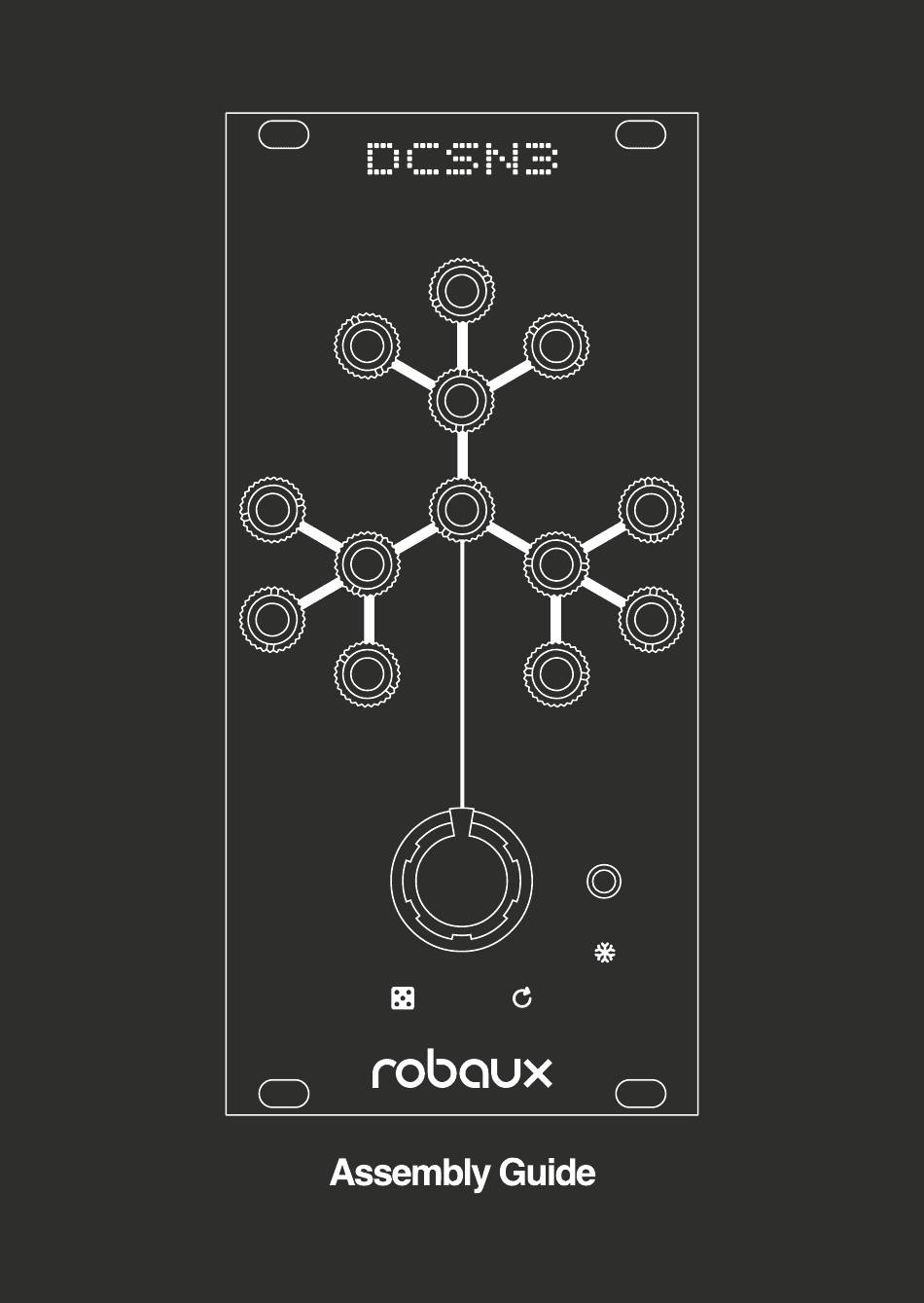

Page 2: Assembly Guide
Assembly Guide With this kit, you can swiftly build your DCSN3 using the provided assembly instructions and all necessary components. You‘ll need a soldering iron, wire cutter, solder, desoldering pump, and nut driver. Follow the instructions carefully in the correct order for a successful build. - Page 3 Resistor 10K Next, solder the three 10K resistors to the board. Iden- tify them by their color code: brown, black, orange, gold. Resistor 100 Now, solder the four 100-ohm resistors to the board. Iden- tify them by their color code: brown, black, brown, gold.
- Page 4 Crystal Solder the 16MHz crystal as shown in the picture. Capacitor 220 Solder the two 220 capacitors to the board as indicated in the picture.
- Page 5 Rectifier Now, solder the rectifier to the PCB according to the arrange- ment displayed in the picture. Ensure that the - and + symbols on the board align with the corresponding symbols on the rectifier. Socket and IC Solder the IC sockets to the board, starting with the outer pins and then the remaining ones.
-
Page 6: Pin Header
Pin Header Place the pin header as shown in the picture. It is the shorter pins of the header that you solder in. Voltage regulator Solder the voltage regulator fol- lowing the arrangement shown in the picture. Ensure the flat side faces up and the round side faces down. - Page 7 Diodes Solder the remaining 12 diodes upright on the board as shown in the picture. Pay attention to the polarity, aligning the stripe on the printed diode symbol with the black mark on the diode. Resistor 1K Solder the 1K resistors upright to the board following the arran- gement in the picture.
-
Page 8: Tact Switch
Capacitors Solder the two Electrolytic Ca- pacitors to the board following the picture. Pay attention to the Capacitors‘ polarity, ensuring that the blue mark aligns with the mark on the PCB. Tact Switch Insert the tact switch and solder it directly onto the board. Ensu- re there is no space between the board and the switch when soldering. -
Page 9: Power Socket
Power Socket Flip the board over and solder the power connector onto the other side. LEDs Plug the 12 LEDs into the board according to the picture. Don‘t soldering them for now. Double-check and pay attention to the polarity of the LEDs: the long leg should be inserted into the + hole, while the short leg should go into the - hole. - Page 10 Thonkiconns Take the 13 Thonkiconn Jacks and position them on the PCB. Avoid soldering the jacks at this stage. For jacks with an LED attached at the upper end, cut off the ground leg. The jacks will still be connected to the ground via the front panel.
- Page 11 Nuts Screw the sockets and the potentiometer to the front panel using nuts. After aligning all components, solder the sockets first, then the potentiometer, and finally the LEDs onto the board. Knob Finally, attach the knob to the potentiometer, and your mo- dule is ready to go! Enjoy your creation!
