TRYSIGHT Magnibot User Manual

Robotic, wireless distance camera

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Magnibot

User Guide / Version 1.2

Table of Contents

Need help?

Do you have a question about the Magnibot and is the answer not in the manual?

Questions and answers

Summary of Contents for TRYSIGHT Magnibot

Page 1 Magnibot User Guide / Version 1.2...
Page 2: Table Of Contents
Table of Contents Introduction to Magnibot ---------------------------------------- 3 What’s Included ---------------------------------------------------- 4 Using Magnibot ----------------------------------------------------- 5 Connecting to Magnibot ------------------------------------------ 6-7 Menu Bar ------------------------------------------------------------- 8-9 Settings Menu ------------------------------------------------------- 10-11 Camera Options ----------------------------------------------------- 12 Moving Magnibot---------------------------------------------------- 13 Connect to Internet-------------------------------------------------- 14-15...
Page 3: Introduction To Magnibot
Before using your Magnibot, please make sure that it is fully charged. To charge the device, connect the included USB cable to the Magnibot and plug the other end into a power source. Charging time will vary depending on the amount of power remaining in the device, but it typically takes about 2 hours for a full charge.
Page 4: What's Included

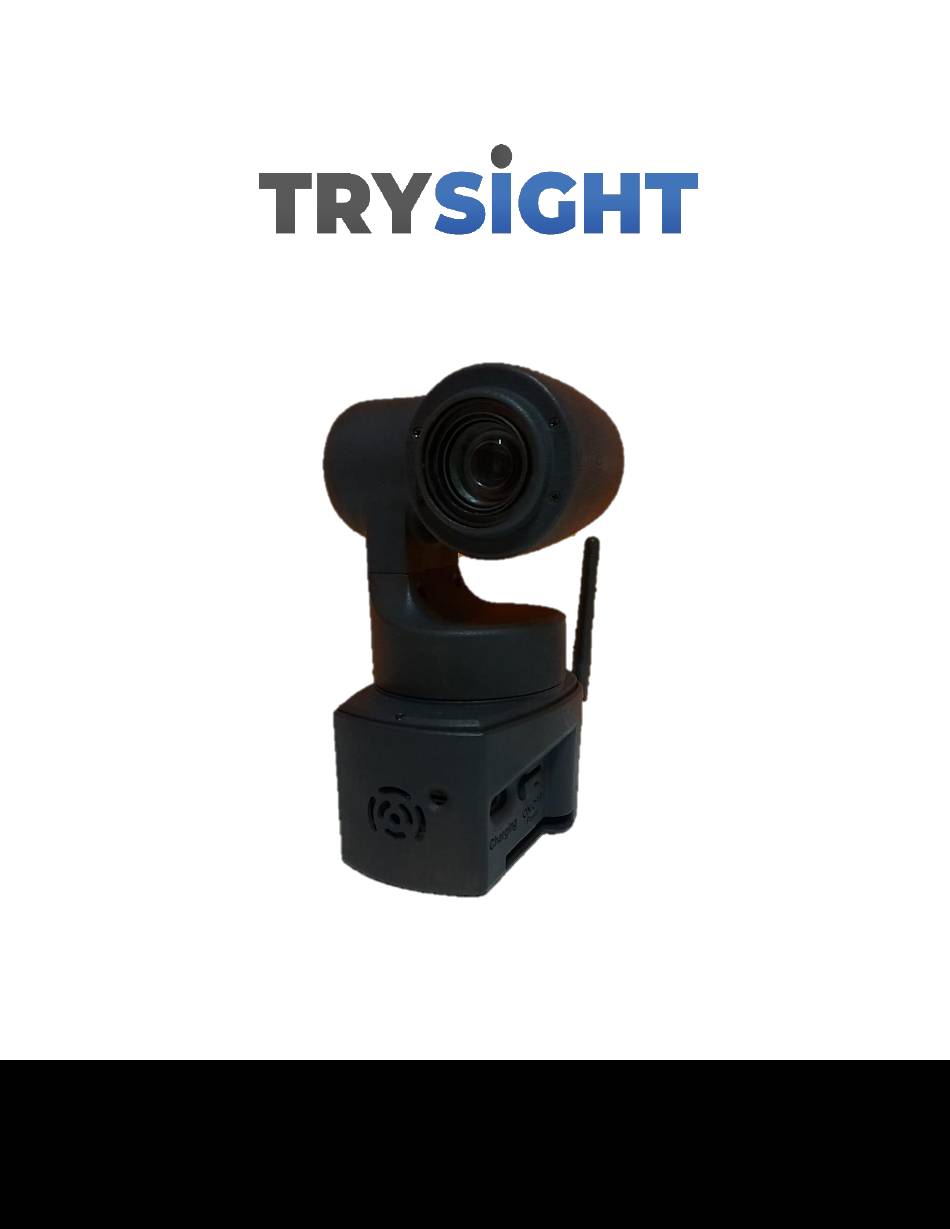

What’s Included  Camera  Wireless Antenna  Charger with USB C Cable  Magnibot Stand (optional)  User Manual...
Page 5: Using Magnibot
Using Magnibot TURNING ON/OFF  To turn on the Magnibot, press the power button for 1 second. A red light will appear in the front of the device indicating the unit is turned on.  To turn off the unit, press the power button for 3 seconds.
Page 6: Connecting To Magnibot
 Ensure “Connect automatically” is unchecked from any other available networks on your machine. Leaving this checked will cause your machine to disconnect from the magnibot and connect to another network without your knowledge.  Once, connected, open a web browser and go to URL 192.168.4.1...
Page 7  Video from the camera will appear in the browser with an arrow as shown below Clicking this arrow displays a Menu Bar with various features on the Magnibot.
Page 8: Menu Bar
Menu Bar Tab Up to hide the menu Battery Level Indicator Rotate Camera Up Rotate Camera Down Rotate Camera to the Left Rotate Camera to the Right Zoom In Zoom Out...
Page 9 Toggle Color Capture an image Toggle Near/Far (Only available when placed on stand) Settings...
Page 10: Settings Menu
Settings Menu To open the settings menu, click the settings icon Color Modes  Color Options to cycle through. Frequency  Camera Refresh Frequency. Motor Movement  Camera Movement Speed (slow/fast).
Page 11 Other Settings Click to reset to Default Brightness Click to reset to Default Contrast Increase Brightness/Contrast Decrease Brightness/Contrast Format Efficient/Fast Adjust resolution 720p/1080p Connect to a Wifi Network via the Magnibot (Camera will reboot after 1-2 min)
Page 12: Camera Options
Camera Options Pause/Play Video Capture an image (autosave to your downloads folder) Record video (autosave to your downloads folder)
Page 13: Moving Magnibot
Moving in an unclear direction such as at a 45 degree angle will display a red circle indicating Magnibot isn’t sure where to move. Increasing the drag amount will make Magnibot move faster and vice versa.
Page 14: Connect To Internet
Reboot the device after inserting the antenna to enable internet connectivity. Open the Magnibot Menu, click the Settings Icon and then the Wifi Icon to see the list of available Wifi Networks. Click the Wifi network to connect to and enter the Wifi password and click...
Page 15 Note: Use the “Advanced” button to enter optional login credentials for your Wifi network. Advanced button...
Page 16: Near Viewing With Stand
Open the stand to the vertical position as shown below. Insert the magnibot into the stand using the slit at the bottom of the Magnibot. Once the Magnibot is in the stand, an icon will appear in the menu to toggle between near and far viewing.
Page 17 Only appears when using stand Clicking the toggle icon moves the Magnibot between near and far viewing. Please allow a few seconds for the device to complete this step after clicking the button. The Magnibot will remember your preferred color and zoom settings for both near and far viewing and will automatically switch between the two depending on the device orientation.
Page 18: Warranty And Conditions
Warranty Conditions TrySight's Magnibot warranty is free of defect in material, software and hardware for one (1) year from purchase date. This warranty extends only to the original purchaser and is not transferrable. For any manufacturer's warranty claim/s, contact TrySight or your authorized nearest distributor.
Page 19: Contact Us
Contact Us You can either contact your nearest authorized dealer or you may also contact us directly at: Visit us online: www.trysight.com E-mail us: sales@trysight.com Call us: 1-866-499-2921 Meet us: 2364 Haines Road, Unit #16, Mississauga, ON, Canada, L4Y 1Y6...
