Summary of Contents for sky rider X-72 JETLINER

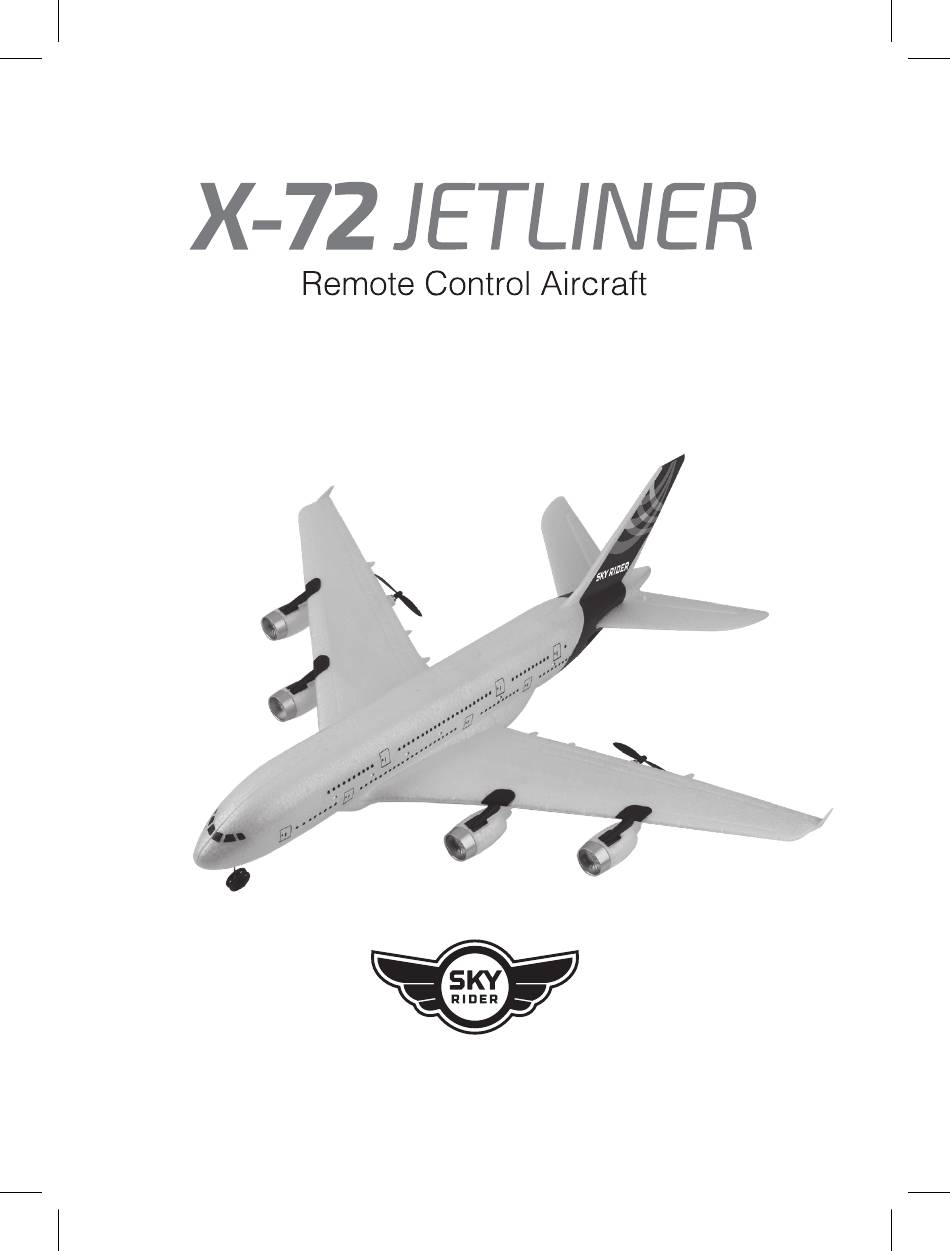

- Page 1 User’s Guide for Model DR472-v2932-01...
- Page 3 Warnings & Precautions Important Safety Instructions • Reorient or relocate the receiving antenna. • Read and follow all instructions. • Increase the separation between the equipment and • Keep these instructions for future reference. receiver. • Heed all Warnings. • Connect the equipment into an outlet on a circuit •...
-
Page 4: Table Of Contents
Table of Contents X-72 JETLINER – 5 Trim Adjustment – 14 Features Setting Pitch Trim & Countering Drift Includes Pitch Settings Reset Assembly – 6 Flying Tips & Features – 16 Tips for Safe Operation Overview – 7 Speed Setting Craft Layout &... -
Page 5: X-72 Jetliner
X-72 JETLINER Features Includes • 3 speeds: low, medium, high • 2.4 GHz remote control: requires 4 AA batteries (not included) • Control distance: up to 656 feet • Built-in rechargeable lithium-polymer • 3-channel control battery • LED lights • USB cable for battery recharge •... -
Page 6: Assembly
Assembly Wheels Plane Body Fuselage Plug the fuselage into the socket on the Slide the Fuselage into the plane body plane. slot. Secure the Fuselage onto the plane using Slide the Wheels into the plane wheel the included screw. slots at the bottom of the plane. -
Page 7: Overview
Overview Craft Layout & Features FRONT Wings Wings Rotor Rotor Rudders... -
Page 8: Remote Control
Remote Control Functions Emergency Speed Setting Stop Low/Med/High Press and hold to Power Switch immediately stop & Indicator the craft. Light Pitch Reset Indicator Press to light ON/ restore pitch settings to Press to turn default. RESET LIGHTS lights ON/ OFF. -
Page 9: Battery Installation
Remote Control Battery Installation Use a screwdriver to remove battery cover. Insert 4 x AA batteries (not included). -
Page 10: Charging The Battery
Charging the Battery Battery Charging Procedure The craft’s battery must be charged before it can be flown. Before charging, be sure the craft and remote control are powered OFF to avoid risk of injury or damage. Connect the charging cable (included) to the USB port of a powered ON computer or USB power adapter (not included), then connect the charging plug to the unit. -
Page 11: Flying
Flying Craft/Remote Link Before flying, the craft and the remote must be linked together and the gyroscopes on the craft must be allowed to calibrate. Begin with the craft and remote powered OFF. Step 1 Power the craft ON by flipping the ON/OFF switch located at the bottom of the craft. - Page 12 Step 2 Place the craft on a flat, level surface. This is necessary for a clean take off. You may also start flight by throwing the craft forward in a straight line. Step 5 Use the left control stick (Throttle) to contorl the speed of the craft. Once the craft reaches the correct speed, push down on the right control stick (Directional Control) to lift the craft for flight.
-
Page 13: In Flight Controls
In Flight Controls Input Maneuver Input Maneuver When You’re Done Flying When landing, descend the craft using the directional control, then slowly pull the Left Control Stick (throttle) rearward to power down and wait for the rotors to stop spinning. Power OFF the remote BEFORE powering OFF the craft. -
Page 14: Trim Adjustment
Trim Adjustment Setting Pitch Trim & Countering Drift Even after the craft is calibrated, it may show a tendency to drift while airborne. Adjusting the Pitch will help counter this effect and allow for better control the craft. • To avoid potential damage, adjust the trim while attempting a stable hover. •... -
Page 15: Pitch Settings Reset
Pitch Settings Reset If the craft is still experiencing difficulty flying or is behaving erratically, it may help to reset the craft and remote to default settings. Be sure that the remote and craft are linked and begin on a flat level surface. Perform the reset by pressing the Reset The LED formation lights will blink while the craft resets, when the LEDs stop blinking the reset is complete and the craft is ready to fly again. -
Page 16: Flying Tips & Features
Flying Tips & Features Tips for Safe Operation • It is recommended to only fly large, outdoor, open spaces that are free of obstacles like power lines, trees, cars, etc. • Stand behind the craft when first taking off, so that you and the craft are facing the same “forward”... -
Page 17: Parts & Repair
Parts & Repair REMINDER: Pilots are responsible for any damage caused by improper use. Parts Replacement Standard parts such as extra batteries and remotes are available online for purchase when in stock. However, any non-standard parts such as cameras, screws, bodies, SD cards etc. can be ordered by placing an inquiry with our parts department at: partsinfo@dpiinc.com. -
Page 18: Troubleshooting
Troubleshooting If you are experiencing problems using or flying the craft, consult this table. PROBLEM POSSIBLE CAUSES SOLUTION Craft does not • No power to remote • Check remote batteries, or craft. replace if needed. respond to controls. • Craft is out of range. •... -
Page 19: Customer Support
Customer Support Contact Information Warranty Website: www.gpx.com See included 30 Day Warranty for warranty information. Warranty and the most up-to- Email Support: prodinfo@dpiinc.com date version of this User’s Guide can also be found at: www.gpx.com Email Parts: partsinfo@dpiinc.com Phone Support: 1-888-999-4215 International Support To download this User’s Guide in English, Spanish, and French, or to get answers to frequently asked questions, visit the support section at: www.gpx.com...
