TMT PAPILLON 250 User Manual

Articulated arm openers
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
PAPILLON 250
ARTICULATED ARM OPENERS
24V DC GEAR MOTOR
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PAPILLON 250 and is the answer not in the manual?

Questions and answers

Related Manuals for TMT PAPILLON 250

Summary of Contents for TMT PAPILLON 250

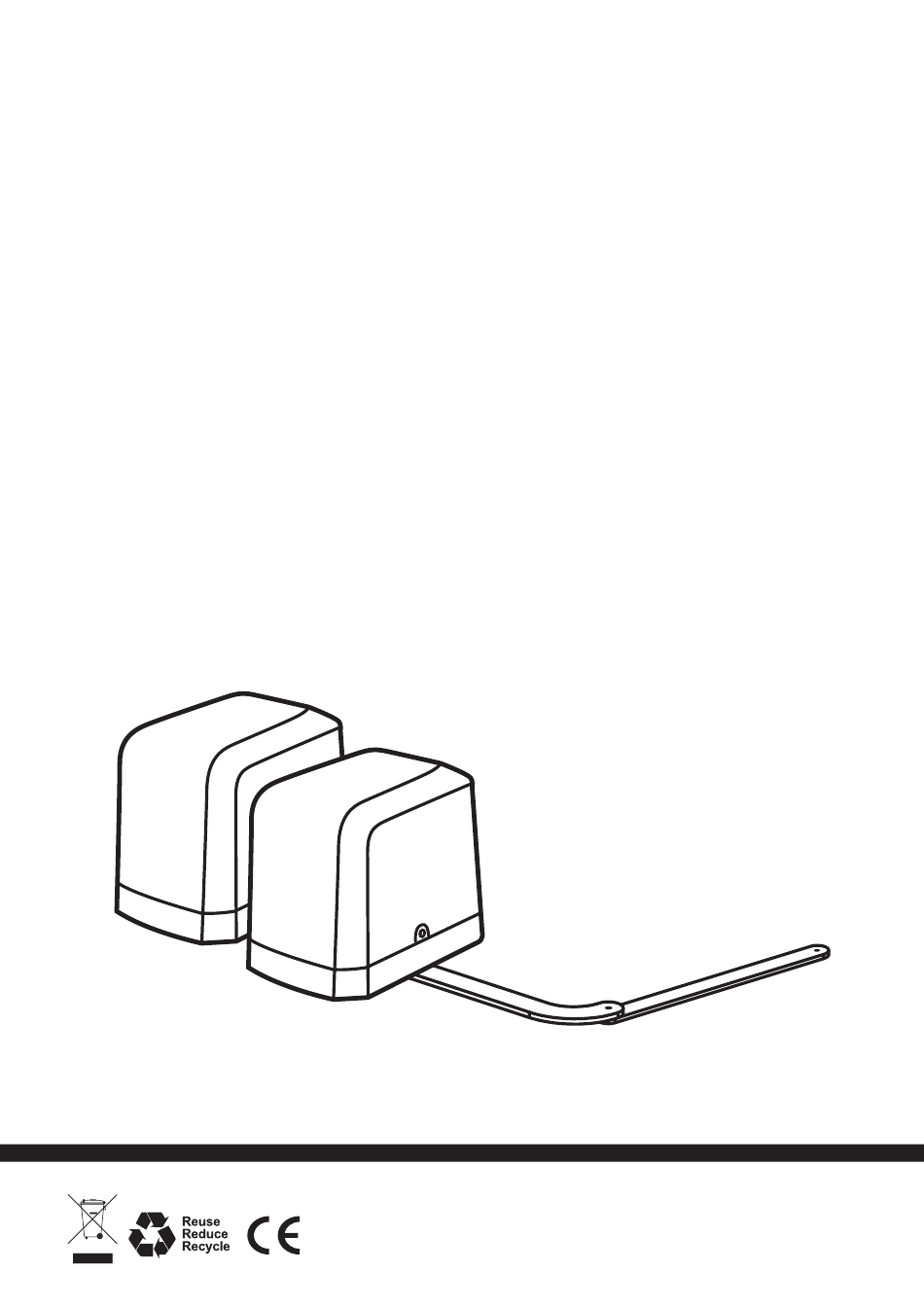

  • Page 1 PAPILLON 250 ARTICULATED ARM OPENERS 24V DC GEAR MOTOR USER MANUAL...
  • Page 2 INDEX 1.1 WARNINGS 1.2 MOTOR INSTALLATION 1.3 DIMENSION CHART 1.4 COMPONENTS OF INSTALLATION 1.5 INSTALLATION OF ARTICULATED ARM OPENER 1.6 EMERGENCY RELEASE 1.7 POWER SUPPLY CONNECTIONS 2.1 WIRING CONNECTION 2.2 MASTER MOTOR IS INSTALLED AT LEFT SIDE 2.2.1 STANDARD INSTALLATION 2.2.2 ADVANCED INSTALLATION (MOTOR WITH LIMIT SWITCH) 2.3 MASTER MOTOR IS INSTALLED AT RIGHT SIDE 2.3.1 STANDARD INSTALLATION...

  • Page 3: Motor Installation

    1.2 MOTOR INSTALLATION 2x1.5 mm 4x0.5 mm RX - 4x0.5 mm TX - 4x0.5 mm 2x1.5 mm 2x1.5 mm Optional Optional 1. 24V DC blinker with integrated antenna 2. Push Button 3. Photocells 4. 24V DC articulated arm opener 5. PR-1 Transmitter 1.3 DIMENSION CHART Plea n the chart for proper installation.

  • Page 4: Components Of Installation

    1.4 COMPONENTS OF INSTALLATION Straight arm 1 pce Curved arm 1 pce U-shaped fixing plate 1 pce Mechanical stopper 2 pcs Front-end fixing bracket 1 pce Screw 4 pcs Nut Ø10 2 pcs Screw 2 pcs Gasket 2 pcs Screw 2 pcs Spring washer 4 pcs...

  • Page 5: Emergency Release

    3) Install the motor on the U-shaped fixing 4) After positioning the front of curved arm on the bottom of motor, plate with corresponding screws and nuts. release the motor and position the minor arm on the end of curved arm and mounting bracket with corresponding screws and nuts.

  • Page 6: Power Supply Connections

    1.7 POWER SUPPLY CONNECTIONS Please kindly notice that the operation of power connection should be carried out by a qualified electrician with following steps: 1). Make sure the gearmotor is not connected to the power supply before the installation is done. 2).
  • Page 7 2.2 MASTER MOTOR IS INSTALLED AT LEFT SIDE 2.2.1 STANDARD INSTALLATION Physical stopper mounted under motor unit (optional) + Driveway gate stopper (optional) Figure 2(2) Motor1 Power Motor1 Power Motor2 Power 2.2.2 ADVANCED INSTALLATION (MOTOR WITH LIMIT SWITCH) Figure 2(3) Limit Switch Limit Switch Motor1 Power...
  • Page 8 2.3 MASTER MOTOR IS INSTALLED AT RIGHT SIDE 2.3.1 STANDARD INSTALLATION Physical stopper mounted under motor unit (optional) + Driveway gate stopper (optional) Figure 2(5) Motor2 Power Motor1 Power 2.3.2 ADVANCED INSTALLATION (MOTOR WITH LIMIT SWITCH) Figure 2(6) Limit Switch Limit Switch Motor2 Power Motor1 Power...

  • Page 9: Transmitter Memorizing And Erasing Process

    2.4 TRANSMITTER MEMORIZING AND ERASING PROCESS (A) Transmitter Memorizing: Press and hold the “RF-LEARN” button on the PCB for 1 second and then the blue LED indicator on the RF board will be “ON”. Press A button for dual-gate installation ; press B button for single-gate installation on the transmitter within 5 seconds.

  • Page 10: Restore Default Setting

    SYSTEM LEARNING IN PROCESS A. Dual Gate: Slave Gate Close → Master Gate Close → Master Gate Open → Slave Gate Open → Slave Gate Close → Master Gate Close B. Single Gate : Master Gate Close → Master Gate Open → Master Gate Close Notes: (A) System learning fails and needs to be learned again when an unpredictable interruption occurs.

  • Page 11: Led Indication

    2.8 LED INDICATION DOWN Blue LED on receiver board: Blinks three times when remote learning is completed. LED2 External device : If the switch of the key selector, or the push button is activated, LED2 will be on. RF-LEARN LED3 Photocells 1 : LED3 will be on when the first pair of the photocells are activated. LED4 Photocells 2 : LED4 will be on when the second pair of the photocells are activated.
  • Page 12 3. ADVANCED FUNCTION PARAMETER SETTING 3.1 HOW TO CHANGE For exmple: How to set the function “F1-0”; the steps are following: Step Operations LED Display after the Step (1) Press the “SET” button for 3seconds then releases it, and the system enters the first option.
  • Page 13 3.2 ADVANCED FUNCTION PARAMETER LED Display Definition Parameter Table Description Motor Type F1-1 Motor only 1. The factory setting is "F1-1". F1-2 Motor with Limit Switch F1-3 Motor with Hall sensor F2-1 Dual or Single Gate Dual Gate 1. The factory setting is "F2-1". F2-2 Single Gate F3-1...
  • Page 14 LED Display Definition Function Table Description Photocell 1 function FC-0 Function OFF 1. The factory setting is "FC-0". Function ON FC-1 Photocell 2 function Function OFF FD-0 1. The factory setting is "FD-0". FD-1 Function ON Buzzer function FE-0 Function OFF 1.

  • Page 15: Photocell Installation

    4. PHOTOCELL INSTALLATION The safety photocells are security devices for control automatic gates. Consist of one transmitter and one receiver based in waterproof covers; it is triggered while breaking the path of the beams. SPECIFICATION: Figure 1(1) Detection Method Through Beam Sensing Range Input Voltage AC/DC 12~24V...
  • Page 16 DKey SKey Ph1 PhVcc PhVcc 19 20 21 22 23 24 25 26 Figure 1(3) ARTICULATED ARM OPENERS USER MANUAL...
  • Page 17 4.1 PHOTOCELL WORKING LOGIC ADJUSTMENT The actions of the photocells safety edge loop detector when they detecting obstacles. F9-1 Photocell OPEN/CLOSE (Standard set up) Position of Gate When safety devices are activated Type of Safety Device Photocell-CLOSE Photocell-OPEN FULLY CLOSED No effect Open not allowed FULLY OPENED...
  • Page 18 5. GREEN BOX INSTALLATION (OPTIONAL) Green Box is for purpose when gate opener is in standby mode to allow it enter the power saving mode. Green Box AC out Cable AC in Installation manner: AC IN: connect the electricity AC OUT: connect the power of gate opener, and connect the transformer 5V CABLE: connect 3 pins white socket of control board Please make sure the switch of Green Box is off before proceeding the system learning and installation of device.

  • Page 19: Troubleshooting

    6. TROUBLE SHOOTING Overheated Back-up Batteries Check the wiring connection of the batteries. The gate doesn’t move when pressing the 1. Check if LED3 or 4 is “OFF”. button of the transmitter 2. Check if the voltage of the batteries is upon 22V. 3.

  • Page 20: Technical Feature

    7.2 TECHNICAL FEATURE: Model PAPILLON 250 Motor 24Vdc motor Gear type Electromechanical worm gear Nominal thrust 2500N Maximum Gate Weight 250 kg per leaf Maximum Gate Length 2.5 meters per leaf Operating Temperature C~+50 Dimension 256 x 187 x 267mm...
