- Page 1 USER’S MANUAL Page - 1 - from 12...
- Page 2 Short operation instruction VMT 4000 By pushing the automatic start button (4) the press plate is put into action and which automatically returns to the start position. With start bottom (2) the press plate remains in bottom position and light 2 is lit (night position).
-
Page 3: Table Of Contents
TABLE OF CONTENTS 3. Operation 3.1 Preparation for filling FOREWORD 3.2 Filling 3.3 Compacting IDENTIFICATION OF THE UNIT 3.6 FULL indicator 3.7 Emptying 3.8 Switching off SAFETY GUIDELINES AND WARNINGS OF DANGER MATERIALS USED AND THE ENVIRONMENT 4. CLEANING AND MAINTENACE 1-8 introduction 1.1 Description of the process 5. -
Page 4: Identification Of The Unit
The electrical and hydraulic diagram applicable General to the Compactor can be found in a holder on the rear of the unit This manual is meant for the user of the Compactor. The options and operation are described, with In case of malfunctions contact your references also being made to the safest and most supplier/service agency. -
Page 5: Safety Guidelines And Warnings Of Danger
The user of the unit is at all times fully responsible The TGMi 750 Compactor was designed for the fulfilment of the locally applicable safety solely for the compacting of light waste regulations and guidelines. -
Page 6: Materials Used And The Environment
In relation to the danger of short Technical specifications circuits the unit must not be cleaned The specifications in this manual must not be using a water hose changed. Modifications Respect the instructions given in chapter 5 regarding what to do in case of malfunction. -
Page 7: Description Of The Process

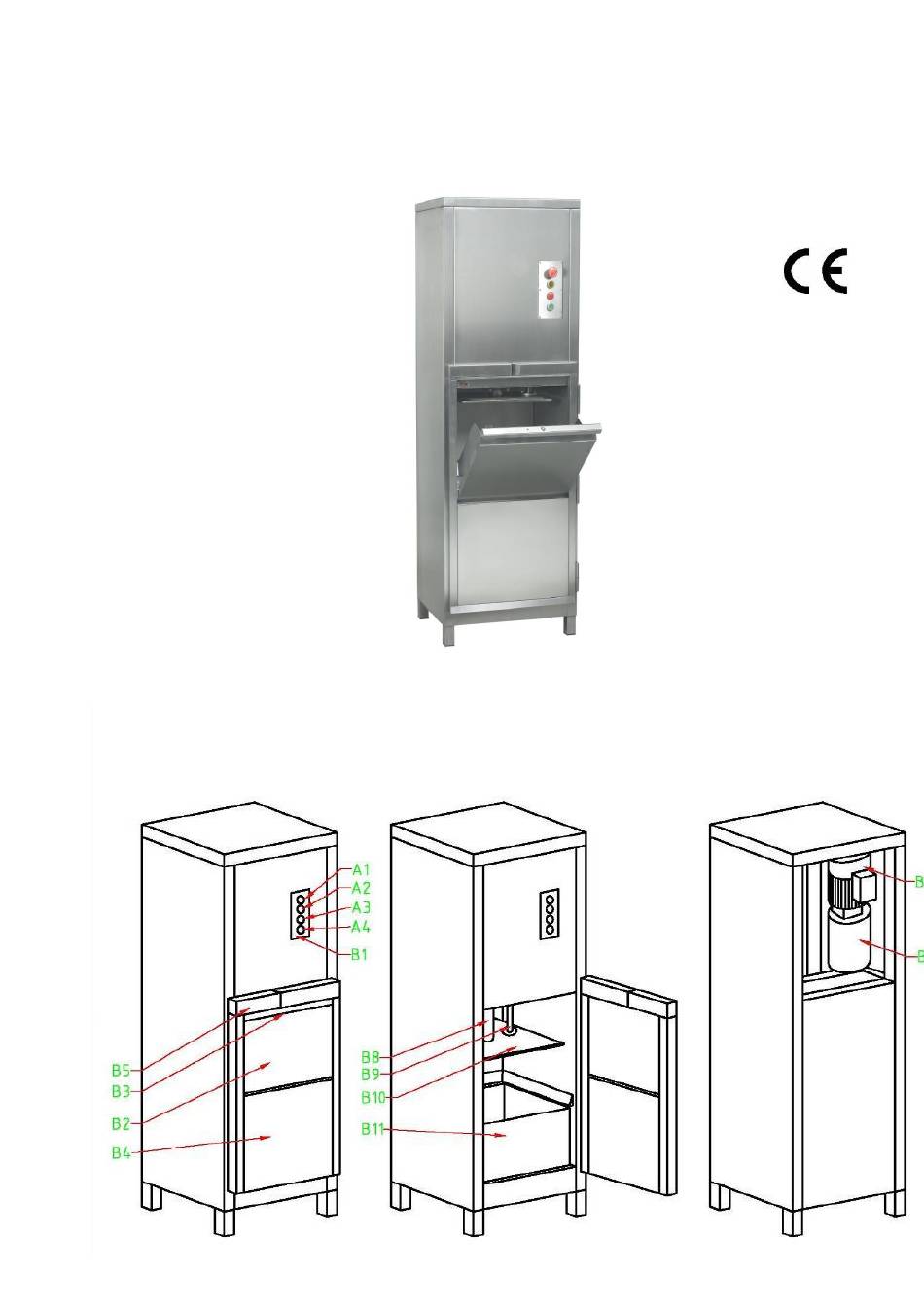

Description of the unit opening is opened. The sheet work is made of stainless steel 304. Description of the various parts of your Compactor FOLD BACK THE COVER TGMi 750 Compactor CONTROL PANEL Emergency stop full Start Other parts of the Compactor... -
Page 8: Unpacking
WARNING The unit has a bipolar grounded plug. Unpacking An authorised installer must install the wall outlet. See chapter 6 for the Remove all packaging necessary electrical installation. materials from the unit. Inspect the unit for damage. Make sure that all parts that belong to the model you have ordered are present. -
Page 9: Preparation For Filling
Place the option switch on “START “ and The instructions for operation are described in the release it following paragraphs. The codes refer to the illustrations on the foldout sheet of the cover. When the Compactor is delivered the punch (B10) is in its lowest The Compactor will now make a single compression position. -
Page 10: Emptying
Emptying Check the level of the hydraulic oil in the Open the door (B4). system. Pull the container out of the Compactor. Add oil if necessary. The maximal oil level must remain at least 1 cm under the upper edge. ... -
Page 11: Faults And Service/What To Do
FAULTS AND SERVICE/WHAT TO DO Before you consult your dealer or the service agency when there is a fault, you can check the following points yourself: Fault: the unit does not work Is the plug in the outlet Is the power supply OK? Check the fuses and the earth leakage switch in the meter cupboard... -
Page 12: Technical Specifications
TECHNICAL SPECIFIKATIONS Model TGMi 750 Compactor dimensions width 560 mm depth 475 mm height on legs 1.750 mm Weights gross 198 kg 196 kg Electrical installation * Voltage 1N-50/60Hz 230-240 V max. rated voltage 3.8 A capacity to be placed...
