- Page 1 Operator's Manual EN p. 2 Chipper FD1501 Save this manual for future reference Read all safety rules and instructions carefully before operating this tool. Distributed By: Suzhou Cleva Electric Appliance Co., Ltd. NO.8 Ting Rong Street 215122 Suzhou - China...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Section Page TABLE OF CONTENTS SPECIFICATIONS IMPORTANT SAFETY INSTRUCTIONS SYMBOLS 9-10 KNOW YOUR CHIPPER ASSEMBLY 12-14 OPERATION 15-18 MAINTENANCE 19-21 TROUBLESHOOTING ® LAWNMASTER WARRANTY EXPLODED VIEW PARTS LIST NOTES 26-27... -
Page 3: Specifications
SPECIFICATIONS CHIPPER FD1501 Nominal Current 15 A Nominal Voltage 120 V~60 Hz Speed 3800 rpm Maximum Cutting Diameter 1-1/2" (38 mm) Volume Of Collection Bag 15.85 gal Weight 29.75 lbs (13.5 kg) NOTE: The max. branch thickness that can be chipped is dependent on the type of wood and the quality of the goods being cut, but never thicker than 1-1/2"... -
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS WARNING READ AND UNDERSTAND ALL INSTRUCTIONS. Failure to follow all instructions listed below may result in electric shock, fire and/or serious personal injury: WARNING To avoid mistakes that could cause serious injury, do not plug in the chipper until the following steps have been read thoroughly. - Page 5 IMPORTANT SAFETY INSTRUCTIONS ■ Store Idle Appliances Indoors – When not in use, appliances should be stored indoors in dry, and high or locked-up place out of reach of children. ■ Maintain Appliance With Care – Keep cutting edge sharp and clean for best performance and to reduce the risk of injury.
- Page 6 IMPORTANT SAFETY INSTRUCTIONS WARNING Never place hands near discharge chute. Failure could result in serious Injury. WARNING Never reach into the hopper until the chipper has come to a complete stop and is unplugged. The chipper will continue to rotate for a few seconds after it is switched off. ELECTRICAL INFORMATION WARNING TO AVOID ELECTRICAL HAZARDS, FIRE HAZARDS, OR DAMAGE TO THE TOOL, USE PROPER...
- Page 7 IMPORTANT SAFETY INSTRUCTIONS WARNING DOUBLE INSULATION DOES NOT TAKE THE PLACE OF NORMAL SAFETY PRECAUTIONS WHEN OPERATING THIS TOOL. CAUTION ALWAYS MAKE SURE THAT YOUR OUTLET IS PROPERLY GROUNDED. IF UNCERTAIN, HAVE IT CHECKED BY A CERTIFIED ELECTRICIAN. WARNING THIS LAWN TOOL IS FOR OUTDOOR USE ONLY. DO NOT EXPOSE TO RAIN OR USE IN DAMP LOCATIONS.
- Page 8 IMPORTANT SAFETY INSTRUCTIONS Make sure your extension cord is properly wired and in good electrical condition. Always replace a damaged extension cord or have it repaired by a qualified person before use. Keep extension cords away from sharp objects, excessive heat and damp or wet areas. Use a separate electrical circuit for your tools.
-
Page 9: Symbols
SYMBOLS Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer. SYMBOL NAME DESIGNATION/EXPLANATION Volts Voltage Amperes Current Hertz Frequency(cycles per second) - Page 10 SYMBOLS The following signal words and meanings are intended to explain the levels of risk associated with this product. SYMBOL SIGNAL MEANING Indicates an imminently hazardous situation, which, if not DANGER avoided, will result in death or serious injury. Indicates a potentially hazardous situation, which, if not WARNING avoided, could result in death or serious injury.
-
Page 11: Know Your Chipper

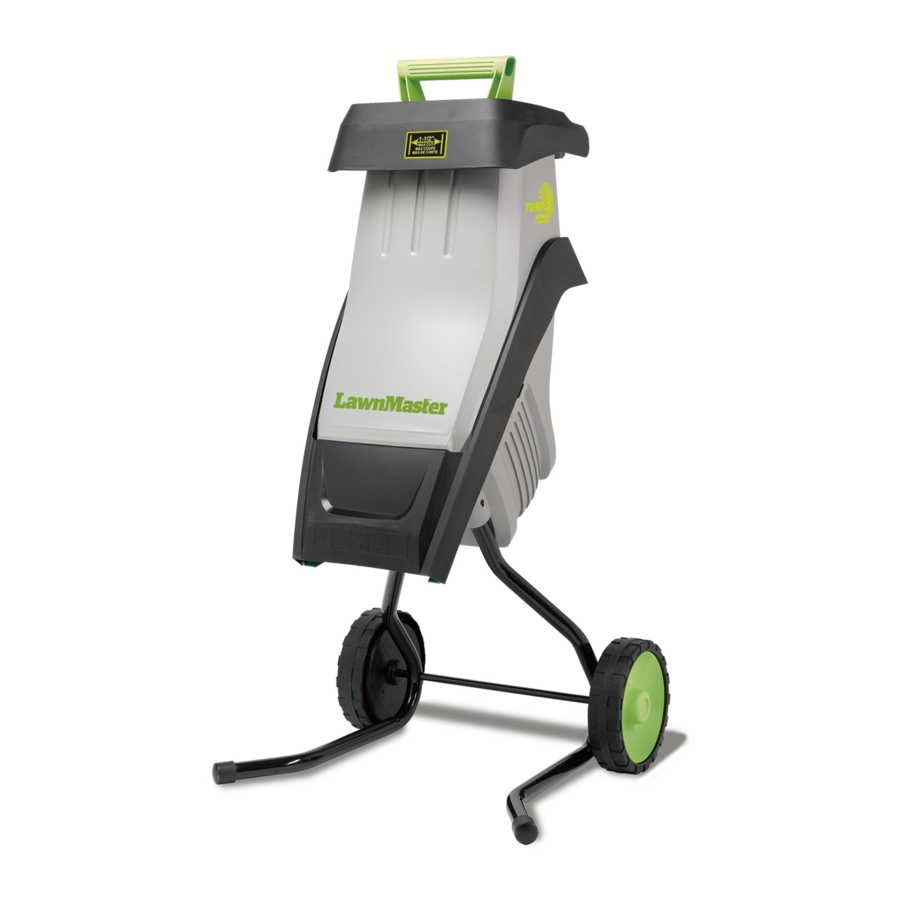

KNOW YOUR CHIPPER The safe use of this product requires an understanding of the information on the product and in this Operator’s Manual as well as a knowledge of the project you are attempting. Before use of this product, familiarize yourself with all operating features and safety rules. Components 1. -
Page 12: Assembly
ASSEMBLY UNPACKING This product requires assembly. ■ Carefully remove the product and any accessories from the box. Make sure all items listed in the packing list are included. ■ Inspect the product carefully to make sure no breakage or damage occurred during shipping. ■... - Page 13 ASSEMBLY WARNING Do not attempt to modify this product or create accessories not recommended for use with this product. Any such alteration or modification is misuse and could result in a hazardous condition leading to possible serious personal injury. WARNING Do not connect to power supply until assembly is complete.
- Page 14 ASSEMBLY ■ Slide the axle through the 2 holes at the curves of chassis. Slide the two wheels onto the chassis axle. Place the washers onto the axle. Push straight end of the cotter pins into axle holes and press into holes until secured (Fig.
-
Page 15: Operation
OPERATION WARNING Do not allow familiarity with this type of product to make you careless. Always pay attention when operating this product, not doing so can result in serious injury. WARNING Always use protective equipment when working with the chipper. Do not use any attachments or accessories not recommended by the manufacturer of this product. - Page 16 OPERATION ■ Turn the On/Off switch to the OFF position to turn off the chipper. Allow at least 5 seconds for the blade to stop rotating (Fig. 5). Motor Reset Button Fig. 5 USING YOUR CHIPPER The chipper is designed to work on yard waste, debris, sticks and twigs up to 1-1/2" (38 mm) in diameter.
- Page 17 OPERATION WARNING Do not try to chip any material that exceeds the capacity of this tool. Doing so may cause the motor to jam and overheat. Never put your hands in the hopper or near the blade when the tool is running. WARNING Always allow 5 seconds or more for the blade to a space between stop and rotating after turning off the chipper.
- Page 18 OPERATION ■ Plug the chipper back in. Press the reset button. Then turn ON the chipper (Fig. 7). Fig. 7 WARNING To prevent an accidental start-up if the reset button is pressed, the ON/OFF switch should be in the OFF position. The plug should be removed from the power source while cool down takes place.
-
Page 19: Maintenance
MAINTENANCE WARNING Always switch the product off, disconnect it from the power supply and let the product cool down before performing maintenance. WARNING Do not use any attachments or accessories that are not recommended by the manufacturer of this product. Using attachments or accessories not recommended can result in serious personal injury. WARNING Always wear protective, heavy gloves and use protective safety equipment when performing blade maintenance. - Page 20 MAINTENANCE WARNING To avoid damage or electric shock, do not use strong solvents or detergents on the plastic housing or plastic components. Certain household cleaners may cause damage and may also cause a shock hazard. REVERSING & REPLACING THE BLADE The chipper has a two-sided reversible blade that is attached to a rotating support plate.
- Page 21 MAINTENANCE ■ Take out the hex key from the recess in the housing inside the chipper. Use the hex key to loosen the screw counterclockwise. Remove the screw and the washer. Remove the blade from the blade support (Fig. 10 & 11). ■...
-
Page 22: Troubleshooting
TROUBLESHOOTING Suspected malfunctions are often due to causes that the user can fix themselves. Therefore, check the product using this section. In most cases the problem can be solved quickly. WARNING Only perform the steps described within these instructions! All further inspection, maintenance and repair work must be performed by an authorized service center or a similarly qualified specialist if you cannot solve the problem yourself! Gloves and appropriate protective clothing must be worn when performing these instructions. -
Page 23: Lawnmaster ® Warranty
LAWNMASTER WARRANTY ® We take pride in producing a high quality, durable product. This Lawnmaster product carries a limited two (2) year warranty against defects in workmanship and materials from date of purchase under normal household use. If product is to be used for commercial, industrial or rental use,a 30 day limited warranty will apply. -
Page 24: Exploded View
EXPLODED VIEW... -
Page 25: Parts List
PARTS LIST Key Number Part Number Description Quantity Chipper Assembly 181042105 Blade Hex Key Cord Retainer Left Chassis Assembly Right Chassis Assembly Wheel Axle Large Wheel Assembly Washer & Cotter Pin Accessory Kit Large Wheel Assembly 181006116 Collection Bag 181042108 Push Paddle Replacement parts highlighted in grey are available for after sales purchase. -
Page 26: Notes
NOTES... - Page 27 NOTES...
